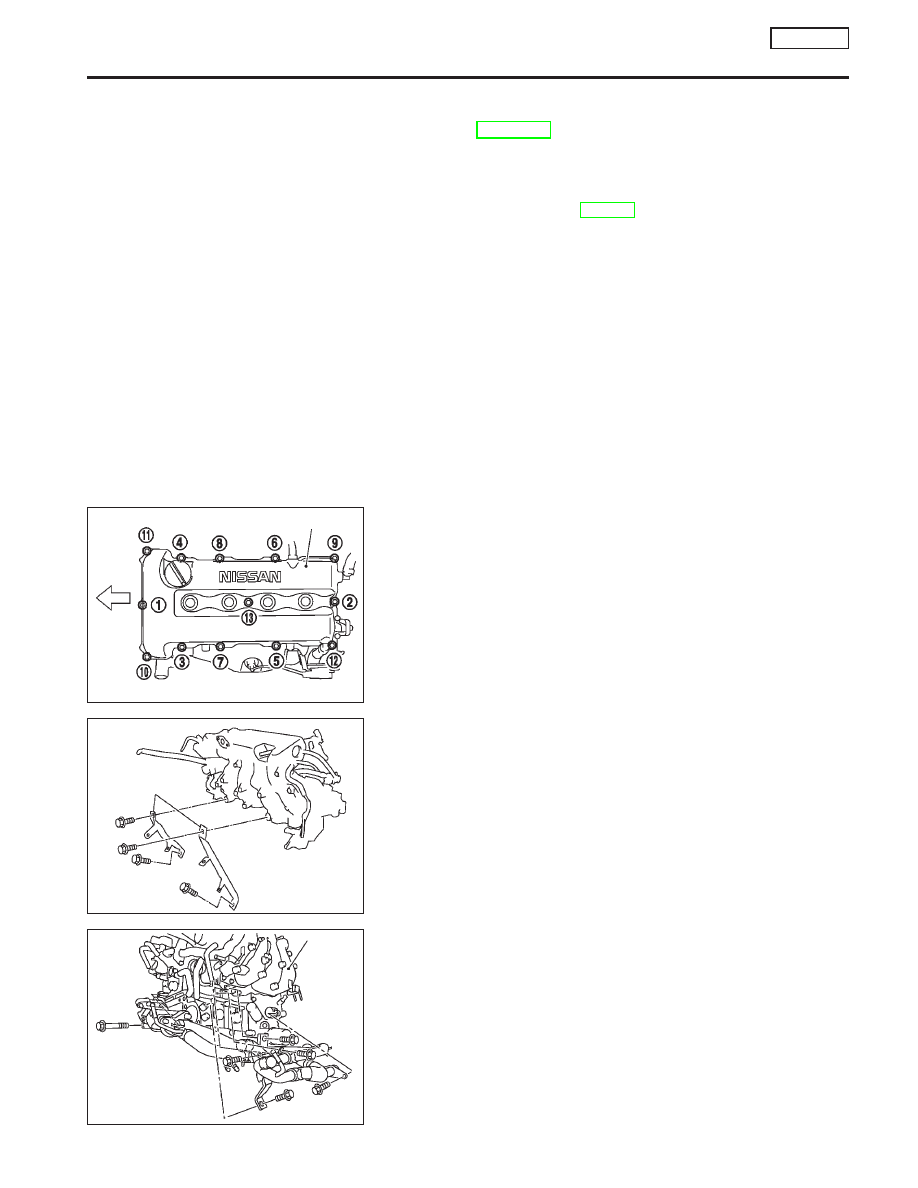

Removal

NLEM0131

1.

Release fuel pressure.
Refer to EC-SR-31, “Fuel Pressure Release”.

2.

Remove engine under covers.

3.

Remove front RH wheel and engine side cover.

4.

Drain coolant by removing cylinder block drain plug and radia-
tor drain cock. Refer to MA-29, “Changing Engine Coolant”.

5.

Remove radiator.

6.

Remove air duct to intake manifold.

7.

Disconnect the following parts:

I

Vacuum hoses

I

Fuel hoses

I

Wires

I

Harness

I

Connectors

I

Front exhaust tube

8.

Remove all spark plugs.

9.

Remove rocker cover bolts in numerical order.

10. Remove rocker cover.

11. Remove intake manifold supports.

12. Remove water pipe assembly.

SEM029G

Engine
front

Loosen in numerical order.

Rocker cover

SEM030G

Intake manifold
supports

SEM065G

Intake
manifold

CYLINDER HEAD

SR20DE

Removal

EM-87

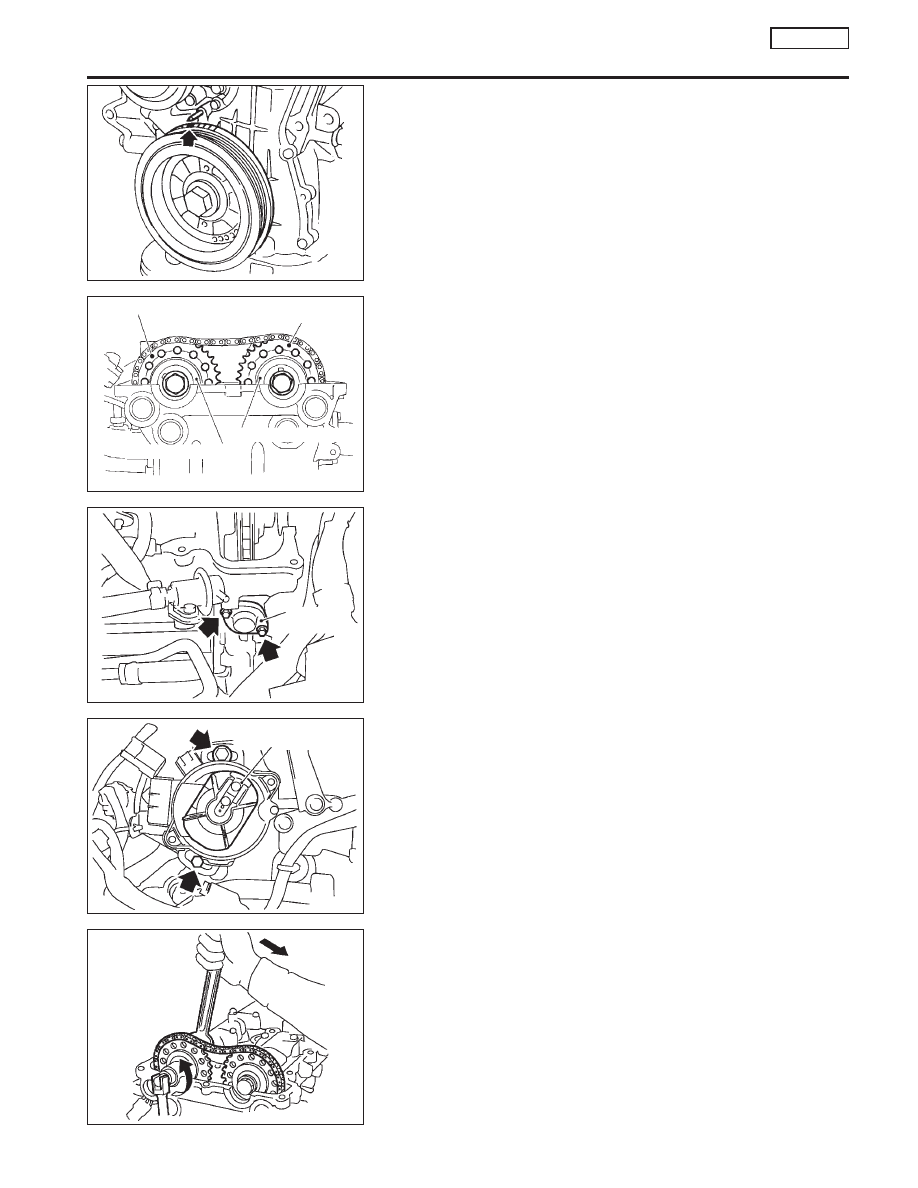

13. Set No. 1 piston at TDC of its compression stroke.

I

Rotate crankshaft until mating mark on camshaft sprocket
is set at position indicated in figure.

14. Remove chain tensioner.

15. Remove distributor.
Do not turn rotor with distributor removed.

16. Remove camshaft sprockets.

I

For retiming in cylinder head removal, apply paint mark to
timing chain matched with mating marks of camshaft
sprockets.

SEM983C

SEM031G

Mating mark

Mating mark

RH camshaft sprocket

LH camshaft sprocket

.

SEM032G

Chain
tensioner

SEM033G

Rotor head position
(No. 1 cylinder at TDC)

SEM034G

CYLINDER HEAD

SR20DE

Removal (Cont’d)

EM-88

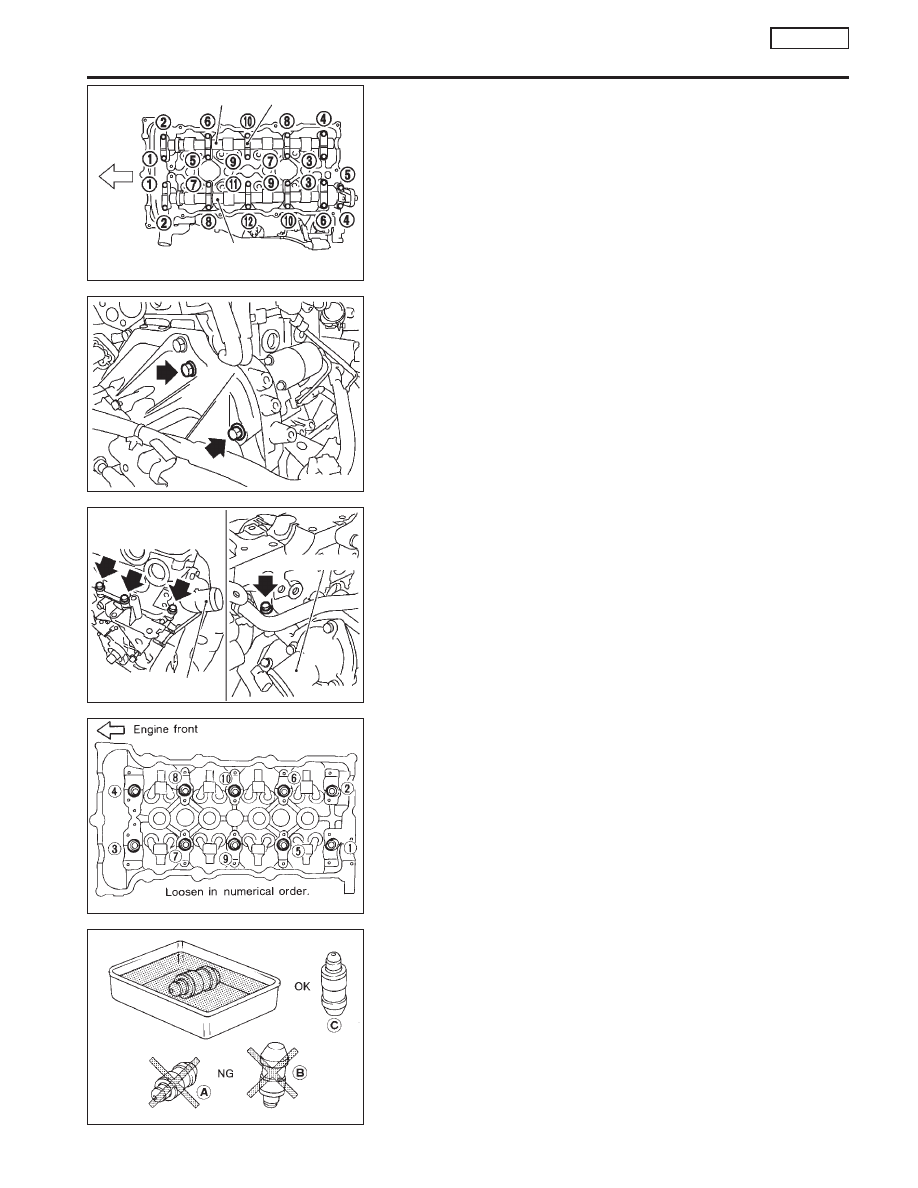

17. Remove camshaft brackets and camshafts.

I

Mark these parts’ original positions for reassembly.

18. Remove starter motor.
19. Remove the following water hoses:

I

Water hose for cylinder block.

I

Water hoses for heater.

20. Remove cylinder head outside bolts.

21. Remove cylinder head bolts in numerical order.

I

Removing bolts in incorrect order could result in a warped
or cracked cylinder head.

I

Loosen cylinder head bolts in two or three steps.

22. Remove cylinder head completely with intake and exhaust

manifolds.

Disassembly

CAUTION:

I

When installing camshafts, chain tensioners, oil seals or
other sliding parts, lubricate contacting surfaces with new
engine oil.

I

When tightening cylinder head bolts, camshaft sprocket
bolts, cramshaft pulley bolt and seat surfaces, lubricate
with new engine oil.

I

If a hydraulic lash adjuster is kept on its side, there is a
risk of air entering it. After removal, always set hydraulic

SEM035G

Engine
front

RH camshaft

Camshaft bracket

LH camshaft

Loosen in numerical order.

SEM036G

SEM037G

Water outlet

Water inlet

SEM978C

SEM878CA

OK

NG

CYLINDER HEAD

SR20DE

Removal (Cont’d)

EM-89

lash adjuster straight up, or keep it soaked in new engine
oil.

I

Do not disassemble hydraulic lash adjusters.

I

Attach tags to lash adjusters so as not to mix them up.

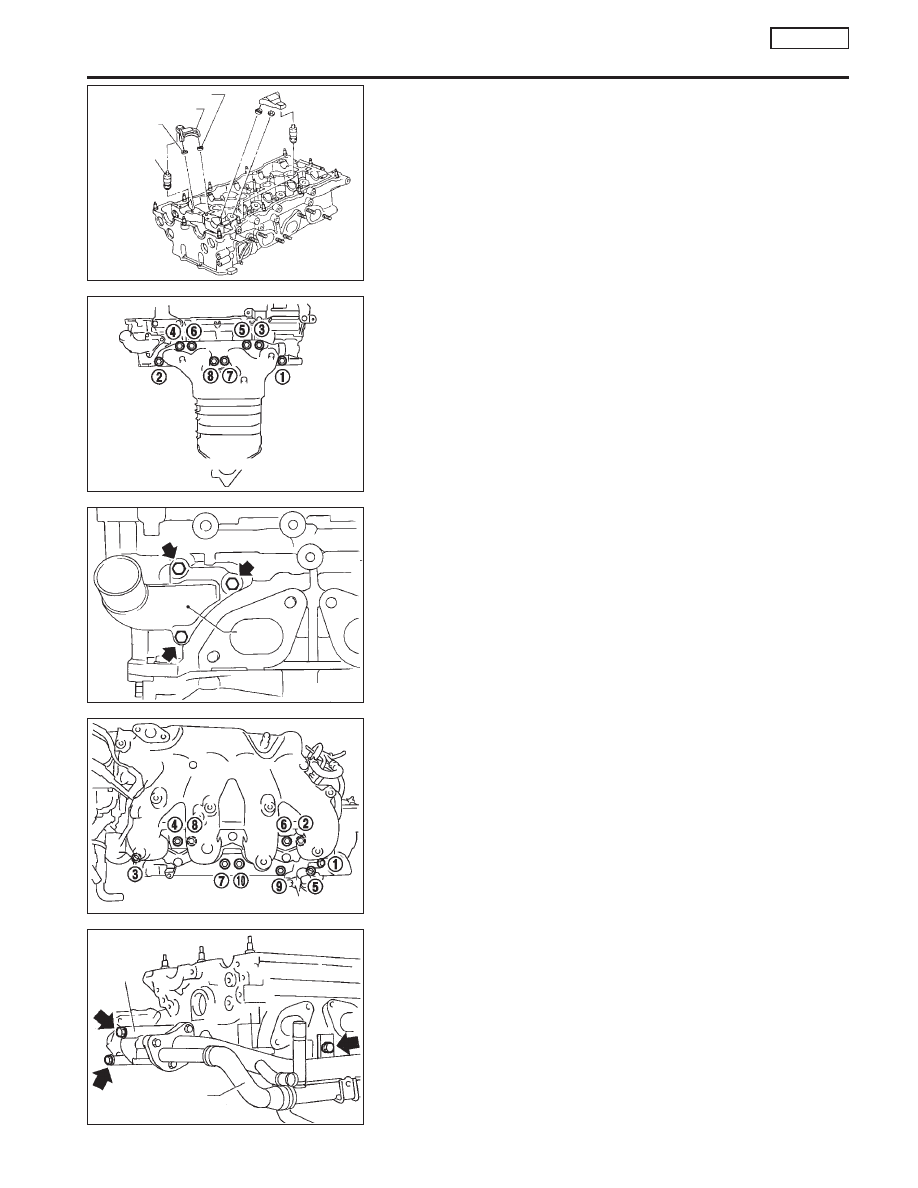

1.

Remove rocker arms, shims, rocker arm guides and hydraulic
lash adjusters from cylinder head.

CAUTION:

Keep parts in order so that they can be installed in their origi-
nal positions during assembly.

2.

Remove exhaust manifold cover.

3.

Remove exhaust manifold.

4.

Remove water outlet.

5.

Remove intake manifold.

6.

Remove thermostat housing with water pipe.

SEM202D

Rocker arm guide

Rocker arm

Shim

Hydraulic
lash adjuster

SEM059G

Loosen in numerical order.

.

SEM082D

Water
outlet

SEM061G

Loosen in numerical order.

NEM215

Water pipe

Thermostat
housing

CYLINDER HEAD

SR20DE

Disassembly (Cont’d)

EM-90
