Nissan Primera P11. Manual - part 406





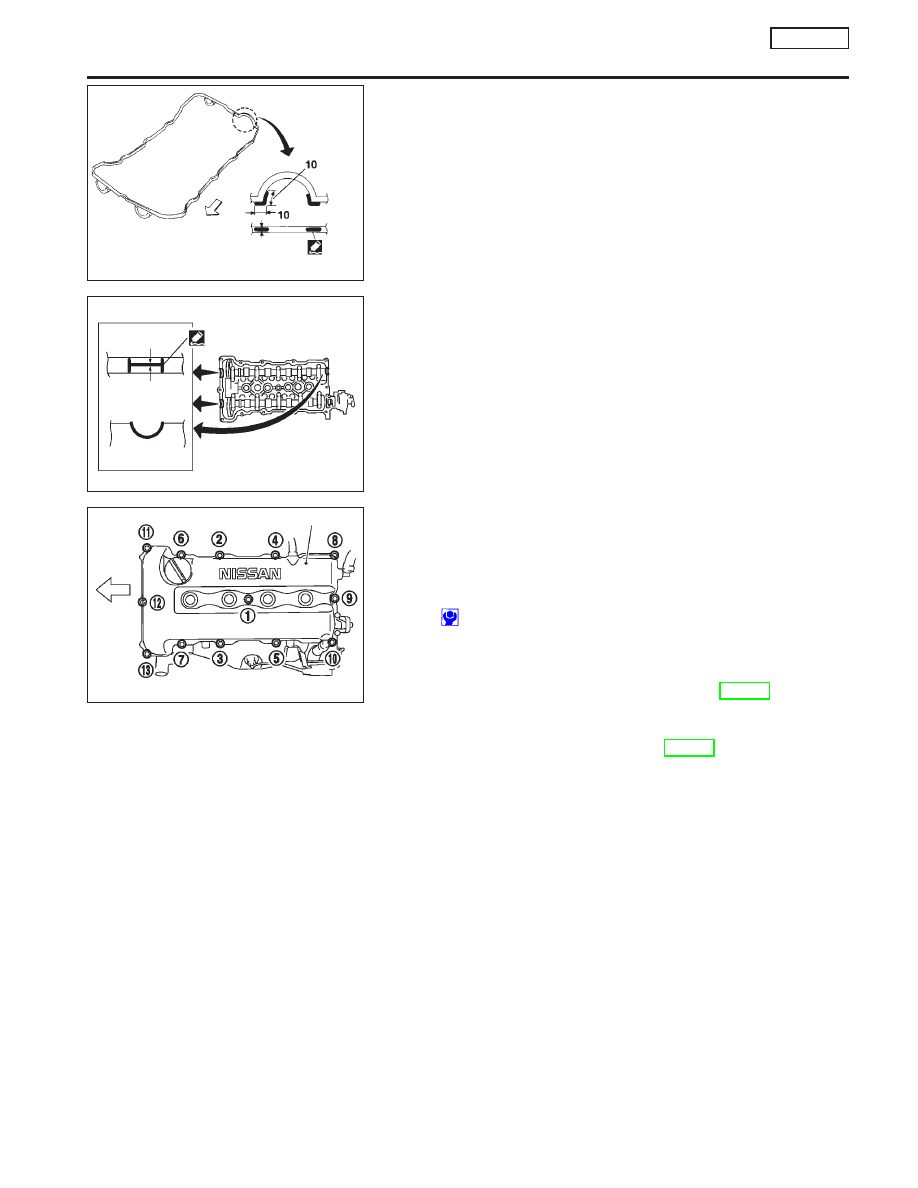

18. Remove old liquid gasket from mating surfaces of rocker cover

and cylinder head.

19. Apply a continuous bead of liquid gasket to rocker cover gas-

ket and cylinder head as shown in the illustrations.

I

Use Genuine RTV silicone sealant Part No. 999MP-A7007
or equivalent.

20. Install rocker cover and oil separator.

I

Be sure to install washers between bolts and rocker cover.

I

Tightening procedure

STEP 1: Tighten bolts 1 - 10 - 11 - 13 - 8 in that order.
STEP 2: Tighten bolts 1 - 13 in that order.

: 8 - 10 N

m (0.8 - 1.0 kg-m, 69 - 87 in-lb)

21. Install the following parts:

I

Spark plugs and leads

I

Water pump pulley and drive belts.
For adjusting drive belt deflection, refer to MA-28, “Checking
Drive Belts”.

I

Refit lower radiator hose and cylinder block drain plug.

I

Refill with engine coolant. Refer to MA-29, “Changing Engine
Coolant”.

I

Front RH wheel

I

Engine under cover

22. Connect the following:

I

Vacuum hoses

I

Wire harnesses and connectors

BEM006

Engine
front

Unit: mm (in)

3 (0.12)

(0.39)

(0.39)

SEM051G

3 mm
(0.12 in) dia.

SEM052G

Engine
front

Tighten in numerical order.

Rocker cover

TIMING CHAIN

SR20DE

Installation (Cont’d)

EM-83

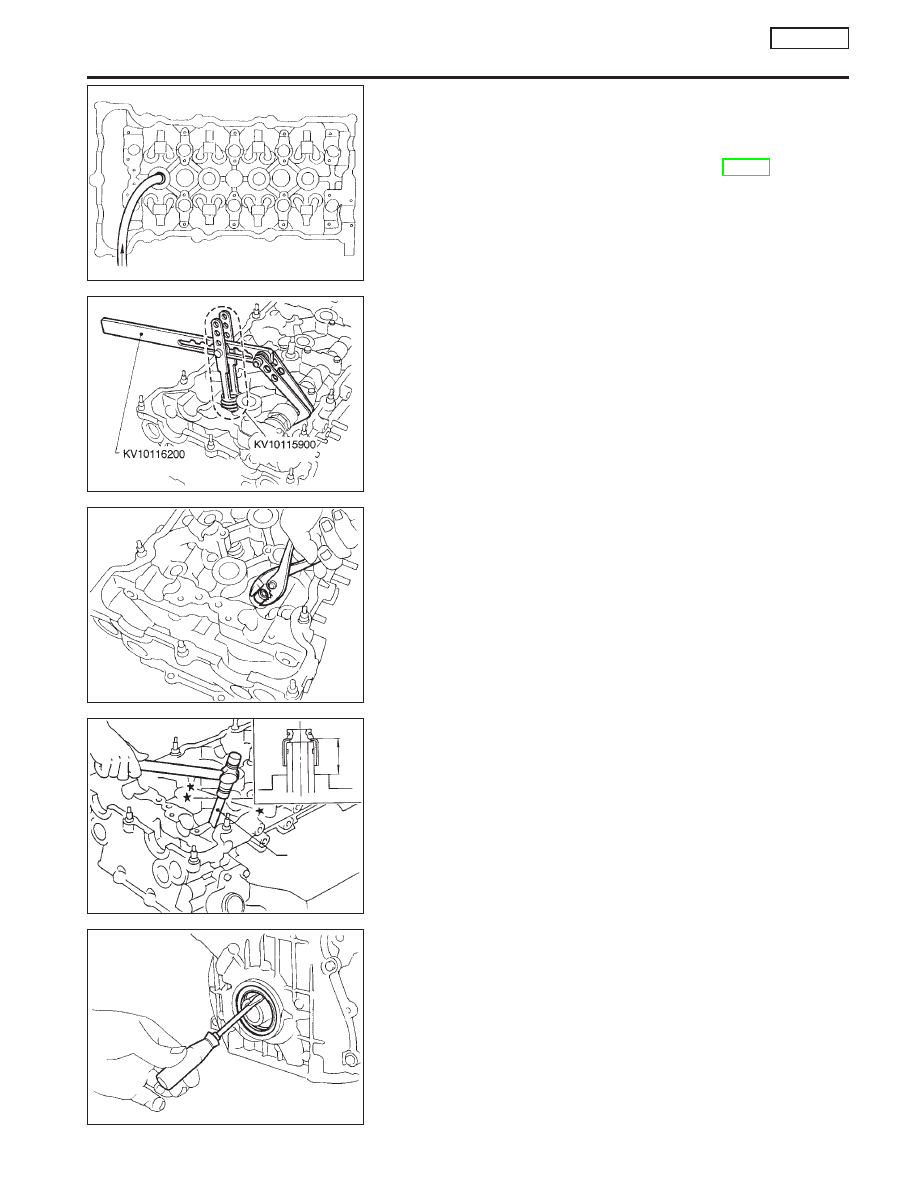

VALVE OIL SEAL

1.

Remove accelerator cable.

2.

Remove rocker cover and oil separator.

3.

Remove camshafts and sprockets.
Refer to “Removal” in “CYLINDER HEAD” (EM-87).

4.

Remove spark plugs.

5.

Install air hose adapter into spark plug hole and apply air
pressure to hold valves in place. Apply a pressure of 490 kPa
(4.9 bar, 5 kg/cm

2

, 71 psi).

6.

Remove rocker arm, rocker arm guide and shim.

7.

Remove valve spring with Tool.

Piston concerned should be set at TDC to prevent valve from
falling.

8.

Remove valve oil seal.

9.

Apply engine oil to new valve oil seal and install it with Tool.

FRONT OIL SEAL

1.

Remove the following parts:

I

Engine undercover

I

Front RH wheel and engine side cover

I

Drive belts

I

Crankshaft pulley

2.

Remove front oil seal.

Be careful not to scratch front cover.

SEM077D

SEM604E

Compressor assembly

Attachment

SEM994C

SEM358E

10.7

mm

(0.421

in)

KV10115600

SEM997C

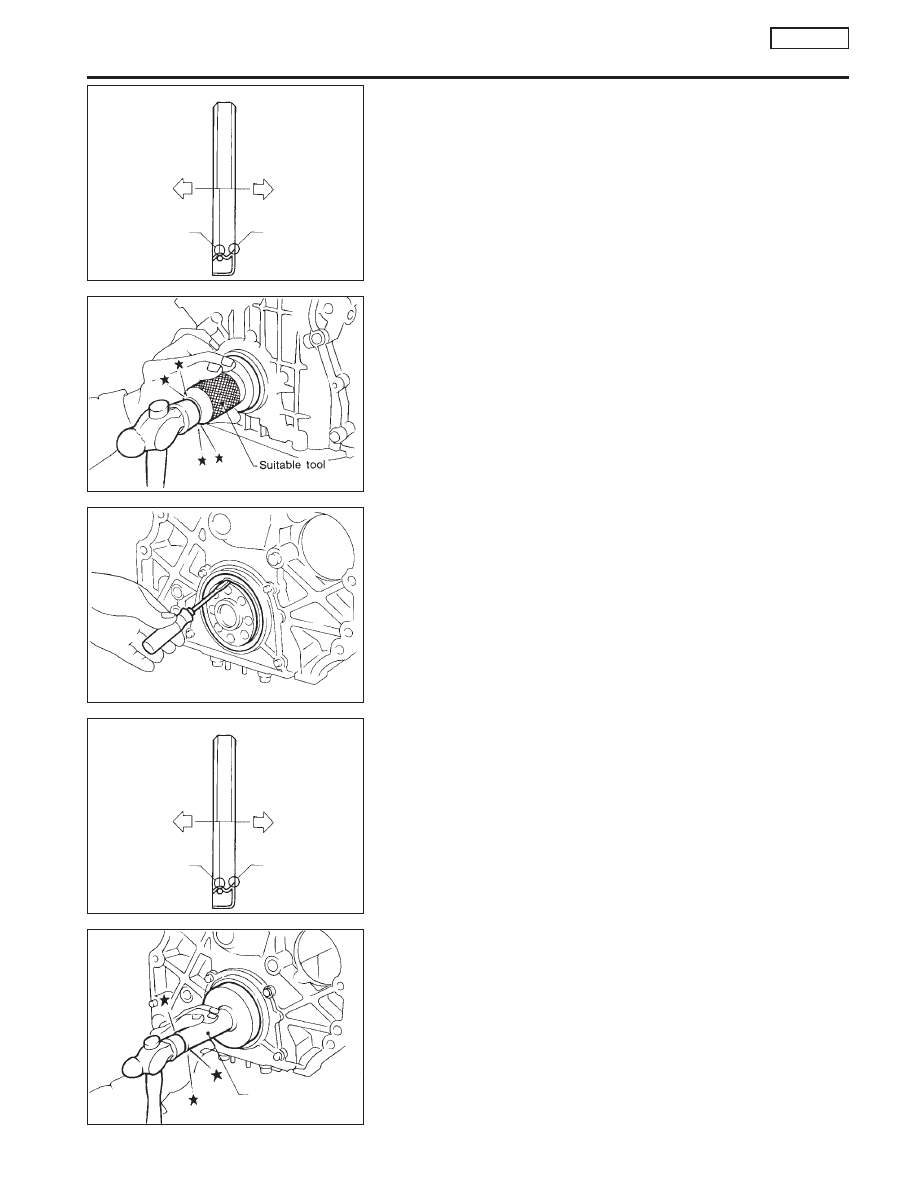

OIL SEAL REPLACEMENT

SR20DE

EM-84

I

Install new oil seal in the direction shown.

3.

Apply engine oil to new oil seal and install it using a suitable
tool.

REAR OIL SEAL

1.

Remove transaxle. (Refer to MT or AT section.)

2.

Remove flywheel or drive plate.

3.

Remove rear oil seal.

I

Be careful not to scratch rear oil seal retainer.

I

Install new oil seal in the direction shown.

4.

Apply engine oil to new oil seal and install it using a suitable
tool.

SEM715A

Engine
outside

Dust seal lip

Engine
inside

Oil seal lip

SEM998C

SEM999C

SEM715A

Engine
inside

Oil seal lip

Engine
outside

Dust seal lip

SEM001D

Suitable tool

OIL SEAL REPLACEMENT

SR20DE

EM-85

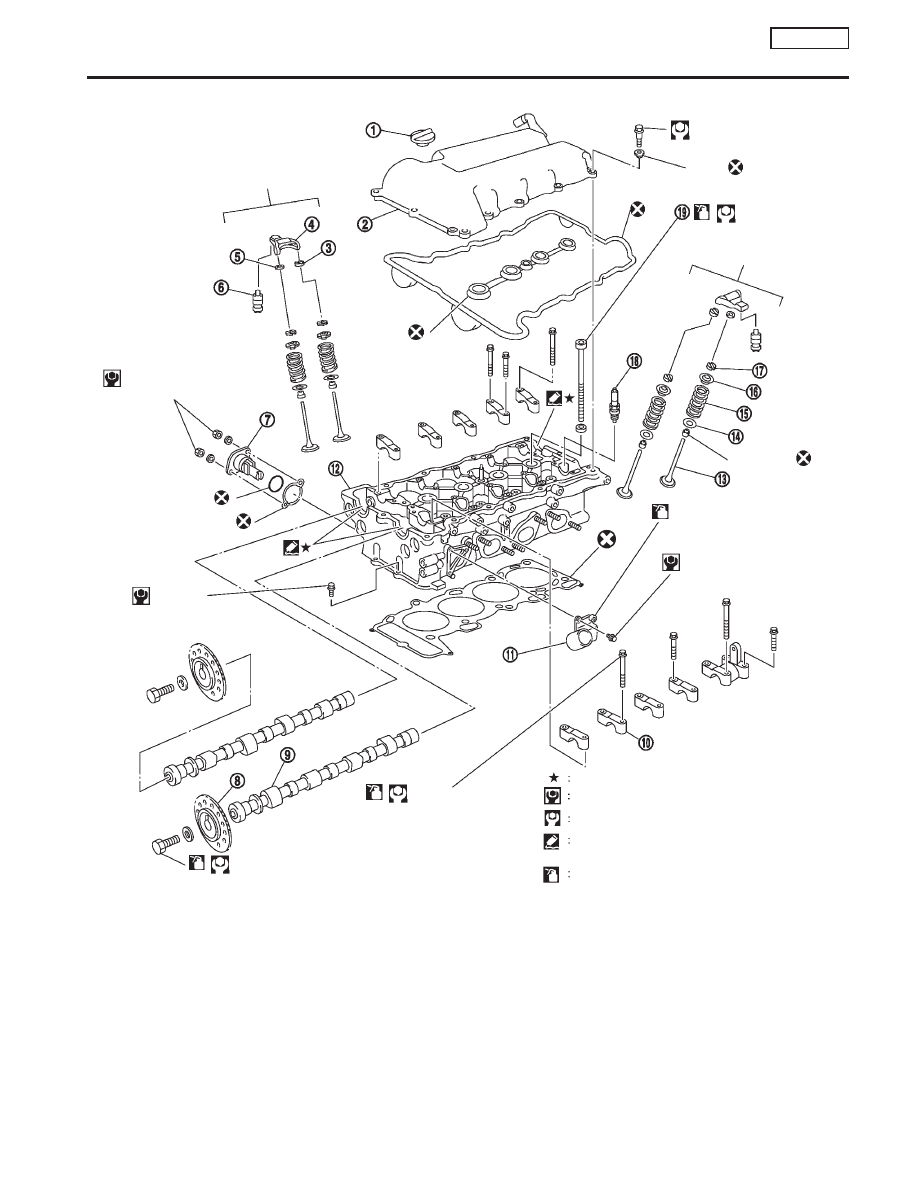

Components

NLEM0130

1.

Oil filler cap

2.

Rocker cover

3.

Rocker arm guide

4.

Rocker arm

5.

Shim

6.

Hydraulic lash adjuster

7.

Chain tensioner

8.

Camshaft sprocket

9.

Camshaft

10. Camshaft bracket
11. Water outlet
12. Cylinder head
13. Valve

14. Valve spring seat
15. Valve spring
16. Valve spring retainer
17. Valve collet
18. Spark plug
19. Cylinder head bolt

NEM355

Intake side

Refer to “Installation” in
“CYLINDER HEAD”.

Washer

Refer to
“Installation” in
“CYLINDER HEAD”.

Exhaust side

Refer to “Installation”
in “CYLINDER HEAD”.

137 - 157 (14 - 16, 101 - 116)

Gasket

O-ring

Gasket

Rocker cover

gasket

Valve oil seal

6.3 - 8.3
(0.64 - 0.85, 55.6 - 73.8)

.

SEC. 111

130

6.3 - 8.3
(0.64 - 0.85, 55.6 - 73.8)

9.0 - 11.8
(0.92 - 1.2,
79.9 - 104.2)

Refer to LC section (“Water
Outlet”, “ENGINE COOLING
SYSTEM”).

Refer to “Installation” in “CYLINDER HEAD”.

N·m (kg-m, in-lb)

N·m (kg-m, ft-lb)

Apply Genuine RTV Silicone SEALANT Part No. 999
MP-A7007 or equivalent.

Lubricate with new engine oil.

CYLINDER HEAD

SR20DE

Components

EM-86
