YEL254C

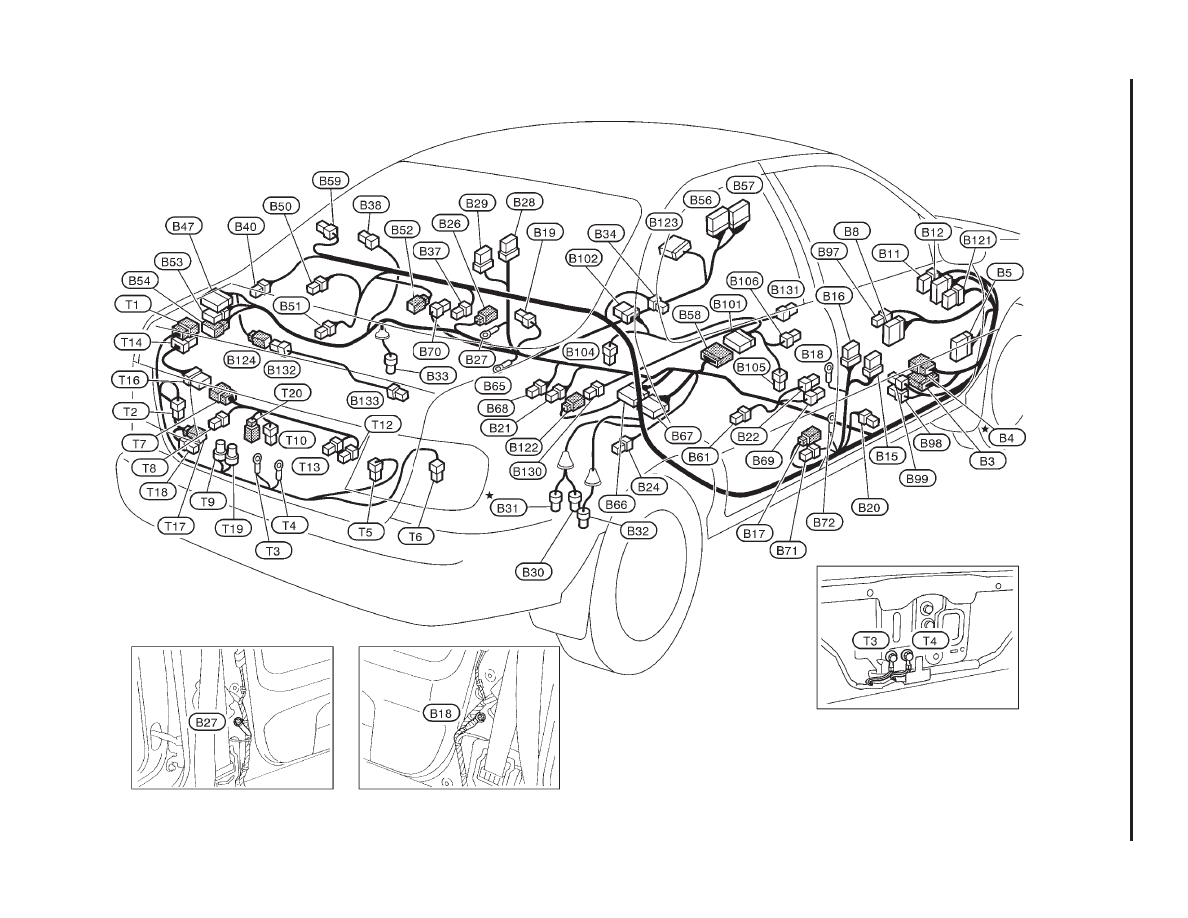

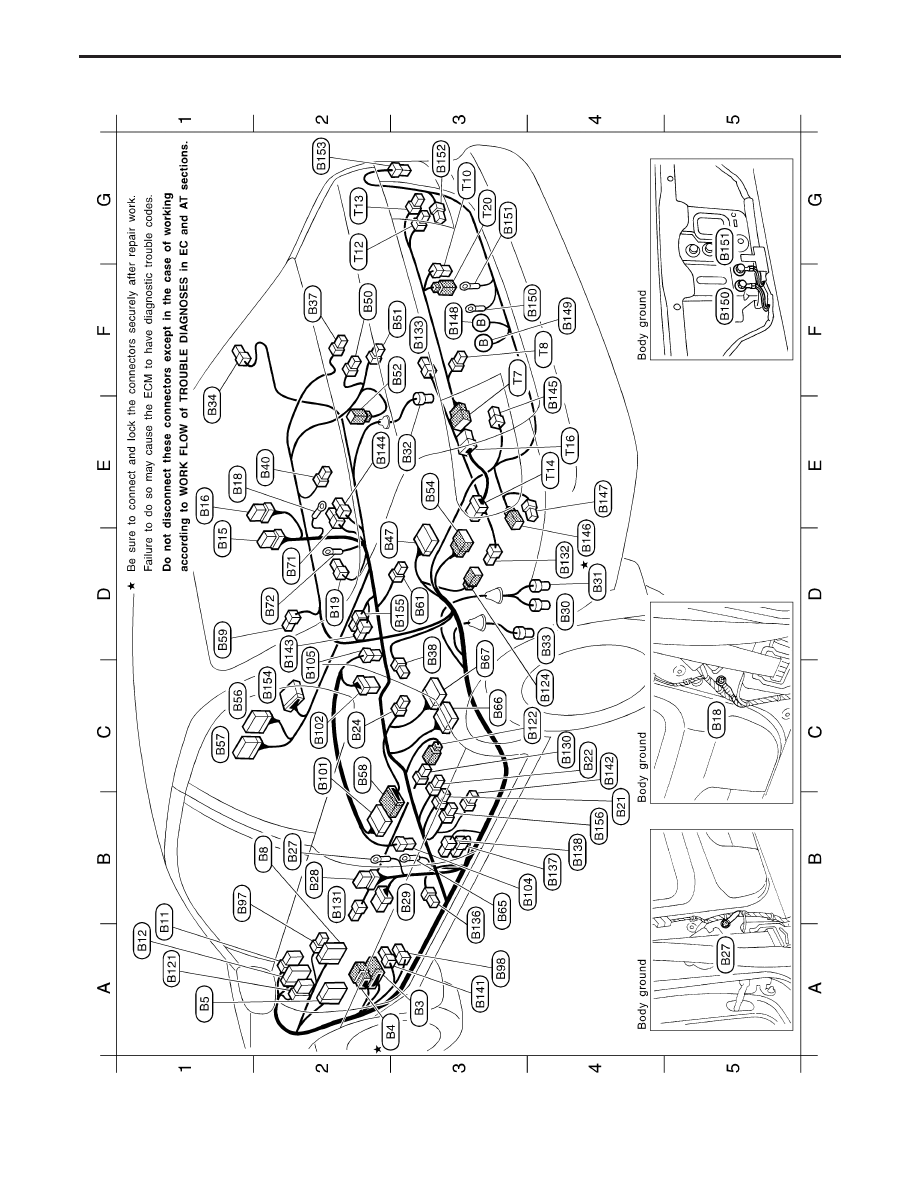

Body harness
A3
B3
W/24 :
To
M13
A2
★
B4
W/6
:
To
M14
A1
B5
W/12 :
To
D2
B2
B8
BR/16 :
Fuse block (J/B)
A1
B11
W/8
:
Time control unit
A1
B12
W/20 :
Time control unit
D1
B15
W/6
:
Ultra sonic sub-sensor
E1
B16
W/8
:
To
D22
E2
B17
W/4
:
Seat belt pre-tensioner (Passenger side)
E1
B18
—
:
Body ground
D2
B19
BR/1 :
Front door switch (Passenger side)
B3
B20
B/3
:
Front door switch (Driver’s side)
B4
B21
W/3
:
Heated seat LH
C4
B22
W/2
:
Power seat
C2
B24
B/1
:
Parking brake switch
B4
B26
W/4
:
Seat belt pre-tensioner (Driver’s side)
B2
B27
—
:
Body ground
B2
B28
W/8
:
To
D18
B3
B29
W/8
:
Ultra sonic sensor
D4
B30
GY/2 :
Fuel pump
D4
★
B31
GY/3 :
Fuel level sensor unit
E3
B32
GY/2 :
Rear wheel sensor RH
D4
B33
BR/2 :
Rear wheel sensor LH
E1
B34
BR/1 :
Rear door switch RH
F2
B37
B/2
:
Rear speaker RH
D3
B38
BR/1 :
Rear door switch LH
E2
B40
B/2
:
Rear speaker LH
D2
B47
W/16 :
CD auto changer
F2
B50
B/1
:
High mounted stop lamp
F3
B51
W/2
:
Trunk room lamp
F3
B52
W/4
:
Rear wiper motor
E3
B53
W/8
:
To
T1
E3
B54
W/8
:
To
T14
C1
B56
W/10 :
To
D11
C1
B57
W/16 :
To
E115
C2
B58
W/12 :
To
B101
D1
B59
B/1
:
Rear window defogger
D3
B61
W/3
:
Heated seat RH
B3
B65
—
:
Body ground
C3
B66
Y/12
:
Diagnosis sensor unit
C3
B67
Y/12
:
Diagnosis sensor unit
B4
B68
Y/2
:
Side air bag module LH
D3
B69
Y/2
:
Side air bag module RH
B4
B70
OR/2 :
Satellite sensor LH
D2
B71
Y/2
:
Satellite sensor RH
D2
B72
—
:
Body ground
B1
B97
B/2
:
Fuse block (J/B)
A3
B98
L/4
:
Theft warning horn relay
A3
B99
GY/2 :
Circuit breaker-2
A1
B121
W/6
:
Central unlock/trunk release switch
C3
B122
W/3
:
To
B130
C2
B123
W/12 :
Auto level control unit
C4
B124
W/3
:
To
B132
C4
B130
W/3
:
To
B122
B2
B131
−/3
:
Front sensor
D4
B132
W/3
:
To
B124
F3
B133
−/3
:
Rear sensor
Console harness
C2
B101
W/12 :
To
B58
C2
B102
W/6
:
Ultrasonic cancel switch
B3
B104
L/4
:
Heated seat switch LH
C2
B105
W/4
:
Heated seat switch RH
C2
B106
W/4
:
Headlamp aiming switch
Tail harness
E3
T1
W/8
:
To
B53
F4
T2
W/4
:
Rear combination lamp LH
F3
T3
—
:
Body ground
G3
T4
—
:
Body ground
G3
T5
W/4
:
Rear combination lamp RH
G2
T6
B/1
:
Theft warning horn
F4
T9
BR/2 :
License plate lamp LH
D4
T17
BR/4 :
Not used (To trailer tow connection)
E4
T18
BR/4 :
Link
F3
T19
BR/2 :
License plate lamp RH
Tail harness No. 2
F3
T7
W/8
:
To
T16
F4
T8
W/2
:
Rear fog lamp
G3
T10
B/2
:
Trunk room lamp switch
G2
T12
W/4
:
Door unlock actuator assembly (Trunk)
G2
T13
W/2
:
Back-up lamp
G3
T20
W/3
:
External trunk release switch
Tail sub-harness
E4
T14
W/8
:
To
B54
E4
T16
W/8
:
To
T7
HARNESS
LA
YOUT
Body
Harness
(Cont
’d)
EL-387
