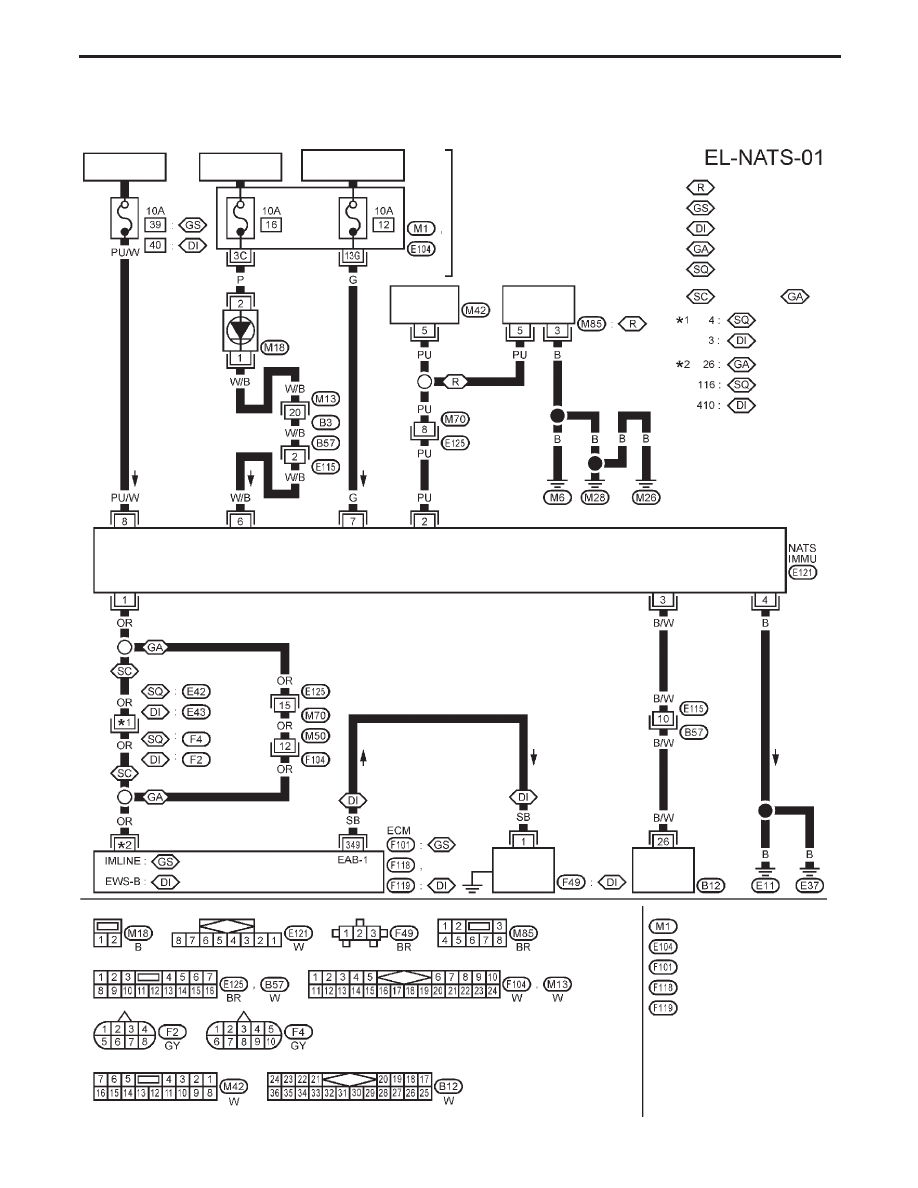

Wiring Diagram — NATS —

MODELS BEFORE VIN - P11U0548750 (Type-1)

YEL216C

BATTERY

IGNITION SWITCH

ON or START

FUSE
BLOCK
(J/B)

Refer to EL-POWER.

NATS
SECURITY
INDICATOR

AUDIO

DONGLE
CONTROL UNIT

: With gasoline engine

: With diesel engine

: With GA engine

: With SR engine or

QG engine

: RHD models

: Except

INJECTION
PUMP

TIME
CONTROL
UNIT

REFER TO THE FOLLOWING

FUSE BLOCK - Junction Box (J/B)

NATS (Nissan Anti-Theft System)

EL-343

System Description

NATS has the following immobiliser functions:

●

This version of NATS has dongle unit to improve its anti-theft performance (RHD models for Europe).
Dongle unit has its own ID which is registered into NATS IMMU. So if dongle unit is replaced, initializa-
tion must be carried out.

●

When malfunction of dongle unit is detected:
The security indicator lamp illuminates for about 15 minutes after ignition switch is turned to ON.

− When dongle unit has a malfunction, and the indicator lamp is illuminated, engine can not be started.

However engine can be started only one time when security indicator lamp turns off in about 15 minutes
after ignition switch is turned to ON.

●

Since only NATS ignition keys, whose ID nos. have been registered into the ECM and IMMU of NATS,
allow the engine to run, operation of a stolen vehicle without a NATS registered key is prevented by
NATS.
That is to say, NATS will immobilize the engine if someone tries to start it without the registered key of
NATS.

●

All of the originally supplied ignition key IDs have been NATS registered.
If requested by the vehicle owner, a maximum of five key IDs can be registered into the NATS compo-
nents.

●

The NATS security indicator (NATS security ind.) blinks when the ignition switch is in “OFF” or “ACC”
position. Therefore, NATS warns outsiders that the vehicle is equipped with the anti-theft system.

●

When NATS detects trouble, the security indicator lamp lights up as follows.

Condition IGN ON and

With dongle

Without dongle

MIL

Security indicator

MIL

Security indicator

NATS malfunction
(except dongle unit) is
detected

—

6 times blinking
Staying ON after igni-
tion switch is turned
ON

—

Staying ON

Only malfunction of
dongle unit is detected.

—

Staying ON for about
15 minutes after igni-
tion switch is turned
ON

—

Malfunction of NATS
and engine related
parts are detected.

Staying ON

6 times blinking
Staying ON after igni-
tion switch is turned
ON

Staying ON

Only engine related
part malfunction is
detected.

Staying ON

—

Staying ON

—

Just after initialization
of NATS

—

6 times blinking

—

●

NATS trouble diagnoses, system initialisation and additional registration of other NATS ignition key IDs
must be carried out using CONSULT-II hardware and CONSULT-II NATS software.
Regarding the procedures of NATS initialisation and NATS ignition key ID registration, refer to CON-
SULT-II operation manual, NATS.

●

When servicing a malfunction of the NATS (indicated by lighting up of security Indicator Lamp)
or registering another NATS ignition key ID no., it may be necessary to re-register original key
identification. Therefore, be sure to receive all keys and the PIN code from vehicle owner.

NATS (Nissan Anti-Theft System)

EL-345

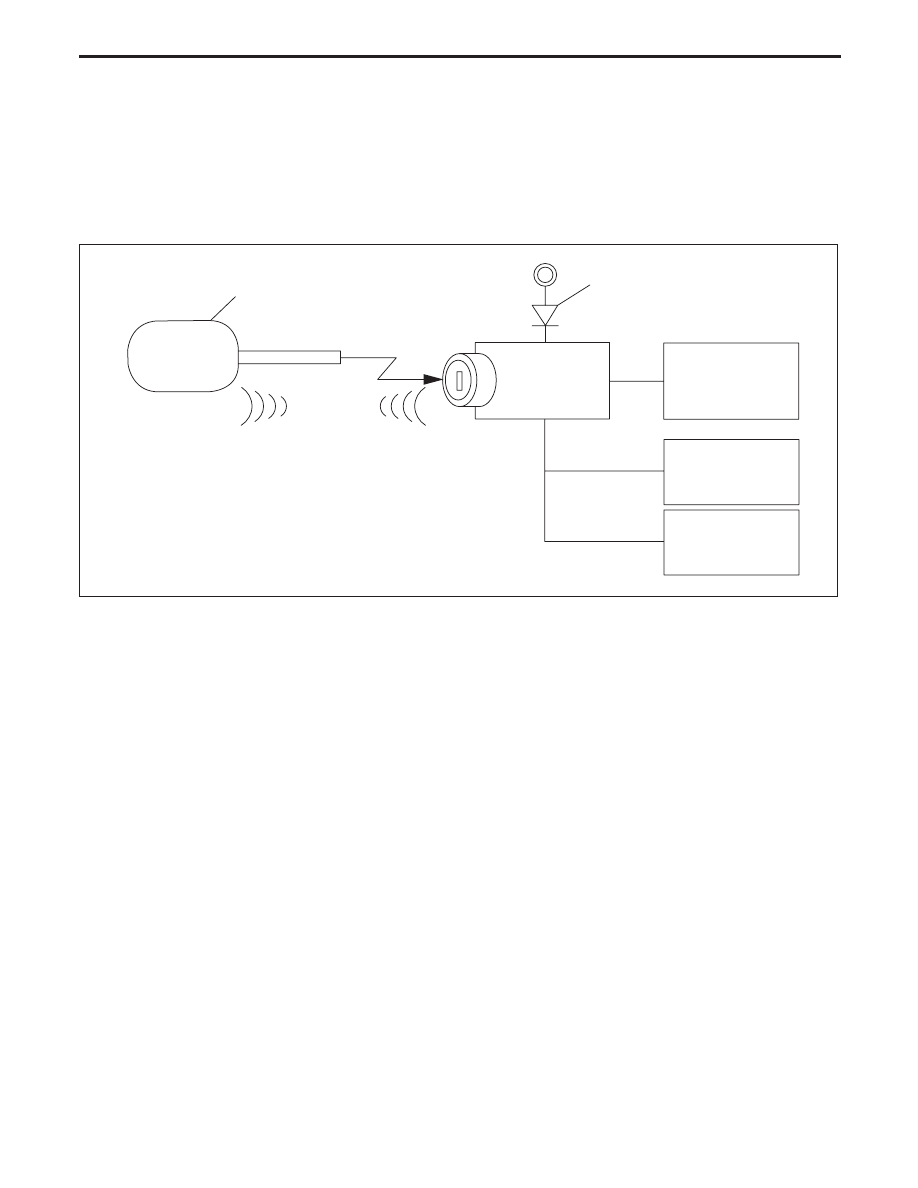

System Composition

The immobiliser function of the NATS for Nissan model P11 consists of the following:

●

NATS ignition key

●

NATS immobiliser control unit (NATS IMMU), located in the ignition key cylinder

●

Engine control module (ECM)

●

Dongle unit (RHD models for Europe)

●

NATS security indicator

●

NATS audio link

NEL558

NATS ignition key

NATS IMMU

NATS security ind

ECM

DONGLE UNIT

(RHD models for Europe)

AUDIO

NATS (Nissan Anti-Theft System)

EL-346
