Aiming Adjustment
Before performing aiming adjustment, make sure of the follow-
ing.
a. Keep all tires inflated to correct pressure.
b. Place vehicle on level ground.
c. Check that vehicle is unloaded (except for full levels of
coolant, engine oil and fuel, and spare tire, jack, and tools).
Have the driver or equivalent weight placed in driver’s seat.

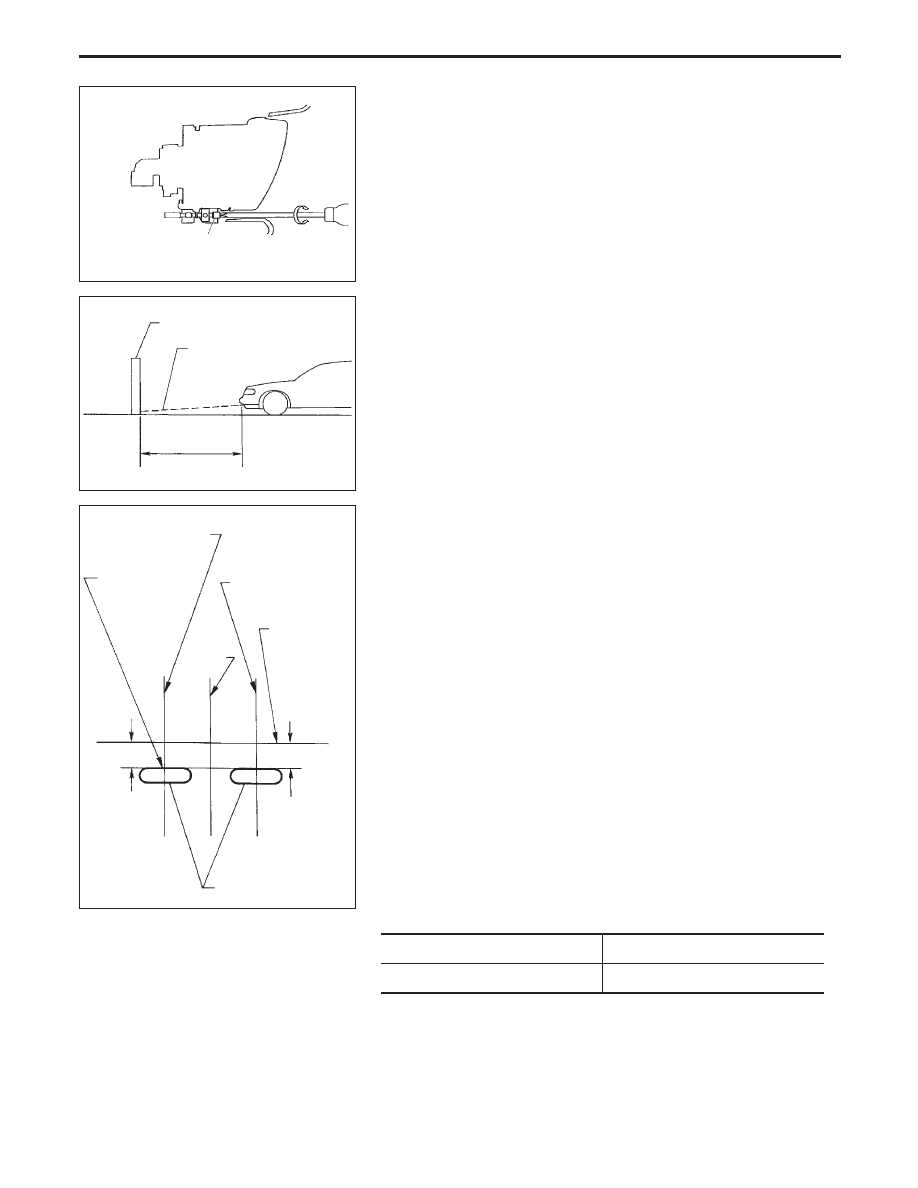

1. Set the distance between the screen and the center of the
fog lamp lens as shown at left.
2. Turn front fog lamps ON.
3. Adjust front fog lamps so that the top edge of the high inten-
sity zone is 100 mm (4 in) below the height of the fog lamp
centers as shown at left.
●
When performing adjustment, if necessary, cover the head-
lamps and opposite fog lamp.
Bulb Specifications
Item
Wattage (W)
Front fog lamp
55
NEL553
Aiming adjusting screw
MEL327G
7.6 m (25 ft)
Screen
Main axis of light
MEL328G
Vertical centerline
ahead of left fog lamp
Car
axis
Top edge of high
intensity zone
Vertical centerline
ahead of right
fog lamp
Floor to center
of foglamp lens
(height of fog
lamp centers)
.
100 (4)
.
100 (4)
High-intensity areas
Unit: mm (in)
FRONT FOG LAMP
