Trouble Diagnosis

PERFORMING SELF-DIAGNOSIS

Check headlamp aiming control (auto) system using a bulb as
follows:
1. Connect a bulb 1.2W or 2W between auto level control unit

connector terminal

1

and

5

.

NOTE:
Do not use another bulb. This will damage the auto level
control unit. Use a 1.2W or 2W bulb only.
2. After turning the ignition switch from “OFF” to “ON”, the bulb

operates.

3. Compare the bulb operation to the chart below.

NEL530

Auto level control unit

Bulb (1.2 W or 2 W only)

HEADLAMP — Headlamp Aiming Control (Auto) —

EL-95

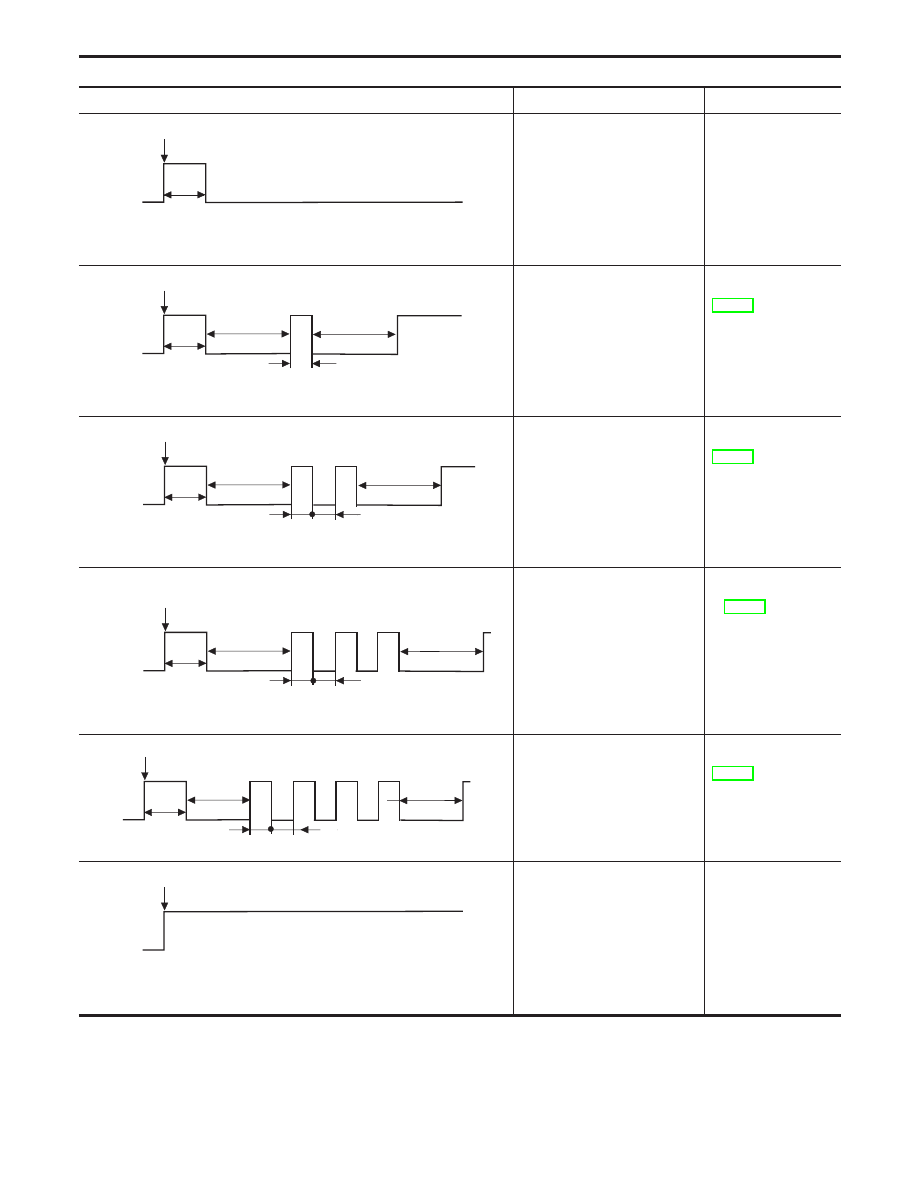

Lighting condition of the bulb

System condition

Reference item

NEL531

IGN ON

ON

OFF

1 sec.

No malfunction is detected.
No further action is neces-
sary.

NEL532

IGN ON

ON

OFF

1 sec.

2 sec.

2 sec.

0.5 sec.

Front sensor or front sensor
circuit is malfunctioning.
(When rear sensor OK)

Go to DIAGNOSTIC
PROCEDURE 1
(EL-97).

NEL533

IGN ON

ON

OFF

1 sec.

2 sec.

2 sec.

0.5 sec.

0.5 sec.

Rear sensor or rear sensor
circuit is malfunctioning.
(Whatever the state of front
sensor)

Go to DIAGNOSTIC
PROCEDURE 2
(EL-97).

NEL534

IGN ON

ON

OFF

1 sec.

2 sec.

2 sec.

0.5 sec.

0.5 sec.

Sensor supply is malfunction-
ing.

Go to DIAGNOSTIC
PROCEDURE 1 and
(EL-97).

NEL535

IGN ON

ON

OFF

1 sec.

2 sec.

2 sec.

0.5 sec.

0.5 sec.

Aiming motor or aiming motor
circuit is malfunctioning.

Go to DIAGNOSTIC
PROCEDURE 3
(EL-98).

NEL536

IGN ON

ON

OFF

Auto level control unit is mal-
functioning.

Replace auto level
control unit.

HEADLAMP — Headlamp Aiming Control (Auto) —

Trouble Diagnosis (Cont’d)

EL-96

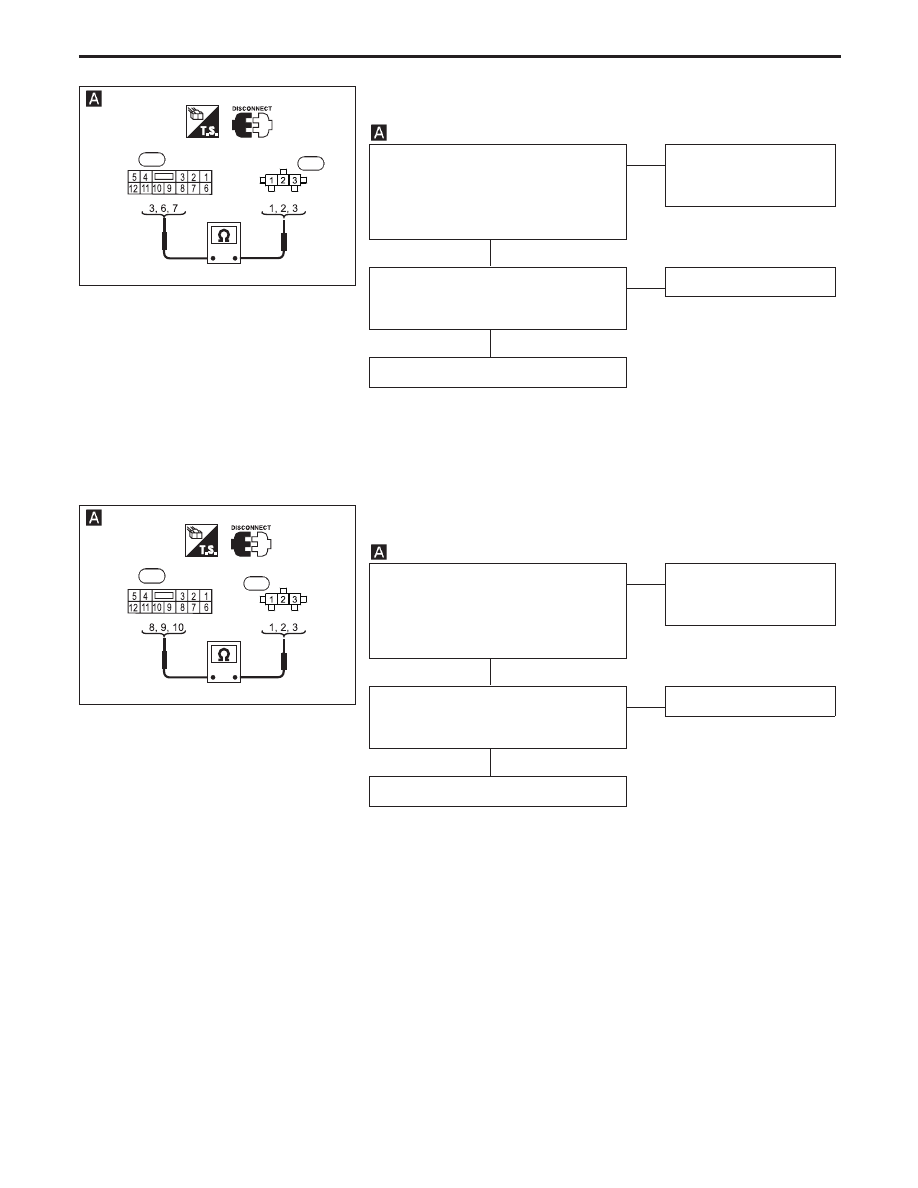

DIAGNOSTIC PROCEDURE 1
(Front sensor check)

1) Disconnect control unit and front

sensor connector.

2) Check harness continuity between

control unit and front sensor.

Continuity should exist.

OK

NG

Check harness between
control unit and front
sensor.

1) Remove sensor.
2) Check front sensor linkage opera-

tion.

OK

NG

Replace sensor linkage.

Replace front sensor.

DIAGNOSTIC PROCEDURE 2
(Rear sensor check)

1) Disconnect control unit and rear

sensor connector.

2) Check harness continuity between

control unit and rear sensor.

Continuity should exist.

OK

NG

Check harness between
control unit and rear sen-
sor.

1) Remove the sensor.
2) Check rear sensor linkage opera-

tion.

OK

NG

Replace sensor linkage.

Replace rear sensor.

NEL537

Auto leveling control
unit B123

Front sensor

B131

NEL538

Auto leveling control
unit B123

Rear sensor

B133

HEADLAMP — Headlamp Aiming Control (Auto) —

Trouble Diagnosis (Cont’d)

EL-97

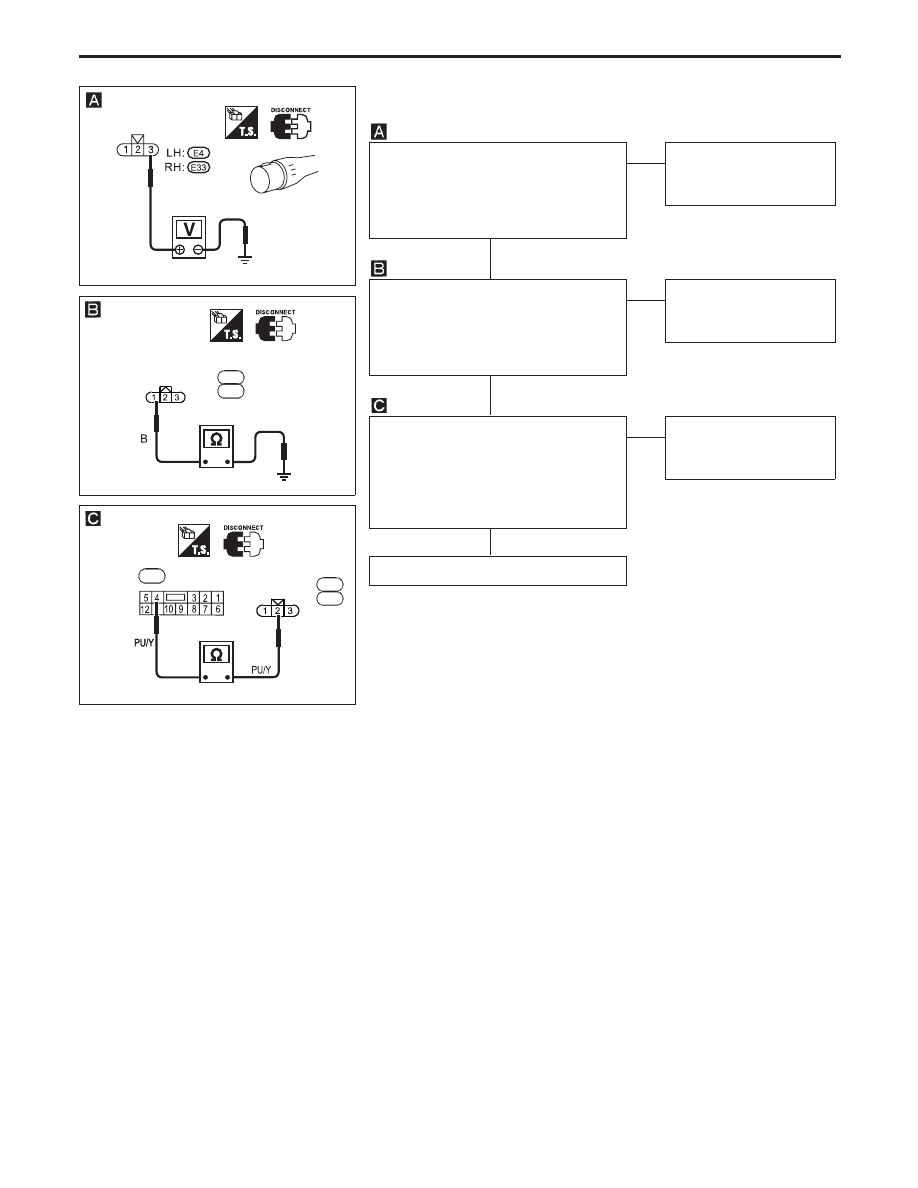

DIAGNOSTIC PROCEDURE 3
(Aiming motor check)

CHECK POWER SUPPLY
1) Turn lighting switch to 2nd position.
2) Check voltage between aiming

motor terminal

3

and ground.

Battery voltage should exist.

OK

NG

Check harness between
combination switch and
aiming motor.

CHECK GROUND CIRCUIT
1) Turn lighting switch to OFF position.
2) Check continuity between aiming

motor terminal

1

and ground.

Continuity should exist.

OK

NG

Check harness between
aiming motor and
ground.

1) Disconnect control unit and aiming

motor connector.

2) Check harness continuity between

control unit terminal

4

and aiming

motor terminal

2

.

Continuity should exist.

OK

NG

Check harness between
control unit and aiming
motor.

Replace aiming motor.

YEL618B

Headlamp
aiming motor

Lighting switch

“2nd”

NEL540

Headlamp aiming
motor

LH:

E4

RH:

E33

NEL541

Auto leveling control
unit B123

Headlamp aiming
motor

LH:

E4

RH:

E33

HEADLAMP — Headlamp Aiming Control (Auto) —

Trouble Diagnosis (Cont’d)

EL-98
