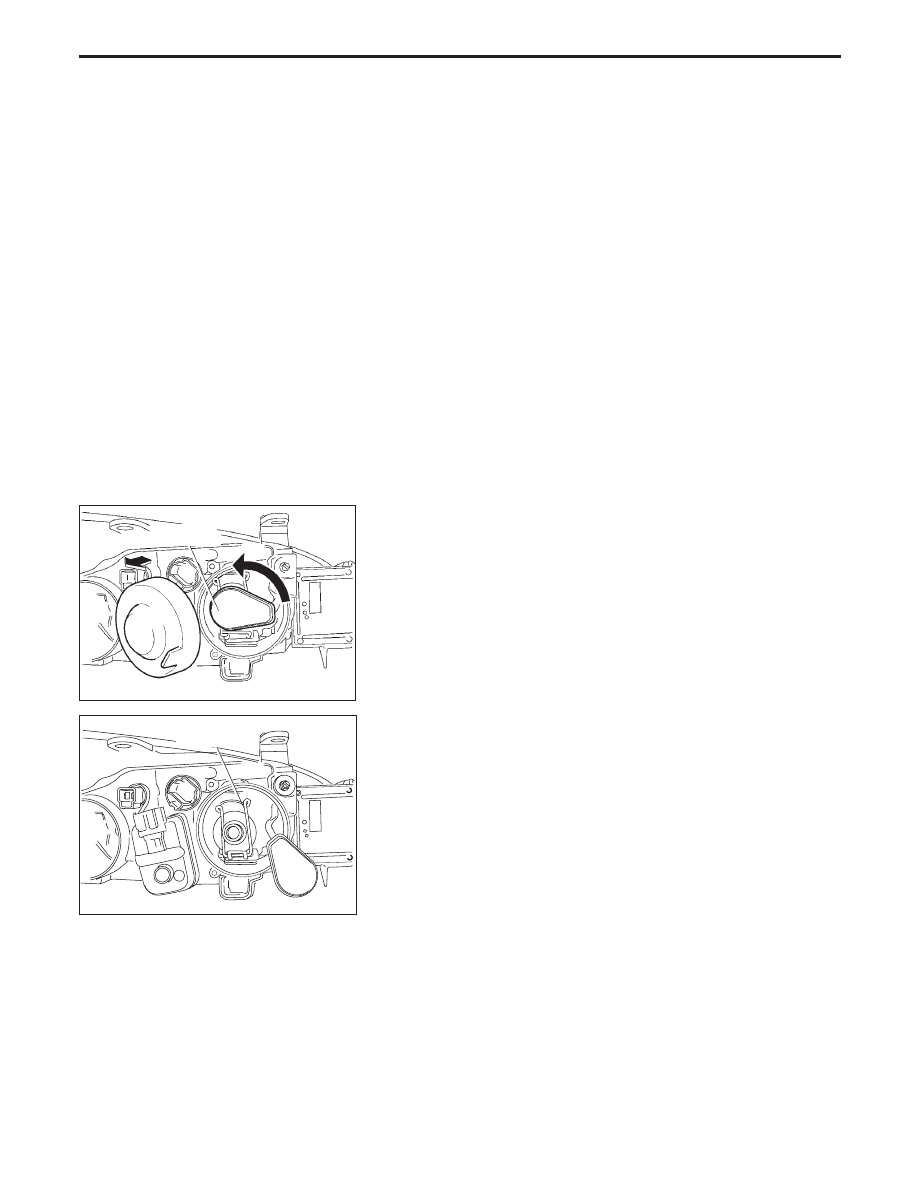

WARNING:
●
The xenon headlamp has a high-tension current generating area. Be extremely careful when
removing and installing. Be certain to disconnect the battery negative cable prior to removing or
installing.
●
When the xenon headlamp is lit, do not touch the harness (covered with red or amber insulation),
bulb itself or the bulb socket with your bare hands.
●
Never service a xenon headlamp with wet hands.
●
When checking body side harness with a circuit tester, be certain to disconnect the harness
connector from the xenon headlamp.
●
When the xenon headlamp is lit, the xenon bulb must be installed in the headlamp housing.
(Never turn on xenon headlamp, if the bulb is out of the headlamp housing.)
CAUTION:

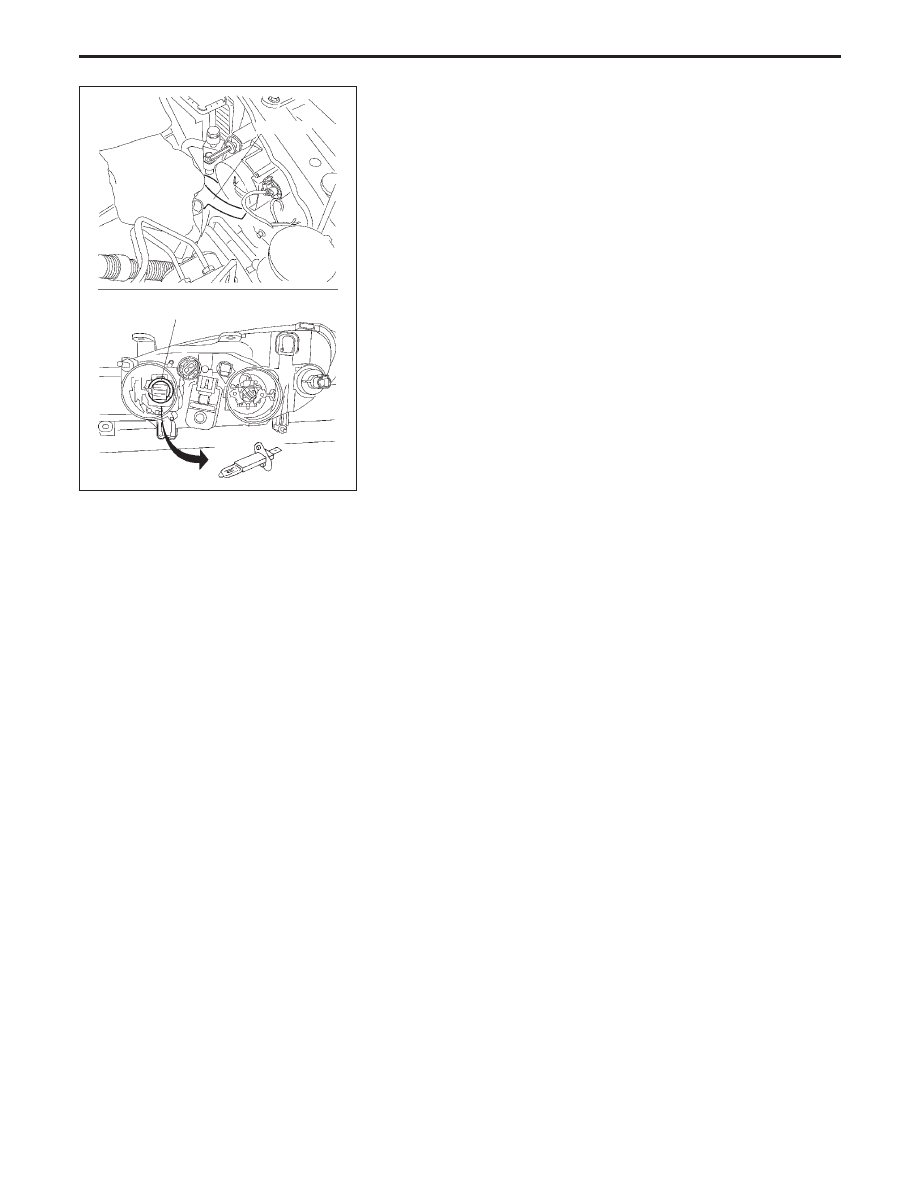

Make sure to install the bulb securely; if the xenon bulb is improperly installed in its socket, high-
tension current leaks occur. This may lead to a melted bulb and/or bulb socket.

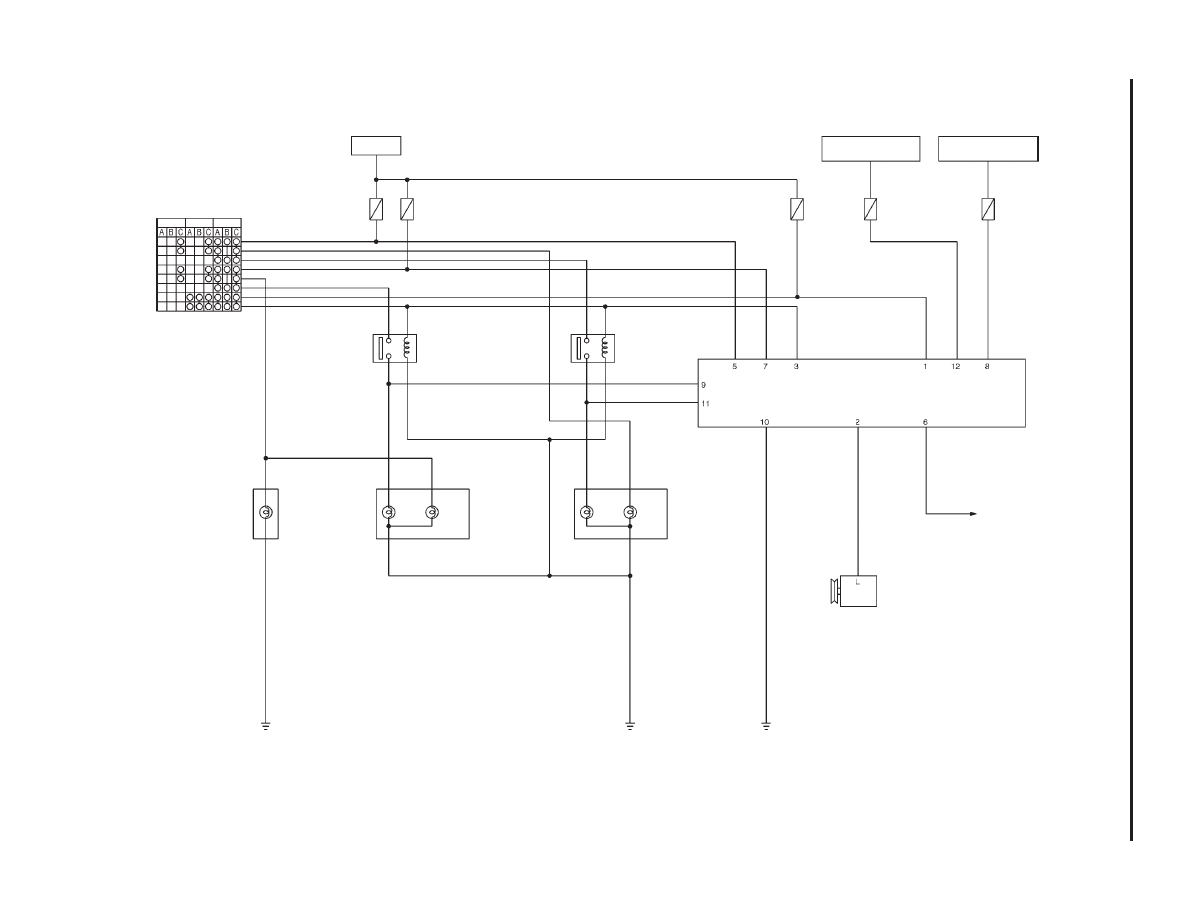

Trouble Diagnoses
Symptom
Possible cause
Repair order
LH or RH xenon headlamp
(low beam) blinks, lacks
brightness or does not illu-
minate.
1. 15A fuse
1. Check 20A fuse [No.
30
(gasoline engine),
43
(diesel engine) : LH, No.
38
(gasoline engine),
39
(diesel engine), : RH, located in fuse and fusible
link box].
2. Relay
2. Check Headlamp relay.
3. Power supply circuit to headlamp
low beam
3. Verify battery positive voltage is present at terminal
쑗
3
of headlamp harness with lighting switch in
“2nd” and “Low” positions. (Before inspecting head-
lamp terminal, disconnect headlamp connector with
lighting switch in “OFF” position.)
4. Xenon bulb
4. Replace the xenon bulb with the other side bulb or
new one. (If headlamps illuminate correctly, replace
the bulb.)
5. HID control unit and booster
5. Replace the HID control unit and booster as a head-
lamp assembly.
LH or RH [both headlamp
high and xenon (low) beam]
do not illuminate.
1. 15A fuse
1. Check 15A fuse [No.
30
(Gasoline engine), No.
43
(diesel engine), : LH, No.
38
(gasoline engine),
No.
39
(diesel engine) located in fuse and fusible
link box].
2. Ground circuit
2. Check continuity between headlamp harness termi-
nal
쑗
2
and body ground. (Before inspecting head-
lamp terminal, disconnect headlamp connector with
lighting switch in “OFF” position.)
LH or RH headlamp high
beam does not illuminate.
1. Bulb
2. Power supply circuit to headlamp
high beam
1. Check bulb.
2. Verify battery positive voltage is present at terminal
쑗
1
of headlamp harness with lighting switch in
“2nd” and “HIGH” position. (Before inspecting head-
lamp terminal, disconnect headlamp connector with
lighting switch in “OFF” position.)
HID: High Intensity Discharge
HEADLAMP (without Daytime Light System) — Xenon Type —
EL-75
