B: STANDARD CHARGE

Determine initial charging current from
specific gravity, referring to Fig. 4.

Charge battery for 8 hours.

CHECKING SPECIFIC GRAVITY
Refer to “Specific Gravity Check”.

Conduct additional charge as per Fig.
5, if necessary.

Go to “CAPACITY TEST”.

Fig. 4 INITIAL CHARGING CURRENT SETTING

(Standard charge)

CONVERTED
SPECIFIC
GRAVITY

BATTERY TYPE

(YUASA type code)

025

027

096

063

065, 075

1.100 - 1.130

6.0 (A)

6.0 (A)

7.5 (A)

7.0 (A)

9.0 (A)

1.130 - 1.160

5.0 (A)

5.0 (A)

6.0 (A)

6.0 (A)

8.0 (A)

1.160 - 1.190

4.0 (A)

4.0 (A)

5.0 (A)

5.0 (A)

7.0 (A)

1.190 - 1.220

3.0 (A)

3.0 (A)

4.0 (A)

4.5 (A)

5.0 (A)

Check battery type and determine the specified current using the table shown
above.

After starting charging, adjustment of charging current is not necessary.

Fig. 5 ADDITIONAL CHARGE (Standard charge)

Below 1.150

1.150 - 1.200

1.200 - 1.240

Above 1.240

Charge for 3.5
hours at initial
charging current
setting.

Charge for 2.5
hours at initial
charging current
setting.

Charge for 1.5
hours at initial
charging current
setting.

Go to “CAPACITY TEST”.

CAUTION:

Do not use standard charge method on a battery whose specific gravity is less than 1.100.

Set charging current to value specified in Fig. 4. If charger is not capable of producing specified
current value, set its charging current as close to that value as possible.

Keep battery away from open flame while it is being charged.

When connecting charger, connect leads first, then turn on charger. Do not turn on charger first,
as this may cause a spark.

If battery temperature rises above 60°C (140°F), stop charging. Always charge battery when its
temperature is below 60°C (140°F).

Remove cell caps during charging.

BATTERY

Battery Test and Charging Chart (Cont’d)

EL-35

C: QUICK CHARGE

Determine initial charging current setting and
charging time from specific gravity, referring to
Fig. 6.

Charge battery.

Go to “CAPACITY TEST”.

Fig. 6 INITIAL CHARGING CURRENT SETTING AND CHARGING TIME

(Quick charge)

BATTERY TYPE
(YUASA type code)

025, 027,

063

096, 065,

075

CURRENT [A]

20 (A)

25 (A)

CONVER

TED

SPECIFIC

GRA

VITY

1.100 - 1.130

2.5 hours

1.130 - 1.160

2.0 hours

1.160 - 1.190

1.5 hours

1.190 - 1.220

1.0 hours

Above 1.220

0.75 hours (45 min.)

Check battery type and determine the specified current using the table
shown above.

After starting charging, adjustment of charging current is not necessary.

CAUTION:

Do not use quick charge method on a battery whose specific gravity is less than 1.100.

Set initial charging current to value specified in Fig. 6. If charger is not capable of producing
specified current value, set its charging current as close to that value as possible.

Keep battery away from open flame while it is being charged.

When connecting charger, connect leads first, then turn on charger. Do not turn on charger first,
as this may cause a spark.

Be careful of a rise in battery temperature because a large current flow is required during quick-
charge operation.
If battery temperature rises above 60°C (140°F), stop charging. Always charge battery when its
temperature is below 60°C (140°F).

Do not exceed the charging time specified in Fig. 6, because charging battery over the charging
time can cause deterioration of the battery.

Service Data and Specifications (SDS)

Applied model

SR

engine

with CVT

(stan-

dard)

SR

engine

with CVT

(cold

area)

CD

engine

(stan-

dard)

QG

engine

(stan-

dard)

QG

engine

(cold

area)

SR

engine

with MT

(stan-

dard)

SR

engine

with MT

(cold

area

CD

engine

(cold

area)

Type
(YUASA type
code)

025

027

063

065

075

096

Capacity

V-AH

12 - 61

12 - 61

12 - 47

12 - 55

12 - 50

12 - 75

CCA

480

570

420

510

600

750

BATTERY

Battery Test and Charging Chart (Cont’d)

EL-36

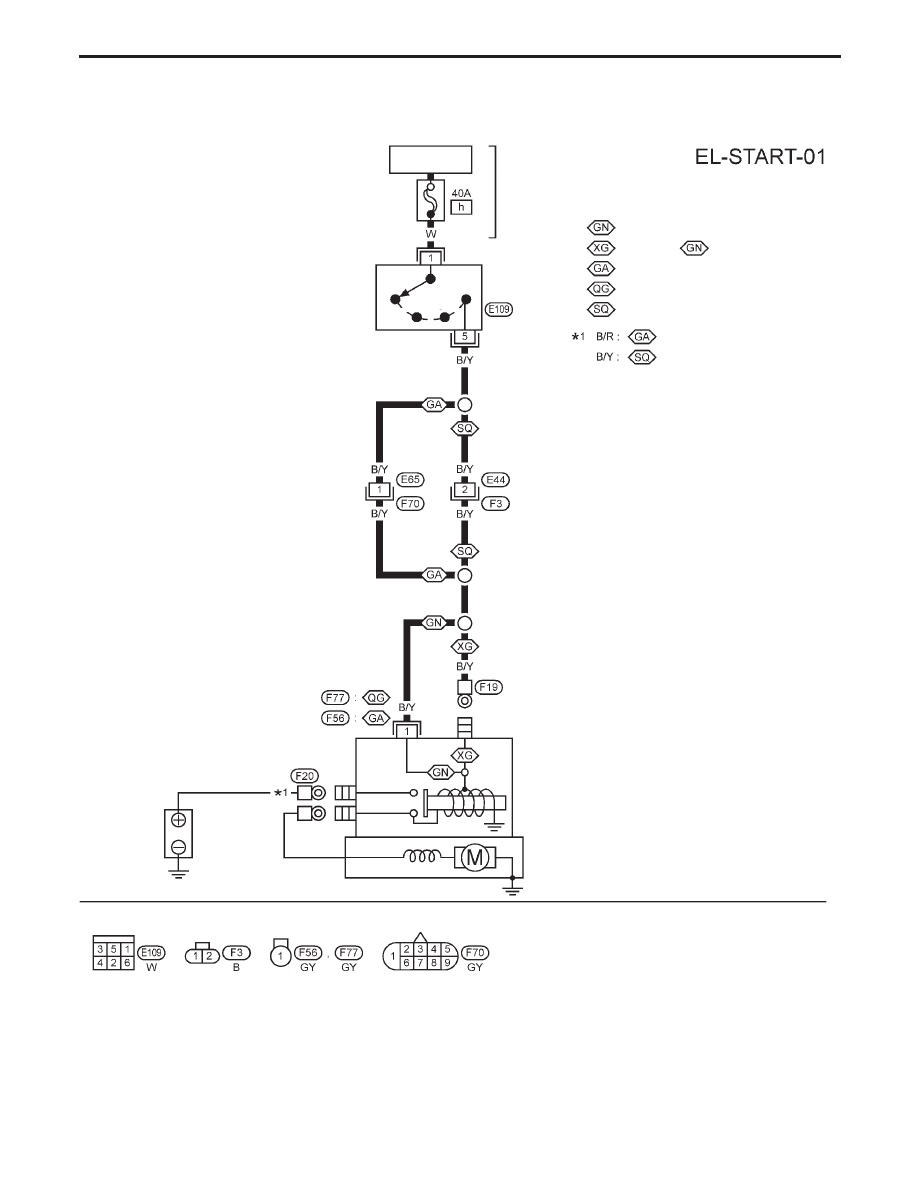

Wiring Diagram — START —

GASOLINE ENGINE MODELS WITH M/T

YEL128C

BATTERY

Refer to EL-POWER.

IGNITION
SWITCH

: With GA engine and QG engine for Nordic

: Except

: With GA engine

: With QG engine

: With SR engine or QG engine

BATTERY

STARTER
MOTOR

OFF

ACC

ON

ST

STARTING SYSTEM

EL-37

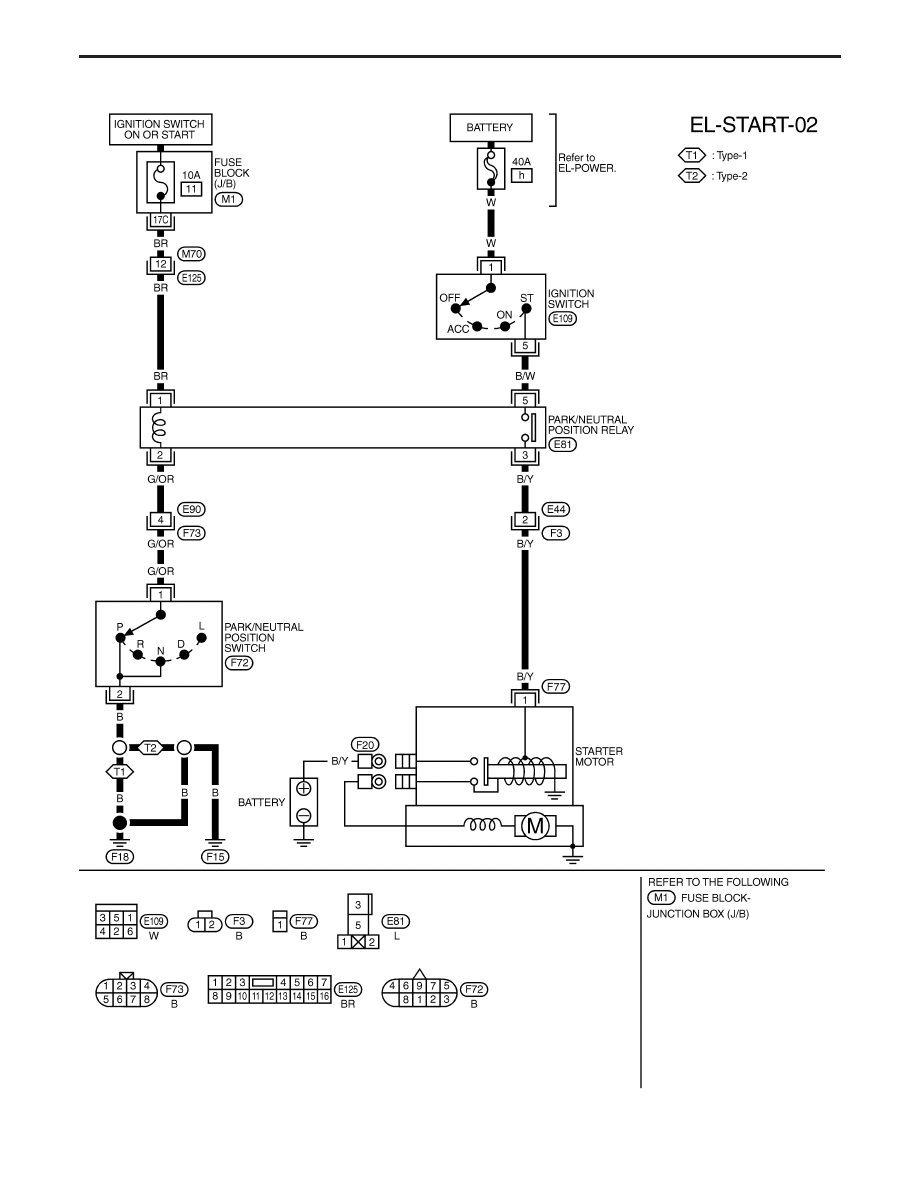

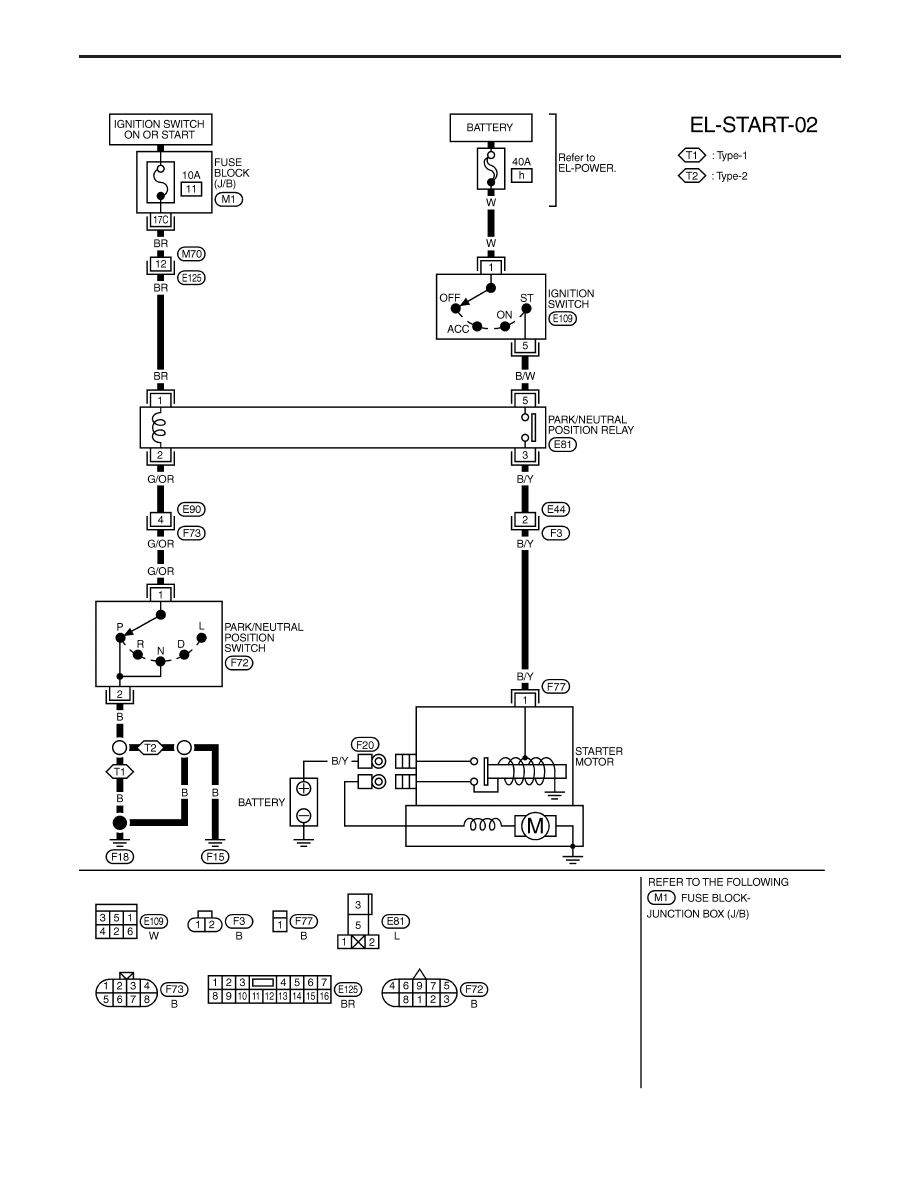

GASOLINE ENGINE MODELS WITH CVT

YEL999C

STARTING SYSTEM

Wiring Diagram — START — (Cont’d)

EL-38
