Nissan Primera P11. Manual - part 263





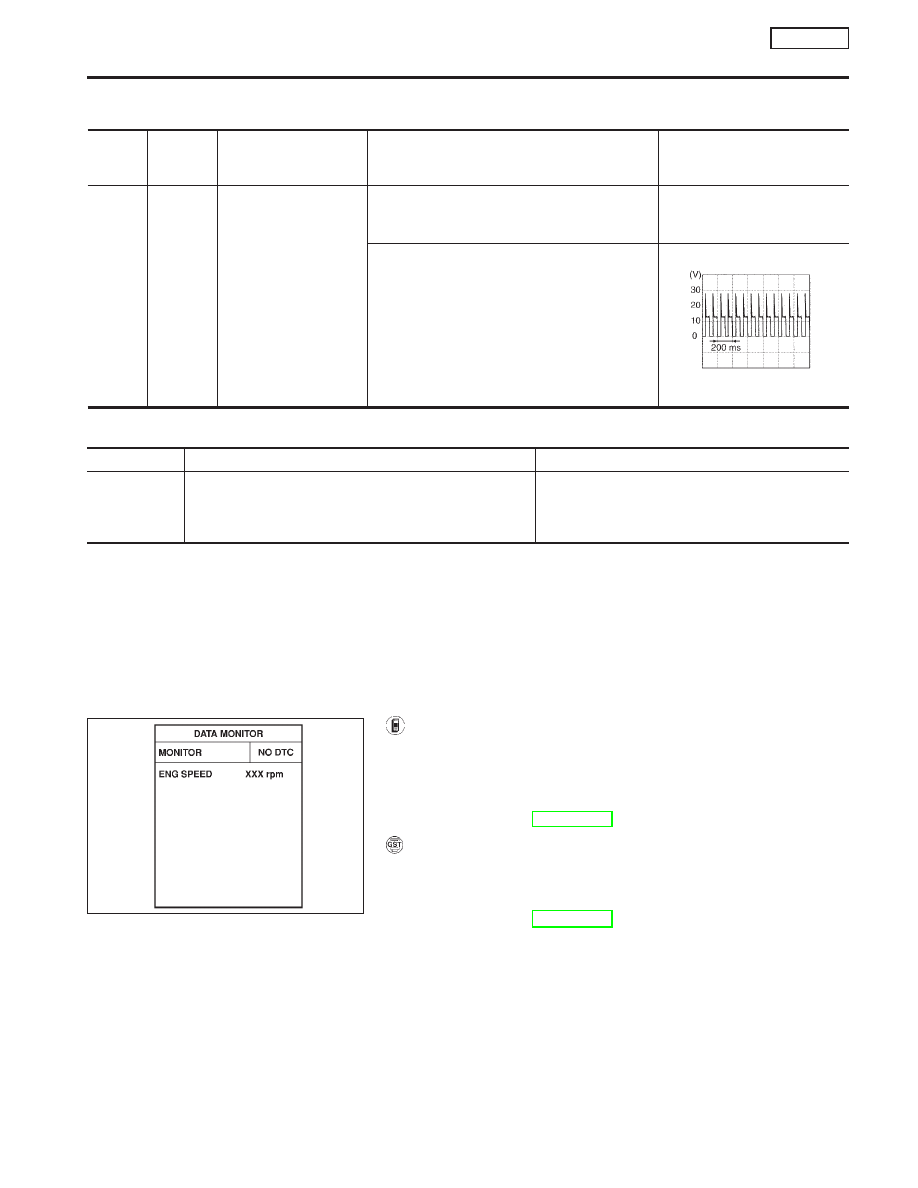

ECM Terminals and Reference Value

NCEC0250

Specification data are reference values and are measured between each terminal and 48 (ECM ground).

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

14

P/B

EVAP canister purge
volume control solenoid
valve (ON/OFF duty)

[Engine is running]

I

Warm-up condition

I

Idle speed

BATTERY VOLTAGE
(11 - 14V)

[Engine is running]

I

Warm-up condition

I

2,000 rpm

5 - 12V

SEF975W

On Board Diagnosis Logic

NCEC0251

DTC No.

Malfunction is detected when ...

Check Items (Possible Cause)

P0443
0443

I

An improper voltage signal is sent to ECM through the
valve.

I

Harness or connectors
(The valve circuit is open or shorted.)

I

EVAP canister purge volume control solenoid
valve

DTC Confirmation Procedure

NCEC0252

NOTE:
If “DTC Confirmation Procedure” has been previously conducted,
always turn ignition switch “OFF” and wait at least 9 seconds
before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm battery
voltage is more than 11V.

With CONSULT-II

1)

Turn ignition switch “ON”.

2)

Select “DATA MONITOR” mode with CONSULT-II.

3)

Start engine and let it idle for at least 5 seconds.

4)

If

1st

trip

DTC

is

detected,

go

to

“DIAGNOSTIC

PROCEDURE”, EC-SR-253.

With GST

1)

Start engine and let it idle for at least 5 seconds.

2)

Select “MODE 7” with GST.

3)

If

1st

trip

DTC

is

detected,

go

to

“DIAGNOSTIC

PROCEDURE”, EC-SR-253.

SEF058Y

DTC P0443 EVAP CANISTER PURGE VOLUME CONTROL

SOLENOID VALVE (CIRCUIT)

SR20DE

ECM Terminals and Reference Value

EC-251

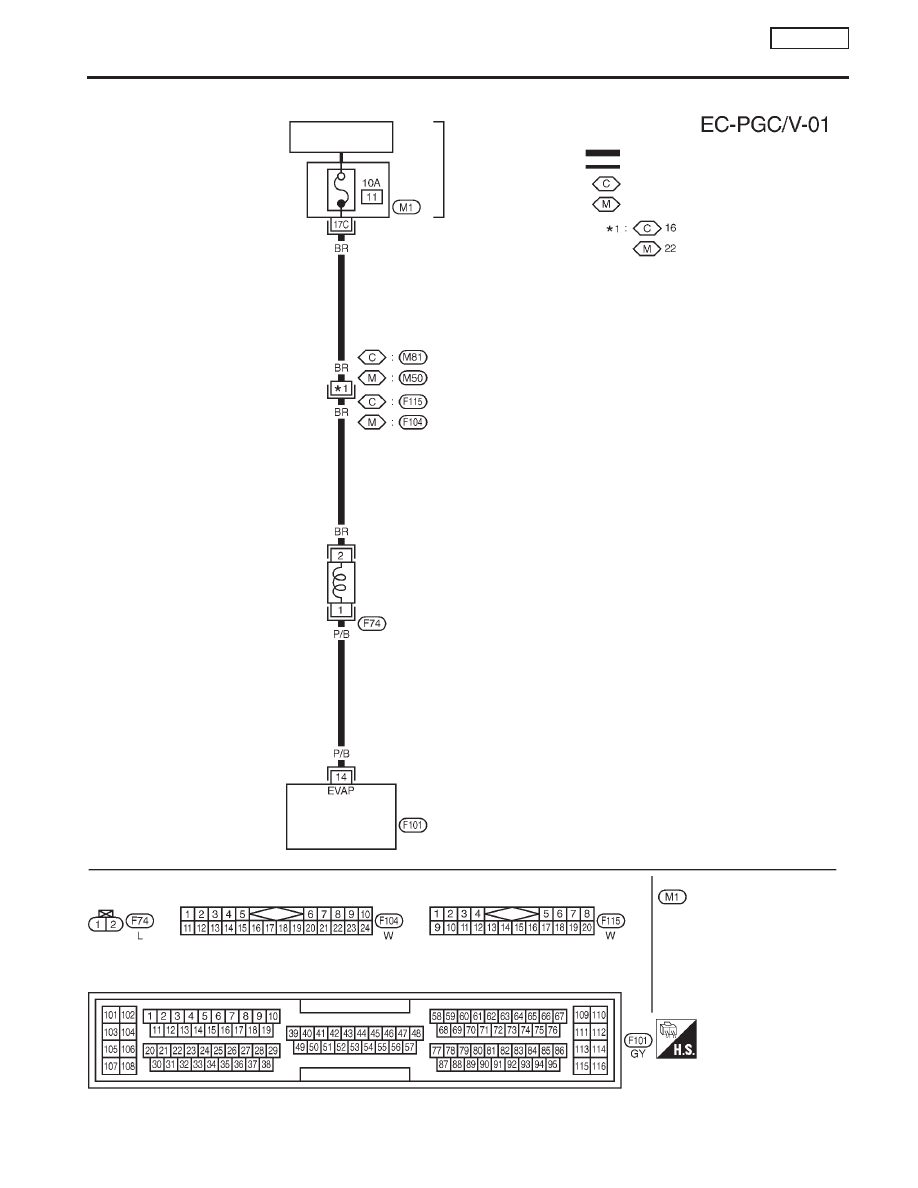

Wiring Diagram

NCEC0253

YEC843

IGNITION SWITCH

ON or START

Refer to EL-POWER.

: Detectable line for DTC

: Non-detectable line for DTC

: Hyper CVT models

: M/T models

FUSE
BLOCK
(J/B)

EVAP
CANISTER
PURGE
CONTROL
SOLENOID
VALVE

.

ECM

REFER TO THE FOLLOWING

FUSE BLOCK -

Junction Box (J/B)

DTC P0443 EVAP CANISTER PURGE VOLUME CONTROL

SOLENOID VALVE (CIRCUIT)

SR20DE

Wiring Diagram

EC-252

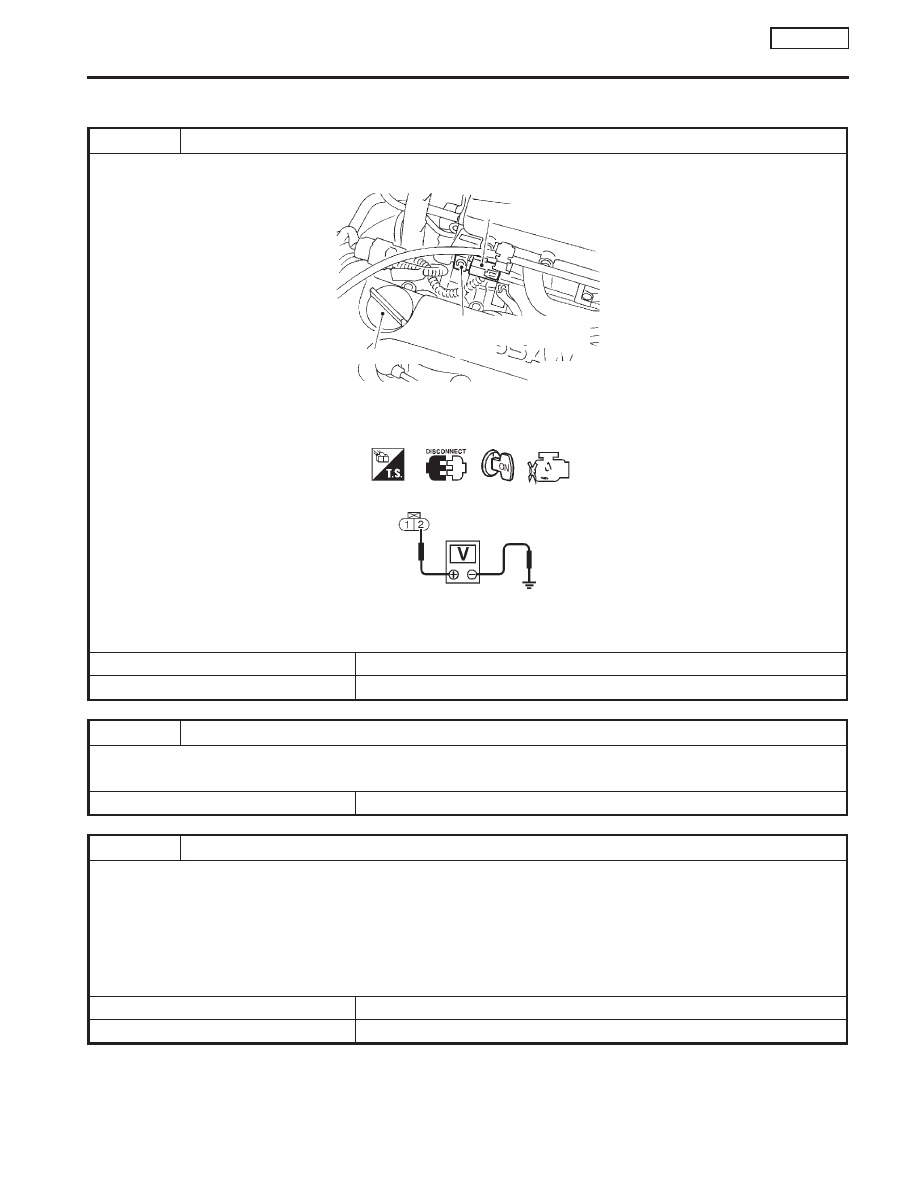

Diagnostic Procedure

NCEC0254

1

CHECK POWER SUPPLY

1. Turn ignition switch “OFF”.
2. Disconnect EVAP canister purge volume control solenoid valve harness connector.

SEF219X

3. Turn ignition switch “ON”.
4. Check voltage between terminals 2 and engine ground with CONSULT-II or tester.

SEF077X

Voltage: Battery voltage

OK or NG

OK

©

GO TO 3.

NG

©

GO TO 2.

2

DETECT MALFUNCTIONING PART

Check the harness connectors M50, F104 (M81, F115 for CVT models).

©

Repair harness or connectors.

3

CHECK OUTPUT SIGNAL CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between

ECM terminal 14 and terminal 1.
Refer to wiring diagram.

Continuity should exist.

4. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 4.

NG

©

Repair open circuit or short to ground or short to power in harness or connectors.

Harness connector

EVAP canister purge
volume control solenoid
valve

Oil filler cap

DISCONNECT

DTC P0443 EVAP CANISTER PURGE VOLUME CONTROL

SOLENOID VALVE (CIRCUIT)

SR20DE

Diagnostic Procedure

EC-253

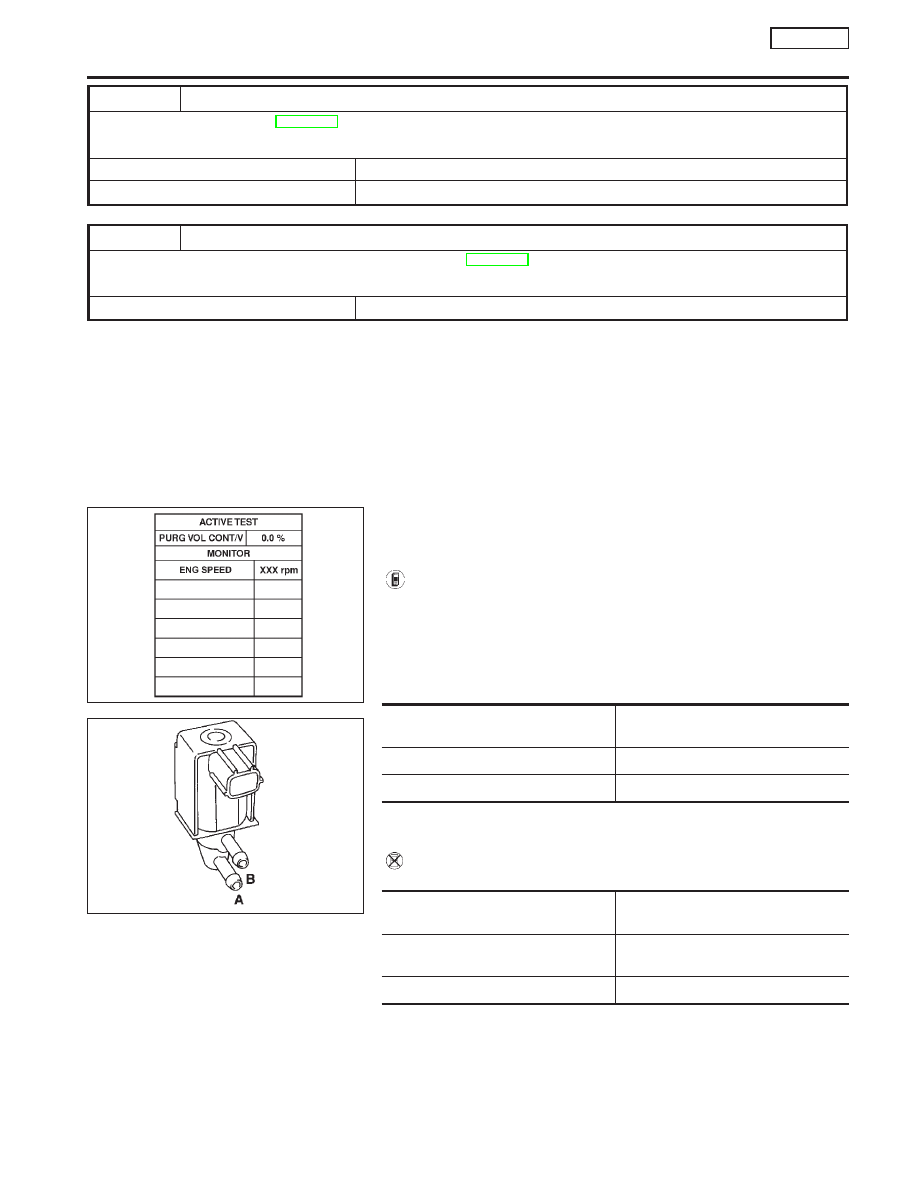

Component Inspection

NCEC0255

EVAP CANISTER PURGE VOLUME CONTROL
SOLENOID VALVE

NCEC0255S01

With CONSULT-II

1)

Start engine.

2)

Perform “PURG VOL CONT/V” in “ACTIVE TEST” mode with
CONSULT-II. Check that engine speed varies according to the
valve opening.
If OK, inspection end. If NG, go to following step.

3)

Check air passage continuity.

Condition

PURG VOL CONT/V value

Air passage continuity

between A and B

100.0%

Yes

0.0%

No

If NG, replace the EVAP canister purge volume control sole-
noid valve.

Without CONSULT-II

Check air passage continuity.

Condition

Air passage continuity

between A and B

12V direct current supply between ter-
minals

Yes

No supply

No

If NG or operation takes more than 1 second, replace solenoid
valve.

4

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Refer to “Component Inspection” EC-SR-254.

OK or NG

OK

©

GO TO 5.

NG

©

Replace EVAP canister purge volume control solenoid valve.

5

CHECK INTERMITTENT INCIDENT

Perform “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-SR-114.

©

INSPECTION END

NEF111A

SEF079X

DTC P0443 EVAP CANISTER PURGE VOLUME CONTROL

SOLENOID VALVE (CIRCUIT)

SR20DE

Component Inspection

EC-254
