DTC Confirmation Procedure

NCEC0518

NOTE:
If “DTC Confirmation Procedure” has been previously conducted,
always turn ignition switch “OFF” and wait at least 9 seconds
before conducting the next test.

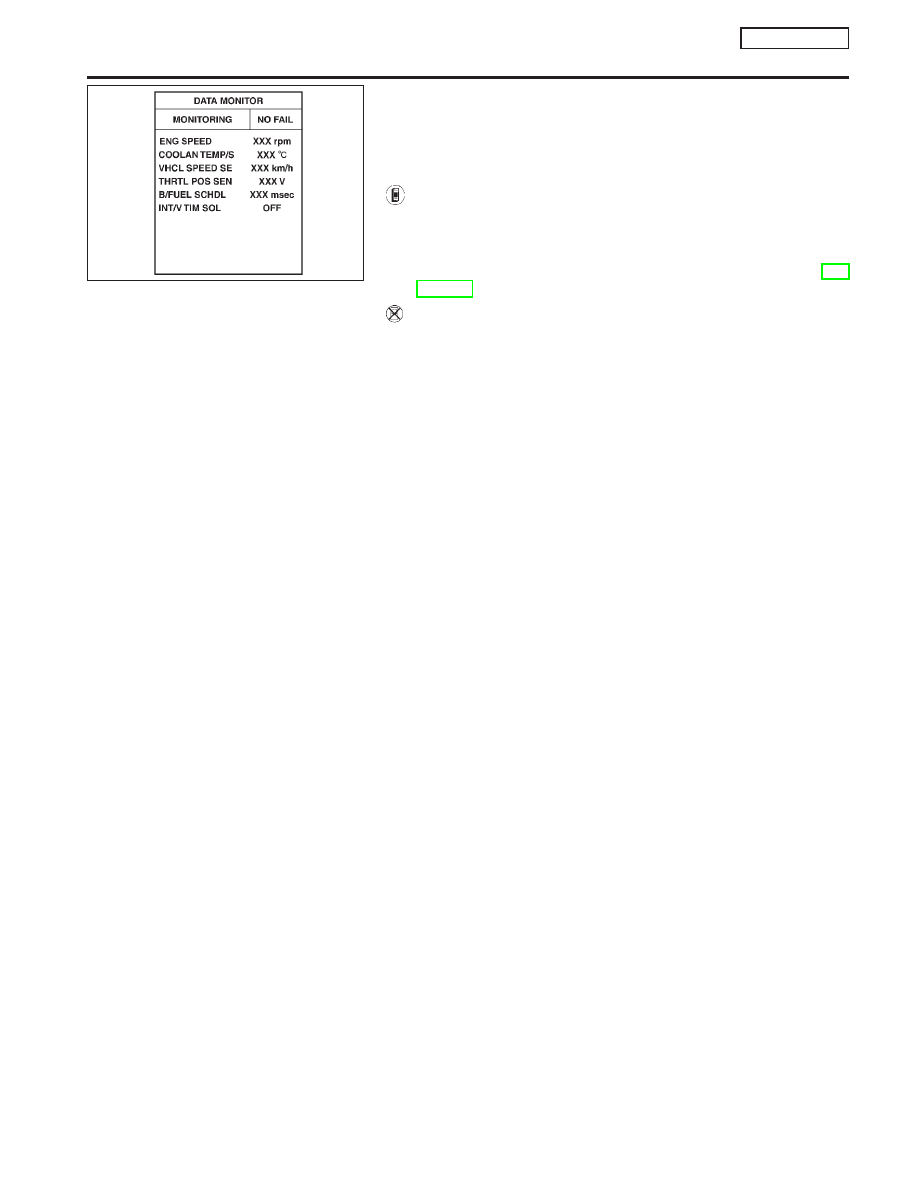

With CONSULT-II

1)

Turn ignition switch “ON”.

2)

Select “DATA MONITOR” mode with CONSULT-II.

3)

Wait at least 5 seconds.

4)

If 1st trip DTC is detected, go to “Diagnostic Procedure”, EC-
QG-287.

Without CONSULT-II

Follow the procedure “With CONSULT-II” above.

NEF121A

DTC P1111 INTAKE VALVE TIMING CONTROL

SOLENOID VALVE

QG16

I

18DE

DTC Confirmation Procedure

EC-285

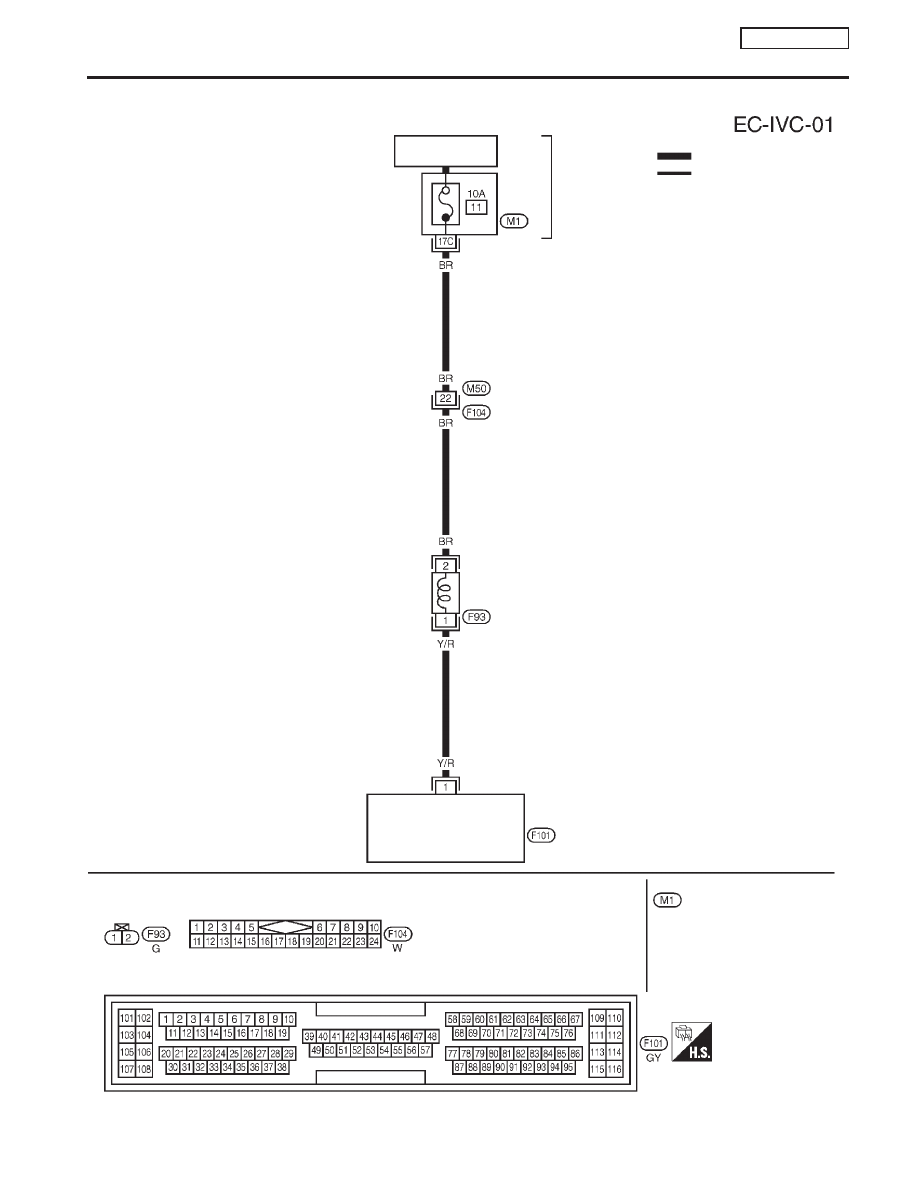

Wiring Diagram

NCEC0519

YEC787

: Detectable line for DTC

: Non-detectable line for DTC

ECM

INTAKE VALVE
TIMING CONTROL
SOLENOID
VALVE

FUSE
BLOCK
(J/B)

Refer to
EL-POWER.

IGNITION SWITCH

ON or START

Refer to last page (Foldout page)

.

IVC

DTC P1111 INTAKE VALVE TIMING CONTROL

SOLENOID VALVE

QG16

I

18DE

Wiring Diagram

EC-286

Diagnostic Procedure

NCEC0520

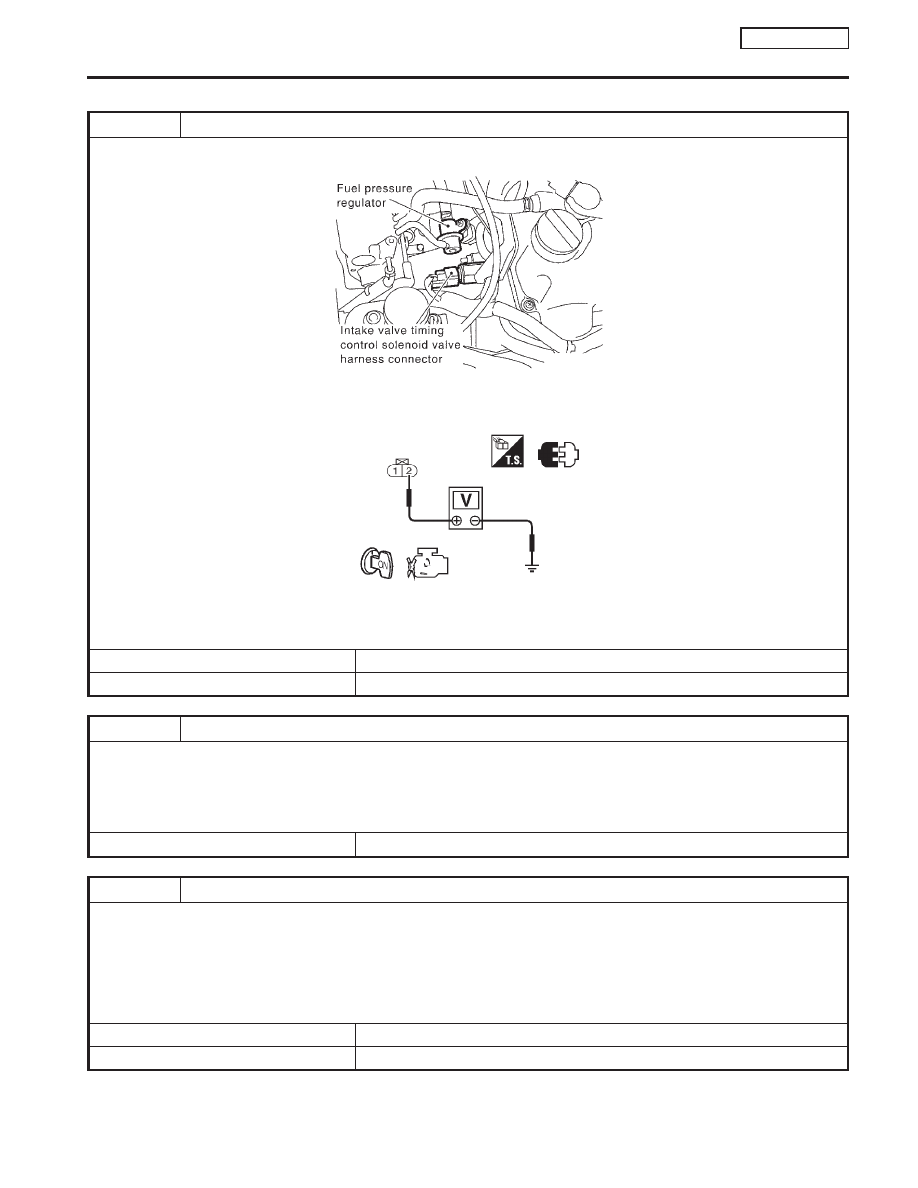

1

CHECK POWER SUPPLY

1. Turn ignition switch “OFF”.
2. Disconnect intake valve timing control solenoid valve harness connector.

SEF149X

3. Turn ignition switch “ON”.
4. Check voltage between terminal 2 and engine ground with CONSULT-II or tester.

SEF097X

Voltage: Battery voltage

OK or NG

OK

©

GO TO 3.

NG

©

GO TO 2.

2

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connector F104, M50

I

10A fuse

I

Harness for open or short between intake valve timing control solenoid valve and fuse

©

Repair harness or connectors.

3

CHECK OUTPUT SIGNAL CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 1 and intake valve timing control solenoid valve harness connector terminal 1. Refer

to wiring diagram.

Continuity should exist.

4. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 4.

NG

©

Repair open circuit or short to ground to short to power or connectors.

DTC P1111 INTAKE VALVE TIMING CONTROL

SOLENOID VALVE

QG16

I

18DE

Diagnostic Procedure

EC-287

4

CHECK VALVE TIMING CONTROL SOLENOID VALVE

Refer to “Component Inspection”, EC-QG-288.

OK or NG

OK

©

GO TO 5.

NG

©

Replace valve timing control solenoid valve.

5

CHECK INTERMITTENT INCIDENT

Perform “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-QG-102.

©

INSPECTION END

Component Inspection

NCEC0521

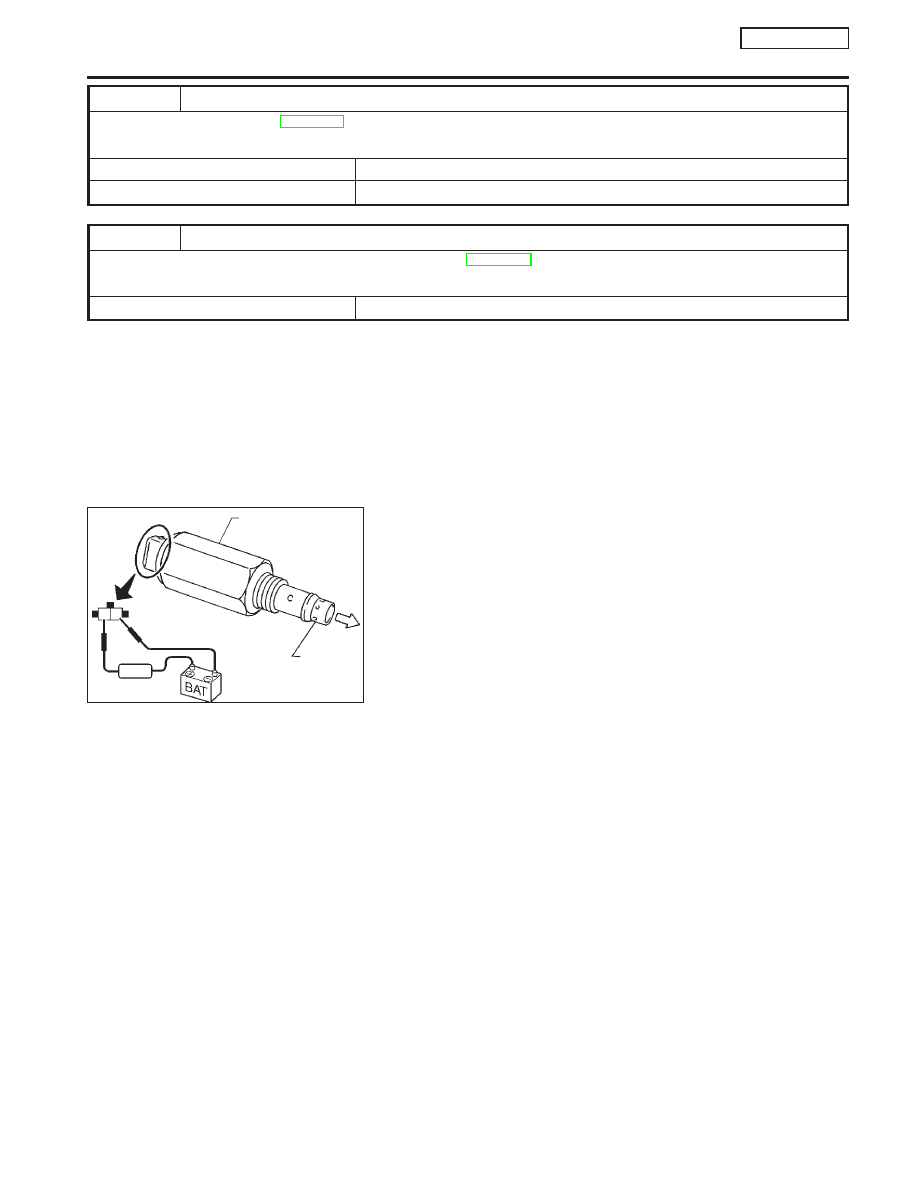

INTAKE VALVE TIMING CONTROL SOLENOID VALVE

NCEC0521S01

1.

Check oil passage visually for any metal debris.

2.

Supply intake valve timing control solenoid valve terminals with
battery voltage.

3.

Make sure that inside plunger protrudes.
If NG, replace intake valve timing control solenoid valve.

SEF524T

Intake valve timing
control solenoid valve

Plunger

FUSE

DTC P1111 INTAKE VALVE TIMING CONTROL

SOLENOID VALVE

QG16

I

18DE

Diagnostic Procedure (Cont’d)

EC-288
