Diagnostic Procedure

NCAT0036

1

CHECK CVT FLUID TEMPERATURE SENSOR WITH TERMINAL CORD ASSEMBLY

1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminals 6 and 7 when CVT is cold.

Resistance:

Cold [20°C (68°F)]

Approximately 2.5 k

SAT419JA

4. Reinstall any part removed.

OK or NG

OK (With CONSULT-II)

©

GO TO 2.

OK (Without CONSULT-II)

©

GO TO 3.

NG

©

Replace CVT assembly

2

CHECK INPUT SIGNAL OF CVT FLUID TEMPERATURE SENSOR (With CONSULT-II)

With CONSULT-II

1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for “CVT” with CONSULT-II.
3. Read out the value of “FLUID TEMP SE”.

Voltage:

Cold [20°C (68°F)]

Hot [80°C (176°F)]:

Approximately 1.5V

0.5V

OK or NG

OK

©

GO TO 4.

NG

©

Check the following item:

I

Harness for short to ground or short to power or open between TCM, ECM and termi-
nal cord assembly (Main harness)

I

Ground circuit for ECM
Refer to EC section (“TROUBLE DIAGNOSIS FOR POWER SUPPLY”).

DTC P0710 CVT FLUID TEMPERATURE SENSOR CIRCUIT

Diagnostic Procedure

AT-57

3

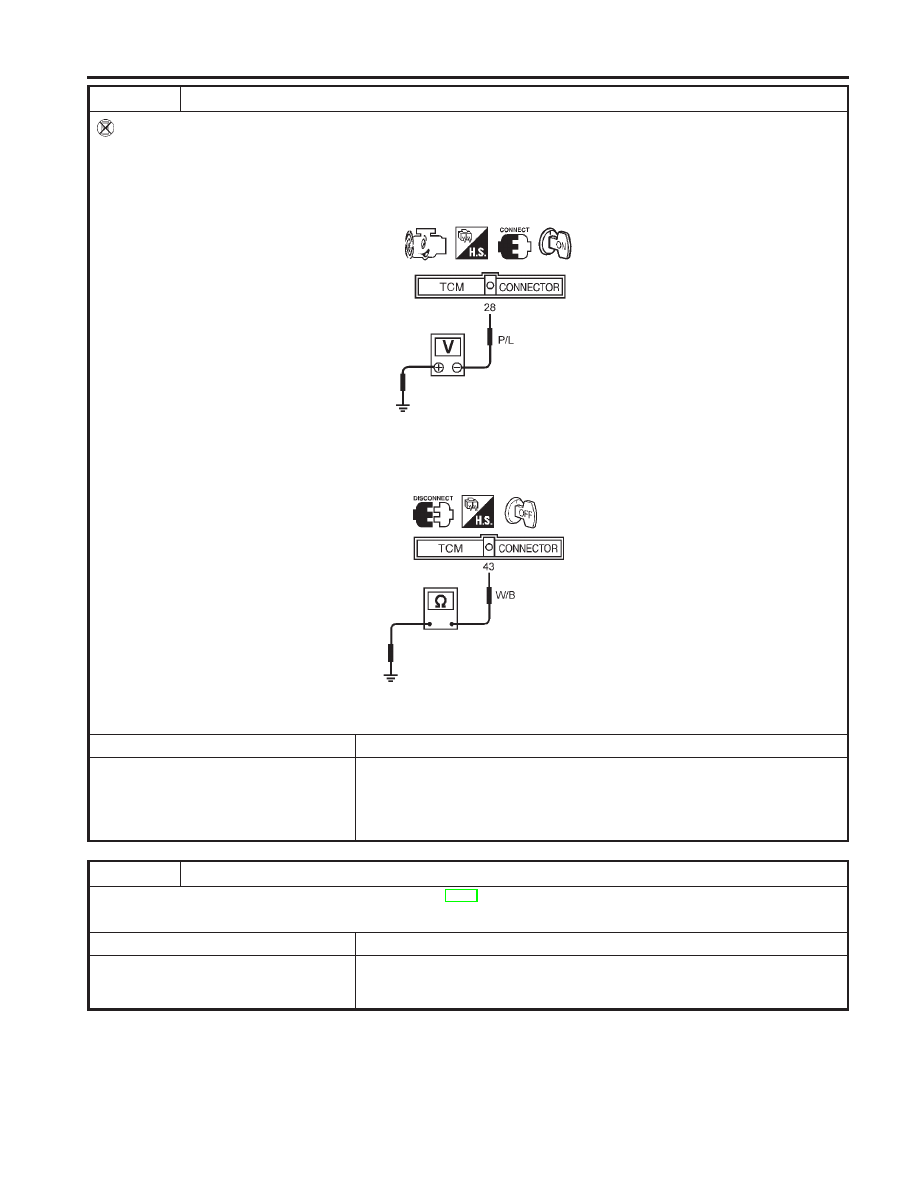

CHECK INPUT SIGNAL OF CVT FLUID TEMPERATURE SENSOR (Without CONSULT-II)

Without CONSULT-II

1. Start engine.
2. Check voltage between TCM terminal 47 and ground while warming up CVT.

Voltage:

Cold [20°C (68°F)]

Hot [80°C (176°F)]:

Approximately 1.5V

0.5V

SAT420JA

3. Turn ignition switch to “OFF” position.
4. Disconnect TCM harness connector.
5. Check continuity between terminal 42 and ground.

Continuity should exist.

SAT421J

If OK, check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 4.

NG

©

Check the following item:

I

Harness for short to ground or short to power or open between TCM, ECM and termi-
nal cord assembly (Main harness)

I

Ground circuit for ECM
Refer to EC section (“TROUBLE DIAGNOSIS FOR POWER SUPPLY”).

4

CHECK DTC

Perform Diagnostic Trouble Code (DTC) confirmation procedure, AT-55.

OK or NG

OK

©

INSPECTION END

NG

©

1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-

nector.

DTC P0710 CVT FLUID TEMPERATURE SENSOR CIRCUIT

Diagnostic Procedure (Cont’d)

AT-58

Description

NCAT0220

The primary speed sensor detects the primary pulley revolution
speed and sends a signal to the ECM.

TCM TERMINALS AND REFERENCE VALUE

NCAT0220S01

Remarks: Specification data are reference values.

Terminal

No.

Wire color

Item

Condition

Judgement

standard

38

G/Y

Primary speed
sensor

When driving (L position, 20 km/h), the pulse measurement by
using the pulse measurement function of CONSULT-II.

Approx. 900 Hz

ON BOARD DIAGNOSIS LOGIC

NCAT0220S02

Diagnostic trouble code

Malfunction is detected when ...

Check items (Possible cause)

: PRI SPEED SIG/CIRC

TCM does not receive the proper voltage
signal from the sensor.

I

Harness or connectors
(The sensor circuit is open or shorted.)

I

Primary speed sensor

: P0715

: MI Code No. 0715

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE

NCAT0220S03

CAUTION:

I

Always drive vehicle at a safe speed.

I

Be careful not to rev engine into the red zone on the
tachometer.

NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DURE” has been previously conducted, always turn ignition
switch “OFF” and wait at least 5 seconds before conducting
the next test.
After the repair, perform the following procedure to confirm the
malfunction is eliminated.

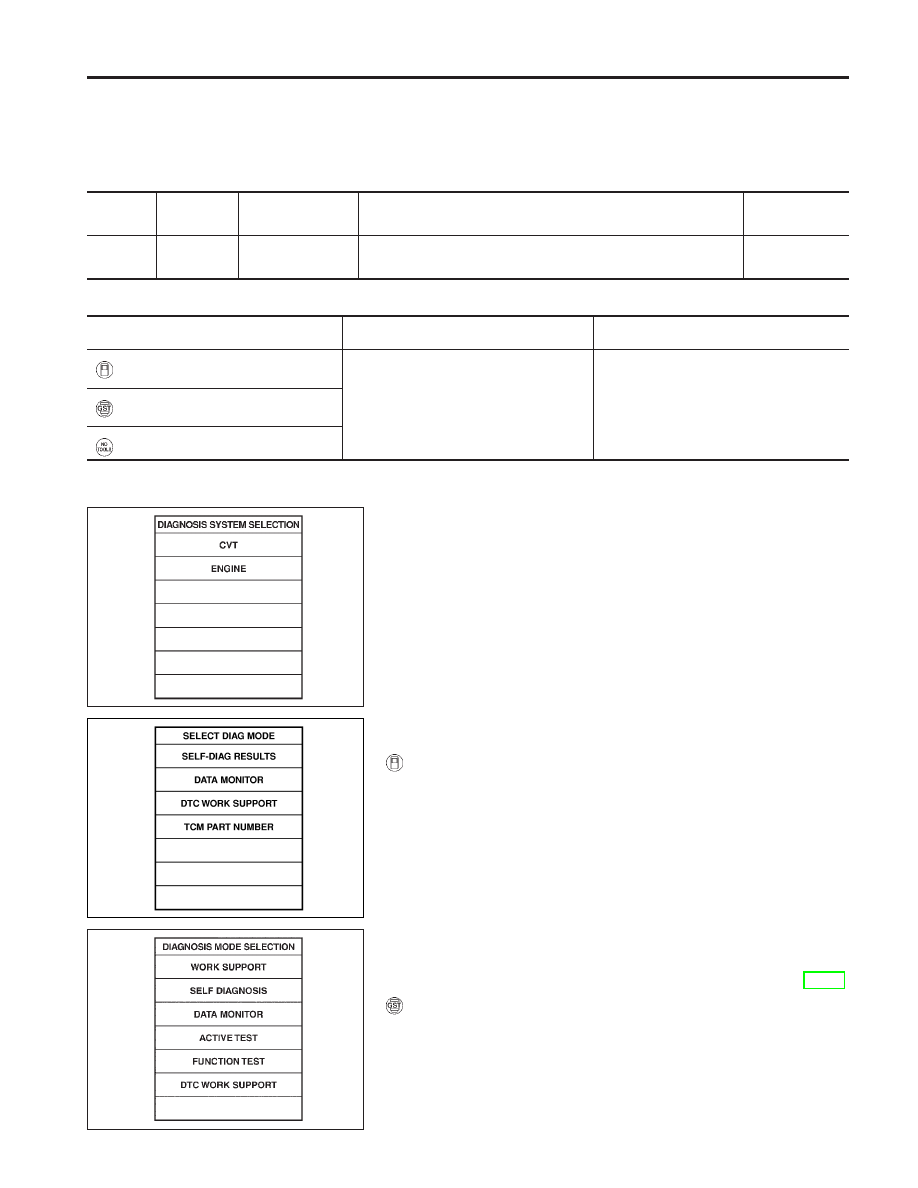

With CONSULT-II

1)

Turn ignition switch “ON” and select “DATA MONITOR” mode
for “ENGINE” with CONSULT-II.

2)

Start engine and maintain the following conditions for at least
5 consecutive seconds.

VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: More than 1.3V
Selector lever: D position
ENG SPEED: 450 rpm or more
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.

If the check result is NG, go to “Diagnostic Procedure”, AT-61.
With GST

Follow the procedure “With CONSULT-II”.

SAT651J

SAT971J

SAT654J

DTC P0715 PRIMARY SPEED SENSOR

Description

AT-59

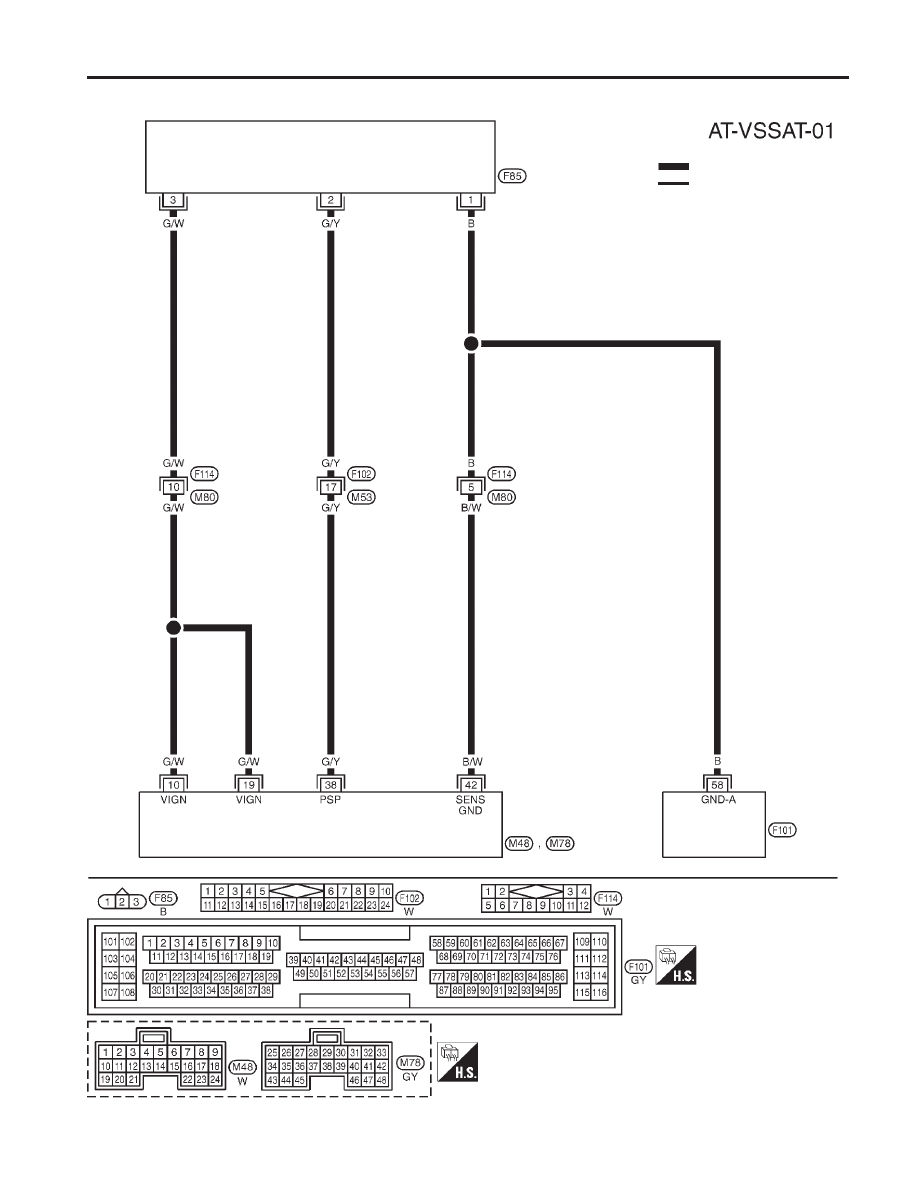

Wiring Diagram — AT — VSSA/T

NCAT0221

YAT204

PRIMARY
SPEED
SENSOR

: Detectable line for DTC

: Non-detectable line for DTC

TCM
(TRANSMISSION
CONTROL MODULE)

ECM

DTC P0715 PRIMARY SPEED SENSOR

Wiring Diagram — AT — VSSA/T

AT-60
