DATA MONITOR MODE (CVT)

NCAT0022S04

Item

Display

Monitor item

Description

Remarks

TCM input

signals

Main

signals

Vehicle speed sensor
(Secondary speed sensor)

VHCL SPEED
SE
[km/h] or [mph]

X

I

Vehicle speed com-
puted from signal of
revolution sensor is dis-
played.

When racing engine in “N”
or “P” position with vehicle
stationary, CONSULT-II data
may not indicate
0 km/h (0 mph).

Throttle position sensor

THRTL POS
SEN
[V]

X

I

Throttle position sensor
signal voltage is dis-
played.

CVT fluid temperature
sensor

FLUID TEMP
SE
[V]

X

I

CVT fluid temperature
sensor signal voltage is
displayed.

I

Signal voltage lowers
as fluid temperature
rises.

Battery voltage

BATTERY VOLT
[V]

X

I

Source voltage of TCM
is displayed.

Engine speed

ENGINE
SPEED
[rpm]

X

X

I

Engine speed, com-
puted from engine
speed signal, is dis-
played.

Engine speed display may
not be accurate under
approx. 800 rpm. It may not
indicate 0 rpm even when
engine is not running.

P/N position switch

N POSITION
SW
[ON/OFF]

X

I

ON/OFF state com-
puted from signal of
P/N position SW is dis-
played.

R position switch

R POSITION
SW
[ON/OFF]

X

I

ON/OFF state com-
puted from signal of R
position SW is dis-
played.

D position switch

D POSITION
SW
[ON/OFF]

X

I

ON/OFF state com-
puted from signal of D
position SW is dis-
played.

Sport mode switch

S POSITION
SW
[ON/OFF]

X

I

ON/OFF status, com-
puted from signal of
Sport mode SW, is dis-
played.

L position switch

L POSITION
SW
[ON/OFF]

X

I

ON/OFF status, com-
puted from signal of L
position SW, is dis-
played.

Closed throttle position
switch

CLOSED
THL/SW
[ON/OFF]

X

I

ON/OFF status, com-
puted from signal of
closed throttle position
SW, is displayed.

Wide open throttle position
switch

W/O THRL/
P-SW
[ON/OFF]

X

I

ON/OFF status, com-
puted from signal of
wide open throttle posi-
tion SW, is displayed.

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

CONSULT-II (Cont’d)

AT-21

Item

Display

Monitor item

Description

Remarks

TCM input

signals

Main

signals

Gear position

GEAR

X

I

Gear position (when
use manual mode) data
used for computation by
TCM, is displayed.

Selector lever position

SLCT LVR POSI

X

I

Selector lever position
data, used for computa-
tion by TCM, is dis-
played.

I

A specific value used for
control is displayed if fail-
safe is activated due to
error.

Vehicle speed

VEHICLE
SPEED
[km/h] or [mph]

X

I

Vehicle speed data,
used for computation by
TCM, is displayed.

Throttle position

THROTTLE
POSI
[/8]

X

I

Throttle position data,
used for computation by
TCM, is displayed.

I

A specific value used for
control is displayed if fail-
safe is activated due to
error.

Line pressure duty

LINE PRES
DTY
[%]

X

I

Control value of line
pressure solenoid valve,
computed by TCM from
each input signal, is
displayed.

Torque converter clutch
solenoid valve duty

TCC S/V DUTY
[%]

X

I

Control value of torque
converter clutch sole-
noid valve, computed
by TCM from each input
signal, is displayed.

Self-diagnosis display
lamp
(SPORT or CVT indicator
lamp)

PAT MONI
LAMP
[ON/OFF]

X

I

Control status of
SPORT or CVT indica-
tor lamp is displayed.

CVT fluid pressure sensor

LINE PRES-
SURE [V]

X

I

CVT fluid pressure sen-
sor signal voltage is
displayed.

Primary pulley speed
sensor

I/P PULLY SPD
[rpm]

X

X

I

Primary pulley speed
computed from signal of
primary pulley speed
sensor is displayed.

Secondary pulley speed
sensor

O/P PULLY SPD
[rpm]

I

Secondary pulley speed
computed from signal of
secondary speed sen-
sor is displayed.

Stop lamp switch

BRAKE SW
[ON/OFF]

X

I

ON/OFF position signal
of stop lamp switch is
displayed.

Idle judgement

CLSD THL
POSI [ON/OFF]

I

Idle status judged from
throttle position sensor
signal is displayed.

ABS signal

ABS SIGNAL
[ON/OFF]

X

I

ABS operation signal
(ON/OFF) from ABS
control unit is displayed.

Manual mode switch

MANU MODE
SW [ON/OFF]

X

I

ON/OFF position signal
of manual mode switch
is displayed.

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

CONSULT-II (Cont’d)

AT-22

Item

Display

Monitor item

Description

Remarks

TCM input

signals

Main

signals

Non-manual mode switch

NON M MODE
SW [ON/OFF]

X

I

ON/OFF position signal
of non-manual mode
switch is displayed.

Up switch

UP SW
[ON/OFF]

X

I

ON/OFF position signal
of up switch is dis-
played.

Down switch

DOWN SW
[ON/OFF]

X

I

ON/OFF position signal
of down switch is dis-
played.

Step motor coil A

S/M COIL [A]
[ON/OFF]

I

Control valve of step
motor coil A, computed
by TCM from each input
signal is displayed.

Step motor coil B

S/M COIL [B]
[ON/OFF]

I

Control valve of step
motor coil B, computed
by TCM from each input
signal is displayed.

Step motor coil C

S/M COIL [C]
[ON/OFF]

I

Control valve of step
motor coil C, computed
by TCM from each input
signal is displayed.

Step motor coil D

S/M COIL [D]
[ON/OFF]

I

Control valve of step
motor coil D, computed
by TCM from each input
signal is displayed.

CVT ratio

CVT RATIO [—]

X

I

Real CVT ratio operated
TCM is displayed.

Step

PLY CONT
STEP [step]

X

I

Step motor position is
displayed.

Line pressure

LINE PRES-
SURE [MPa]

X

I

Real line pressure cal-
culated from line pres-
sure sensor voltage
with TCM is displayed.

Pulley rpm

in 2

T RPM [rpm]

I

Target primary pulley
speed operated with
TCM is displayed.

CVT ratio 2

T RATIO [—]

I

Target changing the
speed ratio operated
with TCM is displayed.

Step 2

T STEP [step]

I

Target step motor posi-
tion operated with TCM
is displayed.

X: Applicable
—: Not applicable

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

CONSULT-II (Cont’d)

AT-23

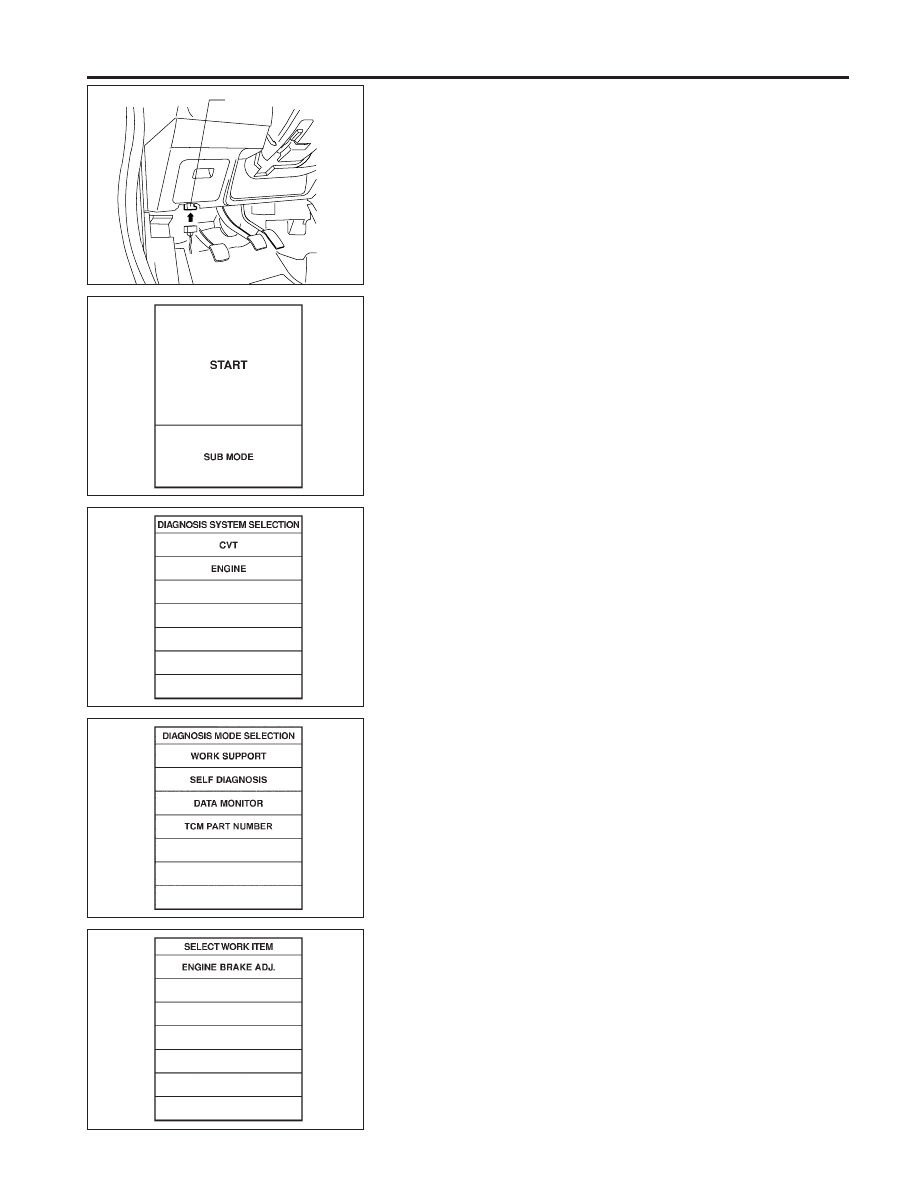

WORK SUPPORT MODE WITH CONSULT-II

1.

Turn ignition switch “OFF”.

2.

Connect CONSULT-II to Data link connector. Data link connec-
tor is located in left side dash panel.

3.

Turn ignition switch “ON”.

4.

Touch “START”.

5.

Touch “CVT”.

6.

Touch “WORK SUPPORT”.

7.

Touch “ENGINE BRAKE ADJUSTMENT”.

8.

Touch “START”.

NRS071

Data link connector

SAT586J

SAT651J

SAT732J

SAT933J

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

CONSULT-II (Cont’d)

AT-24
