WT-8

LOW TIRE PRESSURE WARNING SYSTEM

ANTENNA

Receives the radio wave signal transmitted by the transmitter (pres-
sure sensor).

LOW TIRE PRESSURE WARNING CONTROL UNIT

Reads the radio wave signal received by the antenna, and controls
the warning lamp and the warning chime operations as shown
below. It also has a judgement function to detect a system malfunc-
tion.

LEIA0029E

LEIA0030E

Condition

Warning lamp

Warning chime

Less than 192 kPa (1.9 kg/cm

2

 , 27.8 psi) [Low Pressure]

ON

Sounds for 10 sec.

System malfunction

ON

OFF

TROUBLE DIAGNOSES

WT-9

C

D

F

G

H

I

J

K

L

M

A

B

WT

TROUBLE DIAGNOSES

PFP:00004

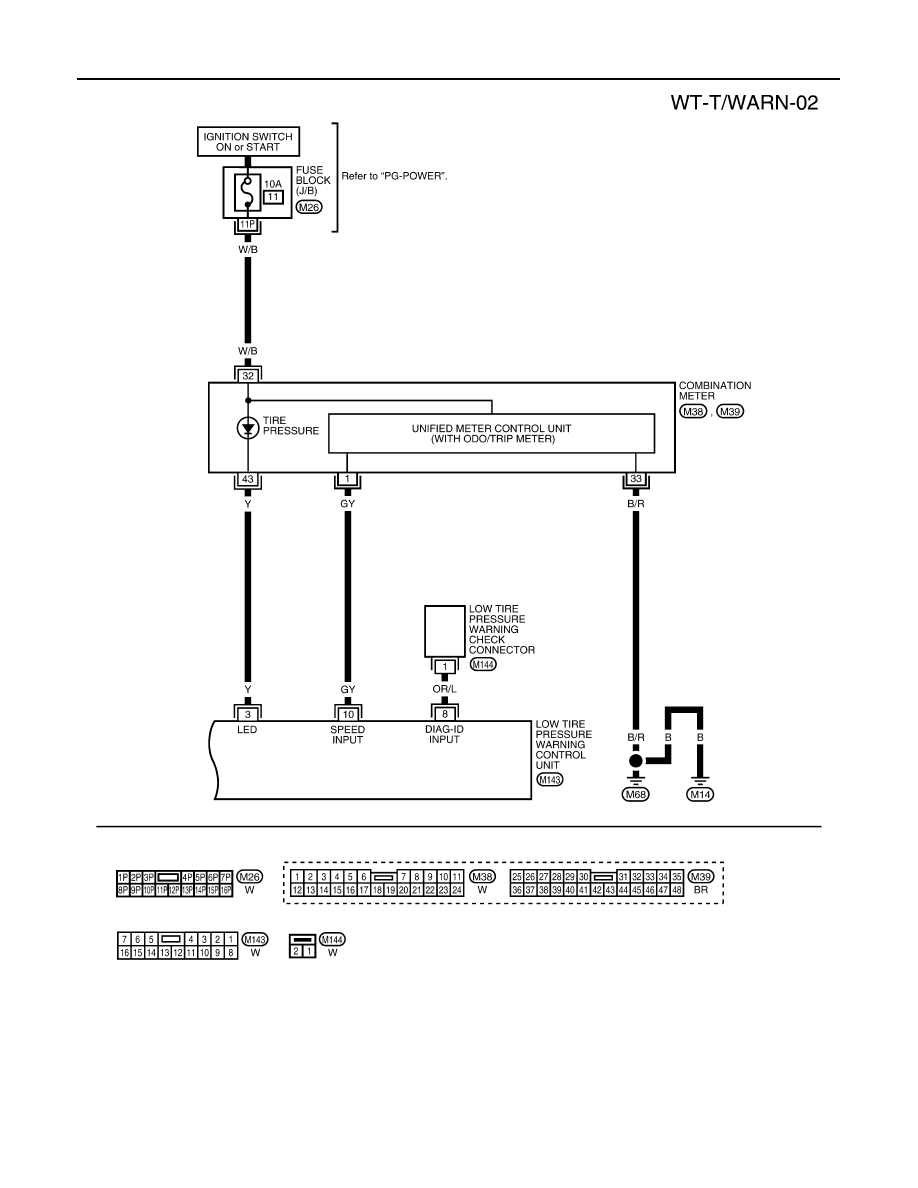

Wiring Diagram

EES000XX

WEWA0003E

WT-10

TROUBLE DIAGNOSES

LEWA0002E

TROUBLE DIAGNOSES

WT-11

C

D

F

G

H

I

J

K

L

M

A

B

WT

ID Registration Procedure

EES000XY

ID REGISTRATION WITH TRANSMITTER ACTIVATION TOOL

1.

Turn ignition switch “OFF”.

2.

Connect CONSULT-II to data link connector.

CAUTION:

If CONSULT-II is used with no connection of CONSULT-II
CONVERTER, malfunctions might be detected in self-diag-
nosis depending on control unit which carry out CAN com-
munication.

●

For details, refer to the separate “CONSULT-II Operations
Manual”.

3.

Start engine.

4.

Touch “START (NISSAN BASED VHCL)”, “AIR PRESSURE
MONITOR”, “WORK SUPPORT” and “ID REGIST”.

5.

Touch “START” on the CONSULT-II.

6.

With the transmitter activation tool (J-45295) pushed against the
front-left transmitter, press the button. The LED illuminates for
approximately 5 seconds.

7.

Register the IDs in order from FR LH, FR RH, RR RH, to RR LH. When ID registration of each wheel has
been completed, a chime sounds and hazard warning lamp blinks.

8.

After completing all ID registrations, press “END” to complete the procedure.

NOTE:
Be sure to register the IDs in the designated order or the self-diagnostic results display will not function prop-
erly.

BBIA0369E

LEIA0036E

Activation tire position

Chime

Hazard warning lamp

CONSULT-II

1

FR  LH

Once

Flashes 2 times

“YET”

↓

“DONE”

2

FR RH

2 times

3

RR RH

3 times

4

RR LH

4 times
