Nissan Frontier D22. Manual - part 933





TF-38

REPAIR FOR COMPONENT PARTS

AIR BREATHER
Removal and Installation

Remove air breather by pulling straight out and install at specified
angle, as shown.

Shift Control Components

EDS0011U

INSPECTION

Check contact surface and sliding surface for wear, scratches, pro-
jections or other faulty conditions, as shown.

L & H Shift Rod & Fork

Assemble as shown.

* Retaining pin is the same size as the one for 2-4 shift rod.

2-4 Shift Rod & Fork

Assemble as shown in illustration.

* Retaining pins are the same size.

SMT799A

SMT360A

SMT319A

SMT320A

REPAIR FOR COMPONENT PARTS

TF-39

C

E

F

G

H

I

J

K

L

M

A

B

TF

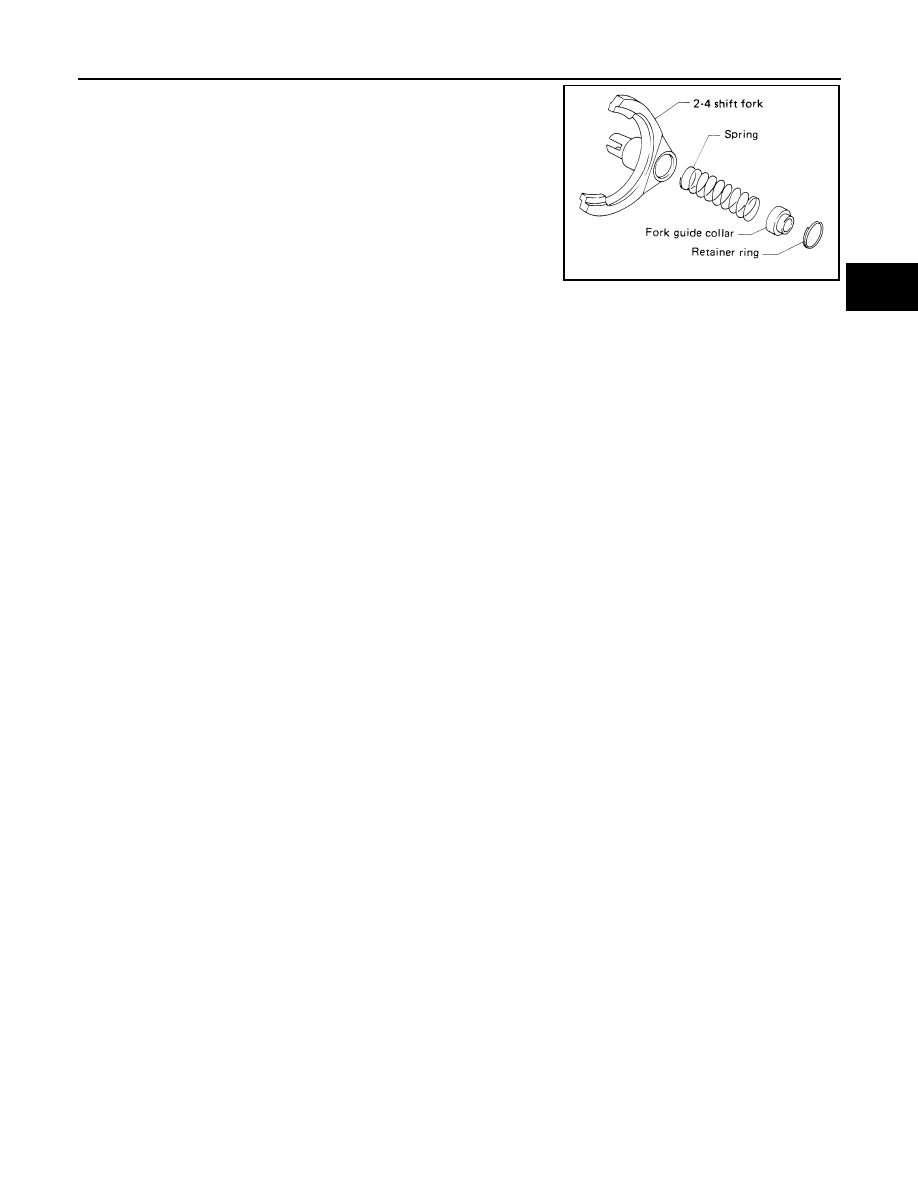

Pay special attention to the direction of fork guide collar.

SMT321A

TF-40

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

General Specifications

EDS0011V

Inspection and Adjustment

EDS0011W

CLEARANCE BETWEEN FRONT DRIVE SPROCKET AND 2-4 COUPLING SLEEVE

Unit: mm (in)

GEAR END PLAY

Unit: mm (in)

CLEARANCE BETWEEN BAULK RING AND CLUTCH GEAR

Unit: mm (in)

Available Shim

EDS0011X

COUNTER GEAR REAR BEARING

*: Always check with the Parts Department for the latest parts information.

Available Snap Ring

EDS0011Y

MAINSHAFT FRONT BEARING

*: Always check with the Parts Department for the latest parts information.

MAIN GEAR BEARING

Transfer model

TX10A

Gear ratio

High

1.000

Low

2.020

Number of teeth

Main gear

29

Low gear

37

Counter gear

High

38

Low

24

Front drive sprocket

41

Front drive shaft

41

Fluid capacity

 (US qt, Imp qt)

2.2 (2-3/8, 2)

Allowable clearance "C"

0.2 - 0.54 (0.0079 - 0.0213)

Front drive sprocket

0.2 - 0.35 (0.0079 - 0.0138)

Low gear

0.2 - 0.35 (0.0079 - 0.0138)

Counter gear

0 - 0.2 (0 - 0.0079)

Standard

Wear limit

1.0 - 1.5 (0.039 - 0.059)

0.5 (0.020)

Allowable clearance

0 - 0.2 mm (0 - 0.0079 in)

Thickness mm (in)

Part No.*

0.1 (0.004)
0.2 (0.008)
0.3 (0.012)
0.4 (0.016)
0.5 (0.020)
0.6 (0.024)

33112-C6900
33112-C6901
33112-C6902
33112-C6903
33112-33G00
33112-33G01

Allowable clearance

0 - 0.15 mm (0 - 0.0059 in)

Thickness mm (in)

Part No.*

3.10 (0.1220)
3.19 (0.1256)
3.28 (0.1291)

33138-73P10

33138-73P11

33138-73P12

Allowable clearance

0 - 0.15 mm (0 - 0.0059 in)

SERVICE DATA AND SPECIFICATIONS (SDS)

TF-41

C

E

F

G

H

I

J

K

L

M

A

B

TF

*: Always check with the Parts Department for the latest parts information.

MAINSHAFT REAR BEARING

*: Always check with the Parts Department for the latest parts information.

Thickness mm (in)

Part No.*

2.60 (0.1024)
2.69 (0.1059)
2.78 (0.1094)

33114-73P00
33114-73P01
33114-73P02

Allowable clearance

0 - 0.15 mm (0 - 0.0059 in)

Thickness mm (in)

Part No.*

1.80 (0.0709)
1.89 (0.0744)
1.98 (0.0780)
2.07 (0.0815)
2.16 (0.0850)

33138-73P20
33138-73P21
33138-73P22
33138-73P23
33138-73P24
