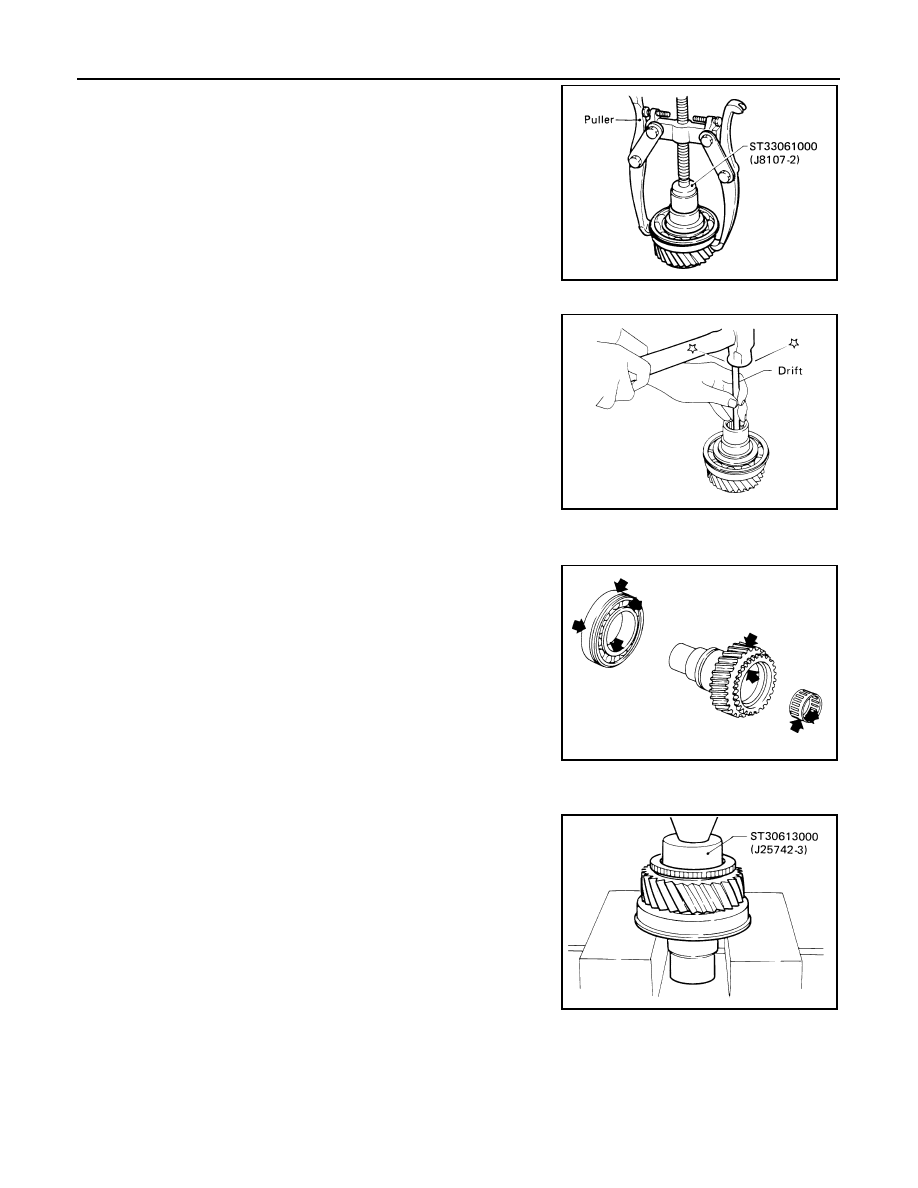

TF-34

REPAIR FOR COMPONENT PARTS

2.

Remove main gear bearing using puller and Tool, as shown.

Plug

Remove plug using a drift or suitable tool, as shown.

●

Always replace plug with a new one whenever it has been
removed.

INSPECTION
Gear, Shaft and Bearing

●

Check gears for excessive wear, chips or cracks.

●

Check shaft for cracks or wear.

●

Make sure bearings roll freely and are free from noise, cracks,
pitting or wear.

ASSEMBLY
Main Gear Bearing

1.

Press on main gear bearing.

SMT305A

SMT306A

SMT359A

SMT307A

REPAIR FOR COMPONENT PARTS

TF-35

C

E

F

G

H

I

J

K

L

M

A

B

TF

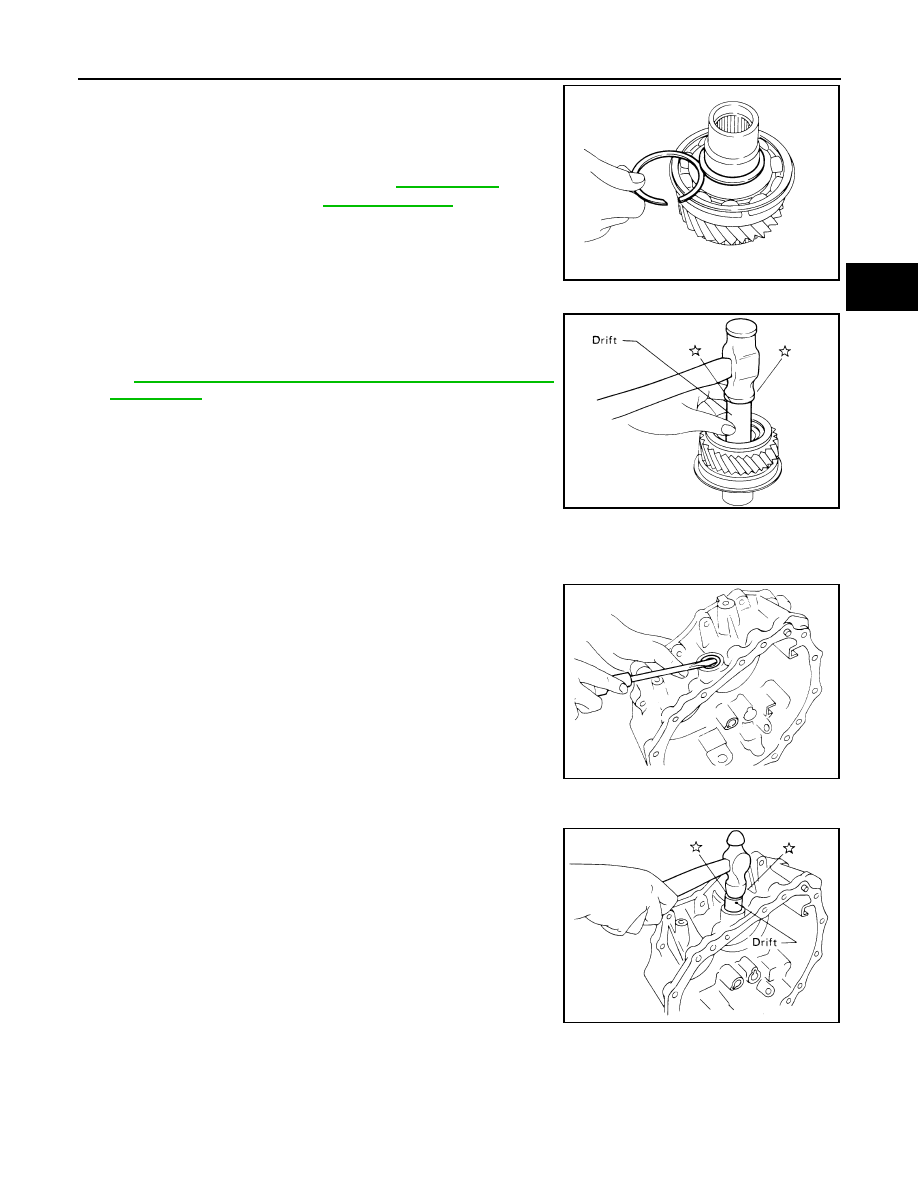

2.

Select and install snap ring with proper thickness.

Plug

●

Apply sealant to plug, then install using a drift or suitable tool, as
shown.

●

Use Genuine Anaerobic Liquid Gasket or equivalent. Refer
to

GI-42, "RECOMMENDED CHEMICAL PRODUCTS AND

SEALANTS"

Front Case

EDS0011P

SHIFT SHAFT OIL SEAL
Removal

Use a screwdriver to pry out old seal.

●

Be careful not to damage case.

●

Always replace seal with a new one whenever it has been
removed.

Installation

Install new shift shaft oil seal until flush with case.

●

Before installing, apply multi-purpose grease to seal lip.

Allowable clearance
between snap ring and
groove

: 0 - 0.15 mm (0 - 0.0059 in)

Available snap ring for
main gear bearing

: Refer to

TF-40, "MAIN

GEAR BEARING"

 .

ATF014

SMT309A

SMT310A

SMT311A

TF-36

REPAIR FOR COMPONENT PARTS

Front Case Cover

EDS0011Q

COVER OIL SEAL
Removal

Drive out old seal from inside of front case cover using a drift or suit-
able tool, as shown.

●

Be careful not to damage front case cover.

Installation

Install new front case cover oil seal until it stops using Tool, as
shown.

●

Before installing, apply multi-purpose grease to seal lip.

Bearing Retainer

EDS0011R

OIL CATCHER
Removal

Drive out oil catcher from inside of bearing retainer using a drift or
suitable tool, as shown.

●

Be careful not to damage bearing retainer.

Installation

Install oil catcher until it stops using a drift or suitable tool, as shown.

●

Be careful not to damage or distort oil catcher or bearing
retainer.

●

Before installing, apply multi-purpose grease to seal lip.

SMT312A

SMT313A

SMT314A

SMT315A

REPAIR FOR COMPONENT PARTS

TF-37

C

E

F

G

H

I

J

K

L

M

A

B

TF

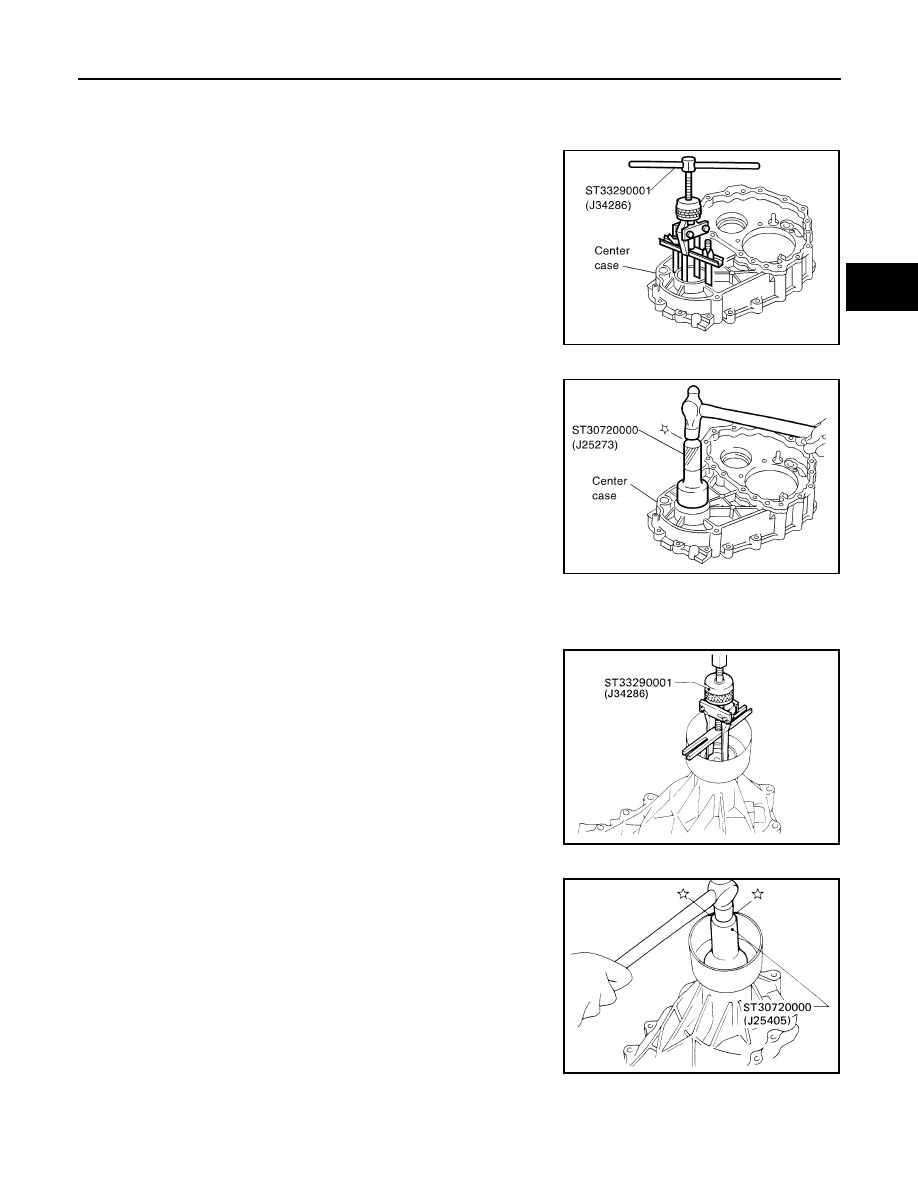

Center Case

EDS0011S

CENTER CASE OIL SEAL
Removal

Remove center case oil seal using Tool, as shown.

Installation

Install center case oil seal using Tool, as shown.

Rear Case

EDS0011T

REAR OIL SEAL
Removal

Pull out rear oil seal using Tool, as shown.

Installation

Install new rear oil seal until it stops using Tool, as shown.

●

Before installing, apply multi-purpose grease to seal lip.

SMT863D

SMT864D

AMT094

SMT317A
