SRS-50

PASSENGER AIR BAG DEACTIVATION SWITCH LOCK CYLINDER

PASSENGER AIR BAG DEACTIVATION SWITCH LOCK CYLINDER

PFP:25585

Removal

EHS000TE

Before servicing SRS, turn ignition switch OFF, disconnect both battery cables and wait for at
least 3 minutes.

1.

Remove cluster lid C. Refer to

IP-10, "Removal and Installation"

 .

2.

Disengage the two locking tabs from the passenger air bag deactivation switch lock cylinder and remove
the passenger air bag deactivation switch.

3.

Remove two retaining screws from the cluster lid C and remove the passenger air bag deactivation switch
lock cylinder.

Installation

EHS000TF

NOTE:

Be sure that the passenger air bag deactivation switch and lock cylinder is connected and in the
same position as during removal for proper engagement.

To install, reverse removal procedure.

After replacement, perform self-diagnosis for SRS. Refer to

SRS-20, "SRS Operation Check"

 .

LRS247

PASSENGER AIR BAG DEACTIVATION SWITCH INDICATOR

SRS-51

C

D

E

F

G

I

J

K

L

M

A

B

SRS

PASSENGER AIR BAG DEACTIVATION SWITCH INDICATOR

PFP:25585

Removal

EHS000TG

Before servicing SRS, turn ignition switch OFF, disconnect both battery cables and wait for at
least 3 minutes.

1.

Remove cluster lid C. Refer to

IP-10, "Removal and Installation"

 .

2.

Remove one screw and remove passenger air bag deactivation switch indicator.

Installation

EHS000TH

NOTE:

To install, reverse removal procedure.

After replacement, perform self-diagnosis for SRS. Refer to

SRS-20, "SRS Operation Check"

 .

LRS248

SRS-52

DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

PFP:00014

Disposal of Air Bag Module and Seat Belt Pre-tensioner

EHS000TI

Before disposing of air bag modules and seat belt pre-tensioners, or vehicles equipped with such sys-
tems, deploy the systems. If such systems have already been deployed due to an accident, dispose of as
indicated in

SRS-52, "Disposal of Air Bag Module and Seat Belt Pre-tensioner"

 .

When deploying air bag module or seat belt pre-tensioner, always use the Special Service Tool; Deploy-
ment tool KV99106400 (Kent-Moore No. J38381).

When deploying air bag module or seat belt pre-tensioner, stand at least 5 m (16 ft) away from the deploy-
ment component.

When deploying air bag module or seat belt pre-tensioner, a fairly loud noise is made, followed by smoke
being released. The smoke is not poisonous, however, be careful not to inhale smoke as it irritates the
throat and can cause choking.

Only activate one air bag module or seat belt pre-tensioner at a time.

Due to heat, leave air bag module unattended for more than 30 minutes after deployment. Leave seat belt
pre-tensioner unattended for more than 10 minutes after deployment.

Be sure to wear gloves when handling a deployed air bag module or seat belt pre-tensioner.

Never apply water to a deployed air bag module or seat belt pre-tensioner.

Wash your hands clean after finishing work.

Place the vehicle outdoors with an open space of at least 6 m (20 ft) on all sides when deploying air bag
module or seat belt pre-tensioner while mounted in vehicle.

Use a voltmeter to make sure the vehicle battery is fully charged.

Do not dispose of the air bag module or seat belt pre-tensioner undeployed.

CHECKING DEPLOYMENT TOOL
Connecting to Battery

CAUTION:

The battery must show voltage of 9.6V or more.
Remove the battery from the vehicle and place it on dry wood blocks approximately 5 m (16 ft) away from the
vehicle.

Wait 3 minutes after the vehicle battery is disconnected before proceeding.

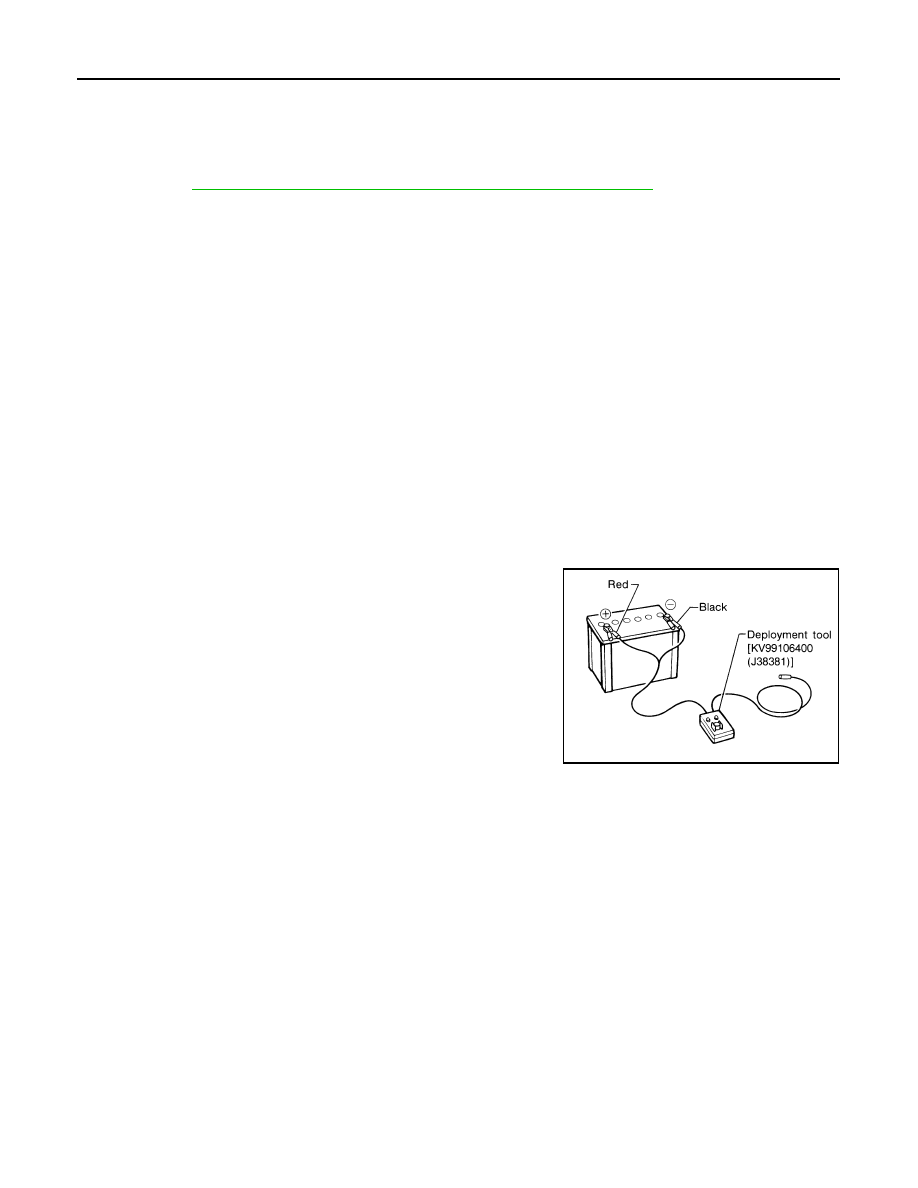

Connect red clip of deployment tool [SST: KV99106400 (J38381)] to battery positive terminal and black
clip to negative terminal.

CAUTION:

Make sure the polarity is correct. The right side lamp on the deployment tool [SST: KV99106400
(J38381)], marked “DEPLOYMENT TOOL POWER”, should glow with a green light. If the right side
lamp glows red, reverse the connections to the battery.

SRS019

DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

SRS-53

C

D

E

F

G

I

J

K

L

M

A

B

SRS

Deployment Tool Check

Press the deployment tool [SST: KV99106400 (J38381)] switch to
the ON position. The left side lamp on the deployment tool [SST:
KV99106400 (J38381)], marked “AIR BAG CONNECTOR VOLT-
AGE”, should illuminate. If it does not illuminate, replace the tool.

Air Bag Deployment Tool Lamp Illumination Chart (Battery connected)

*: If this lamp glows red, the tool is connected to the battery incorrectly. Reverse the connections and make sure the lamp glows green.

DEPLOYMENT PROCEDURES FOR AIR BAG MODULE (OUTSIDE OF VEHICLE)

Unless the vehicle is being scrapped, deploying the air bag modules
in the vehicle is not recommended. This may cause damage to the
vehicle interior.
Anchor air bag module bracket [KV99105300 (J41246)] in a vise
secured to a firm foundation during deployment.

Deployment of Driver Air Bag Module (Outside of vehicle)

1.

Using wire, secure driver air bag module to air bag module
bracket [SST: KV99105300 (J41246)] at two places.

CAUTION:

If a gap exists between driver air bag module and air bag
module bracket, use a piece of wood inserted in the gap to
stabilize the air bag module.
Use wire of at least 1 mm (0.04 in) diameter.

2.

Firmly secure air bag module bracket [SST: KV99105300 (J41246)] with driver air bag module attached, in
a vise.

SBF266H

Switch operation

Left side lamp, green*

“AIR BAG CONNECTOR

VOLTAGE”

Right side lamp, green*

“DEPLOYMENT TOOL

POWER”

OFF

OFF

ON

ON

ON

ON

ARS185

ARS186
