SRS-10

TROUBLE DIAGNOSIS

 HOW TO CHANGE SELF-DIAGNOSIS MODE WITH CONSULT-II

From User Mode to Diagnosis Mode

After selecting “AIR BAG” on the “SELECT SYSTEM” screen, User mode automatically changes to Diagnosis
mode.

From Diagnosis Mode to User Mode

To return to User mode from Diagnosis mode, touch “BACK” key of CONSULT-II until “SELECT SYSTEM”
appears, Diagnosis mode automatically changes to User mode.

 HOW TO CHANGE SELF-DIAGNOSIS MODE WITHOUT CONSULT-II

From User Mode to Diagnosis Mode

Diagnosis mode activates only when a malfunction is detected, by turning ignition switch as follows:

1.

Turn ignition switch “ON”.

2.

After “AIR BAG” warning lamp lights for 7 seconds, turn ignition switch “OFF” within 1 second.

3.

Wait more than 3 seconds.

4.

Repeat steps 1 to 3 three times.

5.

Turn ignition switch “ON”.

SRS will not enter Diagnosis mode if no malfunction is detected.

From Diagnosis Mode to User Mode

After a malfunction is repaired, switch the ignition “OFF” for at least one second, then back “ON”. Diagnosis
mode is returned to User mode.
If switching Diagnosis mode to User mode is required while malfunction is being detected, by turning ignition
switch as follows:

1.

Turn ignition switch “ON”.

2.

After “AIR BAG” warning lamp lights for 7 seconds, turn ignition switch “OFF” within 1 second.

3.

Wait more than 3 seconds.

4.

Repeat steps 1 to 3 three times.

5.

Turn ignition switch “ON”.

SRS803

SRS804

TROUBLE DIAGNOSIS

SRS-11

C

D

E

F

G

I

J

K

L

M

A

B

SRS

HOW TO ERASE SELF-DIAGNOSIS RESULTS

 With CONSULT-II

●

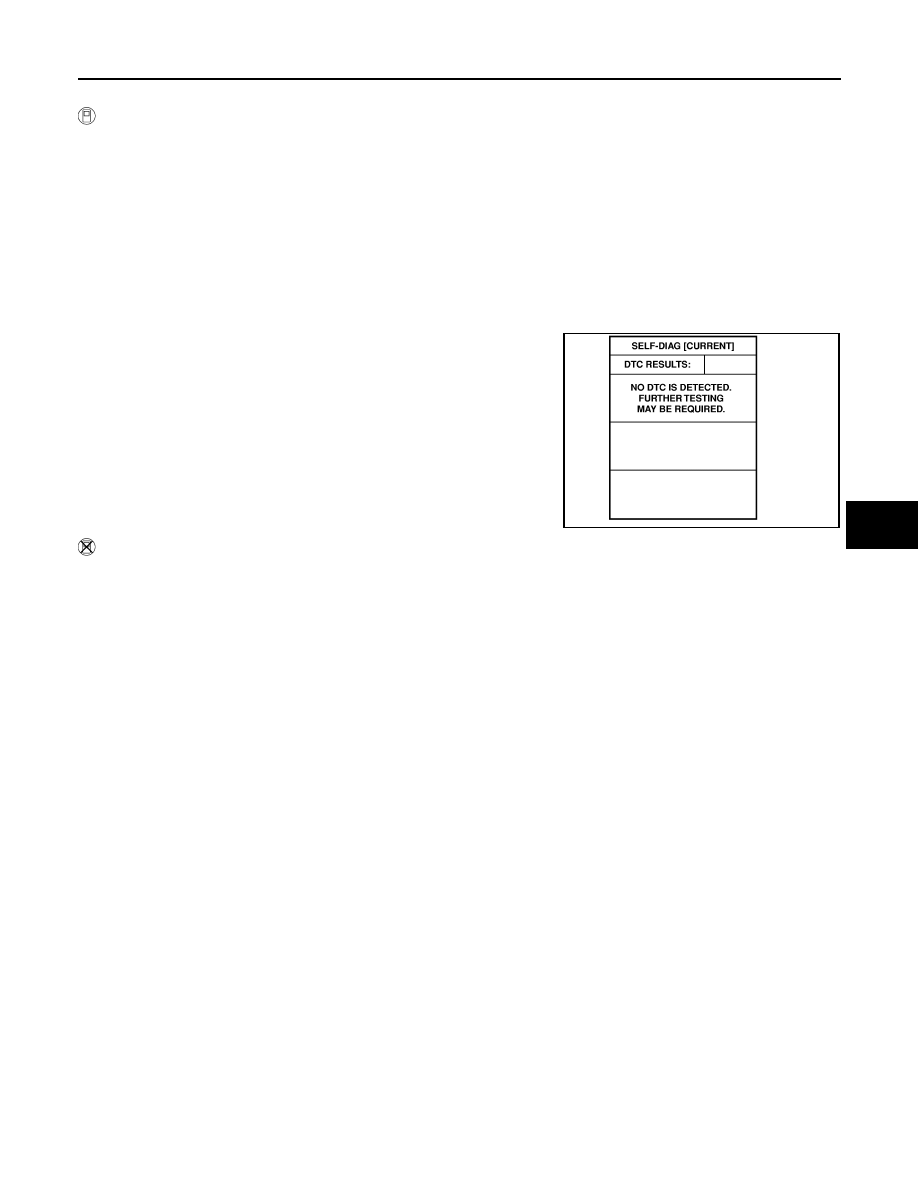

“SELF-DIAG [CURRENT]”
A current self-diagnosis result is displayed on the CONSULT-II screen in real time.
After the malfunction is repaired completely, no malfunction is detected on “SELF-DIAG [CURRENT]”.

●

“SELF-DIAG [PAST]”
Return to the “SELF-DIAG [CURRENT]” CONSULT-II screen by pushing “BACK” key of CONSULT-II and
select “SELF-DIAG [CURRENT]” in SELECT DIAG MODE. Touch “ERASE” in “SELF-DIAG [CURRENT]”
mode.

NOTE:
If the memory of the malfunction in “SELF-DIAG [PAST]” is not erased, the User mode shows the
system malfunction by the operation of the warning lamp even if the malfunction is repaired com-
pletely.


●

“TROUBLE DIAG RECORD”
The memory of “TROUBLE DIAG RECORD” cannot be erased.

 Without CONSULT-II

After a malfunction is repaired, switch the ignition “OFF” for at least one second, then back “ON”. Diagnosis
mode returns to the User mode. At that time, the self-diagnostic result is cleared.

SRS701

SRS-12

TROUBLE DIAGNOSIS

How to Perform Trouble Diagnoses for Quick and Accurate Repair

EHS000SW

A good understanding of the malfunction conditions can make troubleshooting faster and more accurate.
In general, each customer feels differently about a malfunction. It is important to fully understand the symp-
toms or conditions for a customer complaint.

INFORMATION FROM CUSTOMER

WHAT..... Vehicle model
WHEN..... Date, Frequencies
WHERE..... Road conditions
HOW..... Operating conditions, Symptoms

PRELIMINARY CHECK

Check that the following parts are in good order.

●

Battery, refer to

SC-4, "BATTERY"

●

Fuse

●

System component-to-harness connections

TROUBLE DIAGNOSIS

SRS-13

C

D

E

F

G

I

J

K

L

M

A

B

SRS

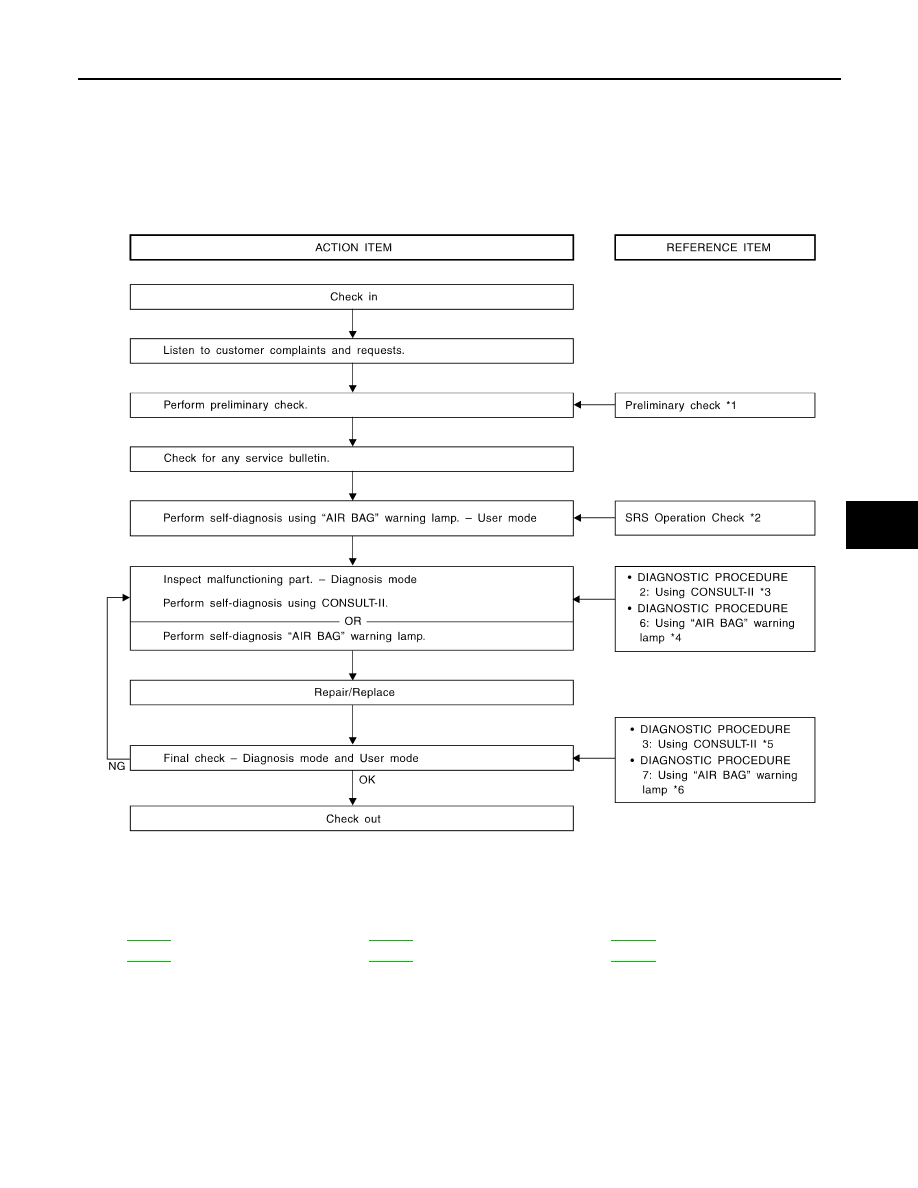

WORK FLOW

NOTE:
Seat belt pre-tensioner malfunction is indicated by “AIR BAG” warning lamp.

*1:

SRS-12

*2:

SRS-20

*3:

SRS-21

*4:

SRS-31

*5:

SRS-25

*6:

SRS-35

SRS799
