Nissan Frontier D22. Manual - part 890





RFD-68

[H233B]

REAR FINAL DRIVE ASSEMBLY

4.

Place pinion front bearing inner cone in gear carrier.

5.

Apply multi-purpose grease to cavity at sealing lips of oil seal.
Install front oil seal.

6.

Install drive pinion bearing spacer, pinion bearing adjusting shim
and drive pinion in gear carrier.

7.

Install ABS sensor unit and sensor rotor (2WD models).

8.

Insert companion flange onto drive pinion. Tap the companion
flange with a soft hammer until fully seated

9.

Tighten pinion nut until total preload is within specification.

The threaded portion of drive pinion and pinion nut
should be free from oil or grease.

SPD581

Tool number

A: ST30720000 (J-25405)

Tool number

B: KV38102510 (

)

SPD291A

SPD935-A

ABS sensor unit bolt

: 8 - 11 N·m (0.8 - 1.1 kg-m,
5.8 - 8.0 ft-lb)

SPD697

Tool number

: KV38108300 (J-44195)

Pinion nut

: 127 - 294 N·m (13.0 - 30.0 kg-m,
94 - 217 ft-lb)

Pinion preload

: 1.2 - 2.2 N·m (12 - 22 kg-m, 10 -
19 in-lb)

SPD481A

REAR FINAL DRIVE ASSEMBLY

RFD-69

[H233B]

C

E

F

G

H

I

J

K

L

M

A

B

RFD

10. Turn drive pinion in both directions several times, and measure

pinion bearing preload using Tool.

If preload is out of specification, adjust the thickness of spacer
and shim combination by replacing shim and spacer with thinner
one.

Start from the combination of thickest spacer and shim.

Combine each spacer and shim thickness one by one until the correct specification are achieved.

INSTALLATION OF DIFFERENTIAL CASE

1.

Install differential case assembly with side bearing outer races into gear carrier.

2.

Position side bearing adjusters on gear carrier with threads
properly engaged; using Tool, screw in adjusters lightly at this
stage of assembly.

3.

Align mark on bearing cap with that on gear carrier and install
bearing cap on gear carrier.

Do not tighten at this point. This allows further tightening of
side bearing adjusters.

4.

Tighten both right and left side bearing adjusters alternately and
measure ring gear backlash and total preload at the same time.
Adjust right and left side bearing adjusters by tightening them
alternately so that proper ring gear backlash and total preload
can be obtained.

Tool number

: ST3127S000 (J-25765-A)

Pinion bearing preload
(With front oil seal)

: 1.4 - 1.7 N·m (14 - 17 kg-cm,
12 - 15 in-lb)

Pinion bearing preload
(Without front oil seal)

: 1.2 - 1.5 N·m (12 - 15 kg-cm,
10 - 13 in-lb)

Drive pinion bearing
preload adjusting
spacer and shim

: Refer to

RFD-73, "Drive

Pinion Preload Adjust-
ment"

 .

SPD149

Tool number

: ST32580000 (J-34312)

SPD684

SPD265

Ring gear-to-drive pinion
backlash

: 0.13 - 0.18 mm (0.0051 -
0.0071 in)

SPD246

RFD-70

[H233B]

REAR FINAL DRIVE ASSEMBLY

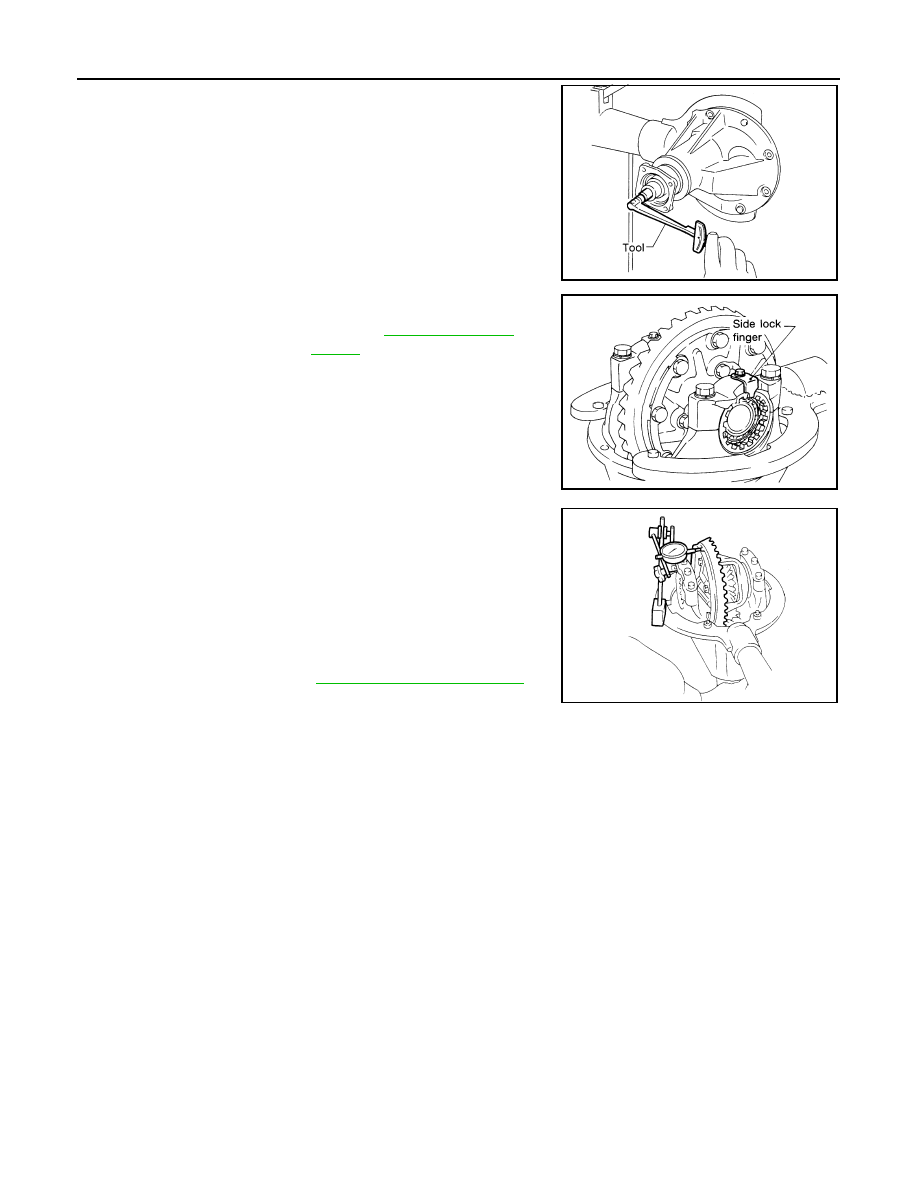

When checking preload, turn drive pinion in both direc-
tions several times to set bearing rollers using Tool.

5.

Tighten side bearing cap bolts.

6.

Install side lock finger in place to prevent rotation during opera-
tion.

7.

Check runout of ring gear with a dial indicator.

If backlash varies excessively in different places, the variance
may have resulted from foreign matter caught between the
ring gear and the differential case.

If the backlash varies greatly when the runout of the ring gear
is within a specified range, the hypoid gear set or differential
case should be replaced.

8.

Check tooth contact. Refer to

RFD-63, "TOOTH CONTACT"

 .

Tool number

: ST3127S000 (J-25765-A)

Total preload

: 1.7 - 2.5 N·m (17 - 25 kg-cm,
15 - 22 in-lb)

SPD149

Side bearing cap
bolts

: Refer to

RFD-48, "Compo-

nents"

 .

SPD698

Ring gear runout limit

: 0.08 mm (0.0031 in)

SPD247

SERVICE DATA AND SPECIFICATIONS (SDS)

RFD-71

[H233B]

C

E

F

G

H

I

J

K

L

M

A

B

RFD

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

General Specifications

EDS00135

2WD MODEL

*: Standard on Canada models.

4WD MODEL

*: Standard on Canada models.

Ring Gear Runout

EDS00136

Side Gear Adjustment

EDS00137

*Always check with the Parts Department for the latest parts information.

Differential Torque Adjustment (LSD Models)

EDS00138

Engine

VG33E

VG33ER

Vehicle grade

XE

 SE

SC

Rear final drive

Standard

Optional*

Standard

Standard

H233B

2-pinion

LSD

2-pinion

LSD

LSD

Gear ratio

4.636

4.900

4.363

Number of teeth (Ring gear/drive pinion)

51/11

49/10

48/11

Oil capacity (Approx.)

 (US pt, lmp pt)

2.8 (5-7/8, 4-7/8)

Engine

VG33E

VG33ER

Vehicle grade

XE

SE

SC

Rear final drive

Standard

Optional

Standard

Optional*

Standard

H233B

2-pinion

LSD

2-pinion

LSD

LSD

Gear ratio

4.636

4.900

4.900

4.900

Number of teeth (Ring gear/drive pinion)

51/11

49/10

49/10

49/10

Oil capacity (Approx.)

 (US pt, lmp pt)

2.8 (5-7/8, 4-7/8)

Ring gear runout limit

mm (in)

0.08 (0.0031)

Side gear backlash (Clearance between side gear thrust washer and dif-
ferential case)

mm (in)

0.10 - 0.20 (0.0039 - 0.0079)

Available
side gear
thrust wash-
ers

Thickness mm (in)

Part number*

1.75 (0.0689)
1.80 (0.0709)
1.85 (0.0728)

38424-T5000
38424-T5001
38424-T5002

Differential torque

 N·m (kg-m, ft-lb)

40 - 58 (4.0 - 6.0, 29 - 43)

Number of discs and plates
Friction disc
Friction plate
Spring plate
Spacer

2
5
2
1

Wear limit of plate and disc

 mm (in)

0.1 (0.004)

Allowable warping of friction disc and
plate

 mm (in)

0.8 (0.0031)

Total thickness

 mm (in)

18.57 - 20.43 (0.7311 - 0.8043)
