SERVICE DATA AND SPECIFICATIONS (SDS)

*Always check with the Parts Department for the latest parts information.

Wear limit of plate and disc

 mm

(in)

0.1 (0.004)

Allowable warpage of friction disc
and plate

 mm (in)

0.08 (0.0031)

Total thickness

 mm (in))

18.57 - 20.43 (0.7311 - 0.8043)

Available discs and plates (one side)

Part name

Thickness

 mm (in))

Part number*

Friction disc

1.4 (0.055)

38433-C6004

(adjusting type)

1.5 (0.059)

38433-C6002

(standard type)

1.6 (0.063)

38433-C6003

(adjusting type)

Friction plate

1.4 (0.055)

38432-C6002

1.5 (0.059)

38432-C6001

1.6 (0.063)

38432-C6003

Spring plate

1.5 (0.059)

38435-S9200

Spacer

6.0 (0.236)

38454-S9200

PREPARATION

RFD-41

[H233B]

C

E

F

G

H

I

J

K

L

M

A

B

RFD

PREPARATION

PFP:00002

Special Service Tools

EDS0012Y

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

ST3127S000
(J25765-A)
Preload gauge
1 GG91030000
(J25765)
Torque wrench
2 HT62940000
(

—

)

Socket adapter
3 HT62900000
(

—

)

Socket adapter

Measuring pinion bearing preload and total
preload

ST06340000
(J24310, J34310)
Differential attachment

Mounting final drive

ST32580000
(J34312)
Differential side bearing adjusting nut
wrench

Adjusting side bearing preload and backlash
(ring gear-drive pinion)

KV38108300
(J-44195)
Companion flange wrench

Removing and installing propeller shaft lock
nut, and drive pinion lock nut

ST3090S000
(

—

)

Drive pinion rear inner race puller set
1 ST30031000
(J22912-01)
Puller
2 ST30901000
(J26010-01)
Base

Removing and installing drive pinion rear in-
ner cone
a: 79 mm (3.11 in) dia.
b: 45 mm (1.77 in) dia.
c: 35 mm (1.38 in) dia.

ST3306S001
Differential side bearing puller set
1 ST33051001
(J22888-20)
Body
2 ST33061000
(J8107-2)
Adapter

Removing and installing differential side bear-
ing inner cone
a: 28.5 mm (1.122 in) dia.
b: 38 mm (1.50 in) dia.

NT124

NT140

NT141

NT771

NT527

NT072

RFD-42

[H233B]

PREPARATION

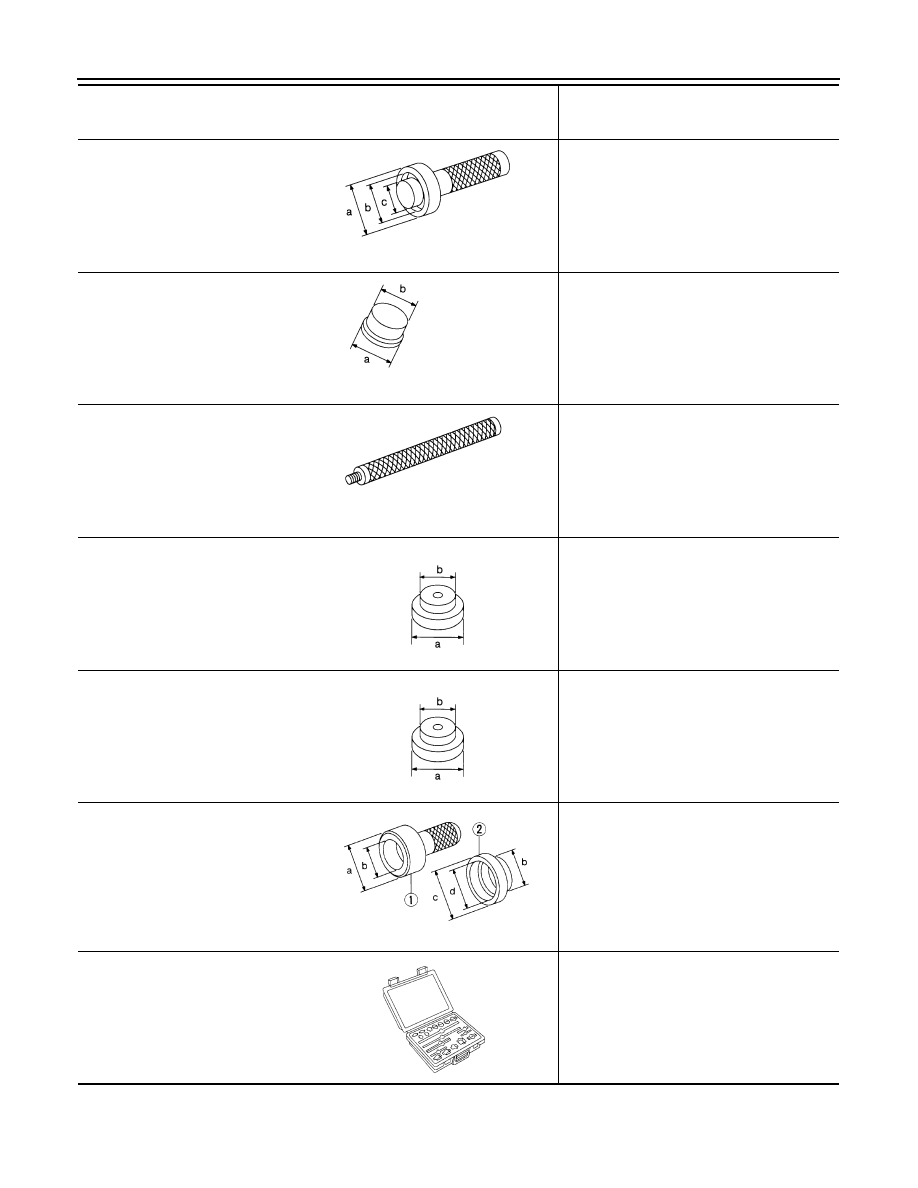

ST33190000
(J25523)
Differential side bearing drift

Installing side bearing inner cone
a: 52 mm (2.05 in) dia.
b: 45.5 mm (1.791 in) dia.
c: 34 mm (1.34 in) dia.

ST33081000
(

—

)

Side bearing puller adapter

Installing side bearing inner cone and remov-
ind and installing differential case couple bolts
a: 43 mm (1.69 in) dia.
b: 33.5 mm (1.319 in) dia.

ST30611000
(J25742-1)
Drift

Installing pinion rear bearing outer race
(Use with ST30621000 or ST30613000)

ST30621000
(J25742-5)
Drift

Installing pinion rear bearing outer race
a: 79 mm (3.11 in) dia.
b: 59 mm (2.32 in) dia.

ST30613000
(J25742-3)
Drift

Installing pinion front bearing outer race
(Use with ST30611000)
a: 72 mm (2.83 in) dia.
b: 48 mm (1.89 in) dia.

KV381025S0
(

—

)

Oil seal fitting tool
1 ST30720000
(J25405)
Drift bar
2 KV38102510
(

—

)

Drift

Installing front oil seal
a: 77 mm (3.03 in) dia.
b: 55 mm (2.17 in) dia.
c: 71 mm (2.80 in) dia.
d: 65 mm (2.56 in) dia.

(J34309)
Differential shim selector

Adjusting bearing pre-load and gear height

Tool number
(Kent-Moore No.)
Tool name

Description

NT085

NT431

NT090

NT073

NT073

NT525

NT134

PREPARATION

RFD-43

[H233B]

C

E

F

G

H

I

J

K

L

M

A

B

RFD

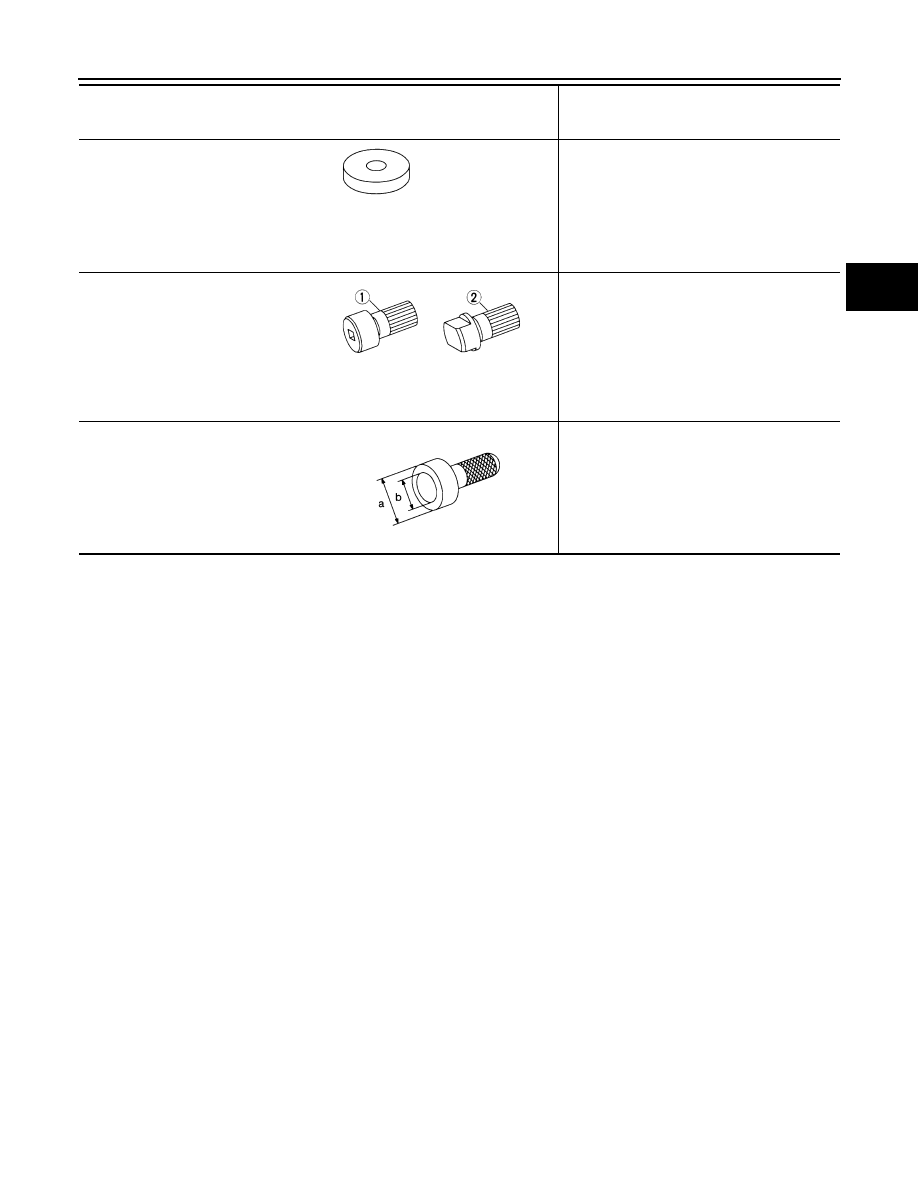

(J25269-18)
Side bearing discs
(2 Req'd)

Selecting pinion height adjusting washer

KV381052S0
(

—

)

Rear axle shaft dummy
1 KV38105210
(

—

)

Torque wrench side
2 KV38105220
(

—

)

Vise side

Checking differential torque on limited slip dif-
ferential

KV38100500
(J25273)
Gear carrier front oil seal drift

Installing front oil seal
a: 85 mm (3.35 in) dia.
b: 60 mm (2.36 in) dia.

Tool number
(Kent-Moore No.)
Tool name

Description

NT135

NT142
