FRONT OIL SEAL

9.

Hold the companion flange using Tool and tighten drive pinion
nut.

10. Install rear propeller shaft. Refer to

PR-8, "Removal and Installation"

 .

Tool number

: KV38108300 (J-44195)

Drive pinion
nut

: 127 - 294 N·m (13 - 30 kg-m,
94 - 217 ft-lb)

APD032

REAR COVER GASKET

RFD-9

[C200]

C

E

F

G

H

I

J

K

L

M

A

B

RFD

REAR COVER GASKET

PFP:38320

Removal and Installation

EDS0012S

1.

Drain gear oil. Refer to

MA-40, "Changing Differential Gear Oil"

 .

2.

Remove rear cover and rear cover gasket.

3.

Install new rear cover gasket and rear cover.

4.

Tighten rear cover bolts.

5.

Fill final drive with recommended gear oil. Refer to

MA-12, "RECOMMENDED FLUIDS AND LUBRI-

CANTS"

 .

Rear cover bolts

: 44 - 54 N·m (4.5 - 5.5 kg-m,
33 - 39 ft-lb)

RFD-10

[C200]

REAR FINAL DRIVE ASSEMBLY

REAR FINAL DRIVE ASSEMBLY

PFP:38300

Removal and Installation

EDS0012T

REMOVAL

CAUTION:

●

Be careful not to damage spline, sleeve yoke and front oil seal when removing propeller shaft.

●

Before removing the final drive assembly or rear axle assembly, disconnect the ABS sensor har-
ness connector from the assembly and move it away from the final drive/rear axle assembly area.
Failure to do so may result in the sensor wires being damaged and the sensor becoming inopera-
tive.

1.

Remove propeller shaft. Refer to

PR-8, "Removal and Installation"

 .

●

Plug front end of transfer.

2.

Remove axle shaft. Refer to

RAX-8, "Removal"

 .

INSTALLATION

●

Installation is in the reverse order of removal.

●

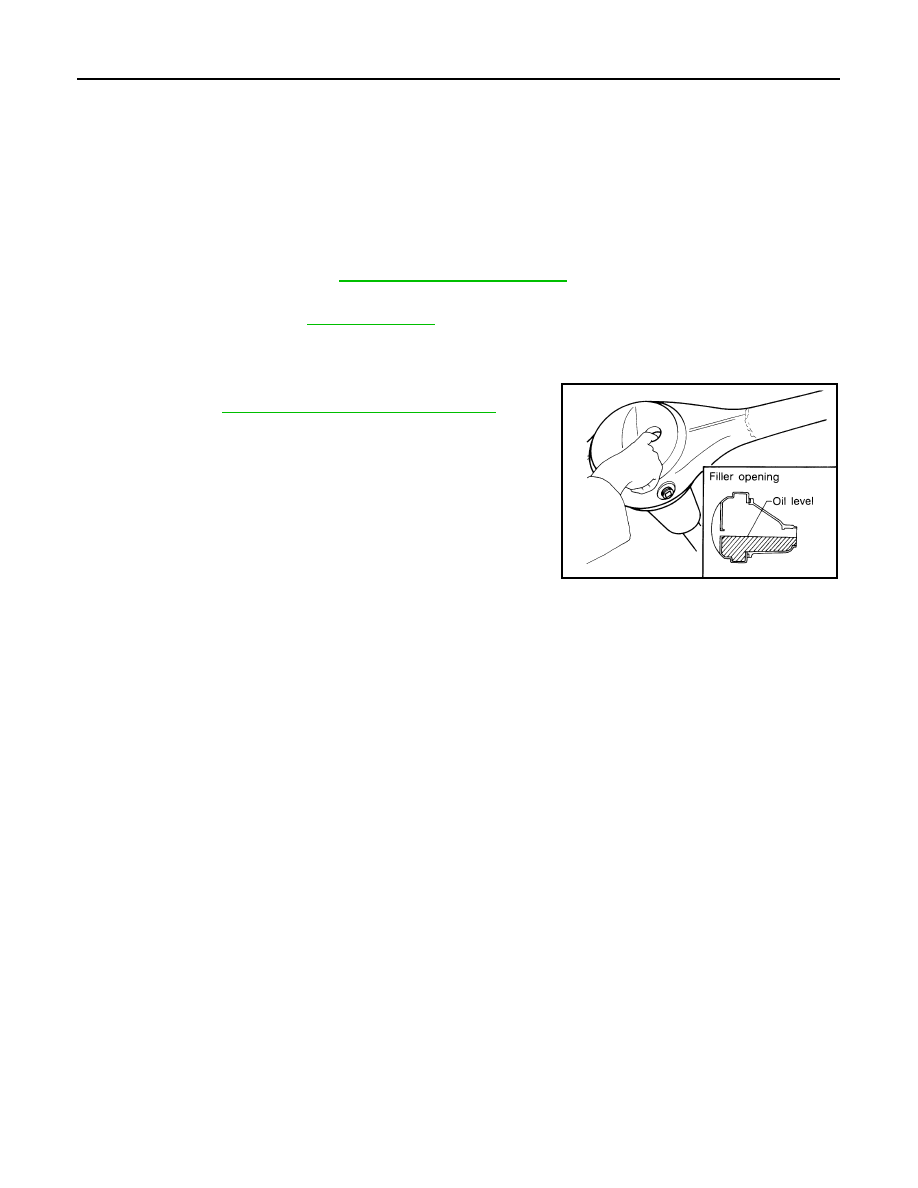

Fill final drive with recommended gear oil to the specified level
shown. Refer to

MA-39, "Checking Differential Gear Oil"

 .

SPD123

REAR FINAL DRIVE ASSEMBLY

RFD-11

[C200]

C

E

F

G

H

I

J

K

L

M

A

B

RFD

Components

EDS0012U

LDIA0019E
