Nissan Frontier D22. Manual - part 711





SERVICE DATA AND SPECIFICATIONS (SDS)

EM-151

[VG33E and VG33ER]

C

D

E

F

G

H

I

J

K

L

M

A

EM

PISTON PIN

Unit: mm (in)

Values measured at ambient temperature of 20

°C (68°F)

Connecting Rod

EBS00GU8

Unit: mm (in)

*After installing in connecting rod

Ring gap

Top

0.21 - 0.31 (0.0083 - 0.0122)

0.43 (0.0169)

2nd

0.50 - 0.60 (0.0197 - 0.0236)

0.69 (0.0272)

Oil (rail ring)

0.20 - 0.60 (0.0079 - 0.0236)

0.84 (0.0331)

Standard

Limit

Piston pin outer diameter

20.971 - 20.983 (0.8256 - 0.8261)

Interference fit of piston pin to piston

0 to

−0.004 (0 to −0.0002)

Piston pin to connecting rod bushing clearance

0.005 - 0.017 (0.0002 - 0.0007)

Center distance

154.1 - 154.2 (6.067 - 6.071)

Bend, torsion [per 100 (3.94)]

Limit

Bend: 0.15 (0.0059)

Torsion: 0.30 (0.0118)

Piston pin bushing inner diameter*

20.982 - 20.994 (0.8261 - 0.8265)

Connecting rod big end inner diameter

53.000 - 53.013 (2.0866 - 2.0871)

Side clearance

Standard

0.20 - 0.35 (0.0079 - 0.0138)

Limit

0.40 (0.0157)

EM-152

[VG33E and VG33ER]

SERVICE DATA AND SPECIFICATIONS (SDS)

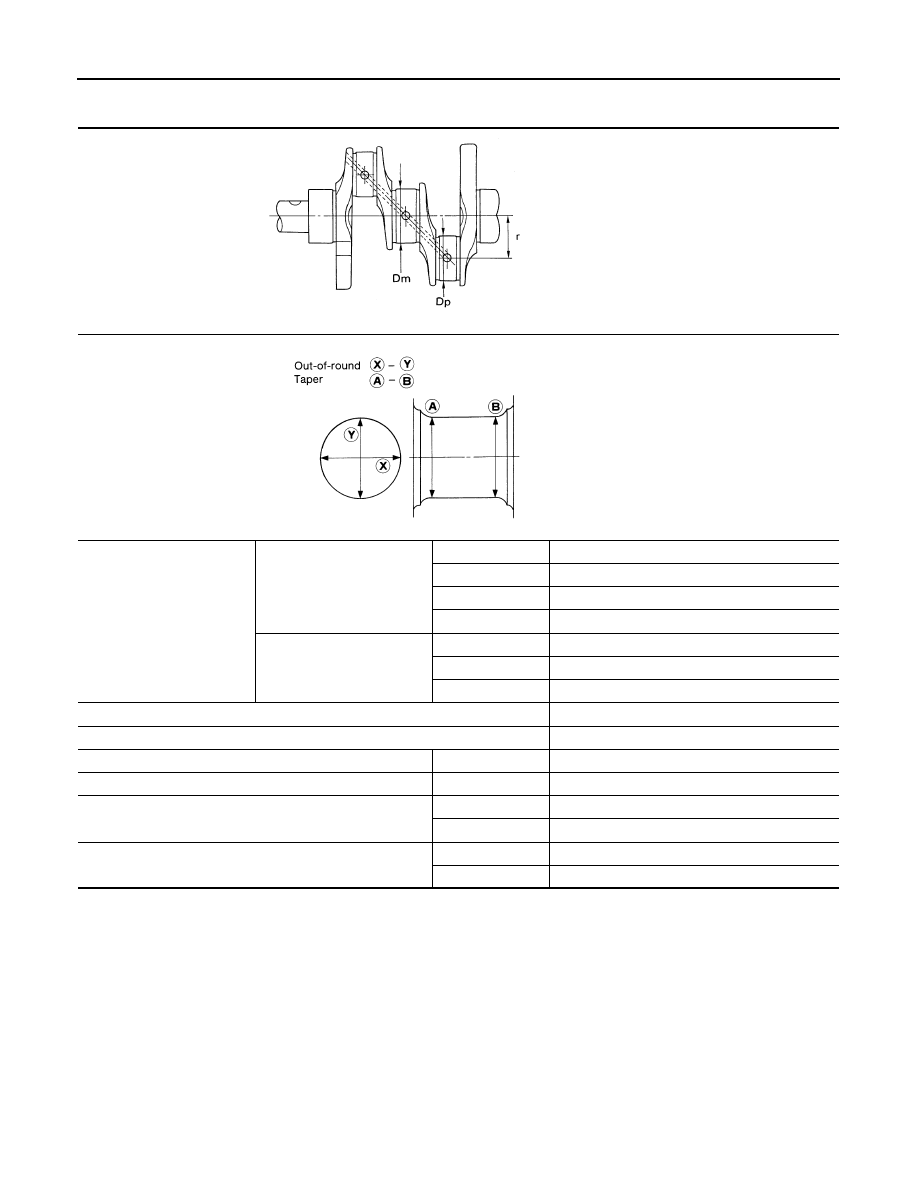

Crankshaft

EBS00GU9

Unit: mm (in)

Main journal dia. “Dm”

No. 1 main journal

Grade No. 3

62.696 - 62.975 (2.4683 - 2.4793

Grade No. 4

62.963 - 62.969 (2.4789 - 2.4791)

Grade No. 5

62.957 - 62.963 (2.4786 - 2.4789)

Grade No. 6

62.951 - 62.957 (2.4784 - 2.4786)

Except No. 1 main journal

Grade No. 0

62.967 - 62.975 (2.4790 - 2.4793)

Grade No. 1

62.959 - 62.967 (2.4787 - 2.4790)

Grade No. 2

62.951 - 62.959 (2.4784 - 2.4787)

Pin journal dia. “Dp”

49.955 - 49.974 (1.9667 - 1.9675)

Center distance “r”

41.5 (1.634)

Out-of-round (X

− Y)

Standard

Less than 0.005 (0.0002)

Taper (A

− B)

Standard

Less than 0.005 (0.0002)

Runout (total indicator reading)

Standard

Less than 0.025 (0.0010)

Limit

Less than 0.10 (0.0039)

End free play

Standard

0.050 - 0.170 (0.0020 - 0.0067)

Limit

0.30 (0.0118)

SEM394

EM715

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-153

[VG33E and VG33ER]

C

D

E

F

G

H

I

J

K

L

M

A

EM

Available Main Bearing

EBS00GUA

NO. 1 MAIN BEARING

NO. 2 AND 3 MAIN BEARING

NO. 4 MAIN BEARING

UNDER SIZE

Unit: mm (in)

SEM327A

Grade number

Thickness “T” mm (in)

Width “W” mm (in)

Identification color (mark)

0

1.822 - 1.825 (0.0717 - 0.0719)

22.4 - 22.6 (0.882 - 0.890)

Black (A)

1

1.825 - 1.828 (0.0719 - 0.0720)

Brown (B)

2

1.828 - 1.831 (0.0720 - 0.0721)

Green (C)

3

1.831 - 1.834 (0.0721 - 0.0722)

Yellow (D)

4

1.834 - 1.837 (0.0722 - 0.0723)

Blue (E)

5

1.837 - 1.840 (0.0723 - 0.0724)

Pink (F)

6

1.840 - 1.843 (0.0724 - 0.0726)

Purple (G)

Grade number

Thickness “T” mm (in)

Width “W” mm (in)

Identification color

0

1.817 - 1.821 (0.0715 - 0.0717)

18.9 - 19.1 (0.744 - 0.752)

Black

1

1.821 - 1.825 (0.0717 - 0.0719)

Brown

2

1.825 - 1.829 (0.0719 - 0.0720)

Green

3

1.829 - 1.833 (0.0720 - 0.0722)

Yellow

4

1.833 - 1.837 (0.0722 - 0.0723)

Blue

Grade number

Thickness “T” mm (in)

Identification color

0

1.817 - 1.821 (0.0715 - 0.0717)

Black

1

1.821 - 1.825 (0.0717 - 0.0719)

Brown

2

1.825 - 1.829 (0.0719 - 0.0720)

Green

3

1.829 - 1.833 (0.0720 - 0.0722)

Yellow

4

1.833 - 1.837 (0.0722 - 0.0723)

Blue

Thickness “T” mm (in)

Main journal diameter “Dm”

0.25 (0.0098)

No.1 main bearing

1.956 - 1.962 (0.0770 - 0.0772)

Grind so that bearing clearance

is the specified value.

No.2,3 and No.4 main bearing

1.948 - 1956 (0.0767 - 0.0770)

EM-154

[VG33E and VG33ER]

SERVICE DATA AND SPECIFICATIONS (SDS)

Available Connecting Rod Bearing

EBS00GUB

CONNECTING ROD BEARING UNDERSIZE

Unit: mm (in)

Miscellaneous Components

EBS00GUC

Unit: mm (in)

BEARING CLEARANCE

Unit: mm (in)

Thickness

Crank pin journal diameter “Dp”

Standard

1.502 - 1.506 (0.0591 - 0.0593)

49.955 - 49.974 (1.9667 - 1.9675)

Undersize

0.08 (0.0031)

1.542 - 1.546 (0.0607 - 0.0609)

Grind so that bearing clearance is the

specified value.

0.12 (0.0047)

1.562 - 1.566 (0.0615 - 0.0617)

0.25 (0.0098)

1.627 - 1.631 (0.0641 - 0.0642)

Flywheel / drive plate runout (total indicator reading)

Less than 0.15 (0.0059)

No. 1 Main bearing clearance

Standard

0.030 - 0.048 (0.0012 - 0.0019)

Limit

0.060 (0.0024)

No. 2, 3, 4 Main bearing clearance

Standard

0.038 - 0.065 (0.0015 - 0.0026)

Limit

0.080 (0.0031)

Connecting rod bearing clearance

Standard

0.024 - 0.064 (0.0009 - 0.0025)

Limit

0.090 (0.0035)
