CYLINDER BLOCK

EM-143

[VG33E and VG33ER]

C

D

E

F

G

H

I

J

K

L

M

A

EM

6.

Measure the connecting rod side clearance.

If beyond the limit, replace the connecting rod and/or crankshaft.

7.

Install the rear oil seal and retainer.

REPLACING PILOT BUSHING (M/T) OR PILOT CONVERTER (A/T)

1.

Remove the pilot bushing (M/T) or pilot converter (A/T) using
Tool as shown.

2.

Install the pilot bushing (M/T) or pilot converter (A/T) as shown.

Connecting rod side clearance

Standard

: 0.20 - 0.35 mm (0.0079 - 0.0138 in)

Limit

: 0.40 mm (0.0157 in)

SEM512A

SEM338F

SEM916AA

AEM500

EM-144

[VG33E and VG33ER]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

General Specifications

EBS00GU1

Unit: kPa (kg/cm

2

 , psi)/300 rpm

Unit: degree

Cylinder arrangement

V-6

Displacement

3,275 cm

3

  (199.84 cu in)

Bore and stroke

91.5 x 83 mm (3.602 x 3.27 in)

Valve arrangement

OHC

Firing order

1-2-3-4-5-6

Number of piston rings

Compression

2

Oil

1

Number of main bearings

4

Compression ratio

VG33E

8.9:1

VG33ER

8.3:1

Cylinder numbers

SEM713A

Compression pressure

Standard

1,196 (12.2, 173)

Minimum

883 (9.0, 128)

Differential limit between cylinders

98 (1.0, 14)

Valve timing

a

b

c

d

e

f

240

244

4

60

9

51

EM120

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-145

[VG33E and VG33ER]

C

D

E

F

G

H

I

J

K

L

M

A

EM

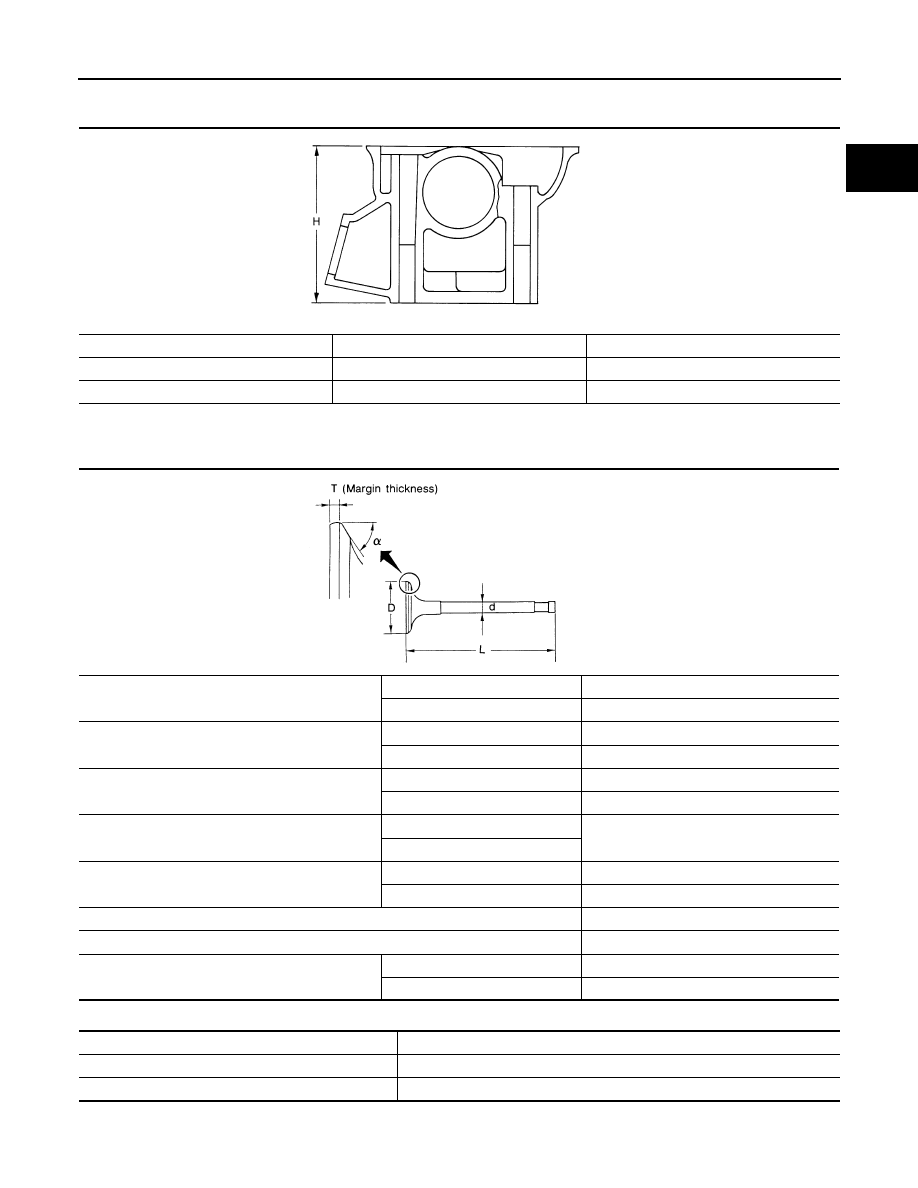

Cylinder Head

EBS00GU2

Unit: mm (in)

Valve

EBS00GU3

VALVE

Unit: mm (in)

VALVE SPRING

Standard

Limit

Nominal cylinder head height "H"

106.8 - 107.2 (4.205 - 4.220)

—

Head surface distortion

Less than 0.03 (0.0012)

0.1 (0.004)

WBIA0236E

Valve head diameter “D”

Intake

42.0 - 42.2 (1.654 - 1.661)

Exhaust

34.95 - 35.25 (1.376 - 1.388)

Valve length “L”

Intake

125.3 - 125.9 (4.933 - 4.957)

Exhaust

124.2 - 124.8 (4.890 - 4.913)

Valve stem diameter “d”

Intake

6.965 - 6.980 (0.2742 - 0.2748)

Exhaust

7.962 - 7.970 (0.3135 - 0.3138)

Valve seat angle “

α”

Intake

45

°15′ - 45°45′ degrees

Exhaust

Valve margin “T”

Intake

1.15 - 1.45 (0.0453 - 0.0571)

Exhaust

1.35 - 1.65 (0.0531 - 0.0650)

Valve margin “T” limit

More than 0.5 (0.020)

Valve stem end surface grinding limit

Less than 0.2 (0.008)

Valve clearance

Intake

0 (0)

Exhaust

0 (0)

SEM188

Free height

50.47 mm (1.987 in)

Valve closed (installation) height

40.0 mm (1.575 in)

Valve open height

30.0 mm (1.181 in)

EM-146

[VG33E and VG33ER]

SERVICE DATA AND SPECIFICATIONS (SDS)

HYDRAULIC VALVE LIFTER

Unit: mm (in)

VALVE GUIDE

Unit: mm (in)

ROCKER SHAFT AND ROCKER ARM

Unit: mm (in)

Pressure at valve open height

Standard

770 - 837 N (78.5 - 85.4 kg, 173.1 - 188.2 lb) at 30.0 mm (1.181 in)

Limit

733 N (74.8 kg, 164.8 lb) at 30.0 mm (1.181 in)

Out-of-square

2.0 mm (0.079 in)

Lifter outside diameter

15.947 - 15.957 (0.6278 - 0.6282)

Lifter guide inside diameter

16.000 - 16.013 (0.6299 - 0.6304)

Clearance between lifter and lifter guide

0.043 - 0.066 (0.0017 - 0.0026)

Standard

Service

Valve guide

Outer diameter

Intake

11.023 - 11.034 (0.4340 - 0.4344)

11.223 - 11.234 (0.4418 - 0.4423)

Exhaust

12.023 - 12.034 (0.4733 - 0.4738)

12.223 - 12.234 (0.4812 - 0.4817)

Inner diameter (Finished
size)

Intake

7.000 - 7.018 (0.2756 - 0.2763)

Exhaust

8.000 - 8.011 (0.3150 - 0.3154)

Cylinder head valve guide hole diameter

Intake

10.975 - 10.996 (0.4321 - 0.4329)

11.175 - 11.196 (0.4400 - 0.4408)

Exhaust

11.975 - 11.996 (0.4715 - 0.4723)

12.175 - 12.196 (0.4793 - 0.4802)

Interference fit of valve guide

Intake

0.027 - 0.059 (0.0011 - 0.0023)

Exhaust

Standard

Max. tolerance

Valve to valve guide clearance

Intake

0.020 - 0.053 (0.0008 - 0.0021)

0.10 (0.0039)

Exhaust

0.030 - 0.049 (0.0012 - 0.0019)

Valve deflection limit

—

0.20 (0.0079)

Rocker shaft

Outer diameter

17.979 - 18.000 (0.7078 - 0.7087)

Rocker arm

Inner diameter

18.007 - 18.028 (0.7089 - 0.7098)

Clearance between rocker arm and rocker shaft

0.007 - 0.049 (0.0003 - 0.0019)
