DTC P0122, P0123 TP SENSOR

PFP:16119

Component Description

UBS00DUA

NOTE:
If DTC P0122, P0123 is displayed with DTC P0510, first perform the trouble diagnosis for DTC P0510.
Refer to

EC-1580

 .

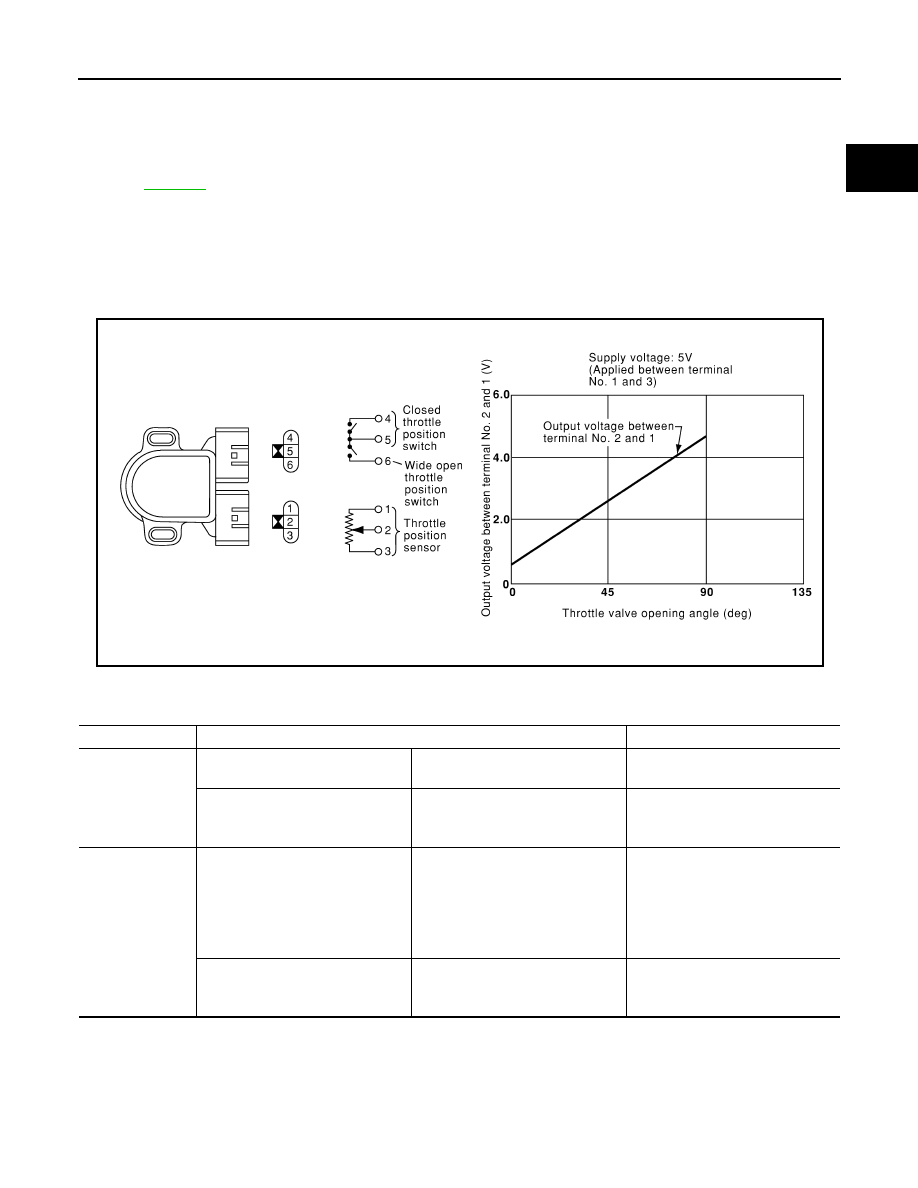

The throttle position sensor responds to the accelerator pedal movement. This sensor is a kind of potentiome-
ter which transforms the throttle position into output voltage, and emits the voltage signal to the ECM. In addi-
tion, the sensor detects the opening and closing speed of the throttle valve and feeds the voltage signal to the
ECM.
Idle position of the throttle valve is determined by the ECM receiving the signal from the throttle position sen-
sor. This sensor controls engine operation such as fuel cut. On the other hand, the “Wide open and closed
throttle position switch”, which is built into the throttle position sensor unit, is not used for engine control.

CONSULT-II Reference Value in Data Monitor Mode

UBS00DUB

Specification data are reference values.

On Board Diagnosis Logic

UBS00DUC

These self-diagnosis have one trip detection logic.

SEC299C

MONITOR ITEM

CONDITION

SPECIFICATION

THRTL POS SEN

●

Engine: After warming up, idle the
engine

Throttle valve: fully closed

0.15 - 0.85V

●

Engine: After warming up

●

Ignition switch: ON
(Engine stopped)

Throttle valve: fully opened

3.5 - 4.7V

ABSOL TH·P/S

●

Engine: After warming up

●

Ignition switch: ON

●

More than -40.0 kpa (-300 mmHg,
-11.81 inHg) of vacuum is applied
to the throttle opener with a hand
vacuum pump.

Throttle valve: fully closed

0.0%

●

Engine: After warming up

●

Ignition switch: ON
(Engine stopped)

Throttle valve: fully opened

Approx. 80%

EC-1360

[VG33ER]

DTC P0122, P0123 TP SENSOR

FAIL-SAFE MODE

When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.

DTC Confirmation Procedure

UBS00DUD

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 5 seconds before conducting the next test.

CAUTION:

Always drive vehicle at a safe speed.
TESTING CONDITION:

●

Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

●

This test may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a
road test is expected to be easier, it is unnecessary to lift the vehicle.

 WITH CONSULT-II

1.

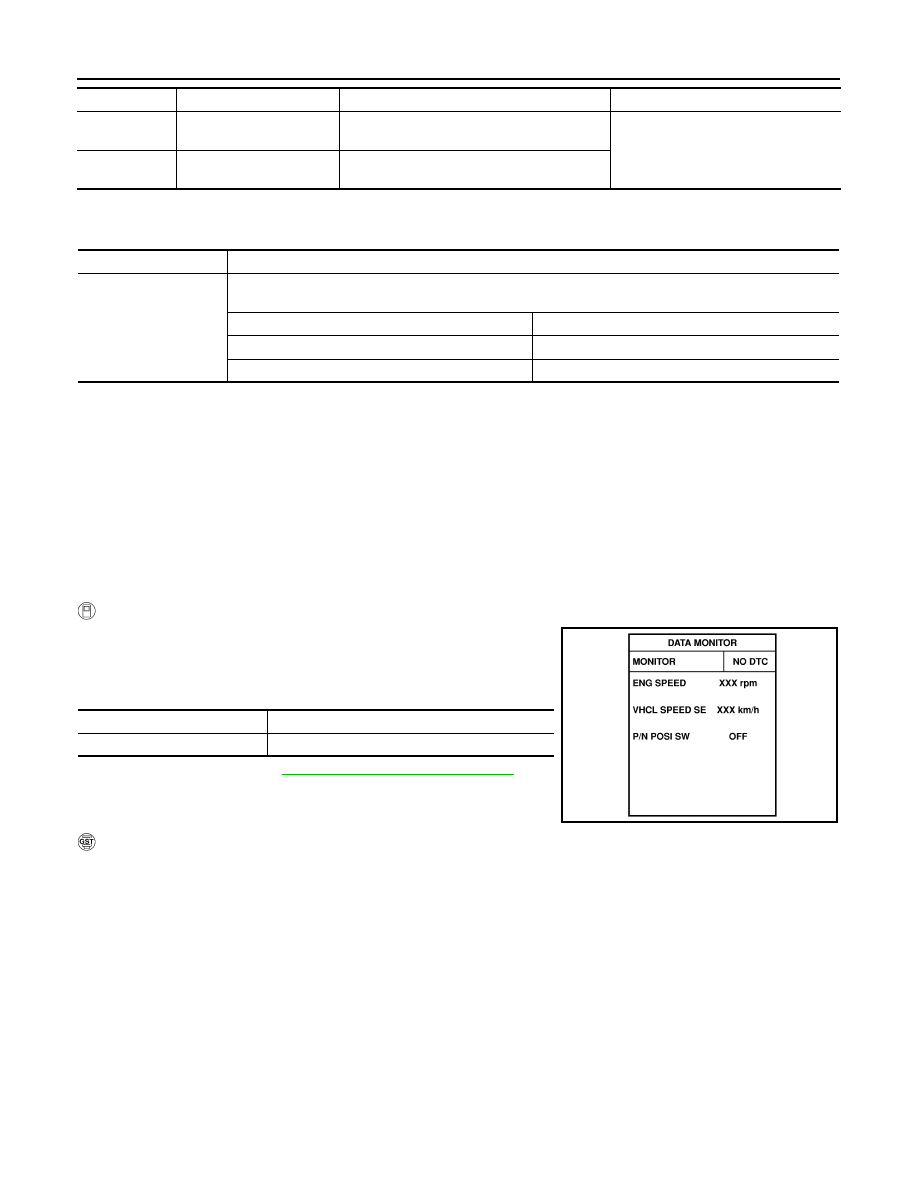

Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.

2.

Start engine and maintain the following conditions for at least 5
consecutive seconds.

3.

If DTC is detected, go to

EC-1362, "Diagnostic Procedure"

 .

 WITH GST

Follow the procedure “WITH CONSULT-II”.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0122

Throttle position sensor
circuit low input

An excessively low voltage from the sensor is
sent to ECM

●

Harness or connectors
(The TP sensor circuit is open or
shorted.)

●

TP sensor

P0123

Throttle position sensor
circuit high input

An excessively high voltage from the sensor is
sent to ECM

Detected items

Engine operating condition in fail-safe mode

Throttle position sensor

circuit

Throttle position will be determined based on the injected fuel amount and the engine speed.
Therefore, acceleration will be poor.

Condition

Driving condition

When engine is idling

Normal

When accelerating

Poor acceleration

Vehicle speed

More than 5 km/h (3 MPH)

Selector lever

Suitable position except P or N position

SEF065Y

DTC P0122, P0123 TP SENSOR

EC-1361

[VG33ER]

C

D

E

F

G

H

I

J

K

L

M

A

EC

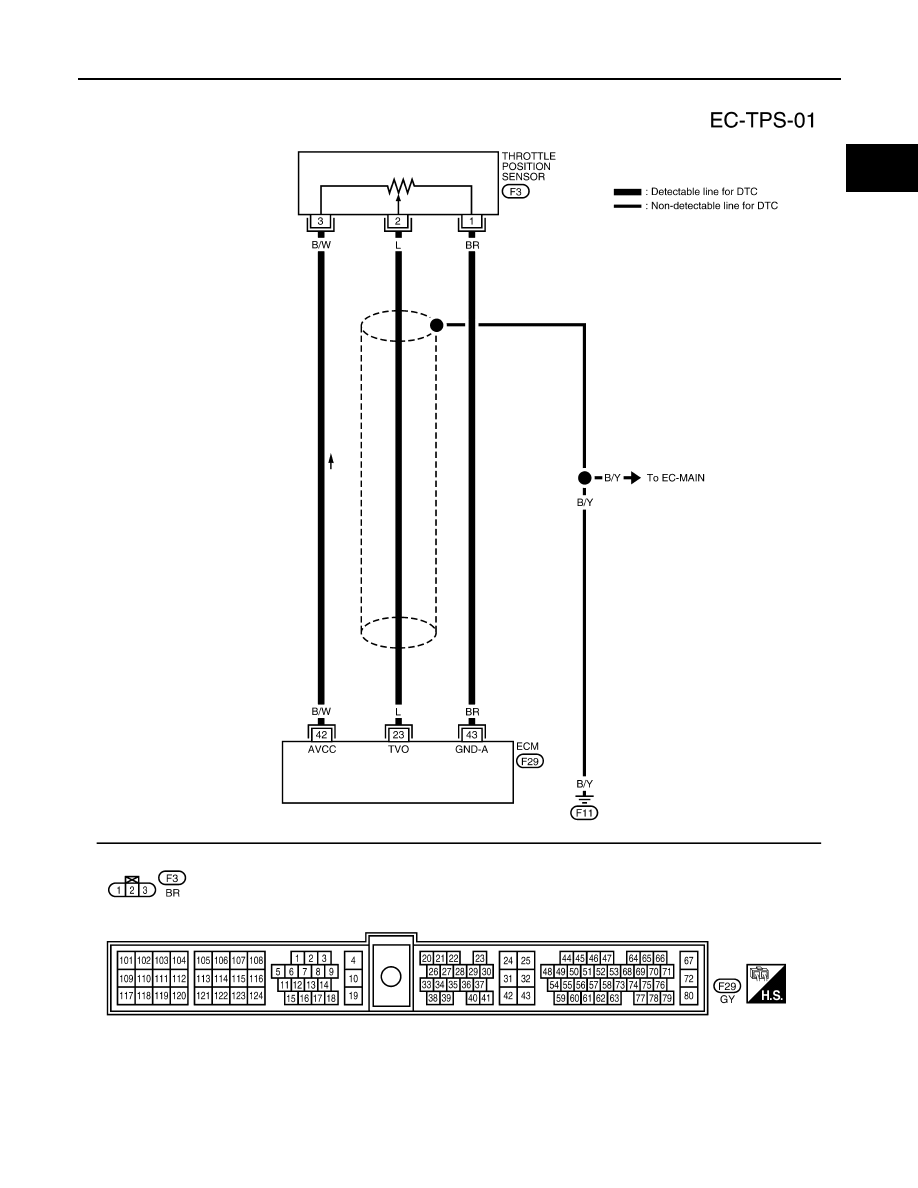

Wiring Diagram

UBS00DUE

BBWA0473E

EC-1362

[VG33ER]

DTC P0122, P0123 TP SENSOR

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than the ECM terminals, such as the ground.

Diagnostic Procedure

UBS00DUF

1.

RETIGHTEN GROUND SCREWS

1.

Turn ignition switch OFF.

2.

Loosen and retighten engine ground screws.

>> GO TO 2.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

23

L

Throttle position sensor

[Engine is running]

●

Warm-up condition

●

More than -40.0 kpa (-300 mmHg, -11.81 inHg)
of vacuum is applied to the throttle opener with
a hand vacuum pump

●

Accelerator pedal is fully released

0.15 - 0.85V

[Ignition switch: ON]

●

Engine stopped

●

Accelerator pedal is fully depressed

3.5 - 4.7V

42

B/W

Sensor power supply

[Ignition switch: ON]

Approximately 5V

43

BR

Sensor ground

[Engine is running]

●

Warm-up condition

●

Idle speed

Approximately 0V

BBIA0418E
