Nissan Frontier D22. Manual - part 534





ON BOARD DIAGNOSTIC (OBD) SYSTEM

EC-1239

[VG33ER]

C

D

E

F

G

H

I

J

K

L

M

A

EC

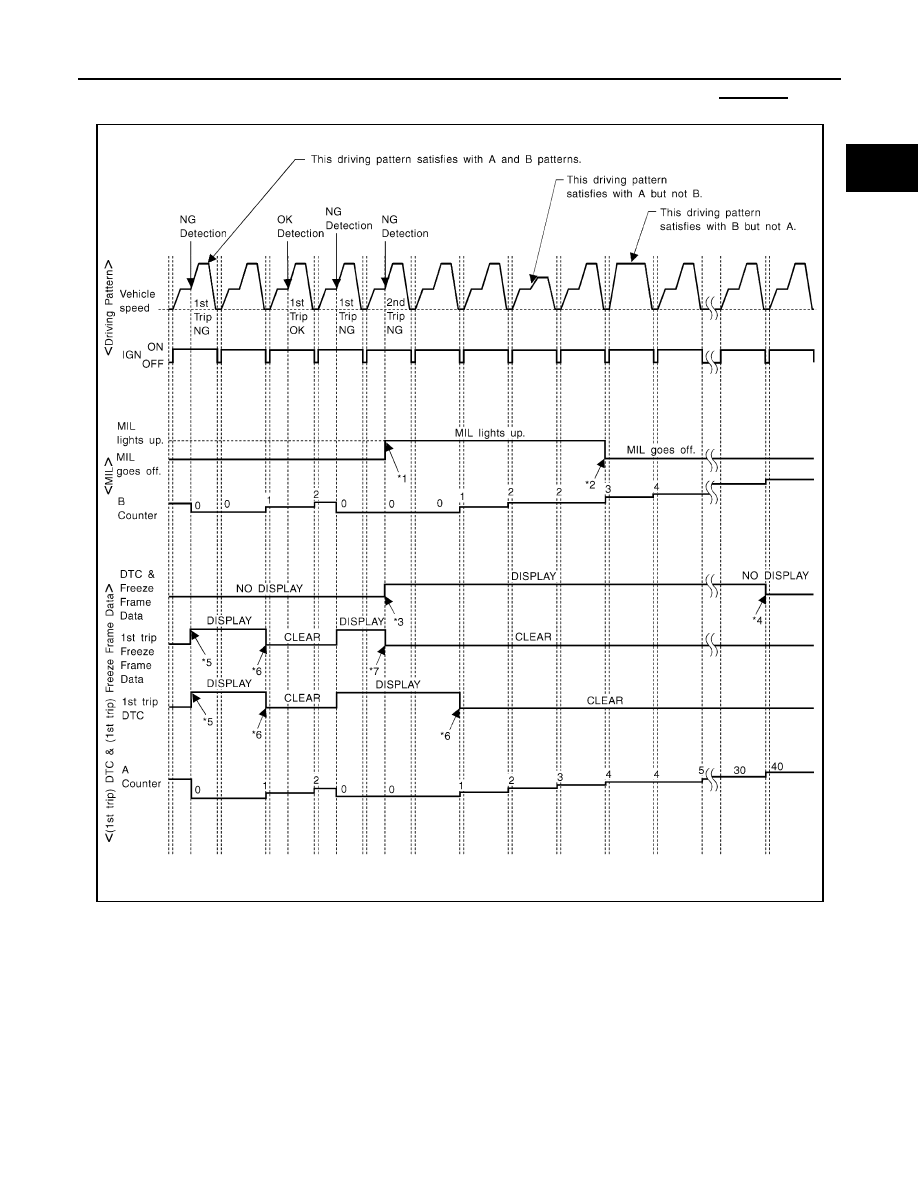

RELATIONSHIP BETWEEN MIL, DTC, 1ST TRIP DTC AND DRIVING PATTERNS EXCEPT  FOR
“MISFIRE <EXHAUST QUALITY DETERIORATION>”, “FUEL INJECTION SYSTEM”

*1: When the same malfunction is

detected in two consecutive trips,
MIL will light up.

*2: MIL will go off after vehicle is driven

3 times (pattern B) without any mal-
functions.

*3: When the same malfunction is

detected in two consecutive trips, the
DTC and the freeze frame data will
be stored in ECM.

*4: The DTC and the freeze frame data

will not be displayed any longer after
vehicle is driven 40 times (pattern A)
without the same malfunction.
(The DTC and the freeze frame data
still remain in ECM.)

*5: When a malfunction is detected for

the first time, the 1st trip DTC and
the 1st trip freeze frame data will be
stored in ECM.

*6: 1st trip DTC will be cleared after

vehicle is driven once (pattern B)
without the same malfunction.

*7: When the same malfunction is

detected in the 2nd trip, the 1st trip
freeze frame data will be cleared.

SEF393S

EC-1240

[VG33ER]

ON BOARD DIAGNOSTIC (OBD) SYSTEM

EXPLANATION FOR DRIVING PATTERNS EXCEPT  FOR “MISFIRE <EXHAUST QUALITY
DETERIORATION>”, “FUEL INJECTION SYSTEM”
<Driving Pattern A>

The A counter will be cleared when the malfunction is detected regardless of (1) - (4).

The A counter will be counted up when (1) - (4) are satisfied without the same malfunction.

The DTC will not be displayed after the A counter reaches 40.

<Driving Pattern B>

Driving pattern B means the vehicle operation as follows:
All components and systems should be monitored at least once by the OBD system.

The B counter will be cleared when the malfunction is detected once regardless of the driving pattern.

The B counter will be counted up when driving pattern B is satisfied without any malfunctions.

The MIL will go off when the B counter reaches 3 (*2 in OBD SYSTEM OPERATION CHART).

AEC574

TROUBLE DIAGNOSIS

EC-1241

[VG33ER]

C

D

E

F

G

H

I

J

K

L

M

A

EC

TROUBLE DIAGNOSIS

PFP:00004

Trouble Diagnosis Introduction

UBS00DS3

INTRODUCTION

The engine has an ECM to control major systems such as fuel con-
trol, ignition control, idle air control system, etc. The ECM accepts
input signals from sensors and instantly drives actuators. It is essen-
tial that both input and output signals are proper and stable. At the
same time, it is important that there are no malfunctions such as vac-
uum leaks, fouled spark plugs, or other malfunctions with the engine.

It is much more difficult to diagnose a incident that occurs intermit-
tently rather than continuously. Most intermittent incidents are
caused by poor electric connections or improper wiring. In this case,
careful checking of suspected circuits may help prevent the replace-
ment of good parts.

A visual check only may not find the cause of the incidents. A road
test with CONSULT-II (or GST) or a circuit tester connected should
be performed. Follow the Work Flow on

EC-1242

 .

Before undertaking actual checks, take a few minutes to talk with a
customer who approaches with a driveability complaint. The cus-
tomer can supply good information about such incidents, especially
intermittent ones. Find out what symptoms are present and under
what conditions they occur. A Diagnostic Worksheet like the example
on next page should be used.
Start your diagnosis by looking for conventional malfunctions first.
This will help troubleshoot driveability malfunctions on an electroni-
cally controlled engine vehicle.

MEF036D

SEF233G

SEF234G

EC-1242

[VG33ER]

TROUBLE DIAGNOSIS

WORK FLOW
Flow Chart

*1

If time data of “SELF-DIAG
RESULTS” is other than [0] or [1t],
perform

EC-1297, "TROUBLE DIAG-

NOSIS FOR INTERMITTENT INCI-
DENT"

 .

*2

If the incident cannot be verified, per-
form

EC-1297, "TROUBLE DIAGNO-

SIS FOR INTERMITTENT
INCIDENT"

 .

*3

If the on board diagnostic system
cannot be performed, check main
power supply and ground circuit.
Refer to

EC-1298, "POWER SUP-

PLY CIRCUIT FOR ECM"

 .

*4

If malfunctioning part cannot be
detected, perform

EC-1297, "TROU-

BLE DIAGNOSIS FOR INTERMIT-
TENT INCIDENT"

 .

*5

EC-1230, "Driving Pattern"

.

*6

EC-1293, "TROUBLE DIAGNOSIS -
SPECIFICATION VALUE"

.

SEF510ZF
