DTC P1336 CKP SENSOR (OBD)

EC-1051

[VG33E]

C

D

E

F

G

H

I

J

K

L

M

A

EC

3.

DETECT MALFUNCTIONING PART

Check the following.

Harness connectors F38, F102

Harness for open or short between ECM and crankshaft position sensor (OBD)

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK CKP SENSOR (OBD) GROUND CIRCUIT FOR OPEN AND SHORT

1.

Reconnect ECM harness connectors.

2.

Check harness continuity between CKP sensor (OBD) terminal 1 and engine ground. Refer to Wiring Dia-
gram.

3.

Also check harness for short to power.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 5.

5.

DETECT MALFUNCTIONING PART

Check the following.

Harness connectors F38, F102

Harness for open between crankshaft position sensor (OBD) and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

6.

CHECK IMPROPER INSTALLATION

1.

Loosen and retighten the fixing bolt of the crankshaft position sensor (OBD).

2.

Perfor

EC-1048, "DTC Confirmation Procedure"

 .

Is a 1st trip DTC P1336 detected?

Yes

>> GO TO 7.

No

>> INSPECTION END.

Continuity should exist.

EC-1052

[VG33E]

DTC P1336 CKP SENSOR (OBD)

7.

CHECK CRANKSHAFT POSITION SENSOR (OBD)

1.

Disconnect crankshaft position sensor (OBD) harness connector.

2.

Loosen the fixing bolt of the sensor.

3.

Remove the sensor.

4.

Visually check the sensor for chipping.

5.

Check resistance as shown in the figure.

OK or NG

OK

>> GO TO 8.

NG

>> Replace crankshaft position sensor (OBD).

8.

CHECK GEAR TOOTH

Visually check for chipping flywheel or drive plate gear tooth (cog).

OK or NG

OK

>> GO TO 9.

NG

>> Replace the flywheel or drive plate.

9.

CHECK INTERMITTENT INCIDENT

Refer to

EC-696, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END.

SEF960N

Resistance: Approximately 512 - 632

 [at 20°C (68°F)]

SEF504V

DTC P1400 EGRC-SOLENOID VALVE

EC-1053

[VG33E]

C

D

E

F

G

H

I

J

K

L

M

A

EC

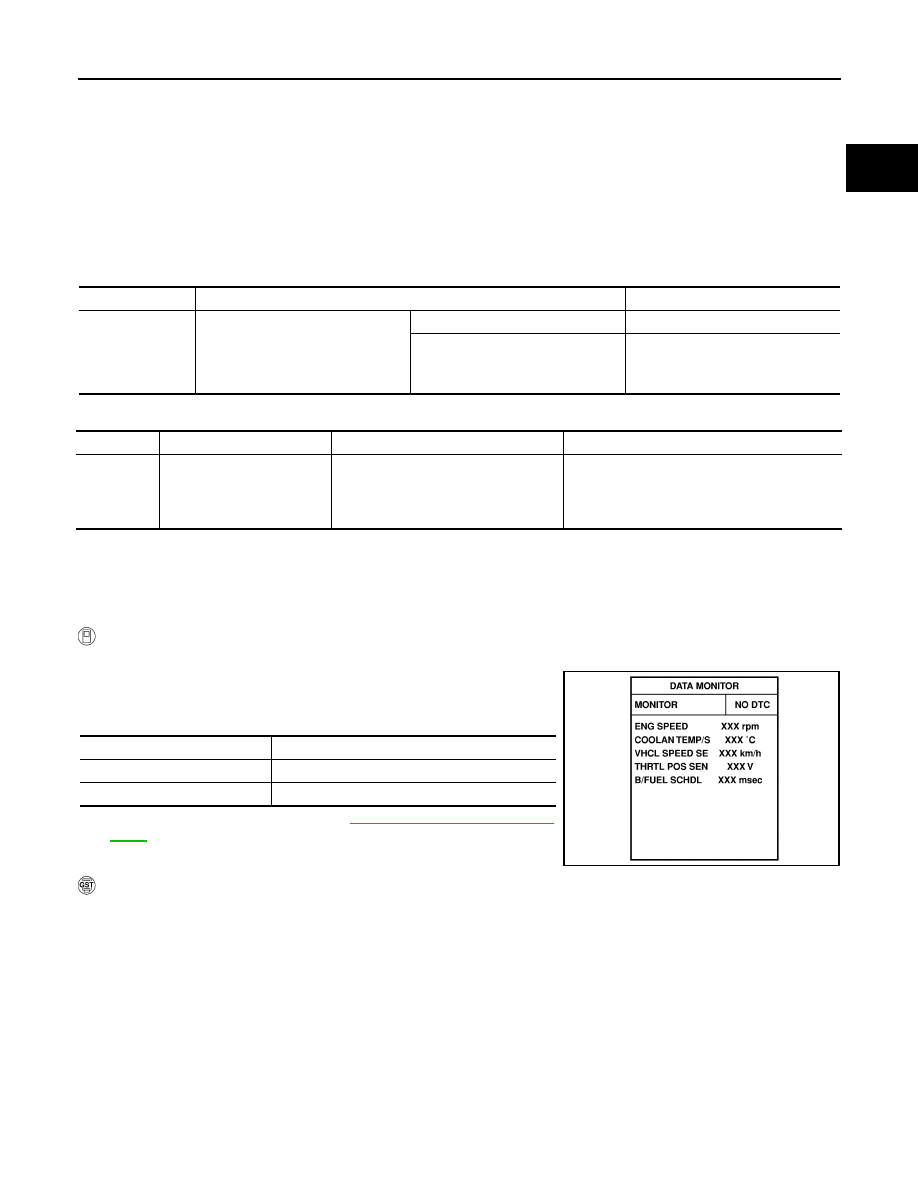

DTC P1400 EGRC-SOLENOID VALVE

PFP:14956

Component Description

UBS00DO6

The EGRC-solenoid valve responds to signals from the ECM. When the ECM sends an ON (ground) signal,
the coil in the solenoid valve is energized. The vacuum signal (from the intake manifold collector) passes
through the solenoid valve. The signal then reaches the EGR valve.
When the ECM sends an OFF signal, a plunger will then move to cut the vacuum signal from the intake mani-
fold collector to the EGR valve.

CONSULT-II Reference Value in Data Monitor Mode

UBS00DO7

Specification data are reference values.

On Board Diagnosis Logic

UBS00DO8

DTC Confirmation Procedure

UBS00DO9

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 5 seconds before conducting the next test.

 WITH CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Maintain the following conditions for at least 5 consecutive sec-
onds.

4.

If 1st trip DTC is detected, go to

EC-1055, "Diagnostic Proce-

dure"

 .

 WITH GST

Follow the procedure WITH “CONSULT-II”.

MONITOR ITEM

CONDITION

SPECIFICATION

EGRC SOL/V

Engine: After warming up

Air conditioner switch: OFF

Shift lever: N (A/T), Neutral (M/T)

No load

Idle

OFF

Rev engine up from idle to 3,000
rpm quickly.

ON

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible Cause

P1400

EGRC-solenoid valve

The improper voltage signal is sent
to ECM through EGRC-solenoid
valve.

Harness or connectors
(The EGRC-solenoid valve circuit is open or
shorted.)

EGRC-solenoid valve

ENG SPEED

Less than 3,200 rpm

B/FUEL SCHDL

Less than 13 msec

VHCL SPEED SE

Suitable speed

SEF201Y

EC-1054

[VG33E]

DTC P1400 EGRC-SOLENOID VALVE

Wiring Diagram

UBS00DOB

BBWA0505E
