DTC P0462, P0463 FUEL LEVEL SENSOR

EC-979

[VG33E]

C

D

E

F

G

H

I

J

K

L

M

A

EC

4.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors M67, C1

●

Harness for open or short between fuel level sensor unit and ground

>> Repair open circuit or short to power in harness or connectors.

5.

CHECK FUEL LEVEL SENSOR INPUT CIRCUIT FOR OPEN AND SHORT

1.

Disconnect ECM harness connector.

2.

Check harness continuity between ECM terminal 46 and fuel level sensor unit terminal G. Refer to Wiring
Diagram.

3.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 6.

6.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors M67, C1

●

Harness connectors M81, F36

●

Harness for open or short between ECM and fuel level sensor unit

>> Repair open circuit or short to ground or short to power in harness on connectors.

7.

CHECK FUEL LEVEL SENSOR

Refer to

DI-18, "FUEL LEVEL SENSOR UNIT CHECK"

 .

OK or NG

OK

>> GO TO 8.

NG

>> Replace fuel level sensor unit.

8.

CHECK INTERMITTENT INCIDENT

Refer to

EC-696, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END.

Removal and Installation

UBS00DM5

FUEL LEVEL SENSOR

Refer to

FL-6, "FUEL LEVEL SENSOR UNIT AND FUEL PUMP ASSEMBLY"

 .

Continuity should exist.

EC-980

[VG33E]

DTC P0500 VSS

DTC P0500 VSS

PFP:32702

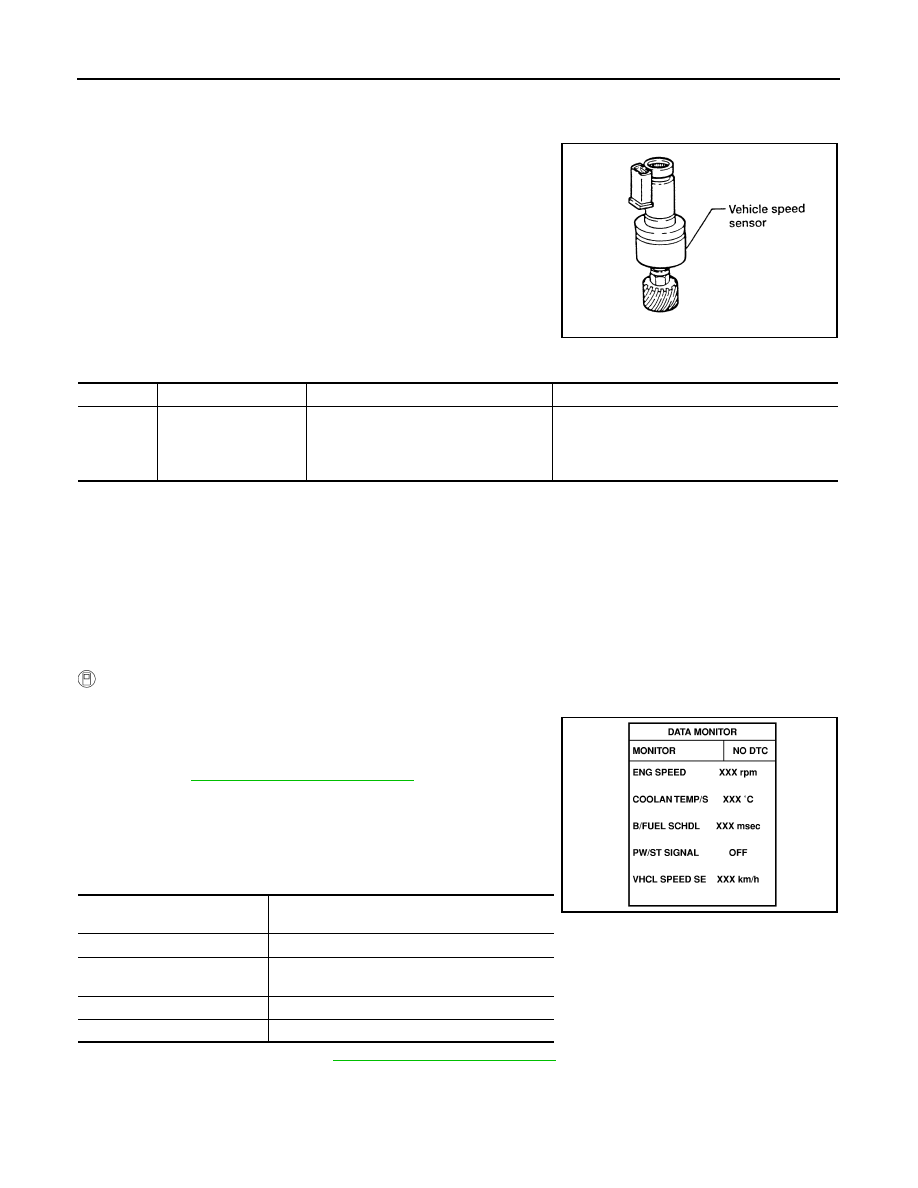

Component Description

UBS00DM6

The vehicle speed sensor is installed in the transmission. It contains
a pulse generator which provides a vehicle speed signal to the
speedometer. The speedometer then sends a signal to the ECM.

On Board Diagnosis Logic

UBS00DM7

DTC Confirmation Procedure

UBS00DM8

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 5 seconds before conducting the next test.
TESTING CONDITION:
Steps 1 and 2 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a
road test is expected to be easier, it is unnecessary to lift the vehicle.

 WITH CONSULT-II

1.

Start engine.

2.

Read “VHCL SPEED SE” in “DATA MONITOR” mode with CON-
SULT-II. The vehicle speed on CONSULT-II should exceed 10
km/h (6 MPH) when rotating wheels with suitable gear position.
If NG, go to

EC-983, "Diagnostic Procedure"

 .

If OK, go to following step.

3.

Select “DATA MONITOR” mode with CONSULT-II.

4.

Warm engine up to normal operating temperature.

5.

Maintain the following conditions for at least 60 consecutive sec-
onds.

6.

If 1st trip DTC is detected, go to

EC-983, "Diagnostic Procedure"

 .

Overall Function Check

UBS00DM9

Use this procedure to check the overall function of the vehicle speed sensor circuit. During this check, a 1st
trip DTC might not be confirmed.

AEC110

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0500

Vehicle speed sensor

The almost 0 km/h (0 MPH) signal from
vehicle speed sensor is sent to ECM
even when vehicle is being driven.

●

Harness or connectors
(The vehicle speed sensor circuit is open or
shorted.)

●

Vehicle speed sensor

END SPEED

1,700 - 6,000 rpm (A/T)
2,000 - 6,000 rpm (M/T)

COOLAN TEMP/S

More than 70

°C (158°F)

B/FUEL SCHDL

4.5 - 31.8 msec (A/T)
6.3 - 31.8 msec (M/T)

Selector lever

Suitable position

PW/ST SIGNAL

OFF

SEF196Y

DTC P0500 VSS

EC-981

[VG33E]

C

D

E

F

G

H

I

J

K

L

M

A

EC

 WITH GST

1.

Lift up drive wheels.

2.

Start engine.

3.

Read vehicle speed sensor signal in MODE 1 with GST.
The vehicle speed sensor on GST should be able to exceed 10 km/h (6 MPH) when rotating wheels with
suitable gear position.

4.

If NG, go to

EC-983, "Diagnostic Procedure"

 .

EC-982

[VG33E]

DTC P0500 VSS

Wiring Diagram

UBS00DMA

BBWA1090E
