Nissan Frontier D22. Manual - part 362





FUEL PUMP CIRCUIT

EC-551

[KA24DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

3.

DETECT MALFUNCTIONING PART

Check the following.

Fuse block (J/B) connector M31

15A fuse

Harness for open or short between fuse and fuel pump relay

>> Repair harness or connectors.

4.

CHECK POWER GROUND CIRCUIT

1.

 Turn ignition switch OFF.

2.

Disconnect “fuel level sensor unit and fuel pump” harness con-
nector.

3.

Check harness continuity between fuel pump terminal 6 and
body ground, fuel pump terminal 5 and fuel pump relay terminal
3.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 5.

5.

DETECT MALFUNCTIONING PART

Check the following.

Harness connectors C1, M67

Harness for open or short between fuel pump and body ground

Harness for open or short between fuel pump and fuel pump relay

>>  Repair open circuit or short to ground or short to power in harness or connectors.

6.

CHECK OUTPUT SIGNAL CIRCUIT

1.

Disconnect ECM harness connector.

2.

Check harness continuity between ECM terminal 11 and fuel pump relay terminal 1.
Refer to Wiring Diagram.

3.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 8.

NG

>> GO TO 7.

7.

DETECT MALFUNCTIONING PART

Check the following.

Harness connectors F36, M81

Harness for open or short between ECM and fuel pump relay

>> Repair open circuit or short to ground or short to power in harness or connectors.

Continuity should exist.

SEF334VA

Continuity should exist.

EC-552

[KA24DE]

FUEL PUMP CIRCUIT

8.

CHECK FUEL PUMP RELAY

 With CONSULT-II

1.

Reconnect fuel pump relay, “fuel level sensor unit and fuel pump” harness connector and ECM harness
connector.

2.

Turn ignition switch ON.

3.

Turn fuel pump relay “ON” and “OFF” in “ACTIVE TEST” mode
with CONSULT-II and check operating sound.

 Without CONSULT-II

Check continuity between terminals 3 and 5.

OK or NG

OK

>> GO TO 9.

NG

>> Replace fuel pump relay.

9.

CHECK FUEL PUMP

1.

Disconnect “fuel level sensor and fuel pump” harness connector.

2.

 Check resistance between terminals 5 and 6.

OK or NG

OK

>> GO TO 10.

NG

>> Replace fuel pump.

SEF724Z

Conditions

Continuity

12V direct current supply between
terminals 1 and 2

Yes

No current supply

No

SEF511P

Resistance

: 0.2 - 5.0

 [at 25°C (77°F)]

SEF846Z

FUEL PUMP CIRCUIT

EC-553

[KA24DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

10.

CHECK INTERMITTENT INCIDENT

Perform

EC-120, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END

Removal and Installation

UBS00DDG

FUEL PUMP

Refer to

FL-6, "FUEL LEVEL SENSOR UNIT AND FUEL PUMP ASSEMBLY"

 .

EC-554

[KA24DE]

POWER STEERING OIL PRESSURE SWITCH

POWER STEERING OIL PRESSURE SWITCH

PFP:49761

Component Description

UBS00DDH

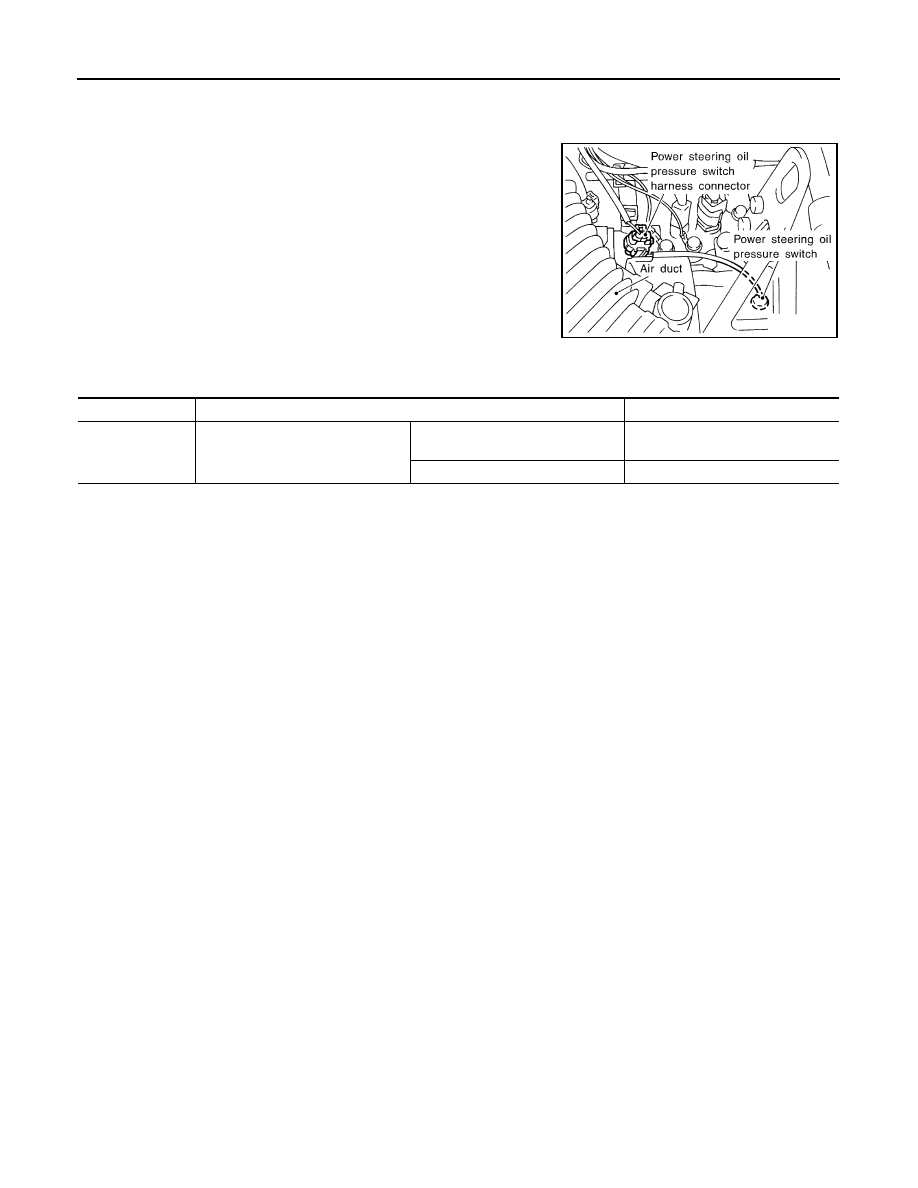

The power steering oil pressure switch is attached to the power
steering high-pressure tube and detects a power steering load.
When a power steering load is detected, it signals the ECM. The
ECM adjusts the IACV-AAC valve to increase the idle speed and
adjust for the increased load.

CONSULT-II Reference Value in Data Monitor Mode

UBS00DDI

Specification data are reference values.

SEF351V

MONITOR ITEM

CONDITION

SPECIFICATION

PW/ST SIGNAL

Engine: After warming up, idle the
engine

Steering wheel in neutral position
(forward direction)

OFF

The steering wheel is fully turned

ON
