DTC P1776 TCC SOLENOID VALVE

EC-531

[KA24DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

4.

CHECK INTERMITTENT INCIDENT

Perform

EC-120, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END.

Removal and Installation

UBS00DCY

TORQUE CONVERTER CLUTCH SOLENOID VALVE

Refer to

AT-58, "Control Valve Assembly and Accumulators"

 .

EC-532

[KA24DE]

IGNITION SIGNAL

IGNITION SIGNAL

PFP:22448

Component Description

UBS00DCZ

IGNITION COIL & POWER TRANSISTOR

The ignition signal from the ECM is sent to the power transistor. The
power transistor switches the ignition coil primary circuit ON and
OFF. As the primary circuit is turned ON and OFF, the proper high
voltage is induced in the coil secondary circuit.
The distributor is not repairable and must be replaced as an assem-
bly except distributor cap and rotor head.

NOTE:
The rotor screw which secures the distributor rotor head to the dis-
tributor shaft must be tightened properly.

CONSULT-II Reference Value in Data Monitor Mode

UBS00DD0

: 3.3 - 3.9 N·m (0.34 - 0.40 kg-m, 29.5 - 34.7 in-lb)

SEF928V

MONITOR ITEM

CONDITION

SPECIFICATION

IGN TIMING

●

Engine: After warming up

●

Air conditioner switch: OFF

●

Shift lever: P or N

●

No-load

Idle

Approx. 20

° BTDC

2,000 rpm

More than 25

° BTDC

IGNITION SIGNAL

EC-533

[KA24DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Wiring Diagram

UBS00DD1

BBWA0458E

EC-534

[KA24DE]

IGNITION SIGNAL

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

Diagnostic Procedure

UBS00DD2

1.

INSPECTION START

Turn ignition switch OFF, and restart engine.
Is engine running?

Yes or No

Yes (With CONSULT-II)>>GO TO 2.
Yes (Without CONSULT-II)>>GO TO 3.
No

>> GO TO 4.

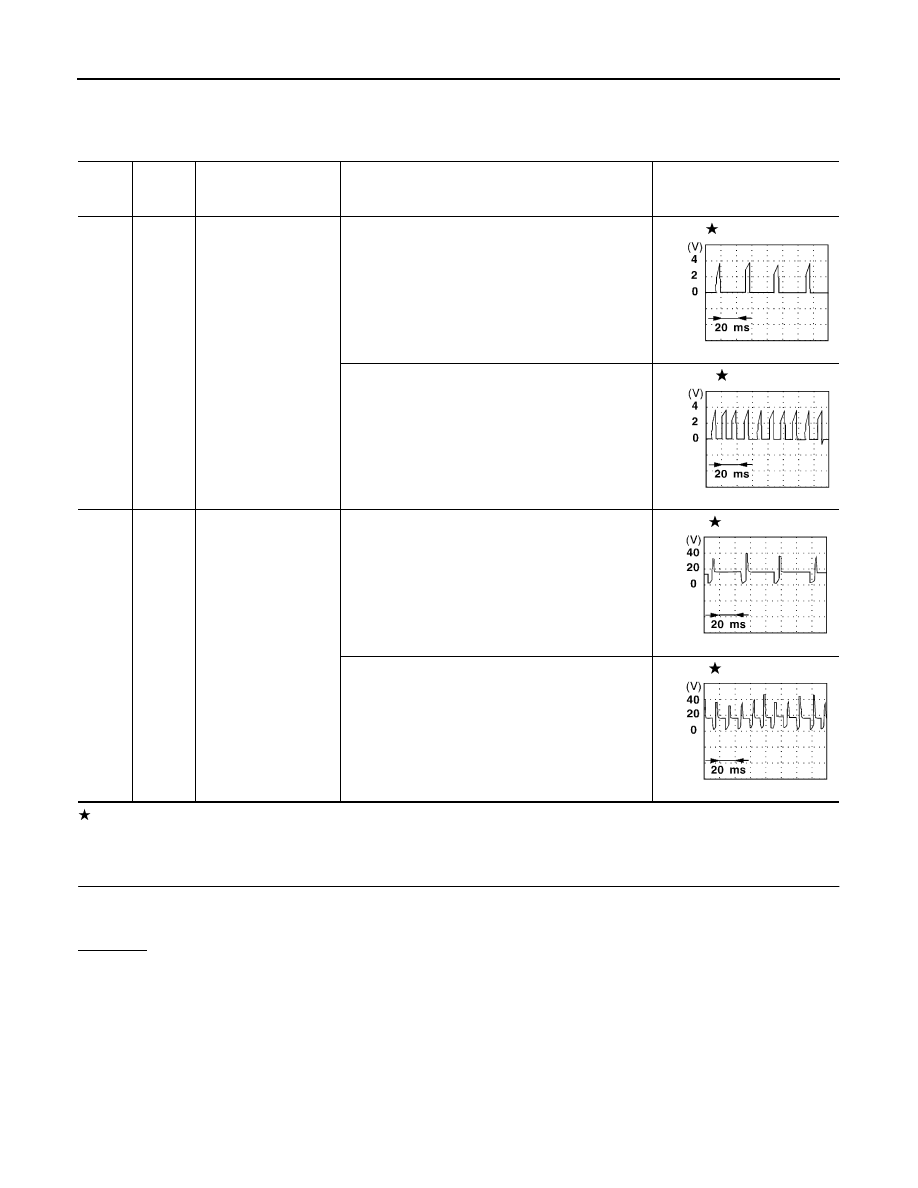

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

1

PU/W

Ignition signal

[Engine is running]

●

Warm-up condition

●

Idle speed

NOTE:
The pulse cycle changes depending on rpm at idle.

0 - 0.5V

[Engine is running]

●

Engine speed is 2,000 rpm

0.2 - 1.0V

2

B

Ignition check

[Engine is running]

●

Warm-up condition

●

Idle speed

12 - 14V

[Engine is running]

●

Engine speed is 2,000 rpm

12 - 13V

SEF996V

SEF997V

SEF998V

SEF999V
