DTC P1146 HO2S2

EC-431

[KA24DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

2.

CLEAR THE SELF-LEARNING DATA

 With CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

Select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CONSULT-II.

3.

Clear the self-learning control coefficient by touching “CLEAR”.

4.

Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0172 detected?
Is it difficult to start engine?

 Without CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF.

3.

Disconnect mass air flow sensor harness connector, and restart
and run engine for at least 3 seconds at idle speed.

4.

Stop engine and reconnect mass air flow sensor harness con-
nector.

5.

Make sure DTC P0102 is displayed.

6.

Erase the DTC memory. Refer to

EC-61, "HOW TO ERASE

EMISSION-RELATED DIAGNOSTIC INFORMATION"

 .

7.

Make sure DTC P0000 is displayed.

8.

Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0172 detected?
Is it difficult to start engine?

Yes or No

Yes

>> Perform trouble diagnosis for DTC P0172. Refer to

EC-232

 .

No

>> GO TO 3.

3.

CHECK INPUT SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect heated oxygen sensor 2 harness connector and ECM harness connector.

3.

Check harness continuity between ECM terminal 56 and HO2S2 terminal 1.
Refer to Wiring Diagram.

4.

Check harness continuity between ECM terminal 56 or HO2S2 terminal 1 and ground.
Refer to Wiring Diagram.

5.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

SEF215Z

AEC131A

Continuity should exist.

Continuity should not exist.

EC-432

[KA24DE]

DTC P1146 HO2S2

4.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors M58, F28

●

Harness for open or short between heated oxygen sensor 2 and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK GROUND CIRCUIT

1.

Check harness continuity between heated oxygen sensor 2 terminal 4 and engine ground.
Refer to Wiring Diagram.

2.

Also check harness for short to power.

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 6.

6.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors M58, F28

●

Harness for open or short between heated oxygen sensor 2 and engine ground

>> Repair open circuit or short to power in harness or connectors.

7.

CHECK HEATED OXYGEN SENSOR 2

Refer to

EC-213, "Component Inspection"

 .

OK or NG

OK

>> GO TO 8.

NG

>> Replace heated oxygen sensor 2.

8.

CHECK INTERMITTENT INCIDENT

Perform

EC-120, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END.

Removal and Installation

UBS00DA9

HEATED OXYGEN SENSOR 2

Refer to

EX-3, "EXHAUST SYSTEM"

 .

Continuity should exist.

DTC P1147 HO2S2

EC-433

[KA24DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC P1147 HO2S2

PFP:226A0

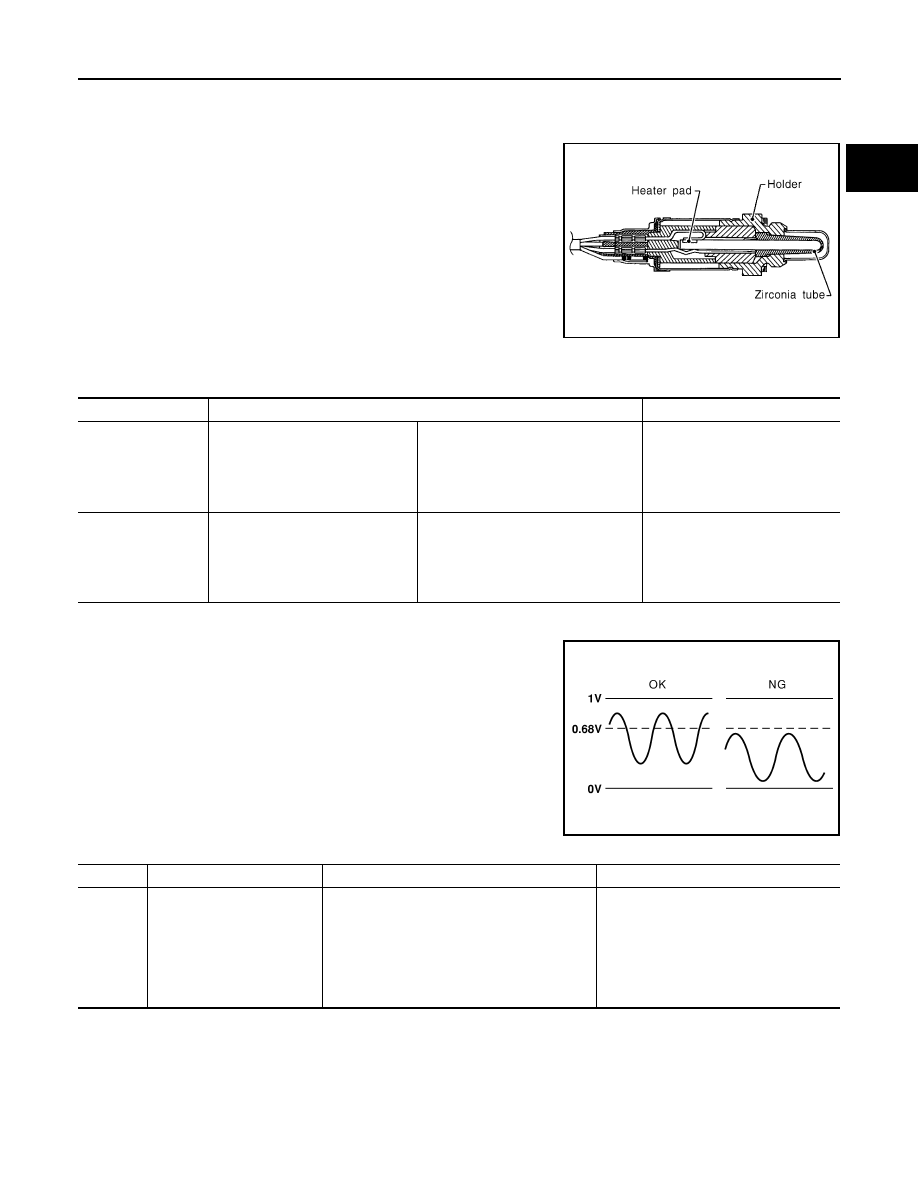

Component Description

UBS00DAA

The heated oxygen sensor 2, after three way catalyst (manifold),
monitors the oxygen level in the exhaust gas.
Even if switching characteristics of the heated oxygen sensor 1 are
shifted, the air fuel ratio is controlled to stoichiometric, by the signal
from the heated oxygen sensor 2.
This sensor is made of ceramic zirconia. The zirconia generates volt-
age from approximately 1V in richer conditions to 0V in leaner condi-
tions.
Under normal conditions the heated oxygen sensor 2 is not used for
engine control operation.

CONSULT-II Reference Value in Data Monitor Mode

UBS00DAB

Specification data are reference values.

On Board Diagnosis Logic

UBS00DAC

The heated oxygen sensor 2 has a much longer switching time
between rich and lean than the heated oxygen sensor 1. The oxygen
storage capacity before the three way catalyst (manifold) causes the
longer switching time. To judge the malfunctions of heated oxygen
sensor 2, ECM monitors whether the maximum voltage of the sensor
is sufficiently high during various driving conditions such as fuel-cut.

SEF327R

MONITOR ITEM

CONDITION

SPECIFICATION

HO2S2 (B1)

●

Engine: After warming up

●

Keeping the engine speed
between 3,500 and 4,000 rpm
for 1 minute and at idle for 1
minute under no load

Revving engine from idle up to 3,000
rpm quickly.

0 - 0.3V

←→ Approx. 0.6 - 1.0V

HO2S2 MNTR (B1)

●

Engine: After warming up

●

Keeping the engine speed
between 3,500 and 4,000 rpm
for 1 minute and at idle for 1
minute under no load

Revving engine from idle up to 3,000
rpm quickly.

LEAN

←→ RICH

SEF259VA

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible Cause

P1147

Heated oxygen sensor 2
maximum voltage monitoring

●

The maximum voltage from the sensor is not
reached to the specified voltage.

●

Harness or connectors
(The sensor circuit is open or shorted.)

●

Heated oxygen sensor 2

●

Fuel pressure

●

Fuel injector

●

Intake air leaks

EC-434

[KA24DE]

DTC P1147 HO2S2

DTC Confirmation Procedure

UBS00ELZ

NOTE:
If DTC confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

 WITH CONSULT-II

TESTING CONDITION:
For better results, perform “DTC WORK SUPPORT” at a temperature of 0 to 30

°C (32 to 86 °F).

1.

Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.

2.

Start engine and warm it up to the normal operating tempera-
ture.

3.

Turn ignition switch OFF and wait at least 10 seconds.

4.

Start engine and keep the engine speed between 3,500 and
4,000 rpm for at least 1 minute under no load.

5.

Let engine idle for 1 minute.

6.

Select  “HO2S2 (B1) P1147” of “HO2S2” in “DTC WORK SUP-
PORT” mode with CONSULT-II.

7.

Start engine and following the instruction of CONSULT-II.

8.

Make sure that “OK” is displayed after touching “SELF-DIAG RESULTS”.
If “NG” is displayed, refer to

EC-437, "Diagnostic Procedure"

 .

If “CAN NOT BE DIAGNOSED” is displayed, perform the following.

a.

Turn ignition switch OFF and leave the vehicle in a cool place (soak the vehicle).

b.

Return to step 1.

Overall Function Check

UBS00DAE

Use this procedure to check the overall function of the rear heated oxygen sensor circuit. During this check, a
DTC might not be confirmed.

CAUTION:

Always drive vehicle at a safe speed.

 WITH GST

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF and wait at least 10 seconds.

3.

Start engine and keep engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.

4.

Let engine idle for 1 minute.

SEF189Y

PBIB0819E
