Nissan Frontier D22. Manual - part 286





DTC P0182, P0183 FTT SENSOR

EC-247

[KA24DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

5.

CHECK FUEL TANK TEMPERATURE SENSOR

Refer to

EC-247, "Component inspection"

 .

OK or NG

OK

>> GO TO 6.

NG

>> Replace fuel tank temperature sensor.

6.

CHECK INTERMITTENT INCIDENT

Perform

EC-120, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END.

Component inspection

UBS00D5M

FUEL TANK TEMPERATURE SENSOR

1.

Remove fuel level sensor unit.

2.

Check resistance by heating with hot water or heat gun as
shown in the figure.

Removal and Installation

UBS00D5N

FUEL TANK TEMPERATURE SENSOR

Refer to

FL-6, "FUEL LEVEL SENSOR UNIT AND FUEL PUMP ASSEMBLY"

 .

SEF334VA

Temperature

°C (°F)

Resistance k

20 (68)

2.3 -2.7

50 (122)

0.79 - 0.90

SEF852Z

EC-248

[KA24DE]

DTC P0217 COOLANT OVERTEMPERATURE ENRICHMENT PROTECTION

DTC P0217 COOLANT OVERTEMPERATURE ENRICHMENT PROTECTION

PFP:00019

On Board Diagnosis Logic

UBS00D5O

This self-diagnosis has the one trip detection logic.
This diagnosis checks whether the engine coolant temperature is extraordinary high, even when the load is
not heavy.

CAUTION:

When a malfunction is indicated, be sure to replace the coolant. Refer to

MA-16

 , “Changing Engine

Coolant”. Also, replace the engine oil. Refer to

MA-20

 , “Changing Engine Oil”.

1.

 Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to
use coolant with the proper mixture ratio. Refer to

MA-14, "ANTI-FREEZE COOLANT MIXTURE

RATIO"

 .

2.

After refilling coolant, run engine to ensure that no water-flow noise is emitted.

Overall Function Check

UBS00D5P

Use this procedure to check the overall function of the coolant over temperature enrichment protection check,
a DTC might not be confirmed.

WARNING:

Never remove the radiator cap when the engine is hot. Serious burns could be caused by high-pres-
sure fluid escaping from the radiator.
Wrap a thick cloth around the cap. Carefully remove the cap by turning it a quarter turn to allow built-
up pressure to escape. Then turn the cap all the way off.

1.

Check the coolant level and mixture ratio (using coolant tester) in the reservoir tank and radiator.
Allow engine to cool before checking coolant level and mixture ratio.

If the coolant level in the reservoir and/or radiator is below the proper range, go to

EC-249, "Diagnostic

Procedure"

 .

If the coolant mixture ratio is out of the range of 45 to 55%, replace the coolant in the following proce-
dure

MA-16

 , “Changing Engine Coolant”.

a.

Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute like pouring coolant
from a kettle. Be sure to use coolant with the proper mixture ratio. Refer to

MA-14, "ANTI-FREEZE COOL-

ANT MIXTURE RATIO"

 .

b.

After refilling coolant, run engine to ensure that no water-flow noise is emitted.

c.

After checking or replacing coolant, go to step 3 below.

2.

Ask the customer if engine coolant has been added. If it has been added, go to

EC-249, "Diagnostic Pro-

cedure"

 . After repair, go to the next step.

3.

Start engine and let it idle.

4.

 Make sure that A/C switch is “OFF” and air conditioner is not operating. If NG, check air conditioner cir-
cuit. Refer to

MTC-22, "TROUBLE DIAGNOSIS"

 . After repair, go to the next step.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0217

Engine coolant over
temperature condition

Engine coolant temperature is excessively
high under normal engine speed.

Cooling fan

Thermostat

Improper ignition timing

Engine coolant temperature sensor

Blocked radiator

Blocked front end
(Improper fitting of nose mask)

Crushed vehicle frontal area
(Vehicle frontal is collided but not repaired)

Blocked air passage by improper installa-
tion of front fog lamp or fog lamps

Improper mixture ratio of coolant

Damaged bumper

For more information, refer to

EC-250, "Main

11 Causes of Overheating"

 .

DTC P0217 COOLANT OVERTEMPERATURE ENRICHMENT PROTECTION

EC-249

[KA24DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

5.

Start engine and make sure that cooling fan operates.
Be careful not to overheat engine.
If NG, check cooling fan. Refer to

CO-16, "COOLING FAN (CRANKSHAFT DRIVEN)"

 . After repair, go to

the next step.

6.

Check for blocked coolant passage.

a.

Warm up engine to normal operating temperature, then grasp radiator upper hose and lower hose and
make sure that coolant flows.
If NG, go to

EC-249, "Diagnostic Procedure"

 . After repair, go to the next step.

Be extremely careful not to touch any moving or adjacent parts.

7.

Check for blocked radiator air passage.

a.

When aftermarket fog lamps have been installed, check for damaged fans and clogging in the condenser
and radiator.

b.

Check the front end for clogging caused by insects or debris.

c.

Check for improper fitting of front-end cover, damaged radiator grille or bumper, damaged vehicle front.
If NG, take appropriate action and then go to the next step.

8.

Check function of ECT sensor.
Refer to

EC-251, "Component Inspection"

 .

If NG, replace ECT sensor and go to the next step.

9.

Check ignition timing. Refer to

EC-74, "Basic Inspection"

 .

Make sure that ignition timing is 20

°±2° at idle.

If NG, adjust ignition timing and then recheck.

Diagnostic Procedure

UBS00D5Q

1.

CHECK COOLING SYSTEM FOR LEAK

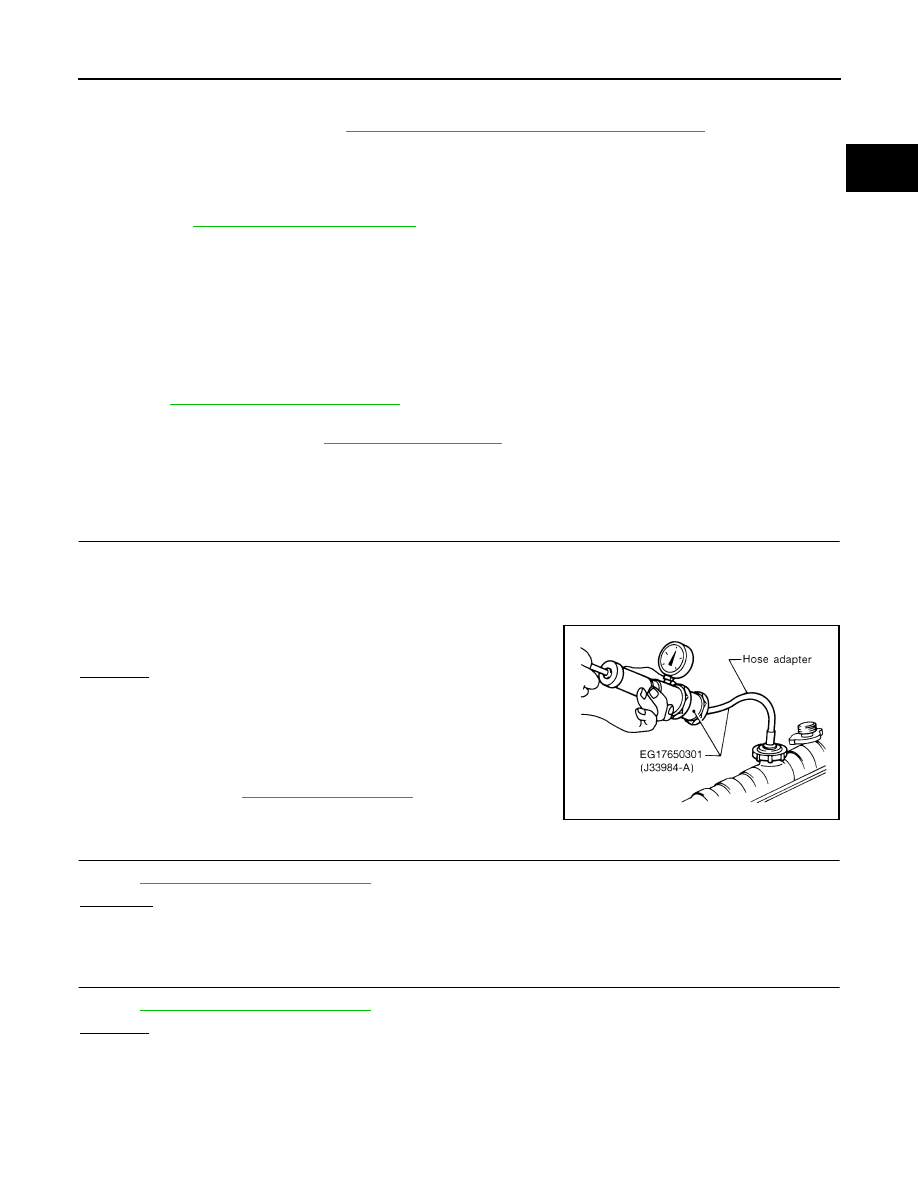

Apply pressure to the cooling system with a tester, and check if the pressure drops.

CAUTION:

Higher than the specified pressure may cause radiator damage.
Pressure should not drop.

OK or NG

OK

>> GO TO 2.

NG

>> Check the following for leak.

Hose

Radiator

Water pump
Refer to

CO-10, "WATER PUMP"

 .

2.

CHECK RADIATOR CAP

Refer to

EC-251, "Component Inspection"

 .

OK or NG

OK

>> GO TO 3.

NG

>> Replace radiator cap.

3.

CHECK THERMOSTAT

Refer to

EC-251, "Component Inspection"

 .

OK or NG

OK

>> GO TO 4.

NG

>> Replace thermostat.

Testing pressure

: 157 kPa (1.6 kg/cm

2

 , 23 psi)

SLC754A

EC-250

[KA24DE]

DTC P0217 COOLANT OVERTEMPERATURE ENRICHMENT PROTECTION

4.

CHECK ENGINE COOLANT TEMPERATURE SENSOR

Refer to

EC-251, "Component Inspection"

 .

OK or NG

OK

>> GO TO 5.

NG

>> Replace engine coolant temperature sensor.

5.

CHECK MAIN 11 CAUSES

If the cause cannot be isolated, go to

EC-250, "Main 11 Causes of Overheating"

 .

>> INSPECTION END

Perform FINAL CHECK by the following procedure after repair is completed.

1.

Warm up engine. Run the vehicle for at least 20 minutes. Pay attention to engine coolant temperature
gauge on the instrument panel. If the reading shows an abnormally high temperature, another part may be
malfunctioning.

2.

Stop vehicle and let engine idle. Check the intake and exhaust systems for leaks by listening for noise or
visually inspecting the components.

3.

Allow engine to cool and visually check for oil and coolant leaks. Then, perform “Overall Function Check”.

Main 11 Causes of Overheating

UBS00D5R

*1: Turn the ignition switch ON.

Engine

Step

Inspection item

Equipment

Standard

Reference page

OFF

1

Blocked radiator

Blocked condenser

Blocked radiator grille

Blocked bumper

Visual

No blocking

2

Coolant mixture

Coolant tester

50 - 50% coolant mixture

See

MA-12, "RECOM-

MENDED FLUIDS AND
LUBRICANTS"

 .

3

Coolant level

Visual

Coolant up to MAX level
in reservoir tank and radi-
ator filler neck

See

MA-16

 , “Changing

Engine Coolant”.

4

Radiator cap

Pressure tester

78 - 98 kPa (0.8 - 1.0 kg/

cm

2

 , 11 - 14 psi)

59 - 98 kPa (0.6 - 1.0 kg/

cm

2

 , 9 - 14 psi) (Limit)

See

CO-8, "System

Check"

 .

ON*

2

5

Coolant leaks

Visual

No leaks

See

CO-8, "System

Check"

 .

ON*

2

 6

Thermostat

Touch the upper and
lower radiator hoses

Both hoses should be hot

 See

CO-13, "THERMO-

STAT"

  and

CO-14,

"RADIATOR"

 .

OFF

7

Combustion gas leak

Color checker chemical
tester 4 Gas analyzer

Negative

ON*

3

8

Coolant temperature
gauge

Visual

Gauge less than 3/4
when driving

 —

Coolant overflow to
reservoir tank

Visual

No overflow during driv-
ing and idling

See

MA-16

 , “Changing

Engine Coolant”.

OFF*

4

9

Coolant return from
reservoir tank to radia-
tor

Visual

Should be initial level in
reservoir tank

See

CO-7, "COOLING

SYSTEM"

 .

OFF

10

Cylinder head

Straight gauge feeler
gauge

0.1 mm (0.004 in) Maxi-
mum distortion (warping)

See

EM-32, "CYLINDER

HEAD"

 .

11

Cylinder block and pis-
tons

Visual

No scuffing on cylinder
walls or piston

See

EM-48, "CYLINDER

BLOCK"

 .
