ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-55
[KA24DE]
C
D
E
F
G
H
I
J
K
L
M
A
EC
SRT Set Timing
SRT is set as “CMPLT” after self-diagnosis has been performed one or more times. Completion of SRT is
done regardless of whether the result is OK or NG. The set timing is different between them and is shown in
the following table.
OK: Self-diagnosis is carried out and the result is OK.
NG: Self-diagnosis is carried out and the result is NG.
—: Self-diagnosis is not carried out.
When all SRT related self-diagnoses showed OK results in a same cycle (Ignition OFF – ON – OFF), the SRT
will indicate “CMPLT”.
→ Case 1 above
When all SRT related self-diagnoses show OK results through several different cycles, the SRT will indicate
“CMPLT” at the time the respective self-diagnoses have at least one OK result.
→ Case 2 above
If one or more SRT related self-diagnoses showed NG results in 2 consecutive cycles, the SRT will also indi-
cate “COMPLT”.
→ Case 3 above
The previous table shows that the minimum number of cycles for setting SRT as “INCMP” is one (1) for each
self-diagnosis (Case 1 and 2) or two (2) for one self-diagnosis (Case 3). However, in preparation for the State
emissions inspection, it is unnecessary of each self-diagnosis to be executed twice (Case 3) because of the
following reasons;
●
The SRT will indicate “CMPLT” at the time the respective self-diagnoses have one (1) OK result.
●
The emissions inspection requires “CMPLT” of the SRT only with OK self-diagnostic results.
●

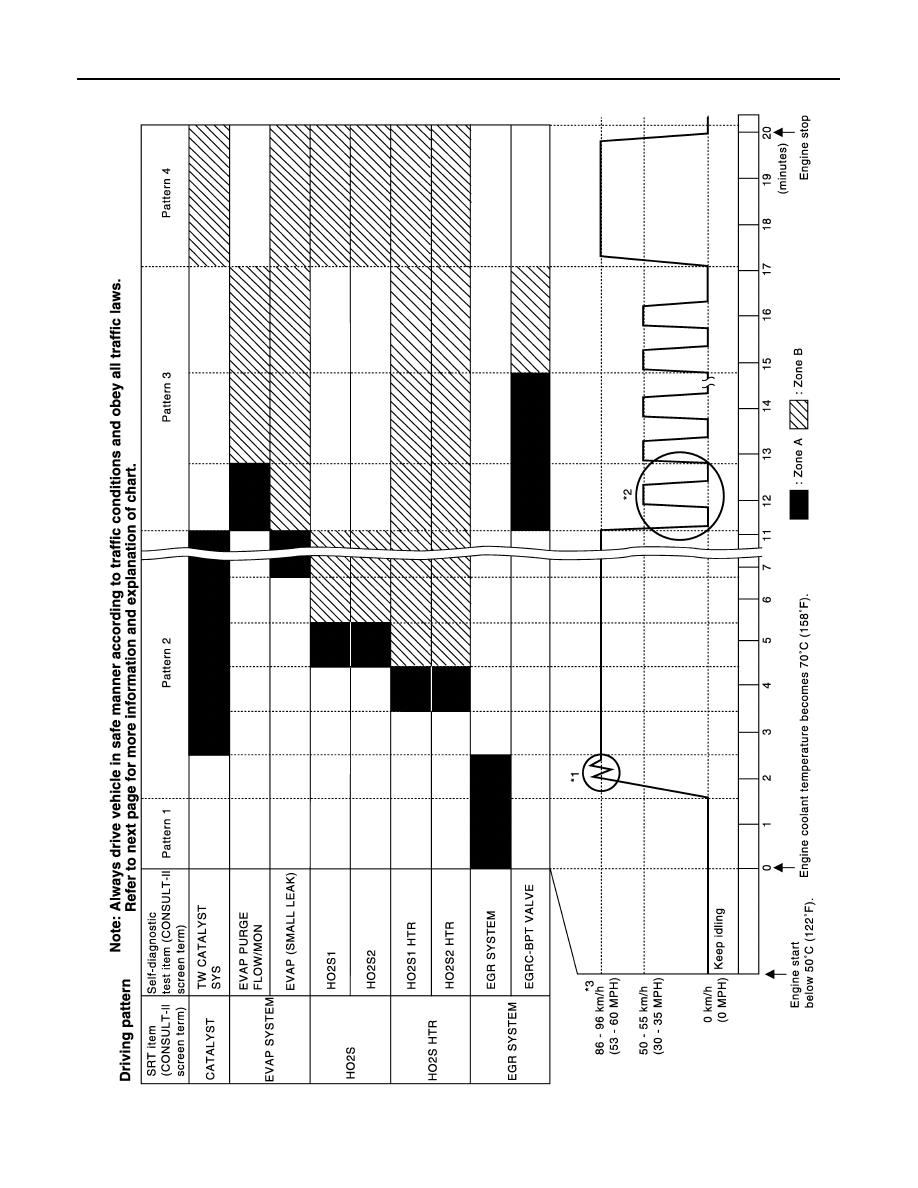

When, during SRT driving pattern, 1st trip DTC (NG) is detected prior to “CMPLT” of SRT, the self-diagno-
sis memory must be erased from ECM after repair.
●
If the 1st trip DTC is erased, all the SRT will indicate “INCMP”.
NOTE:
SRT can be set as “CMPLT” together with the DTC(s). Therefore, DTC check must always be carried out prior
to the State emission inspection even though the SRT indicates “CMPLT”.
Self-diagnosis result
Example
Diagnosis
Ignition cycle
← ON → OFF
← ON → OFF
← ON → OFF
← ON →
All OK
Case 1
P0400
OK (1)
— (1)
OK (2)
— (2)
P0402
OK (1)
— (1)
— (1)
OK (2)
P1402
OK (1)
OK (2)
— (2)
— (2)
SRT of EGR
“CMPLT”
“CMPLT”
“CMPLT”
“CMPLT”
Case 2
P0400
OK (1)
— (1)
— (1)
— (1)
P0402
— (0)
— (0)
OK (1)
— (1)
P1402
OK (1)
OK (2)
— (2)
— (2)
SRT of EGR
“INCMP”
“INCMP”
“CMPLT”
“CMPLT”
NG exists
Case 3
P0400
OK
OK
—
—
P0402
—
—
—
—
P1402
NG
—
NG
NG
(Consecutive
NG)
(1st trip)
DTC
1st trip DTC
—
1st trip DTC
DTC
(= MIL “ON”)
SRT of EGR
“INCMP”
“INCMP”
“INCMP”
“CMPLT”
