RADIATOR

CO-31

[VG33E and VG33ER]

C

D

E

F

G

H

I

J

K

L

M

A

CO

Inspection

EBS00GW3

1.

Apply pressure with Tool.

2.

Check radiator for leaks in water tank by looking for bubbles.

Specified test pressure

: 157 kPa (1.6 kg/cm

2

 , 23 psi)

SLC933-A

SLC934

CO-32

[VG33E and VG33ER]

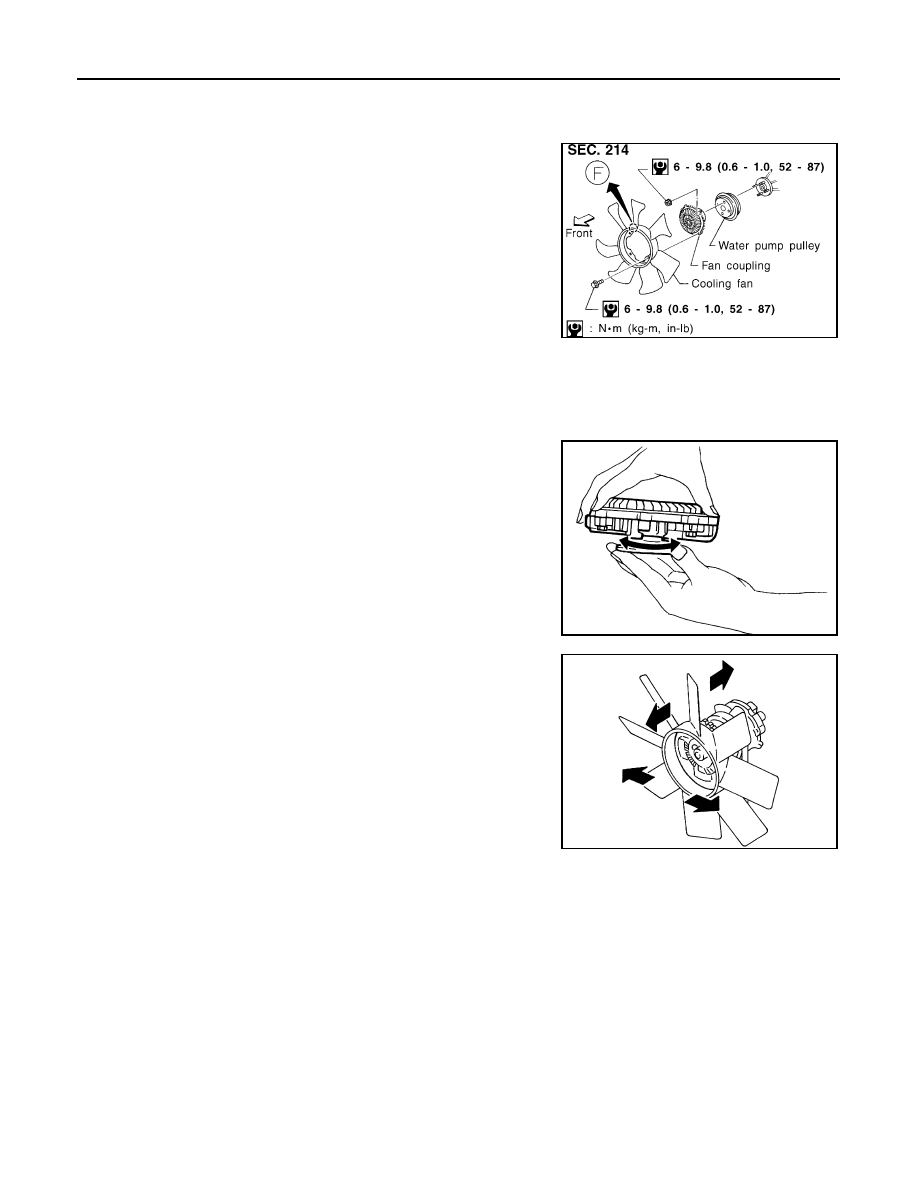

COOLING FAN (CRANKSHAFT DRIVEN)

COOLING FAN (CRANKSHAFT DRIVEN)

PFP:21060

Removal and Installation

EBS00GW4

●

Do not release the drive belt tension by removing the fan/water
pump pulley.

●

Fan coupling cannot be disassembled and should be replaced
as a unit. If front mark F  is present, install fan so that side
marked F  faces the front.

●

Install the drive belt only after the fan and fan coupling to water
pump flange bolts/nuts have been properly torqued.

●

Proper alignment of these components is essential. Improper
alignment will cause them to wobble and may eventually cause
the fan to separate from the water pump causing extensive dam-
age.

Inspection

EBS00GW5

WARNING:

When the engine is running, keep hands and clothing away from moving parts such as drive belts and
fan.

●

Check fan coupling for rough operation, wobbling, oil leakage or
bent bimetal fins.

●

After assembly, verify the fan does not wobble or flap while the
engine is running.

SLC066B

SLC067B

SLC151B

SERVICE DATA AND SPECIFICATIONS (SDS)

CO-33

[VG33E and VG33ER]

C

D

E

F

G

H

I

J

K

L

M

A

CO

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

Thermostat

EBS00GW6

Radiator

EBS00GW7

Unit: kPa (kg/cm

2

 , psi)

Description

VG33E

VG33ER

Valve opening temperature

°C (°F)

82 (180)

76.5 (170)

Valve lift

mm/

°C (in/°F)

More than 10/95 (0.39/203)

More than 8 mm/90

°C (0.31 in/194°F)

Cap relief pressure

Standard

78 - 98 (0.8 - 1.0, 11 - 14)

Limit

59 (0.6, 9)

Leakage test pressure

157 (1.6, 23)

CO-34

[VG33E and VG33ER]

SERVICE DATA AND SPECIFICATIONS (SDS)
