TROUBLE DIAGNOSIS

BRC-35

[ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

Inspection 1 Wheel Sensor System

EFS003GZ

INSPECTION PROCEDURE

DTC C1101, C1102, C1103, C1104, C1105, C1106, C1107, C1108 or C1115
First use CONSULT-II self-diagnosis results to determine positions of malfunctioning wheel sensors. Then
inspect parts and determine which parts to replace.

1.

CONNECTOR INSPECTION

1.

Disconnect the ABS actuator and electric unit (control unit) connector E39 and wheel sensor of malfunc-
tion code. Check the terminals for deformation, disconnection, looseness or damage.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace as necessary.

2.

CHECK WHEEL SENSOR OUTPUT SIGNAL

1.

Disconnect connector from wheel sensor of malfunction code No.

2.

Connect ABS active wheel sensor tester (J-45741) to wheel sensor using appropriate adapter.

3.

Turn on the ABS active wheel sensor tester power switch.

NOTE:
The green POWER indicator should illuminate. If the POWER indicator does not illuminate, replace the
battery in the ABS active wheel sensor tester before proceeding.

4.

Spin the wheel of the vehicle by hand and observe the red SENSOR indicator on the ABS active wheel
sensor tester. The red SENSOR indicator should flash on and off to indicate an output signal.

NOTE:
If the red SENSOR indicator illuminates but does not flash, reverse the polarity of the tester leads and
retest.

Does the ABS active wheel sensor tester detect a signal?

Yes

>> GO TO 3.

No

>> GO TO 6.

3.

CHECK TIRE

Check for inflation pressure, wear and size of each tire.

Are tire pressure and size correct and is tire wear within specifications?

Yes

>> GO TO 4.

No

>> Adjust tire pressure or replace tire(s).

4.

CHECK WHEEL BEARINGS

Check wheel bearing axial end play. Refer to

FAX-5, "Front Wheel Bearing"

  or

RAX-6, "Rear Wheel Bearing"

 .

Is axial end play within specifications?

Yes

>> GO TO 5.

No

>> Repair as necessary. Refer to

FAX-9, "WHEEL HUB AND KNUCKLE"

  or

RAX-7, "WHEEL HUB"

 .

Then retest.

5.

SENSOR ROTOR INSPECTION

Check for damage to sensor rotor teeth.

Is inspection result OK?

OK

>> GO TO 6.

NG

>> Replace sensor rotor. Refer to

BRC-49, "Front Sensor Rotor"

  or

BRC-49, "Rear Sensor Rotor

(4WD)"

 .

BRC-36

[ABS]

TROUBLE DIAGNOSIS

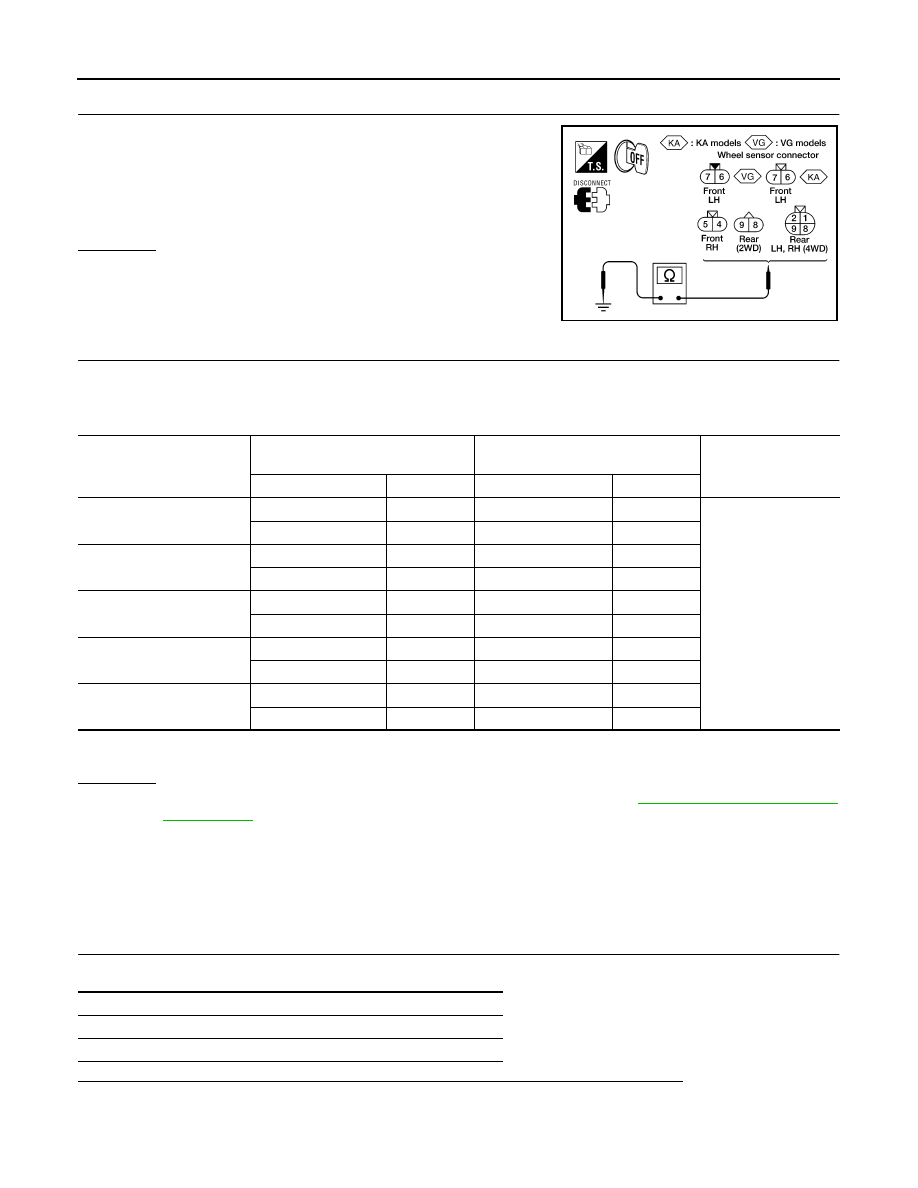

6.

CHECK WIRING HARNESS FOR SHORT CIRCUIT

1.

Disconnect ABS actuator and electric unit (control unit) connec-
tor and wheel sensor connector of malfunction code No.

2.

Check resistance between harness connector terminal and
ground.

OK or NG?

OK

>> GO TO 7.

NG

>> Repair the circuit.

7.

CHECK WIRING HARNESS FOR OPEN CIRCUIT

1.

Disconnect ABS actuator and electric unit (control unit) connector and wheel sensor connector of mal-
function code No.

2.

Check continuity between both wiring harness ends.

OK or NG?

OK

>> Replace the ABS actuator and electric unit (control unit). Refer to

BRC-51, "ABS Actuator and

Electric Unit"

 .

NG

>> Repair the circuit.

Inspection 2 ABS Actuator and Electric Unit (Control Unit) System

EFS003H0

DTC C1110

Inspection Procedure

1.

CHECKING SELF-DIAGNOSIS RESULTS

Check self-diagnosis results.

Does anything other than “CONTROLLER FAILURE” appear on self-diagnosis display?

YES

>> Repair or replace the items indicated. Then perform self-diagnosis again.

NO

>> Replace ABS actuator and electric unit (control unit). Then perform ABS actuator and electric

unit (control unit) self-diagnosis again.

Continuity should not exist.

WFIA0148E

Sensor

ABS actuator and

electric unit (control unit)

Wheel sensor

Continuity

Connector - terminal

Wire color

Connector - terminal

Wire color

Front LH

E39 - 46

G

E16 - 6

G

Yes

E39 - 45

R

E16 - 7

R

Front RH

E39 - 34

P

E2 - 5

P

E39 - 33

L

E2 - 4

L

Rear (2WD)

E39 - 36

W

C6 - 9

W

E39 - 37

B

C6 - 8

B

Rear LH (4WD)

E39 - 36

W

C6 - 9

W

E39 - 37

B

C6 - 8

B

Rear RH (4WD)

E39 - 42

LG

C6 - 1

LG

E39 - 43

PU

C6 - 2

PU

Continuity should exist.

Self-diagnosis results

CONSULT-II display items

CONTROLLER FAILURE

TROUBLE DIAGNOSIS

BRC-37

[ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

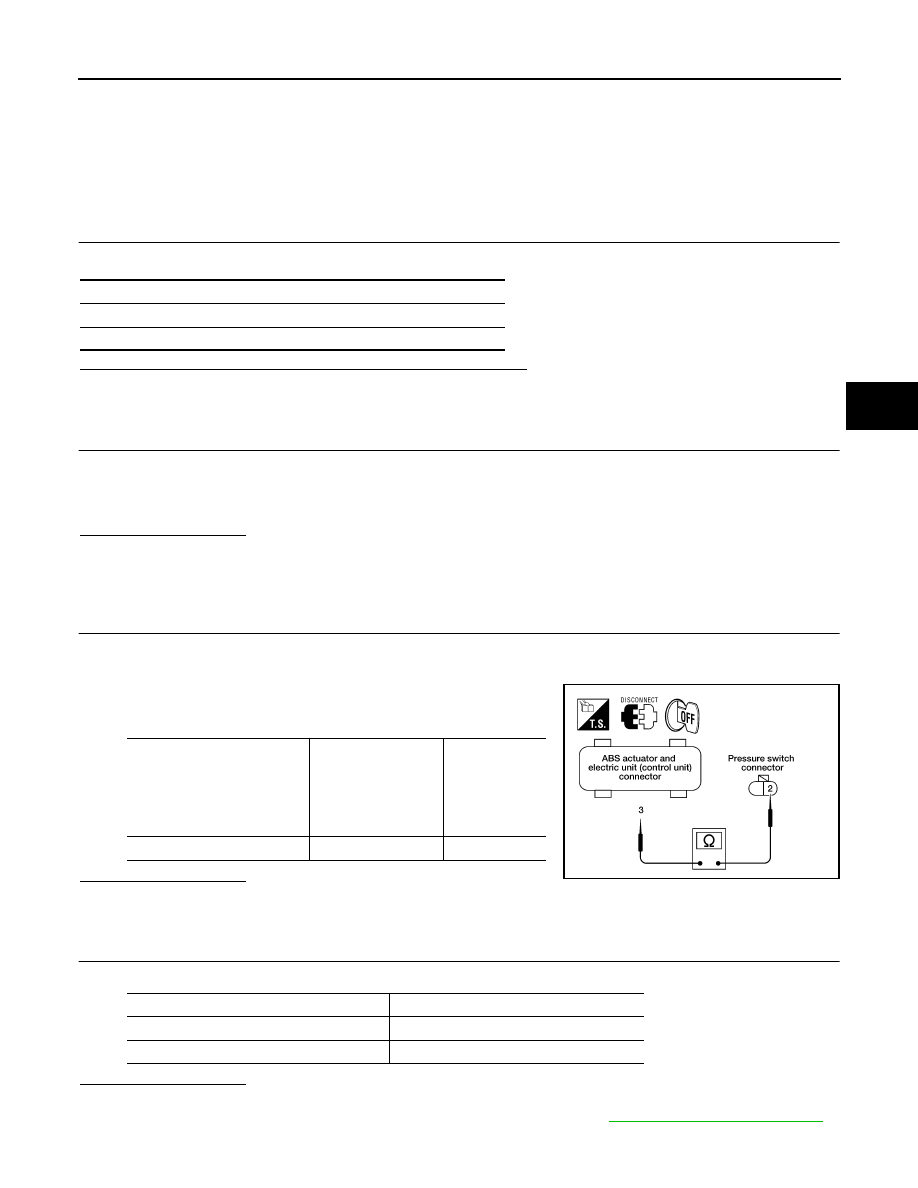

Inspection 3 Pressure Switch and Circuit Between Pressure Switch and ABS
Actuator and Electric Unit (Control Unit)

EFS003H1

NOTE:
Pressure switch applies to 2WD models only.
DTC C1142

Inspection Procedure

1.

CHECKING SELF-DIAGNOSIS RESULTS (1)

Check self-diagnosis results.

Does “PRESS SEN CIRCUIT” appear on self-diagnosis display?

YES

>> GO TO 2.

NO

>> Inspection is completed.

2.

CHECKING SELF-DIAGNOSIS RESULTS (2)

1.

Disconnect pressure switch connector E91 and ABS actuator and electric unit (control unit) connector
E39. Then reconnect them securely.

2.

Perform ABS actuator and electric unit (control unit) self-diagnosis again.

Is inspection result OK?

OK

>> Poor connection of connectors. Repair or replace suspect connector. Perform self-diagnosis

again.

NG

>> GO TO 3.

3.

CHECKING PRESSURE SWITCH CIRCUIT

1.

Disconnect pressure switch connector E91 and ABS actuator and electric unit (control unit) connector
E39.

2.

Check continuity between ABS actuator and electric unit (con-
trol unit) harness connector E39 and pressure switch harness
connector E91.

Is inspection result OK?

OK

>> GO TO 4.

NG

>> Open or short in harness. Repair or replace the suspect harness.

4.

CHECKING PRESSURE SWITCH

Check pressure switch value on “DATA MONITOR”.

Is inspection result OK?

OK

>> Inspection is completed.

NG

>> Pressure switch malfunction. Replace pressure switch. Refer to

BR-14, "MASTER CYLINDER"

 .

Self-diagnosis results

CONSULT-II display items

PRESS SEN CIRCUIT

ABS actuator and

electric unit (control

unit)

(Harness connector

E39)

Pressure

switch

(Harness con-

nector E91)

Continuity

3 (R/W)

2 (R/W)

Yes

LFIA0181E

Condition

Data monitor display

Brake pedal depressed

ON

When brake pedal is released.

OFF

BRC-38

[ABS]

TROUBLE DIAGNOSIS

Inspection 4 Solenoid Valve and Circuits

EFS003H2

DTC C1120, C1121, C1122, C1123, C1124, C1125, C1126 or C1127

Inspection Procedure

1.

CHECKING SELF-DIAGNOSIS RESULTS (1)

Check self-diagnosis results.

Do above items appear on self-diagnosis results display?

YES

>> GO TO 2.

NO

>> Inspection is completed.

2.

CHECKING SELF-DIAGNOSIS RESULTS (2)

1.

Disconnect ABS actuator and electric unit (control unit) connector E39. Then reconnect it securely.

2.

Perform self-diagnosis again.

Do any self-diagnosis items appear?

YES

>> GO TO 3.

NO

>> Poor connection. Repair or replace the connector.

Self-diagnosis results

CONSULT-II display items

FR LH IN ABS SOL

FR LH OUT ABS SOL

RR RH IN ABS SOL

RR RH OUT ABS SOL

FR RH IN ABS SOL

FR RH OUT ABS SOL

RR LH IN ABS SOL

RR LH OUT ABS SOL
