Nissan Frontier D22. Manual - part 161





BRAKE PIPING AND HOSE

BR-11

C

D

E

G

H

I

J

K

L

M

A

B

BR

BRAKE PIPING AND HOSE

PFP:46210

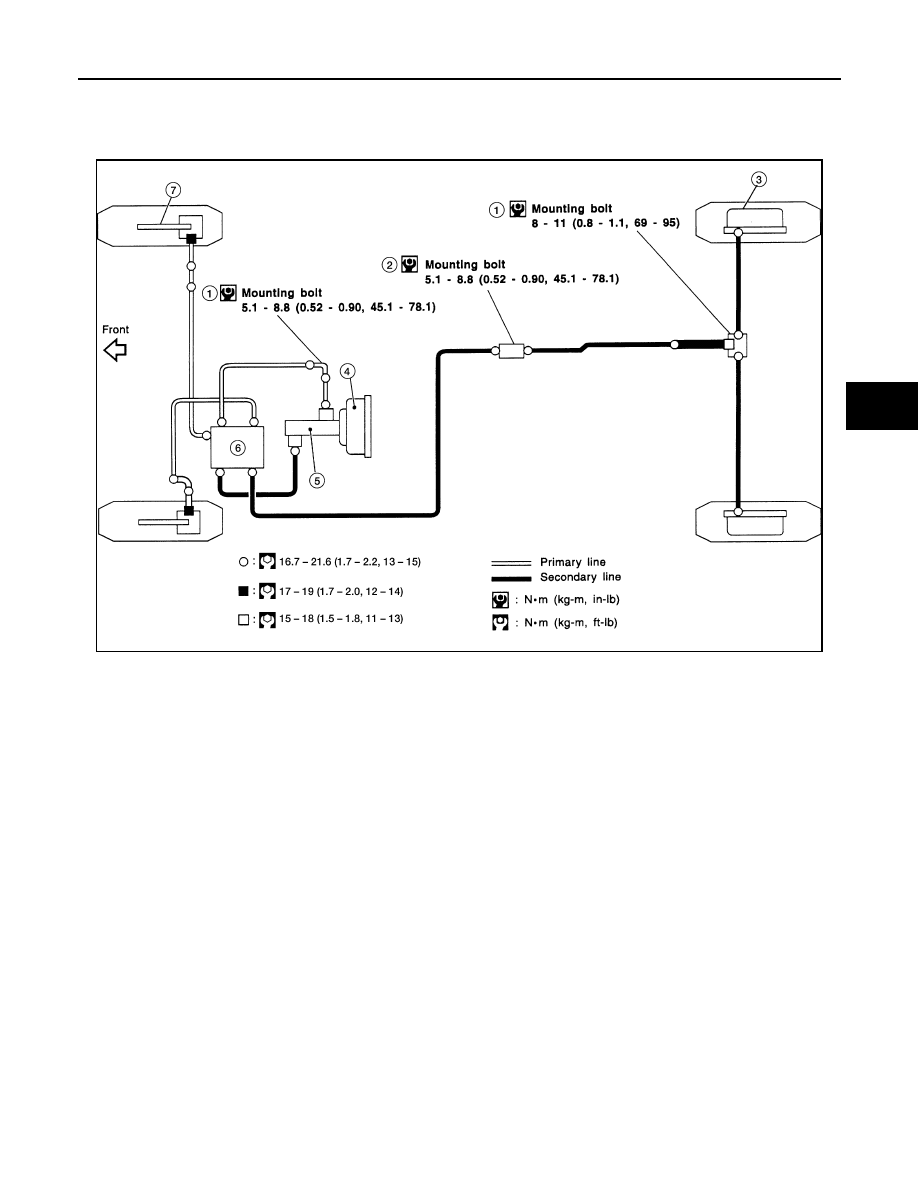

Hydraulic Circuit

EFS003FH

4x2 and 4x4 with MT

WFIA0080E

1.

Three-way connector

2.

Two-way connector

3.

Rear brake

4.

Brake booster

5.

Master cylinder

6.

ABS actuator

7.

Front brake

BR-12

BRAKE PIPING AND HOSE

4x4 with AT and VDC

Front and Rear Brake Piping and Hose

EFS003FI

REMOVAL

CAUTION:

Be careful not to splash brake fluid on painted areas; it may
cause paint damage. If brake fluid is splashed on painted
areas, wash it away with water immediately.

All hoses must be free from excessive bending, twisting
and pulling.

1.

Connect vinyl tube to air bleeder valve.

2.

Drain brake fluid from each air bleeder valve by depressing
brake pedal.

3.

Remove flare nut connecting brake tube and hose, then with-
draw lock spring.

4.

Cover openings to prevent entrance of dirt whenever discon-
necting brake line.

LFIA0191E

1.

Front brake

2.

Master cylinder

3.

Brake booster

4.

Rear brake

5.

VDC actuator

6.

4-way connector

SBR992

BRAKE PIPING AND HOSE

BR-13

C

D

E

G

H

I

J

K

L

M

A

B

BR

INSTALLATION

CAUTION:

Refill with new brake fluid “DOT 3”.

Never reuse drained brake fluid.

1.

Tighten all flare nuts and connecting bolts.

2.

Refill until new brake fluid comes out of each air bleeder valve.

3.

Bleed air. Refer to

BR-10, "Bleeding Brake System"

 .

Inspection

EFS003FJ

Check brake lines (tubes and hoses) for cracks, deterioration and other damage. Replace any damaged parts.

Flare nut

: 15 - 18 N·m (1.5 - 1.8 kg-m, 11 - 13 ft-lb)

Connecting
bolt

: 17 - 19 N·m (1.7 - 2.0 kg-m, 12 - 14 ft-lb)

SBR686C

BR-14

MASTER CYLINDER

MASTER CYLINDER

PFP:46010

Components

EFS003FK

Removal and Installation

EFS003FL

REMOVAL

CAUTION:

Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is
splashed on painted areas, wash it away with water immediately.

In the case of brake fluid leakage from the master cylinder, disassemble the cylinder. Then check
piston cups for deformation and scratches and replace necessary parts.

1.

Connect a vinyl tube to air bleeder on brakes.

2.

Drain brake fluid from each air bleeder, depressing brake pedal to empty fluid from master cylinder.

3.

Disconnect brake fluid level switch.

4.

Disconnect pressure sensor (4WD models with AT and VDC) or pressure switch (2WD models and 4WD
models with MT).

5.

Remove flare nuts.

6.

Remove master cylinder nuts.

LFIA0192E

1.

Reservoir cap

2.

Filter

3.

Reservoir tank

4.

Seal

5.

Valve stopper

6.

Cylinder body

7.

Spring pin

8.

Secondary piston assembly

9.

Primary piston assembly

10. Stopper cap

11.

O-ring

12. Secondary piston assembly

13. Primary piston assembly

14. Plate

15. Guide

16. Plate

17. Snap ring

18. Pressure switch (2WD models)

19. Pressure sensor (4WD models with

AT and VDC)

20. Brake fluid level switch
