POWER DOOR LOCK SYSTEM

BL-13

C

D

E

F

G

H

J

K

L

M

A

B

BL

through body grounds M14 and M68.

With the main power window and door lock/unlock switch pressed to UNLOCK, ground is supplied

to smart entrance control unit terminal 4

through main power window and door lock/unlock switch terminal 11

through main power window and door lock/unlock switch terminal 10

through body grounds M14 and M68.

With the door lock/unlock switch RH pressed to UNLOCK, ground is supplied

to smart entrance control unit terminal 4

through door lock/unlock switch RH terminal 3

through door lock/unlock switch RH terminal 4

through body grounds M14 and M68.

OUTPUT
Unlock

Ground is supplied

to front door lock actuator LH and RH terminal 4 and rear door lock actuator LH and RH (Crew Cab) termi-
nal 3

through smart entrance control unit terminal 54.

FRONT DOOR LH
Power is supplied

to front door lock actuator LH terminal 2

through smart entrance control unit terminal 55.

FRONT DOOR RH
Power is supplied

to front door lock actuator RH terminal 2

through smart entrance control unit terminal 56.

REAR DOOR LH AND RH (CREW CAB)
Power is supplied

to rear door lock actuator LH and RH terminal 1

through smart entrance control unit terminal 56.

With power and ground applied as described, the doors are unlocked.

Lock

Ground is supplied

to front door lock actuator LH terminal 1

through smart entrance control unit terminal 55 and

to front door lock actuator RH terminal 2 and rear door lock actuator LH and RH (Crew Cab) terminal 1

through smart entrance control unit terminal 56.

Power is supplied

to front door lock actuator LH and RH terminal 4 and rear door lock actuator LH and RH (Crew Cab) termi-
nal 3

through smart entrance control unit terminal 54.

With power and ground applied as described, the doors are locked.

OPERATION

The main power window and door lock/unlock switch on front door LH trim and door lock/unlock switch
RH on front door RH trim can lock and unlock all doors.

With the key inserted in the front door key cylinder LH, turning it to LOCK locks all doors; turning it to
UNLOCK once unlocks the corresponding door; turning it to UNLOCK again within 5 seconds of the first
unlock operation unlocks all other doors (signal from door key cylinder switch).

BL-14

POWER DOOR LOCK SYSTEM

Key Reminder

When performing a door locking operation using either the main power window and door lock/unlock switch,
the door lock/unlock switch RH, the front door LH  lock knob or a keyfob, all the doors will lock and then will
immediately unlock if the

key switch is in INSERTED position (key is in ignition key cylinder) and

ignition switch is in the OFF position and

either front door switch LH or RH is in OPEN position (door is open).

POWER DOOR LOCK SYSTEM

BL-15

C

D

E

F

G

H

J

K

L

M

A

B

BL

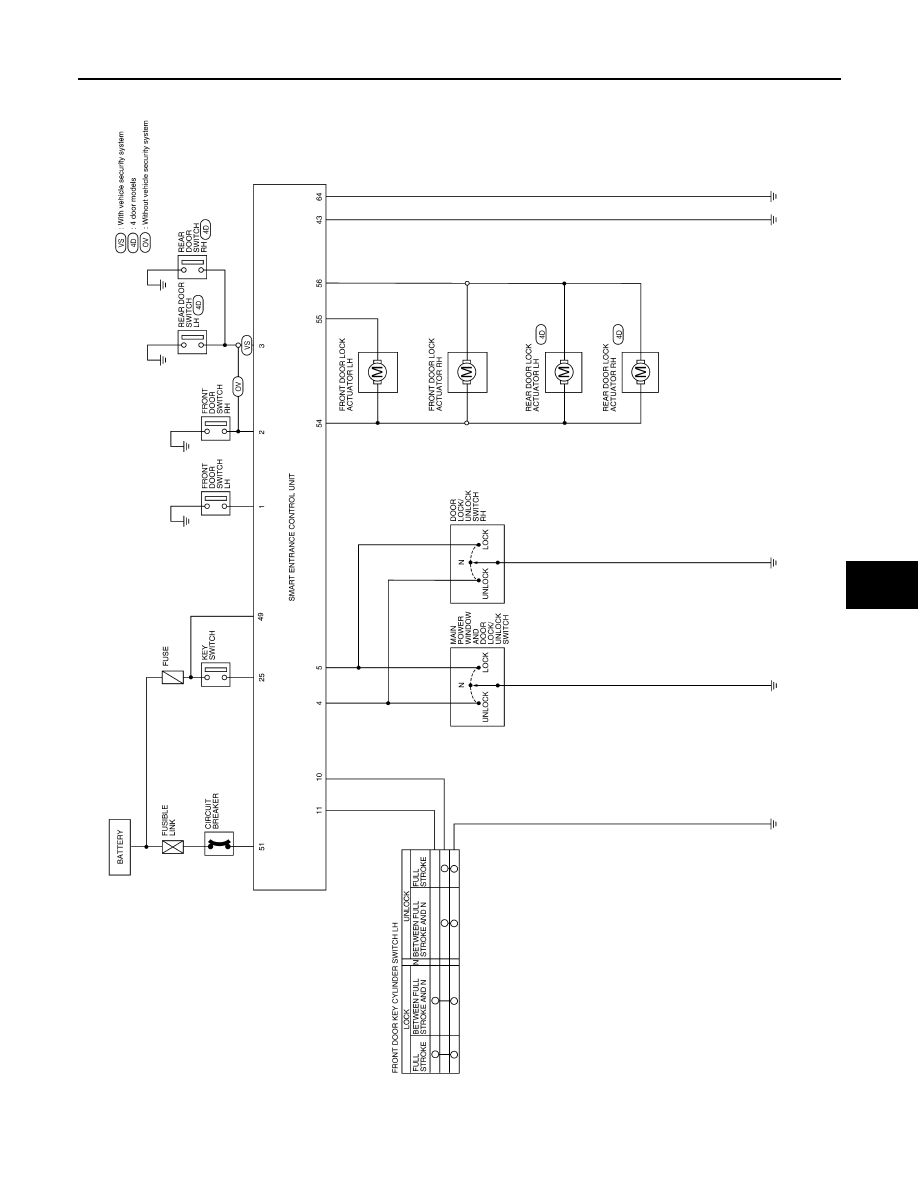

Circuit Diagram

EIS002C6

WIWA0098E

BL-16

POWER DOOR LOCK SYSTEM

Wiring Diagram — D/LOCK —

EIS002C7

FIG. 1

WIWA0099E
