WARNING CHIME

PFP:24814

Description

EKS006X1

When the vehicle is not equipped with power door locks, the following inputs, in the proper combination, will
activate the warning chime unit:

●

Key switch

●

Combination switch (lighting switch)

●

Ignition switch

●

Seat belt buckle switch LH

●

Front door switch LH

For detailed description and wiring diagrams for each of these components, refer to

DI-36, "MODELS WITH-

OUT POWER DOOR LOCKS"

  and

DI-36, "MODELS WITH POWER DOOR LOCKS"

 .

BCS-10

WARNING CHIME

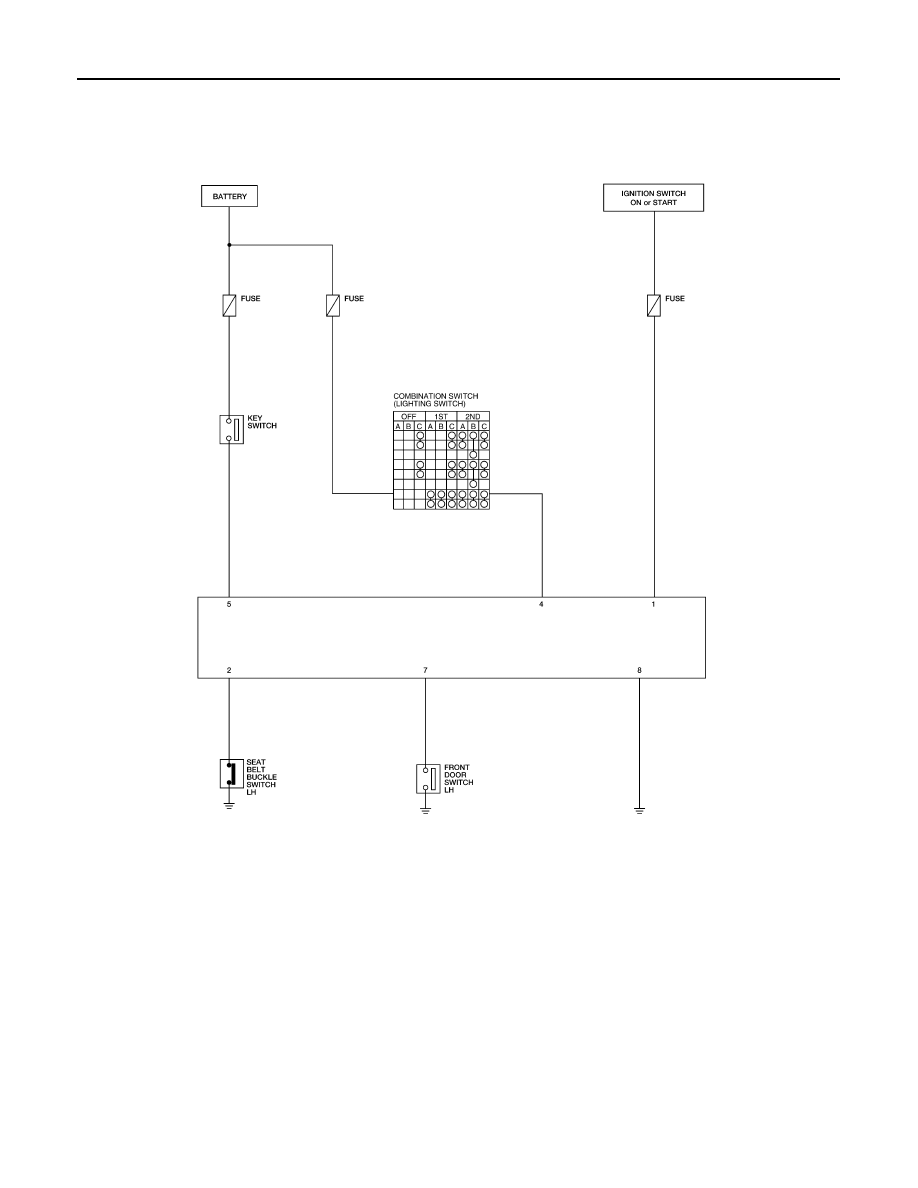

Circuit Diagram

EKS006X2

LKWA0128E

WARNING CHIME

BCS-11

C

D

E

F

G

H

I

J

L

M

A

B

BCS

Warning Chime Unit Inspection Table

EKS006X3

Terminal

No.

Wire

color

Connections

Operated condition

Voltage

(Approx.)

1

G/W

Ignition switch input

Ignition switch in OFF or ACC position

0V

Ignition switch in ON or START position

12V

2

B/P

Seat belt buckle switch LH input

Seat belt unfastened (switch closed)

0V

Seat belt fastened (switch open)

12V

4

L/R

Combination switch (lighting
switch) input

Lighting switch OFF

0V

Lighting switch in 1st or 2nd position (ON)

12V

5

W/G

Key switch input

Key removed from switch

0V

Key inserted in switch

12V

7

G/R

Front door switch LH input

Door open (switch closed)

0V

Door closed (switch open)

12V

8

B

Ground

—

0V
