Nissan Frontier D22. Manual - part 131

ASSEMBLY

AT-493

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

c.

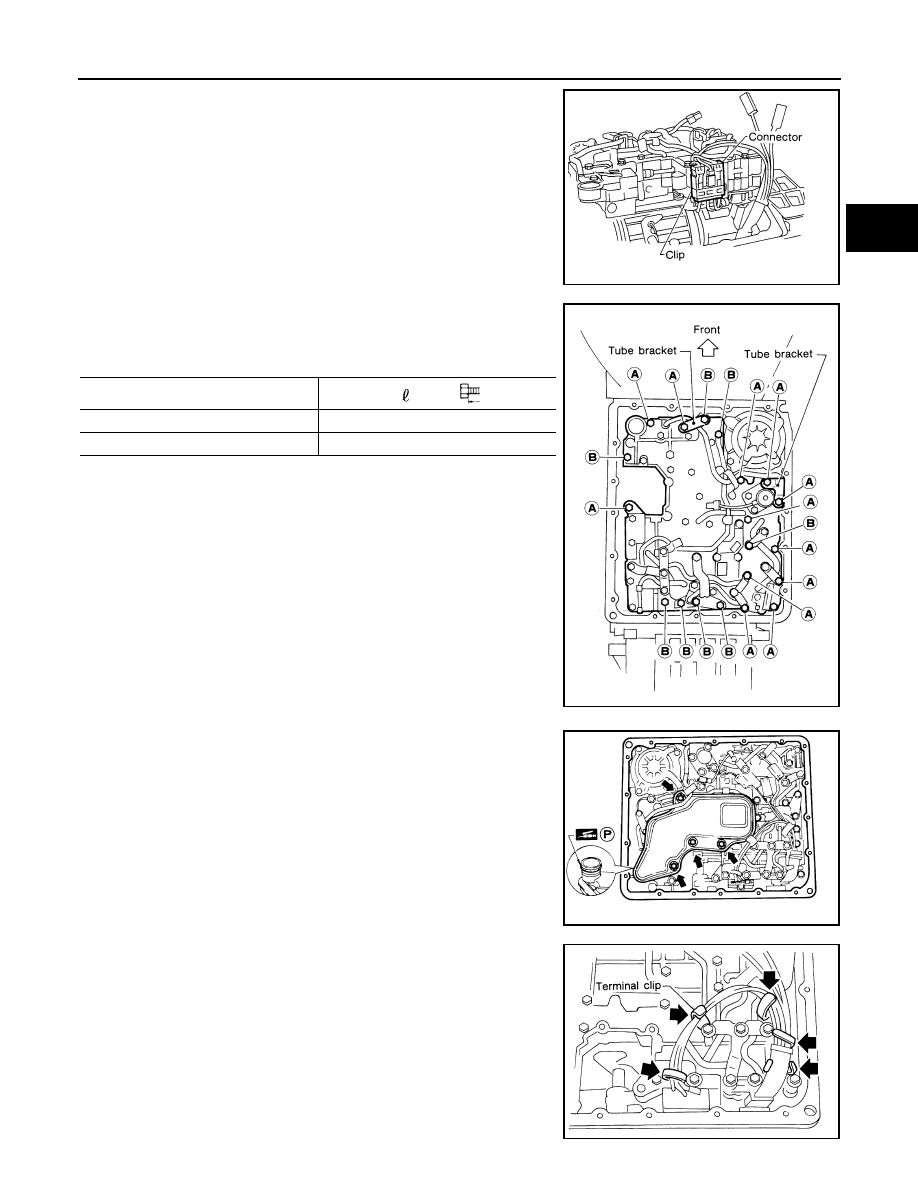

Place control valve assembly on transmission case. Connect
solenoid connector for upper body.

d.

Install connector clip.

e.

Install control valve assembly on transmission case.

f.

Install connector tube brackets and tighten bolts A and B.

●

Check that terminal assembly does not catch.

g.

Install O-ring on oil strainer.

●

Apply petroleum jelly to O-ring.

h.

Install oil strainer on control valve.

i.

Securely fasten terminal harness with clips.

SAT006B

Bolt symbol

 mm (in)

A

33 (1.30)

B

45 (1.77)

SAT353B

SAT221B

SAT009B

AT-494

[RE4R01A]

ASSEMBLY

j.

Install torque converter clutch solenoid valve and fluid tempera-
ture sensor connectors.

11. Install oil pan.

a.

Attach a magnet to oil pan.

b.

Install new oil pan gasket on transmission case.

c.

Install oil pan and bracket on transmission case.

●

Always replace oil pan bolts as they are self-sealing
bolts.

●

Before installing bolts, remove traces of sealant and oil
from mating surface and thread holes.

●

Tighten four bolts in a crisscross pattern to prevent dislo-
cation of gasket.

d.

Tighten drain plug.

12. Install park/neutral position (PNP) switch.

a.

Check that manual shaft is in 1 position.

b.

Temporarily install park/neutral position (PNP) switch on manual
shaft.

c.

Move manual shaft to N.

SAT010B

SAT011B

SAT365I

SAT299I

ASSEMBLY

AT-495

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

d.

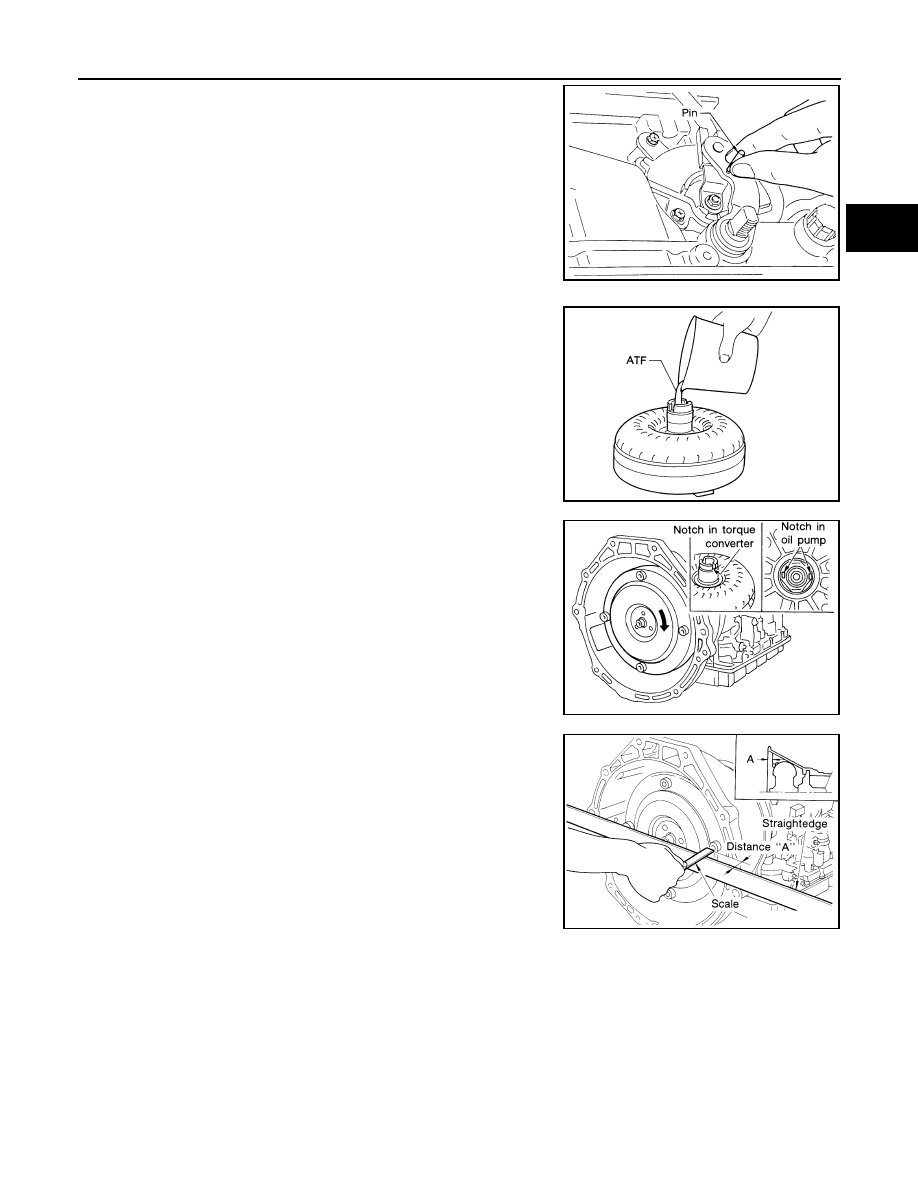

Tighten bolts while inserting 4.0 mm (0.157 in) dia. pin vertically
into locating holes in park/neutral position (PNP) switch and
manual shaft.

13. Install torque converter.

a.

Pour ATF into torque converter.

●

Approximately 2 liters (2-1/8 US qt, 1-3/4 Imp qt) of fluid
are required for a new torque converter.

●

When reusing old torque converter, add the same amount
of fluid as was drained.

b.

Install torque converter while aligning notches and oil pump.

c.

Measure distance A to check that torque converter is in proper
position.

SAT014B

SAT428DA

SAT016B

Distance “A”

VG33E only

: 26.0 mm (1.024 in) or
more

VG33ER only

: 25.0 mm (0.984 in) or
more

SAT017B

AT-496

[RE4R01A]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

General Specifications

ECS007QM

*1: Refer to

MA-12, "RECOMMENDED FLUIDS AND LUBRICANTS"

 .

Shift Schedule

ECS007QN

VEHICLE SPEED WHEN SHIFTING GEARS THROTTLE POSITION

VEHICLE SPEED WHEN PERFORMING AND RELEASING LOCK-UP

Stall Revolution

ECS007QO

Applied model

VG33E engine

VG33ER engine

2WD

4WD

2WD

4WD

Automatic transmission model

RE4R01A

Transmission model code number

4FX17

4FX18

4FX19

4FX20

Stall torque ratio

2.0 : 1

Transmission gear ratio

1st

2.785

2nd

1.545

Top

1.000

O/D

0.694

Reverse

2.272

Recommended fluid

Nissan Matic “D” (Continental U.S. and Alaska) or Genuine Nissan Automatic Trans-

mission Fluid (Canada)*1

Fluid capacity

8.3

 (8-3/4 US qt,

7-1/4 Imp qt)

8.5

 (9 US qt, 7-1/

2 Imp qt)

8.3

 (8-3/4 US qt,

7-1/4 Imp qt)

8.5

 (9 US qt, 7-1/

2 Imp qt)

Throttle position

Vehicle speed km/h (MPH)

D

1



→ D

2

D

2



→ D

3

D

3



→ D

4

D

4



→ D

3

D

3



→ D

2

D

2



→ D

1

1

2



→ 1

1

Full throttle

VG33E only

47 - 51

(29 - 32)

92 - 100

(57 - 62)

146 - 156

(91 - 97)

141 - 151

(88 - 94)

87 - 95

(54 - 59)

42 - 46

(26 - 29)

43 - 47

(27 - 29)

VG33ER only

49 - 53

(30 - 33)

94 - 102

(58 - 63)

151 - 161

(94 - 100)

147 - 157

(91 - 98)

87 - 95

(54 - 59)

43 - 47

(27 - 29)

54 - 58

(34 - 36)

Half throttle

VG33E only

34 - 38

(21 - 24)

68 - 74

(42 - 46)

132 - 140

(82 - 87)

59 - 67

(37 - 42)

31 - 37

(19 - 23)

10 - 14

(6 - 9)

43 - 47

(27 - 29)

VG33ER only

41 - 45

(25 - 28)

68 - 74

(42 - 46)

121 - 129

(75 - 80)

76 - 84

(47 - 52)

41 - 47

(25 - 29)

11 - 15

(7 - 9)

54 - 58

(34 - 36)

Throttle position

Overdrive control switch

[Shift position]

Vehicle speed km/h (MPH)

Lock-up “ON”

Lock-up “OFF”

Full throttle

VG33E only

ON [D

4

 ]

147 - 155 (91 - 96)

142 - 150 (88 - 93)

OFF [D

3

 ]

74 - 82 (46 - 51)

71 - 79 (44 - 49)

VG33ER only

ON [D

4

 ]

152 - 160 (94 - 99)

148 -156 (92 - 97)

OFF [D

3

 ]

86 - 94 (53 - 58)

83 - 91 (52 - 57)

Half throttle

VG33E only

ON [D

4

 ]

139 - 147 (86 - 91)

84 - 92 (52 - 57)

OFF [D

3

 ]

74 - 82 (46 - 51)

71 - 79 (44 - 49)

VG33ER only

ON [D

4

 ]

134 - 142 (83 - 88)

103 - 111 (64 - 69)

OFF [D

3

 ]

86 - 94 (53 - 58)

83 - 91 (52 - 57)

Engine

Stall revolution    rpm

VG33E only

2,450 - 2,650

VG33ER only

2,420 - 2,620
