Nissan Frontier D22. Manual - part 116





CONTROL VALVE ASSEMBLY

AT-433

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

c.

Place lower body face down, and remove separator plate.

d.

Remove pilot filter, orifice check valve and orifice check spring.

e.

Check to see that steel balls are properly positioned in upper
body. Then remove them from upper body.

Inspection

ECS007PI

LOWER AND UPPER BODIES

Check to see that there are pins and retainer plates in lower
body.

Check to see that there are pins and retainer plates in upper
body.

Be careful not to lose these parts.

SAT670A

SAT671A

SAT672A

SAT673A

AT-434

[RE4R01A]

CONTROL VALVE ASSEMBLY

Check to make sure that oil circuits are clean and free from
damage.

Check tube brackets and tube connectors for damage.

SEPARATOR PLATE

Make sure that separator plate is free of damage and not
deformed and oil holes are clean.

PILOT FILTER

Check to make sure that filter is not clogged or damaged.

TORQUE CONVERTER CLUTCH SOLENOID VALVE

Check that filter is not clogged or damaged.

Measure resistance. Refer to

AT-297, "TORQUE CONVERTER

CLUTCH SOLENOID VALVE"

 .

LINE PRESSURE SOLENOID VALVE

Check that filter is not clogged or damaged.

Measure resistance. Refer to

AT-310, "LINE PRESSURE SOLENOID VALVE"

 .

SAT674A

SAT675A

SAT676A

SAT149G

CONTROL VALVE ASSEMBLY

AT-435

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

3-UNIT SOLENOID ASSEMBLY (OVERRUN CLUTCH SOLENOID VALVE AND SHIFT SOLE-
NOID VALVES A AND B)

Measure resistance of each solenoid. Refer to

AT-333, "OVER-

RUN CLUTCH SOLENOID VALVE"

 ,

AT-315, "SHIFT SOLE-

NOID VALVE A"

 ,

AT-320, "SHIFT SOLENOID VALVE B"

 .

A/T FLUID TEMPERATURE SENSOR

Measure resistance. Refer to

AT-339, "A/T FLUID TEMPERA-

TURE SENSOR"

 .

Assembly

ECS007PJ

1.

Install upper and lower bodies.

a.

Place oil circuit of upper body face up. Install steel balls in their
proper positions.

b.

Install reamer bolts from bottom of upper body.

SAT095B

SAT196BA

SAT671A

SAT681A

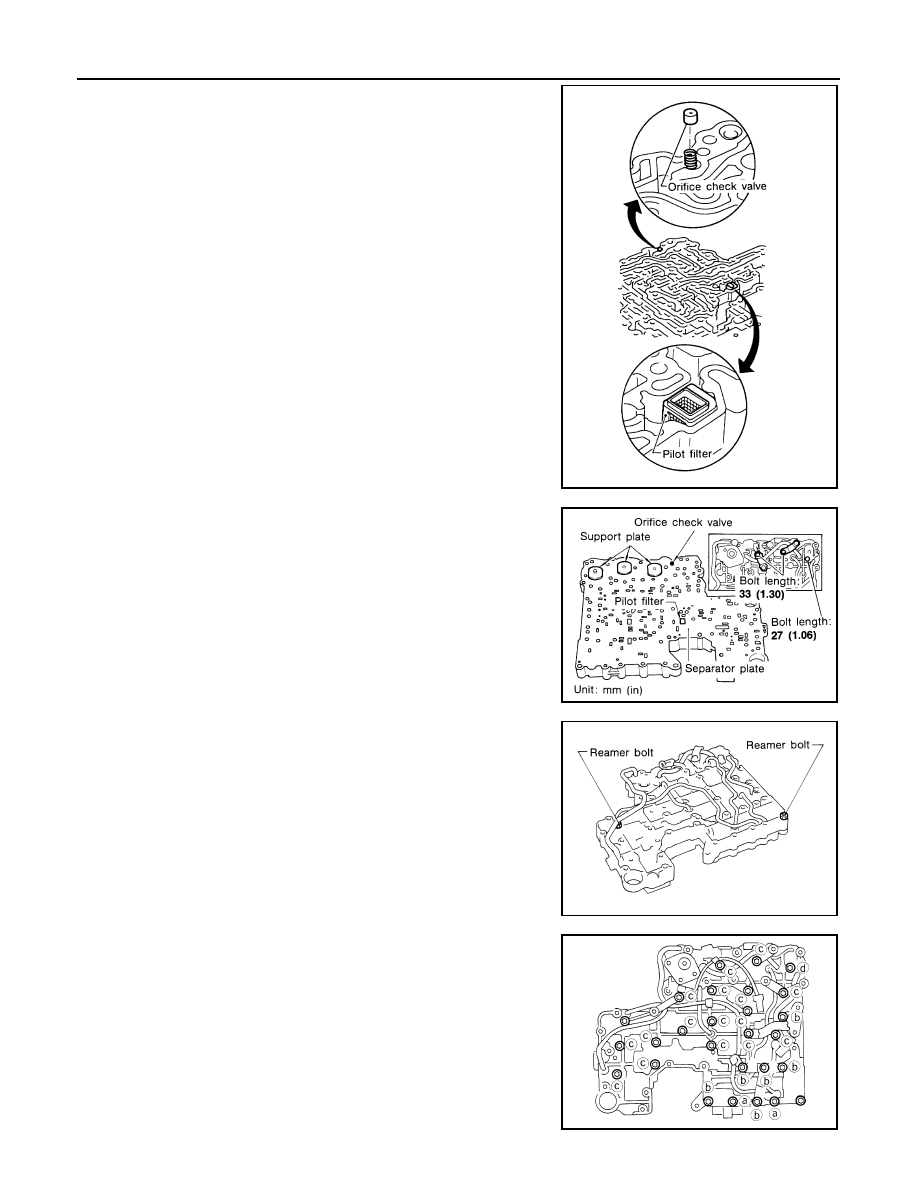

AT-436

[RE4R01A]

CONTROL VALVE ASSEMBLY

c.

Place oil circuit of lower body face up. Install orifice check
spring, orifice check valve and pilot filter.

d.

Install separator plate on lower body.

e.

Install and temporarily tighten support plates, fluid temperature
sensor and tube brackets.

f.

Temporarily assemble lower and upper bodies, using reamer
bolt as a guide.

Be careful not to dislocate or drop steel balls, orifice
check spring, orifice check valve and pilot filter.

g.

Install and temporarily tighten bolts and tube brackets in their
proper locations.

SAT682A

SAT197B

SAT198B

SAT199BA
