Nissan Frontier D22. Manual - part 44

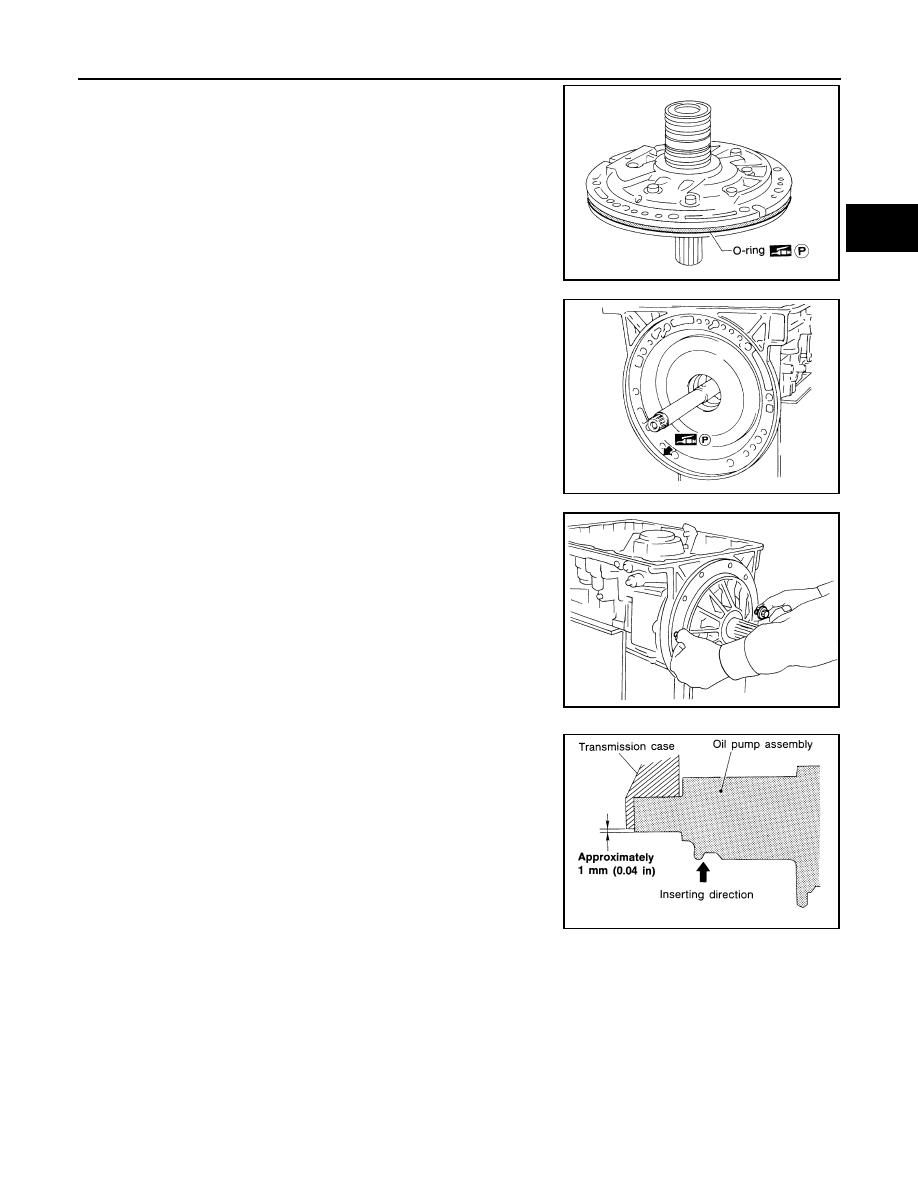

ASSEMBLY

AT-145

[RL4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

d.

Install O-ring on oil pump assembly.

●

Apply petroleum jelly to O-ring.

e.

Apply petroleum jelly to mating surface of transmission case and
oil pump assembly.

f.

Install oil pump assembly.

●

Install two converter housing securing bolts in bolt holes
in oil pump assembly as guides.

●

Insert oil pump assembly to the specified position in
transmission, as shown at left.

SAT991A

SAT992A

SAT993A

SAT994A

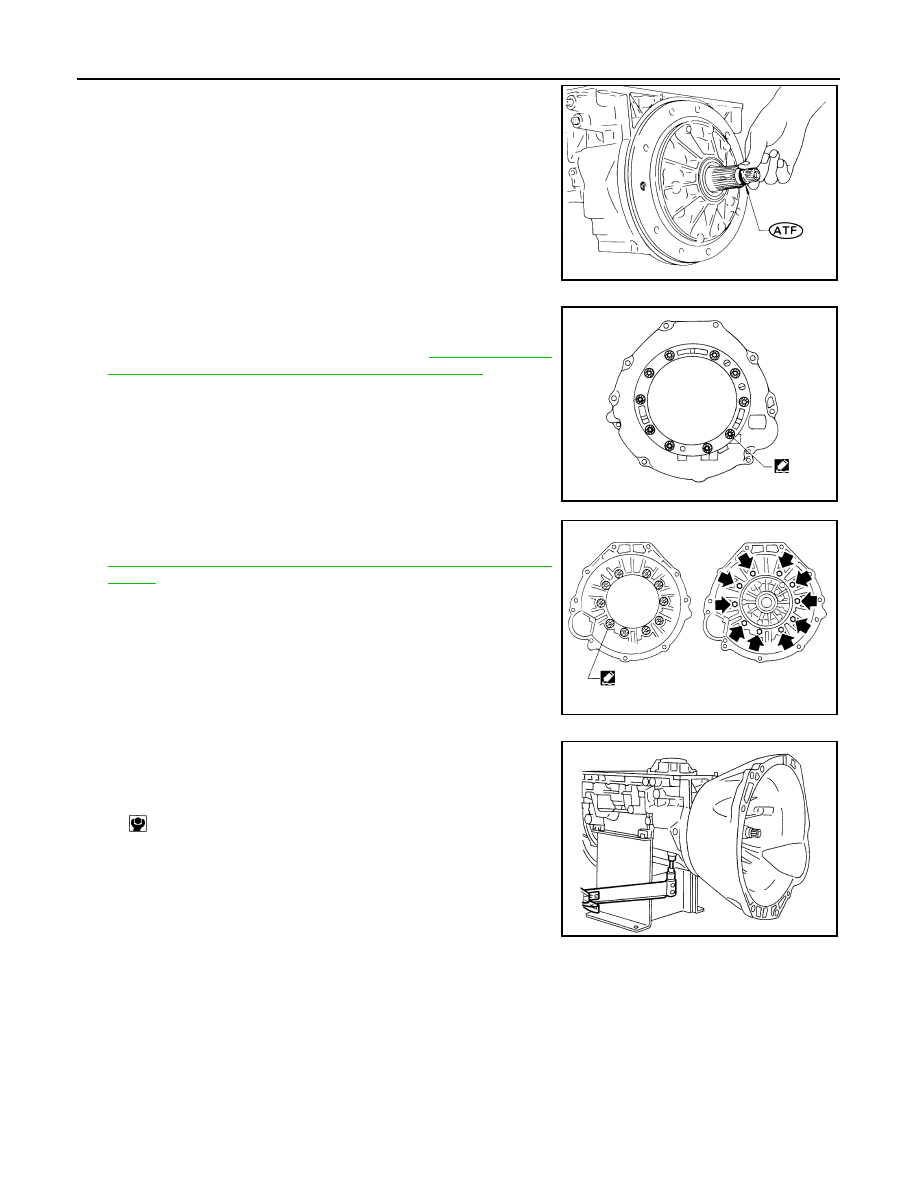

AT-146

[RL4R01A]

ASSEMBLY

6.

Install O-ring on input shaft.

●

Apply ATF to O-rings.

7.

Install converter housing.

a.

Apply Genuine Anaerobic Liquid Gasket or equivalent around
bolt holes in converter housing. Refer to

GI-42, "RECOM-

MENDED CHEMICAL PRODUCTS AND SEALANTS"

 .

●

Do not apply too much sealant.

b.

Apply Genuine Anaerobic Liquid Gasket or equivalent to seating
surfaces of bolts that secure front of converter housing. Refer to

GI-42, "RECOMMENDED CHEMICAL PRODUCTS AND SEAL-
ANTS"

 .

c.

Install converter housing on transmission case.

8.

Adjust brake band.

a.

Tighten anchor end pin to specified torque.

b.

Back off anchor end pin two and a half turns.

SAT114B

SAT397C

SAT158G

Anchor end pin

: 4 - 6 N·m (0.4 - 0.6 kg-m, 35 - 52 in-lb)

SAT001B

ASSEMBLY

AT-147

[RL4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

c.

While holding anchor end pin, tighten lock nut.

9.

Install terminal cord assembly.

a.

Install O-ring on terminal cord assembly.

●

Apply petroleum jelly to O-ring.

b.

Compress terminal cord assembly stopper and install terminal
cord assembly on transmission case.

10. Install control valve assembly.
a.

Install accumulator piston return springs B , C  and D .

b.

Install manual valve on control valve.

●

Apply ATF to manual valve.

c.

Install control valve assembly on transmission case.

d.

Install connector tube brackets and tighten bolts A  and B .

●

Check that terminal assembly harness does not catch.

SAT002B

SAT316I

Free length of return
springs

: Refer to

AT-151, "Return

Springs"

 .

SAT004BA

SAT005B

Bolt

 mm (in)

A

33 (1.30)

B

45 (1.77)

SAT448EA

AT-148

[RL4R01A]

ASSEMBLY

e.

Install O-ring on oil strainer.

●

Apply petroleum jelly to O-ring.

f.

Install oil strainer on control valve.

g.

Securely fasten terminal harness with clips.

11. Install oil pan.

a.

Attach a magnet to oil pan.

b.

Install new oil pan gasket on transmission case.

c.

Install oil pan and bracket on transmission case.

●

Always replace oil pan bolts as they are self-sealing
bolts.

●

Before installing bolts, remove traces of sealant and oil
from mating surface and thread holes.

●

Tighten four bolts in a crisscross pattern to prevent  dis-
location of gasket.

d.

Tighten drain plug.

SAT306I

SAT307I

SAT011B

SAT099H
