DUCTS AND GRILLES

Component

INFOID:0000000009484344

Ducts

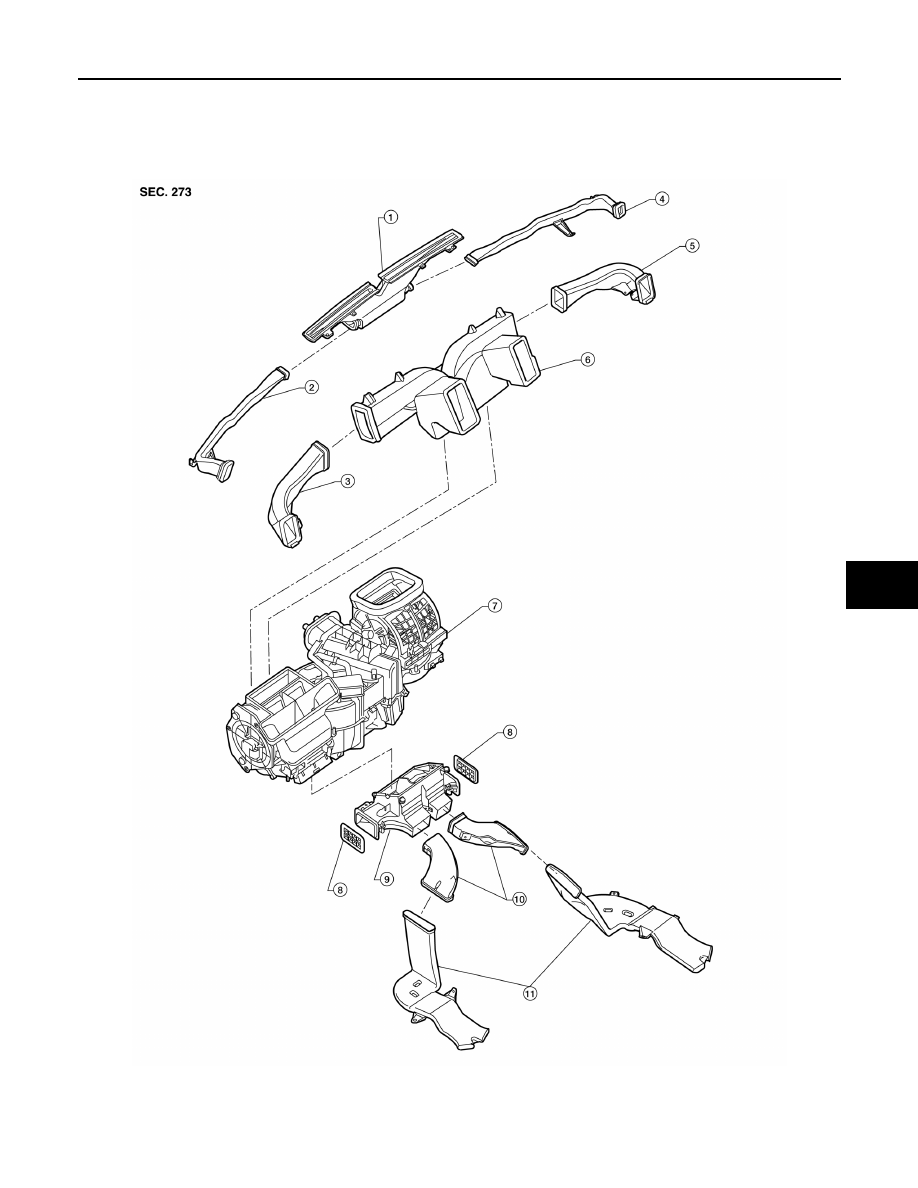

AWIIA1541ZZ

1.

Defroster nozzle

2.

Side demister duct (LH)

3.

Ventilator duct (LH)

4.

Side demister duct (RH)

5.

Ventilator duct (RH)

6.

Center ventilator duct

VTL-22

< REMOVAL AND INSTALLATION >

DUCTS AND GRILLES

Grilles

Removal and Installation

INFOID:0000000009484345

DEFROSTER NOZZLE

Removal

1. Remove the heater and cooling unit assembly. Refer to

VTL-12, "Removal and Installation"

.

2. Remove the defroster nozzle.

Installation

Installation is in the reverse order of removal.

RH AND LH SIDE DEMISTER DUCT

Removal

1. Remove the heater and cooling unit assembly. Refer to

VTL-12, "Removal and Installation"

.

2. Remove the side demister duct.

7.

Heater and cooling unit assembly

8.

Floor connector duct grilles

9.

Floor connector duct

10. Front floor ducts

11. Rear floor ducts

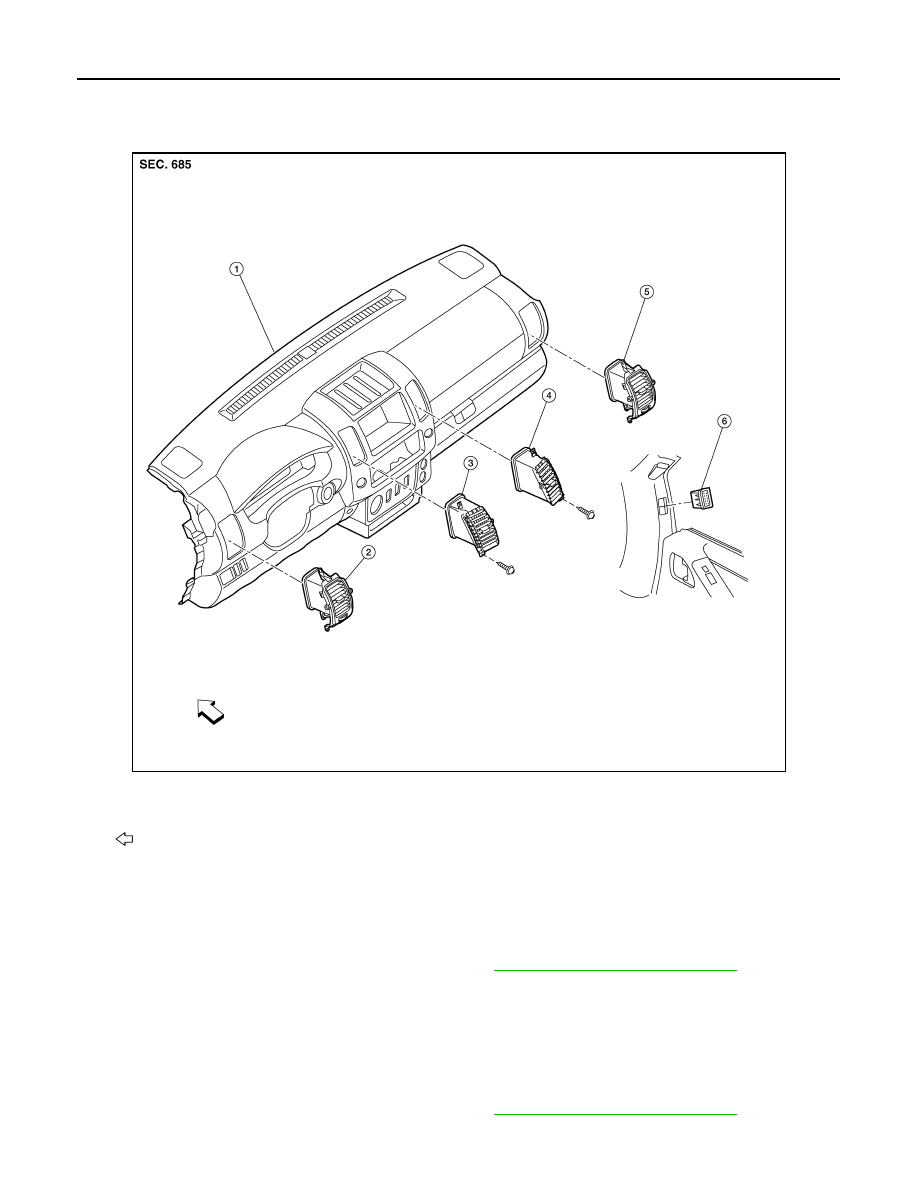

AWIIA1782ZZ

1.

Instrument panel and pad assembly

2.

Side ventilator grille (LH)

3.

Ventilator grille (LH)

4.

Ventilator grille (RH)

5.

Side ventilator grille (RH)

6.

Side demister grille (RH)

Front

DUCTS AND GRILLES

VTL-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

Installation

Installation is in the reverse order of removal.

RH AND LH VENTILATOR DUCT

Removal

1. Remove the heater and cooling unit assembly. Refer to

VTL-12, "Removal and Installation"

.

2. Remove the ventilator duct.

Installation

Installation is in the reverse order of removal.

CENTER VENTILATOR DUCT

Removal

1. Remove the heater and cooling unit assembly. Refer to

VTL-12, "Removal and Installation"

.

2. Remove the defroster nozzle.
3. Remove the ventilator ducts.
4. Remove the side demister ducts.
5. Remove the center ventilator duct.

Installation

Installation is in the reverse order of removal.

FLOOR CONNECTOR DUCT

Removal

1. Remove the heater and cooling unit assembly. Refer to

VTL-12, "Removal and Installation"

.

2. Remove the floor connector duct.

Installation

Installation is in the reverse order of removal.

FRONT AND REAR FLOOR DUCTS

Removal

1. Remove the floor carpet. Refer to

INT-19, "Removal and Installation"

.

2. Remove the clips and remove the front and rear floor ducts.

Installation

Installation is in the reverse order of removal.

GRILLES

Removal

1. Remove the necessary interior trim panel(s) to access the grille. Refer to

IP-10, "Exploded View"

.

2. Remove the grille from the interior trim panel.

Installation

Installation is in the reverse order of removal.
