OVERHAUL

TM-261

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

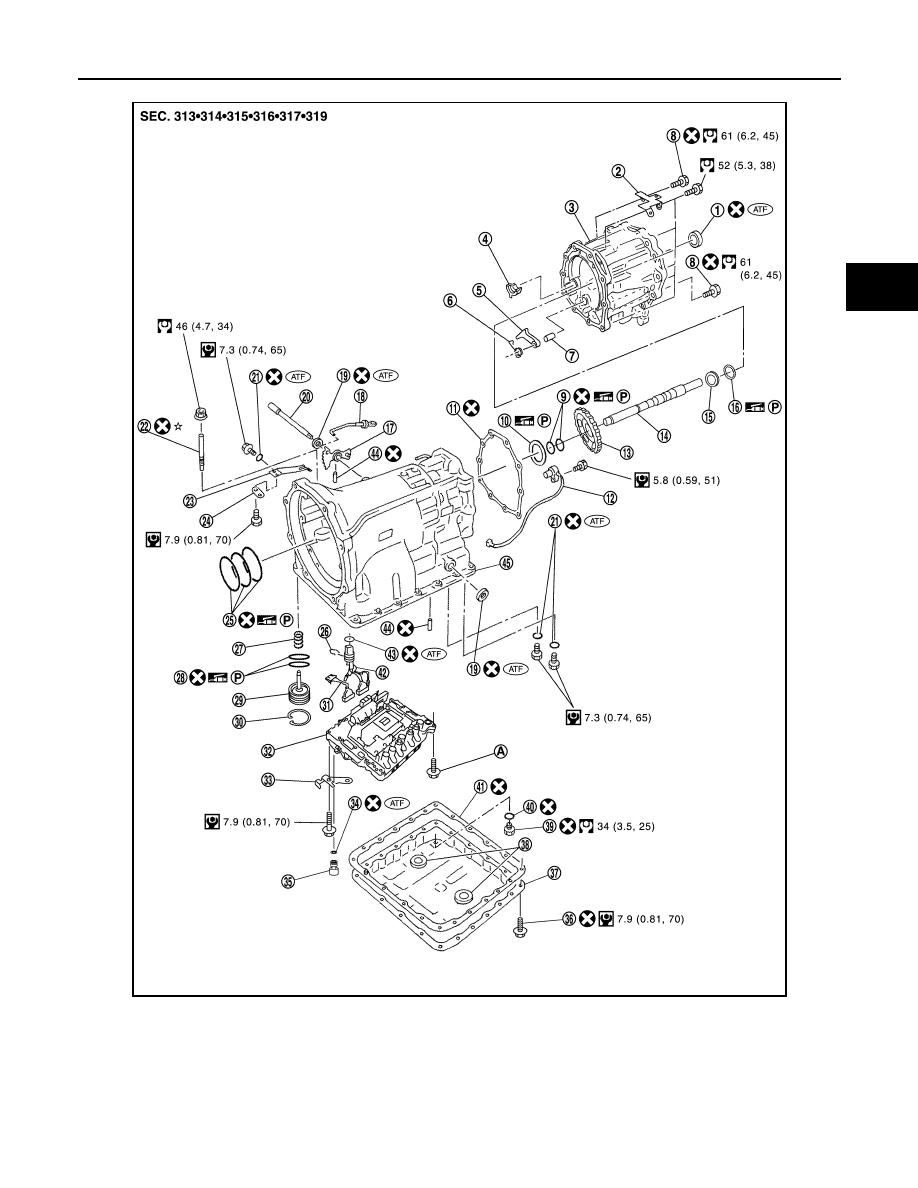

Transmission Case Components for 4WD

JSDIA2265GB

1.

Rear oil seal

2.

Bracket

3.

Adapter case

4.

Parking actuator support

5.

Parking pawl

6.

Return spring

7.

Pawl shaft

8.

Self-sealing bolt

9.

Seal ring

10. Needle bearing

11. Gasket

12. Output speed sensor

13. Parking gear

14. Output shaft

15. Bearing race

16. Needle bearing

17. Manual plate

18. Parking rod

TM-262

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

OVERHAUL

19. Manual shaft oil seal

20. Manual shaft

21. O-ring

22. Band servo anchor end pin

23. Detent spring

24. Spacer

25. Seal ring

26. Snap ring

27. Return spring

28. O-ring

29. Servo assembly

30. Snap ring

31. Sub-harness

32. Control valve with TCM

33. Bracket

34. O-ring

35. Plug

36. Oil pan

37. Magnet

38. Oil pan bolt

39. Drain plug

40. Drain plug gasket

41. Oil pan gasket

42. Terminal cord assembly

43. O-ring

44. Retaining pin

45. Transmission case

A.

Tightening must be done following the assembly procedure. Refer to

TM-319, "Assembly (2)"

.

Refer to

GI-4, "Component"

 for symbols in the figure.

OVERHAUL

TM-263

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Oil Channel

INFOID:0000000009485615

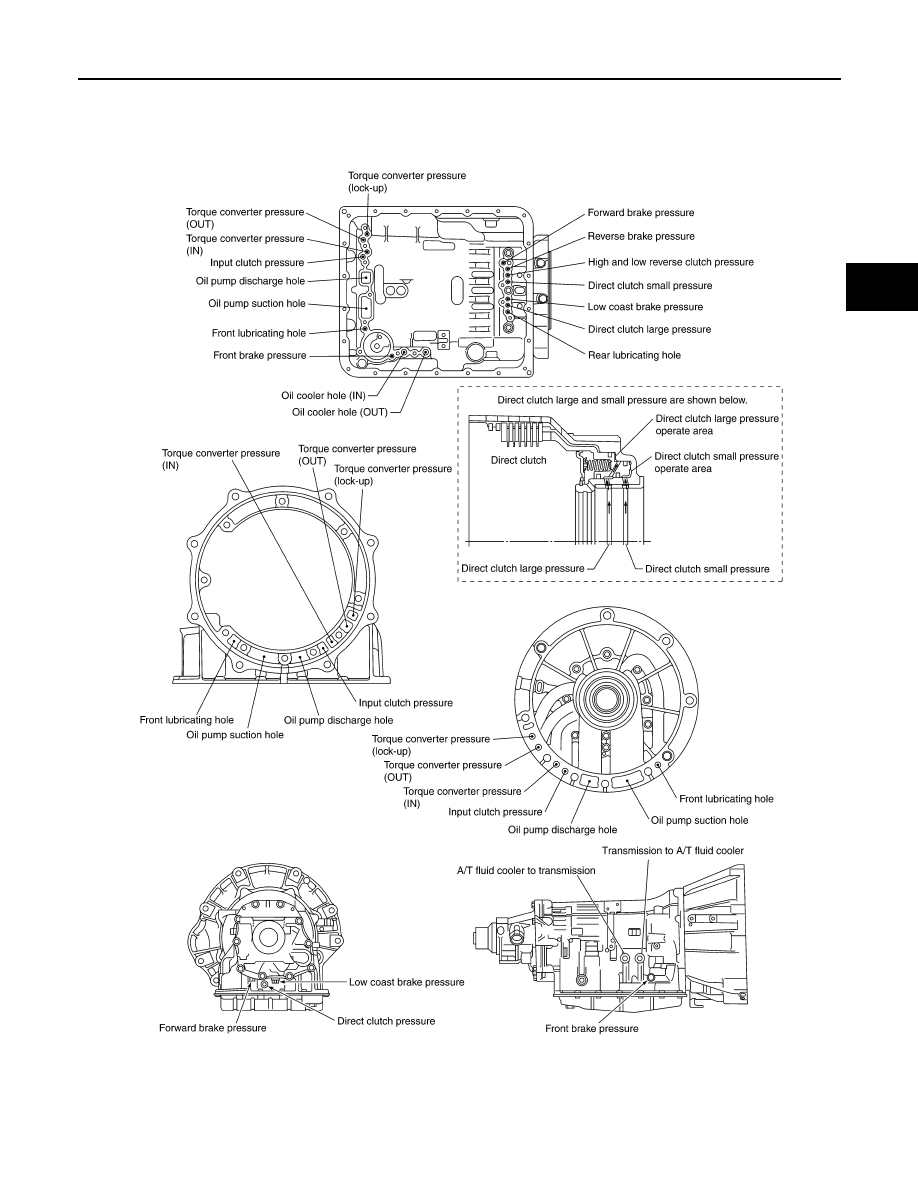

2WD models

SCIA5185E

TM-264

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

OVERHAUL

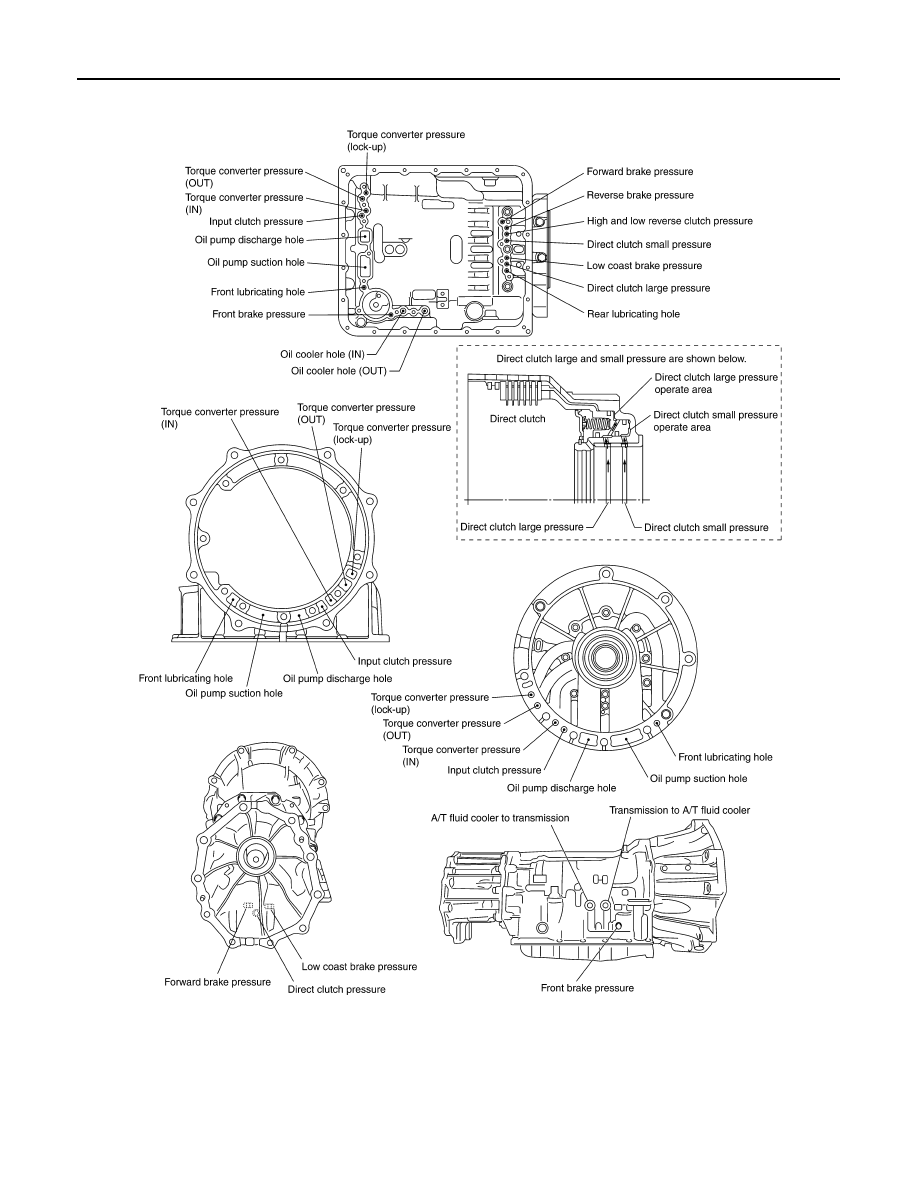

4WD models

SCIA5189E
