TRANSMISSION ASSEMBLY

TM-29

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

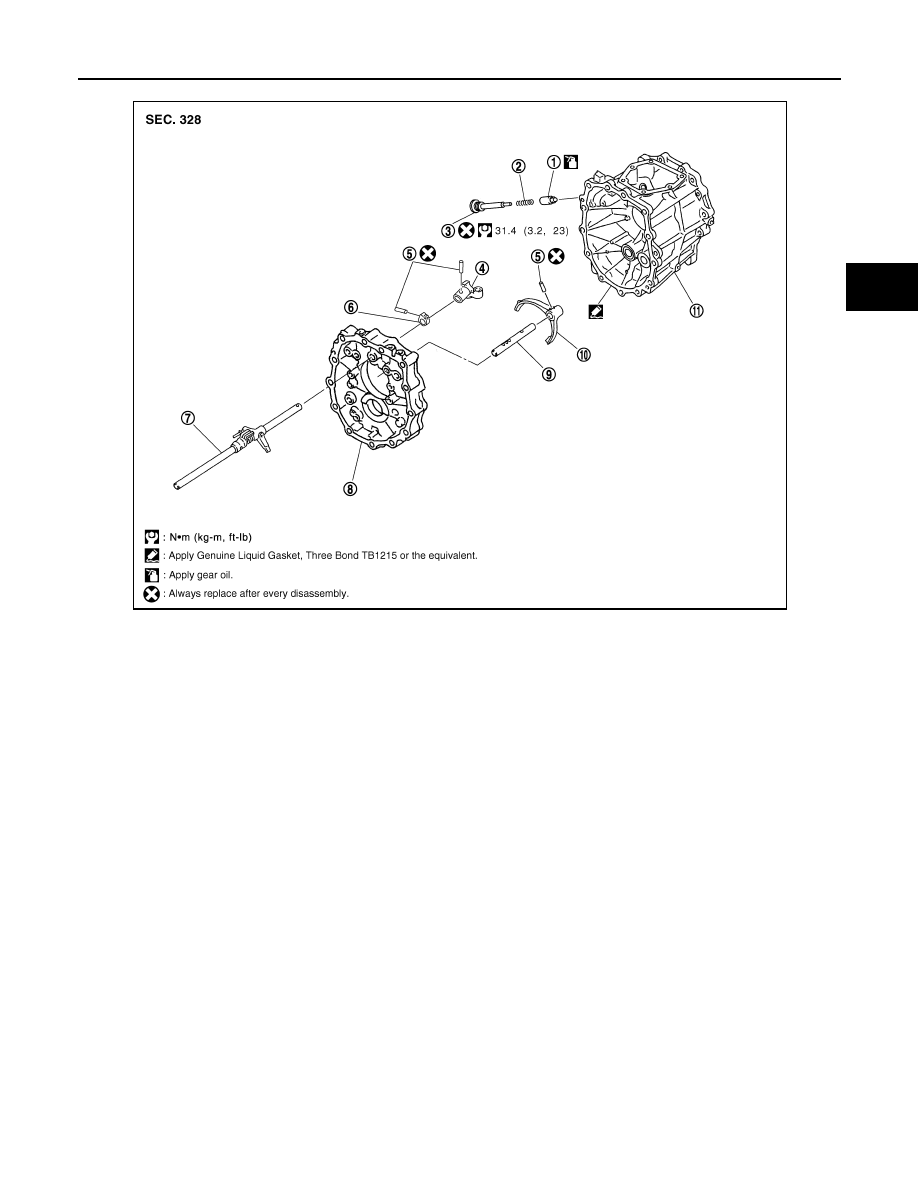

1.

Return spring plunger

2.

Return spring

3.

Return spring plug

4.

Striking arm

5.

Retaining pin

6.

Stopper ring

7.

Striking rod assembly

8.

Adapter plate

9.

Reverse fork rod

10. Reverse shift fork

11. Rear extension

12. OD gear case

PCIB1598E

TM-30

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

CASE COMPONENTS

CASE COMPONENTS

Disassembly

INFOID:0000000009485376

CASE COMPONENTS

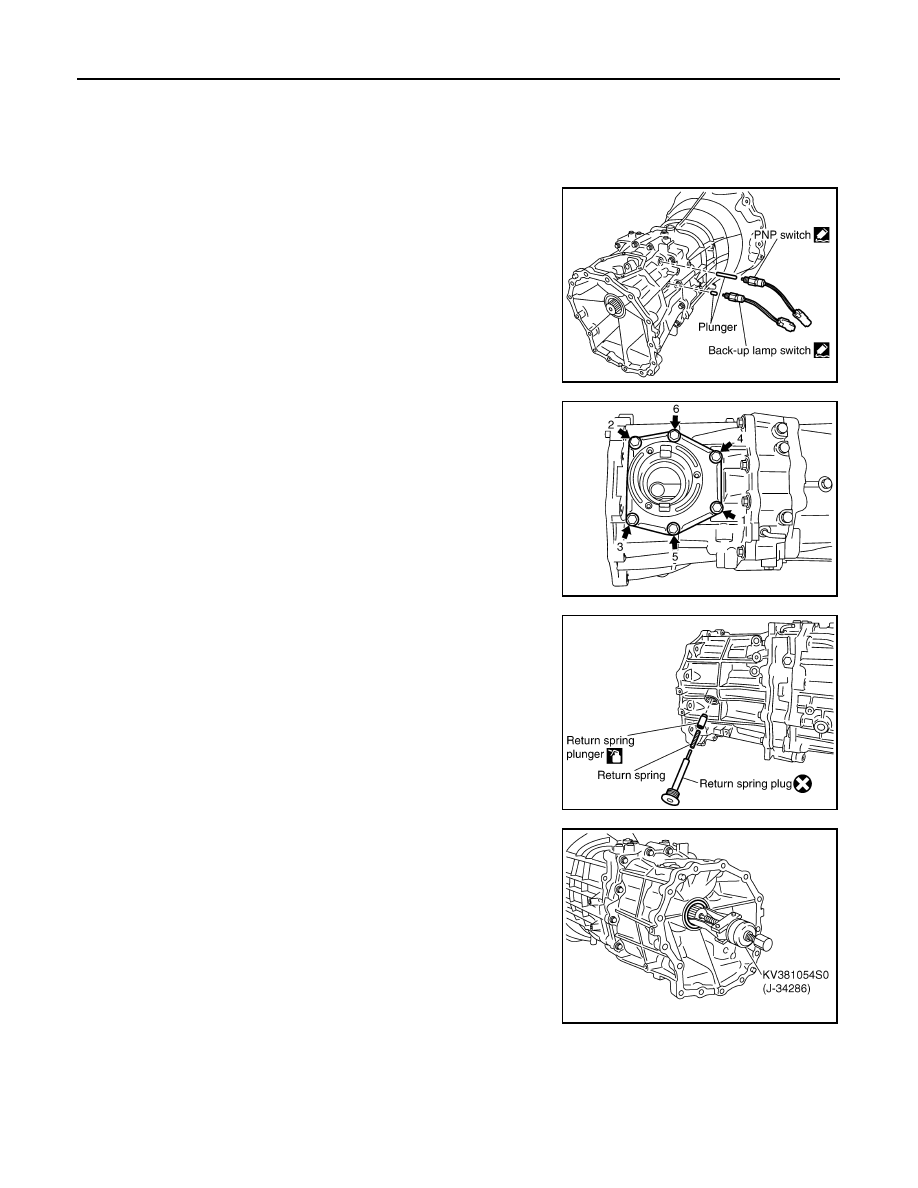

1. Remove clips from PNP switch and back-up lamp switch.
2. Remove PNP switch, back-up lamp switch and plungers from

OD gear case.

3. Remove control housing bolts, and then remove control housing

and gasket from OD gear case.

4. Remove return spring plug, return spring and return spring

plunger from OD gear case.

CAUTION:

Do not reuse return spring plug.

5. Remove rear oil seal from OD gear case using Tool.

CAUTION:

Do not damage OD gear case.

PCIB1215E

PCIB1216E

PCIB1643E

Tool number

: KV381054S0 (J-34286)

PCIB1218E

CASE COMPONENTS

TM-31

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

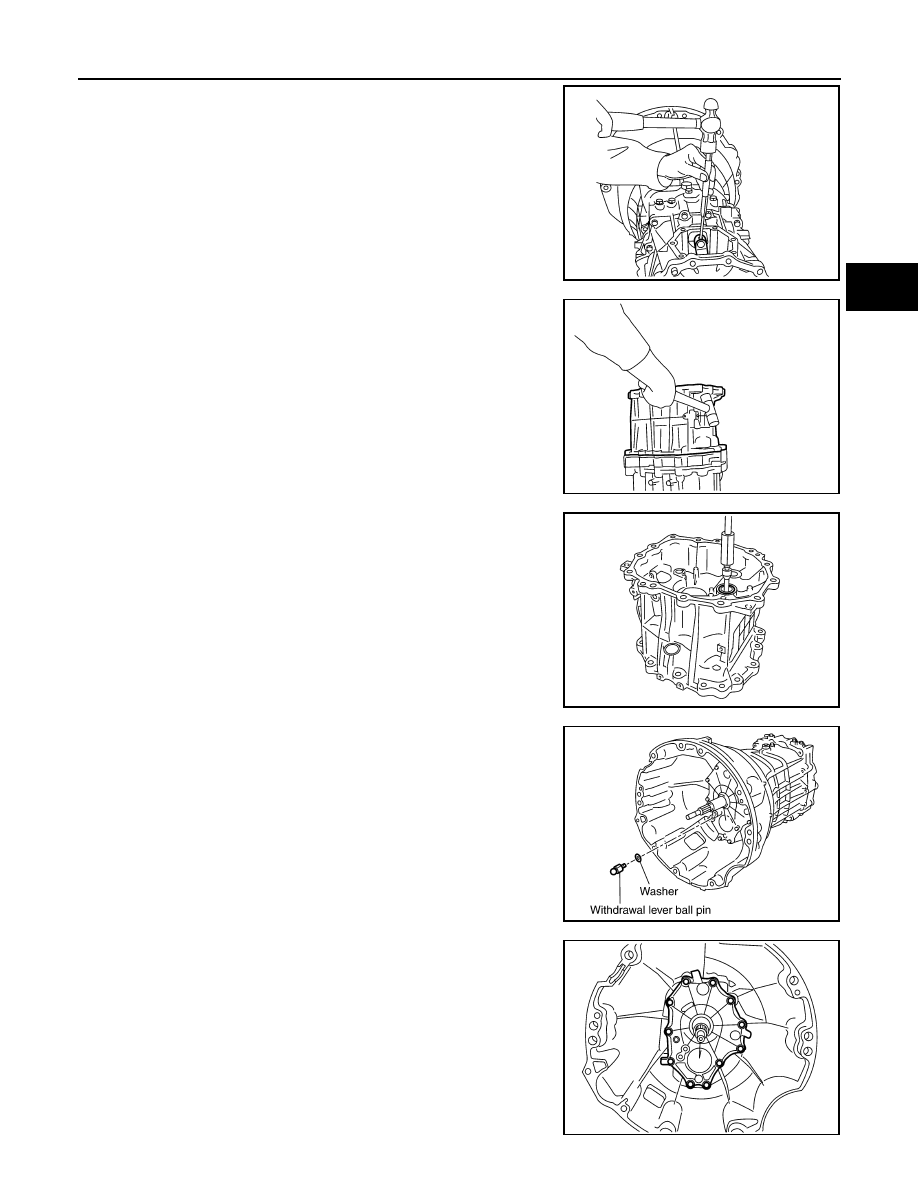

6. Remove retaining pin using suitable tool, and then remove strik-

ing arm from striking rod assembly.

7. Remove OD gear case bolts, and then remove OD gear case

from adapter plate using suitable tool.

8. Remove counter end bearing from OD gear case using suitable

tool.

CAUTION:

Be careful not to damage OD gear case.

9. Remove withdrawal lever ball pin and washer from front cover.

10. Remove front cover bolts, and then remove front cover and front

cover gasket from transmission case.

PCIB1219E

PCIB1220E

PCIB1223E

PCIB1224E

PCIB1225E

TM-32

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

CASE COMPONENTS

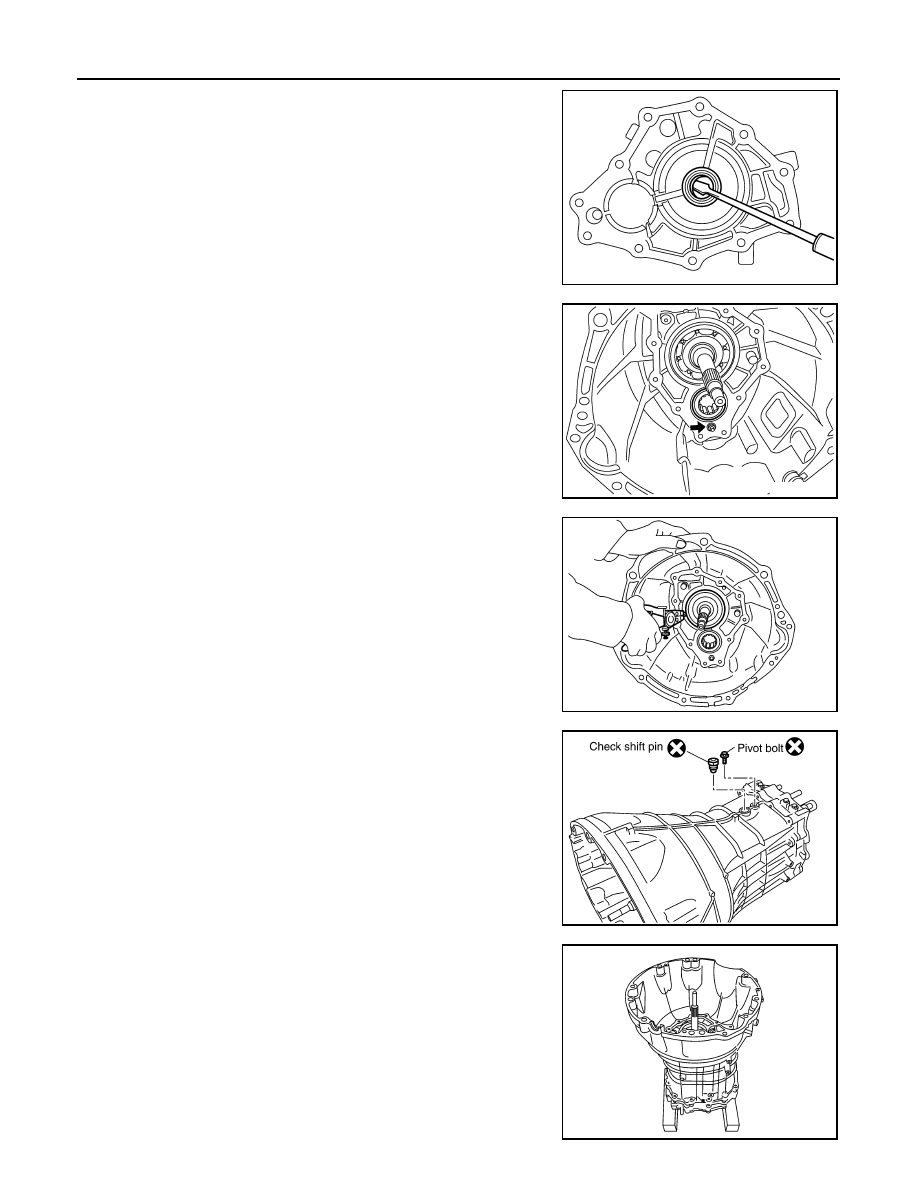

11. Remove front cover oil seal from front cover using suitable tool.

CAUTION:

• Be careful not to damage front cover.

• Do not reuse oil seal.

12. Remove baffle plate nut from transmission case.

13. Remove snap ring from main drive gear bearing using suitable

tool.

14. Remove pivot bolt and check shift pin from transmission case.

CAUTION:

Do not reuse pivot bolt and check shift pin.

15. Remove transmission case from adapter plate.

SCIA1399E

SCIA1443E

SCIA1532E

PCIB1226E

PCIB1227E
