STEERING GEAR AND LINKAGE

ST-27

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

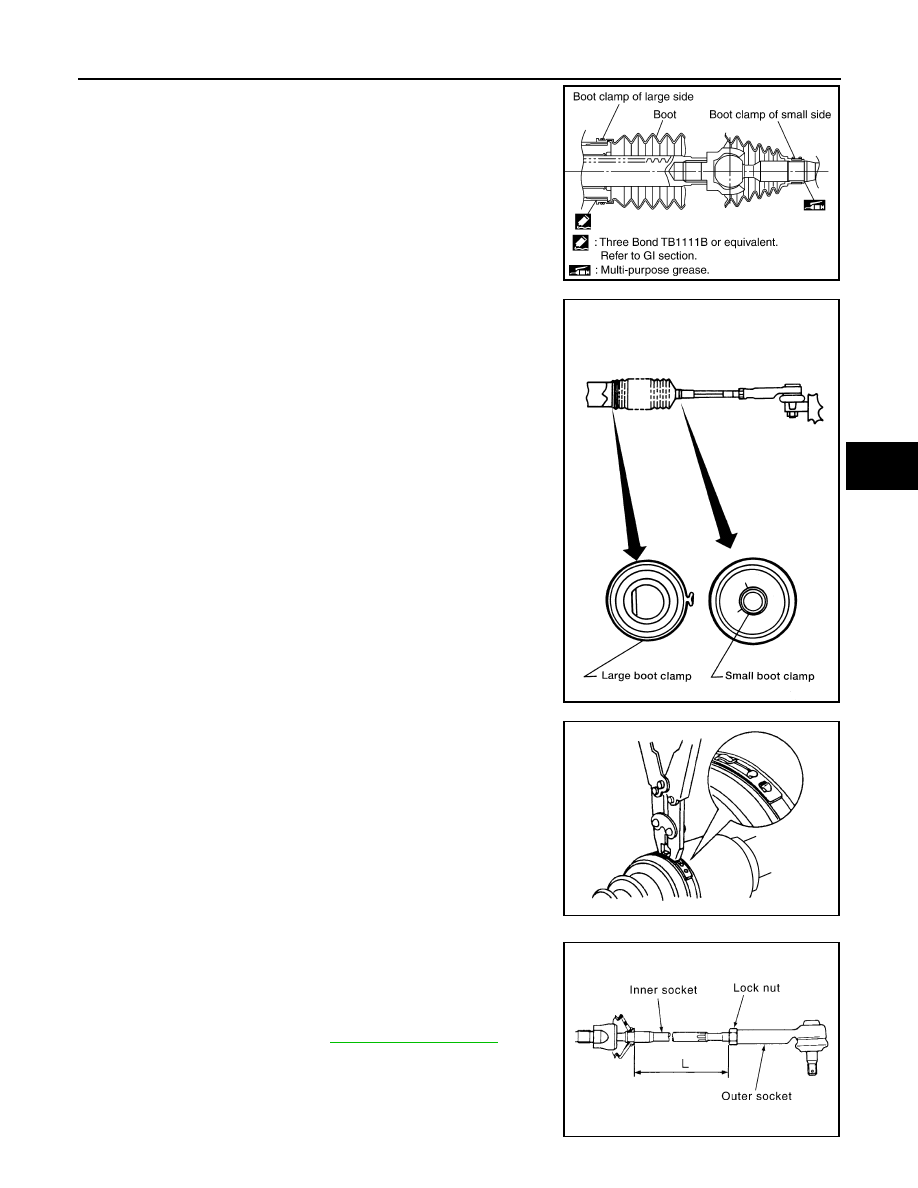

2. Install the large-diameter side of the boots to the gear housing

assembly.

3. Install the small-diameter side of the boots to the groove of the

inner sockets.

4. Install the boot clamps to the boots, as shown.

CAUTION:

Do not reuse the large boot clamps.

5. Crimp the large boot clamps, using Tool.

6. Install the cylinder tubes to the gear housing assembly.
7. Install the lock nuts and outer sockets to the inner sockets.

8. Thread the outer sockets onto the inner sockets to the specified

length (L), then tighten the lock nuts to the specified torque.

Refer to "Disassembly and Assembly". Reconfirm that the inner

socket length (L) is within specification.

CAUTION:

Adjust toe-in after this procedure. The length achieved after

toe-in adjustment may not be the above value.

SGIA0550E

AST139

Tool number : KV40107300 ( — )

RAC1133D

Inner socket length (L)

:

ST-29, "Steering Gear"



SGIA0167E

ST-28

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Steering Wheel

INFOID:0000000009483758

Steering Column

INFOID:0000000009483759

Tie-rod

INFOID:0000000009483760

End play of the axle direction for steering wheel

0 mm (0 in)

Steering wheel turning force

39 N (4 kg-f, 9 lb-f) or less

Steering wheel play on the outer circumference

− 35 mm (0 − 1.38 in)

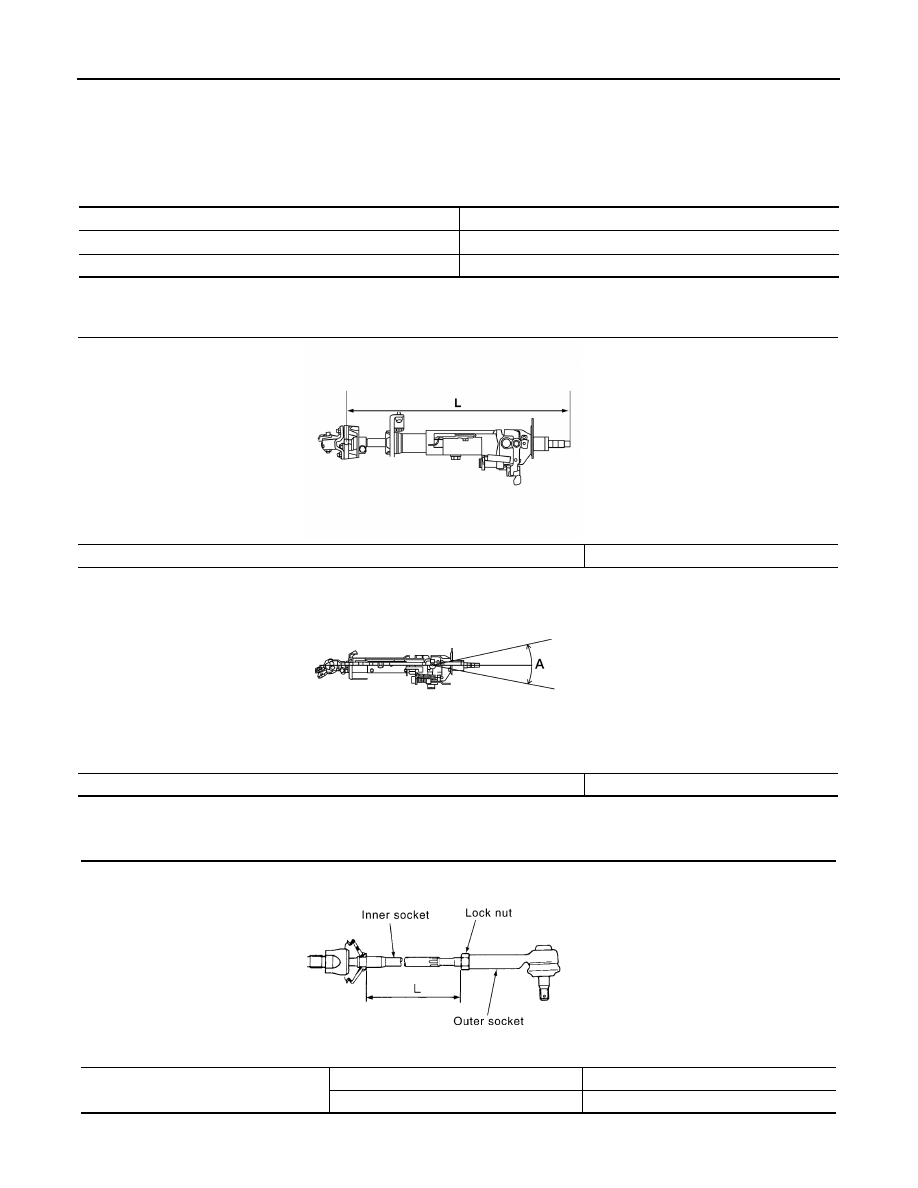

Steering column length

553.0 mm (21.77 in)

Tilt range (A)

18

° - 21° of tilt range

AWGIA0147ZZ

WGIA0083E

Tie-rod length (L)

Maximum

84.0 mm (3.31 in)

Nominal (before toe-in adjustment)

79.0 mm (3.11 in)

SGIA0167E

SERVICE DATA AND SPECIFICATIONS (SDS)

ST-29

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

Steering Gear

INFOID:0000000009483761

Oil Pump

INFOID:0000000009483762

Steering Fluid

INFOID:0000000009483763

Steering gear type

PR26AM

Outer socket

Swinging torque

0.3

− 2.9 N·m (0.03 − 0.29 kg-m, 3 − 25 in-lb)

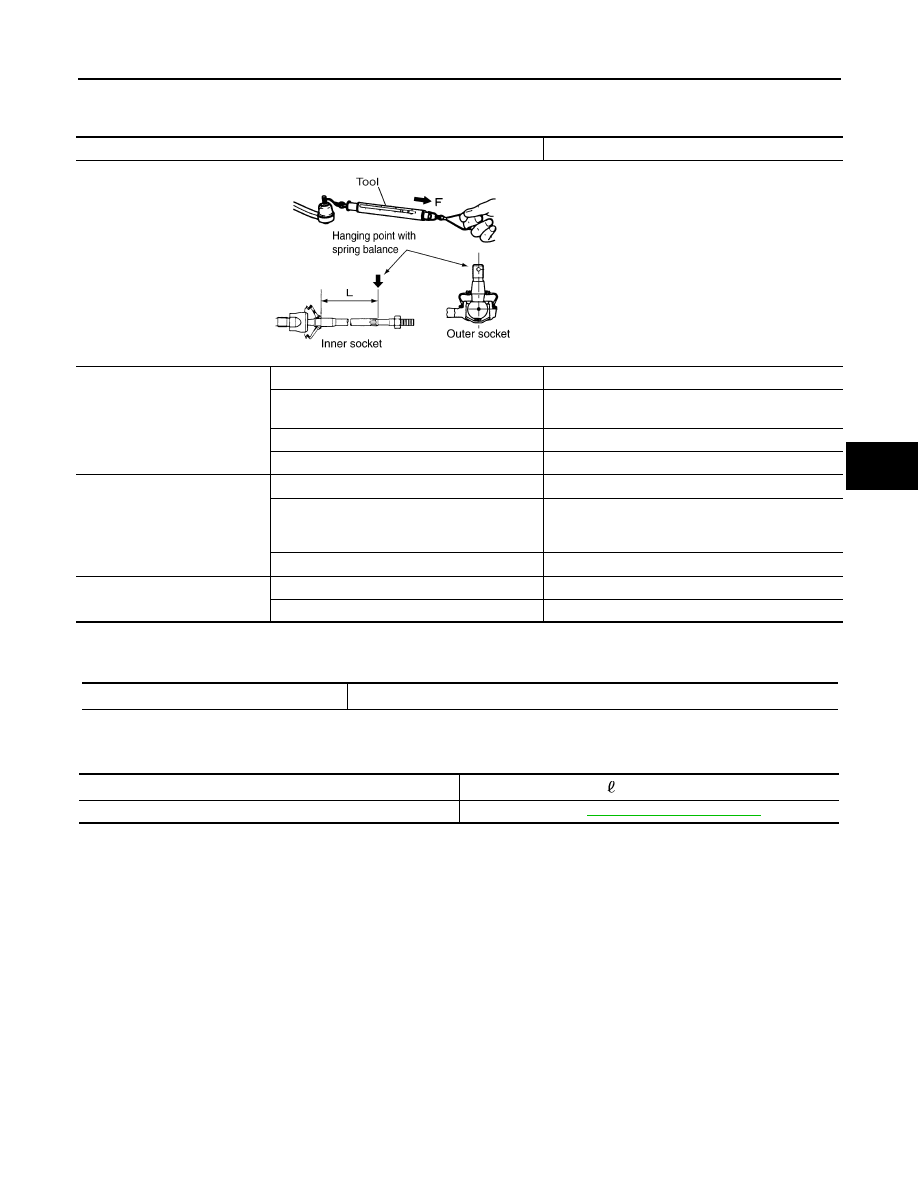

Measurement on spring balance
• Measuring point: cotter pin hole of stud

4.84

− 46.7 N (0.50 − 4.7 kg-f, 4 − 34 lb-f)

Rotating torque

0.3

− 2.9 N·m (0.03 − 0.29 kg-m, 3 − 25 in-lb)

Axial end play

0.5 mm (0.020 in) or less

Inner socket

Swinging torque

1.0

− 7.8 N·m (0.11 − 0.79 kg-m, 9 − 69 in-lb)

Measurement on spring balance
• Measuring point: L mark see above

L=84.0 mm (3.31 in)

12.1

− 93.7 N (1.3 − 9.5 kg-f, 9 − 69 lb-f)

Axial end play

0.2 mm (0.08 in) or less

Rack sliding force

Standard

280

± 30 N (28.6 ± 3.1 kg-f, 62.9 ± 6.7 lb-f)

Minimum

210 N (21.4 kg-f, 47.2 lb-f)

AWGIA0153ZZ

Oil pump relief hydraulic pressure

8.3 +0.5, -0.3 mPa (84.66 +5.10, -3.06 kg/cm

2

, 1203.5 +72.5, -43.5 psi)

Fluid capacity

Approx. 1.0   (2 1/8 US pt, 1 3/4 Imp pt)

Fluid type

Refer to

MA-12, "Fluids and Lubricants"

.
