PREPARATION

SE-3

< PREPARATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000010212531

The actual shape of the tools may differ from those illustrated here.

Commercial Service Tools

INFOID:0000000010212532

Tool number
(TechMate No.)
Tool name

Description

—

(J-39570)
Chassis Ear

Locating the noise

—

(J-50397)
NISSAN Squeak and Rattle
Kit

Repairing the cause of noise

—

(J-46534)
Trim Tool Set

Removing trim components

SIIA0993E

ALJIA1232ZZ

AWJIA0483ZZ

(TechMate No.)
Tool name

Description

(J-39565)
Engine Ear

Locating the noise

SIIA0995E

SE-4

< PREPARATION >

CLIP LIST

CLIP LIST

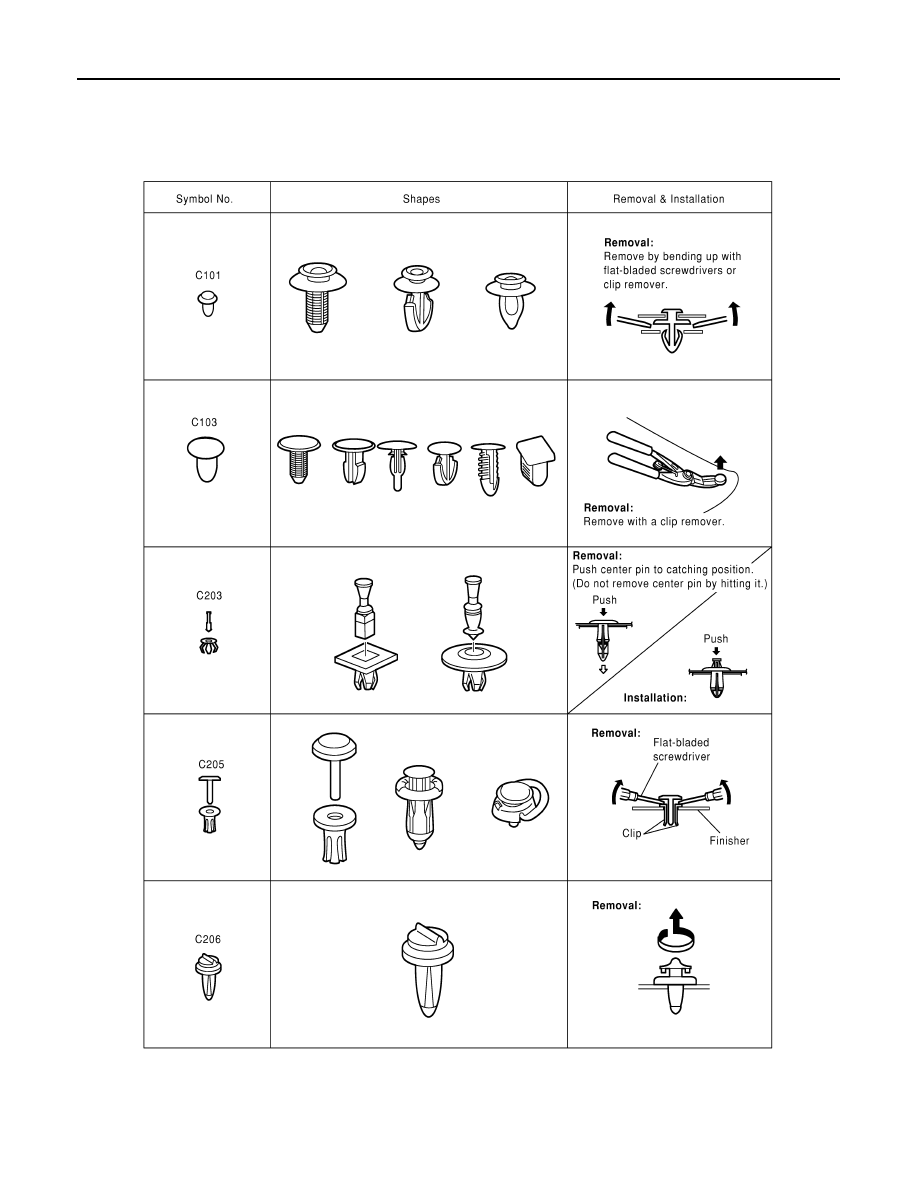

Descriptions for Clips

INFOID:0000000009483051

Replace any clips which are damaged during removal or installation.

SIIA0315E

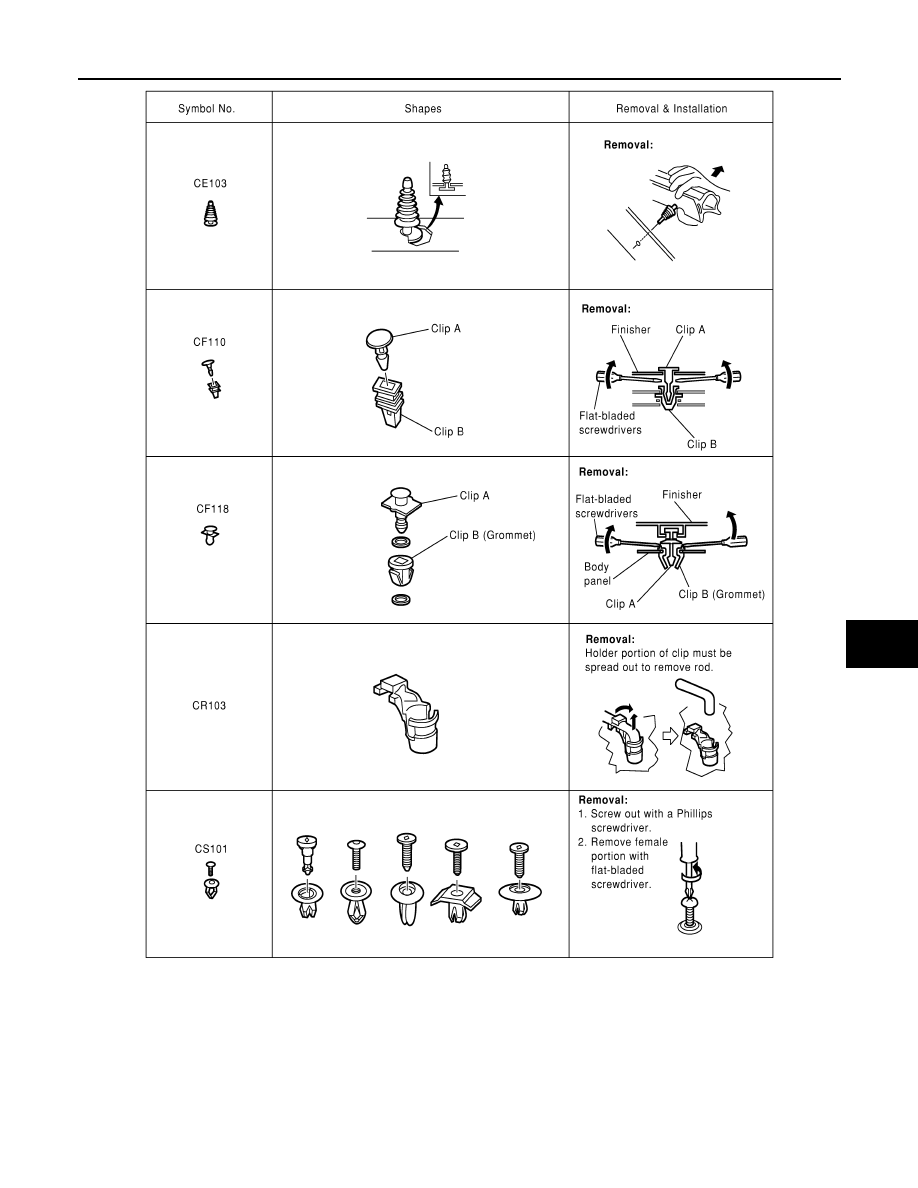

CLIP LIST

SE-5

< PREPARATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

SIIA0316E

SE-6

< PREPARATION >

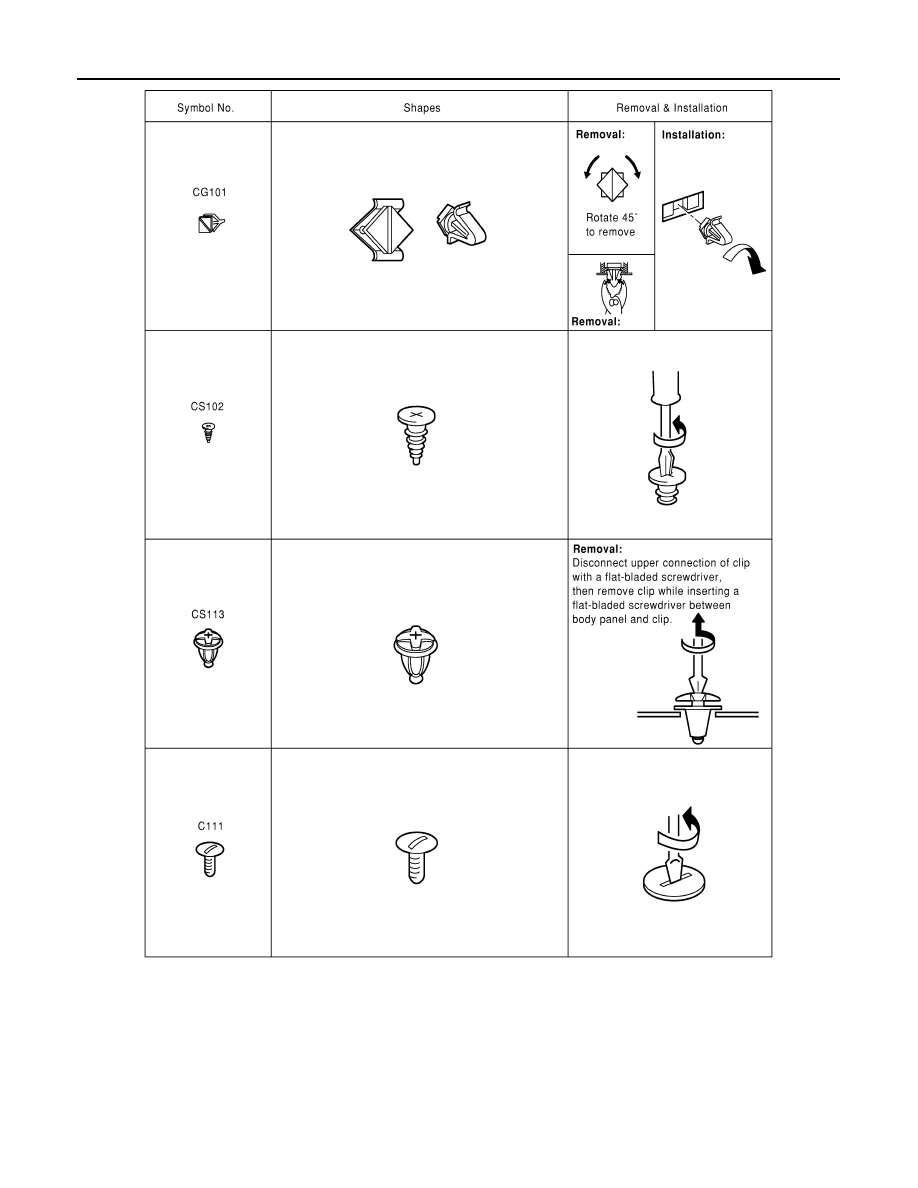

CLIP LIST

SIIA0317E
