SEAT BELTS

SB-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

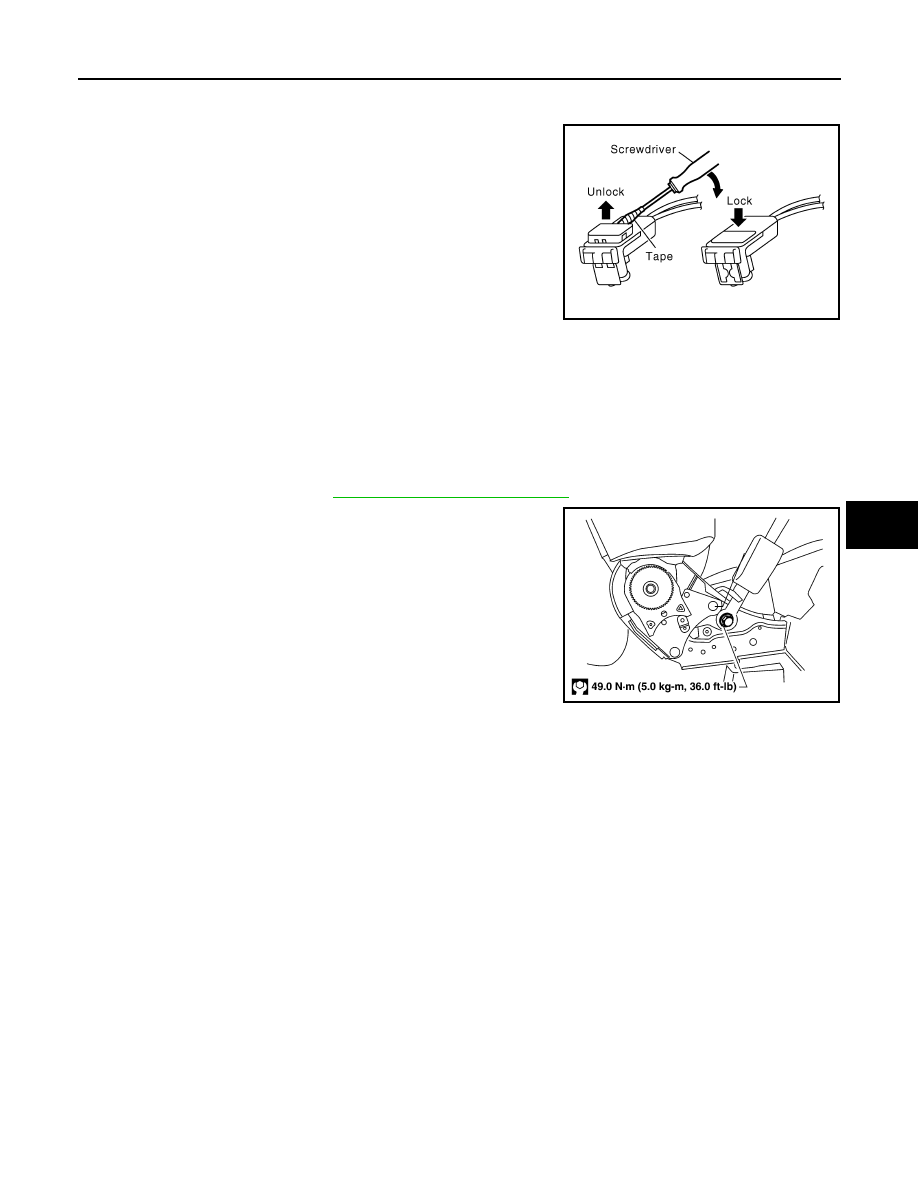

5. Disconnect the harness connector from the seat belt pre-tensioner.

CAUTION:

• For installing/removing seat belt pre-tensioner connector,

insert a thin screwdriver wrapped in tape into the notch, lift

the lock and remove the connector.

• Install the connector with the lock raised, and push the lock

into the connector.

INSTALLATION OF SEAT BELT RETRACTOR

 Installation is in the reverse order of removal.

CAUTION:

Hold seat belt tension sensor harness away from being caught or twisted during installation.

• Install the seat belt retractor upper bolt first.

• Ensure that seat belt height adjuster is locked in the lowest position during installation.

REMOVAL OF SEAT BELT BUCKLE

1. Remove the front seat. Refer to

SE-21, "Removal and Installation"

.

2. Remove screw and seat cushion inner finisher.
3. Remove the anchor bolt and buckle.
4. Disconnect the buckle switch connector from the seat connector.

INSTALLATION OF SEAT BELT BUCKLE

Installation is in the reverse order of removal.

PHIA0341E

WHIA0128E

SB-8

< REMOVAL AND INSTALLATION >

SEAT BELTS

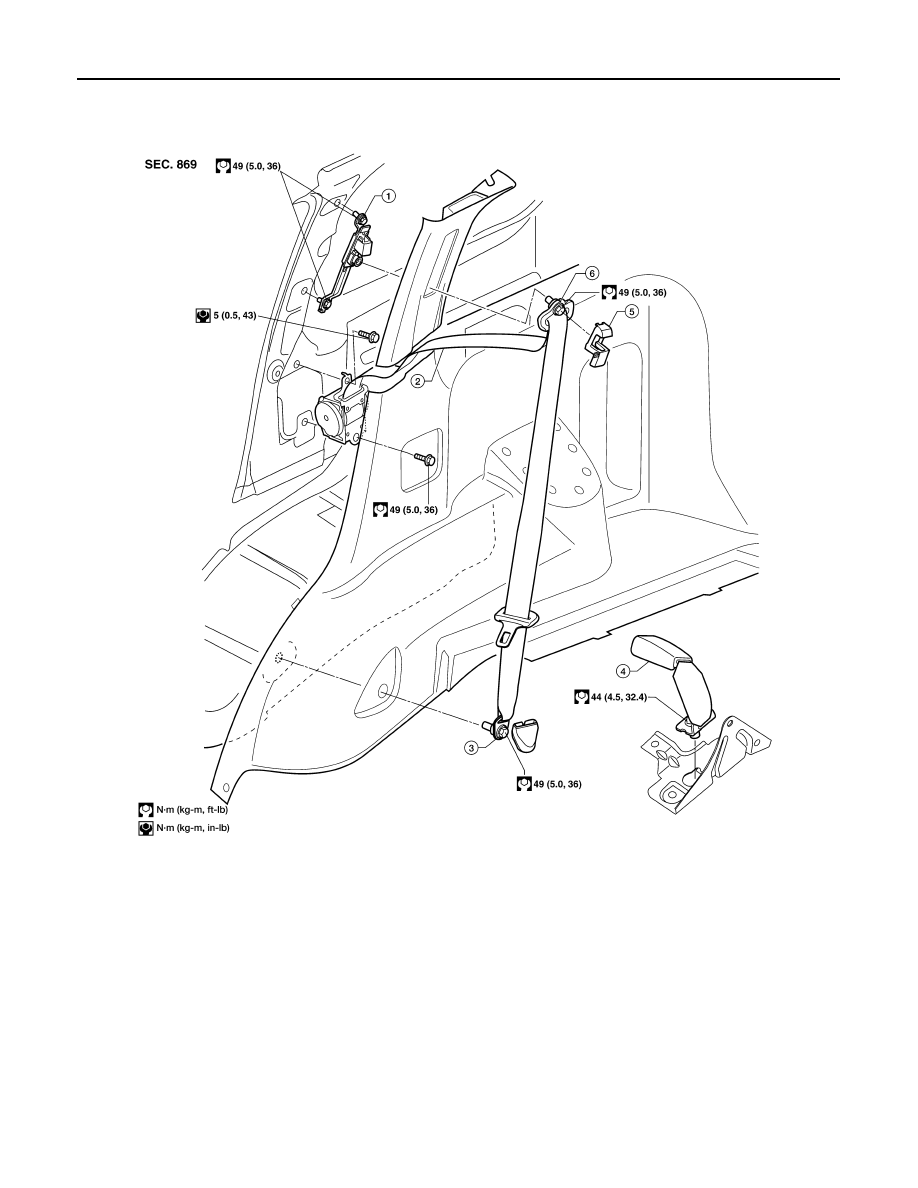

Removal and Installation of Rear Seat Belt

INFOID:0000000009485358

Outboard Seat

LHIA0101E

1.

Seat belt height adjuster

2.

Seat belt retractor and belt assembly

3.

Seat belt lower anchor

4.

Seat belt buckle

5.

D-ring anchor bolt cover

6.

D-ring anchor

SEAT BELTS

SB-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

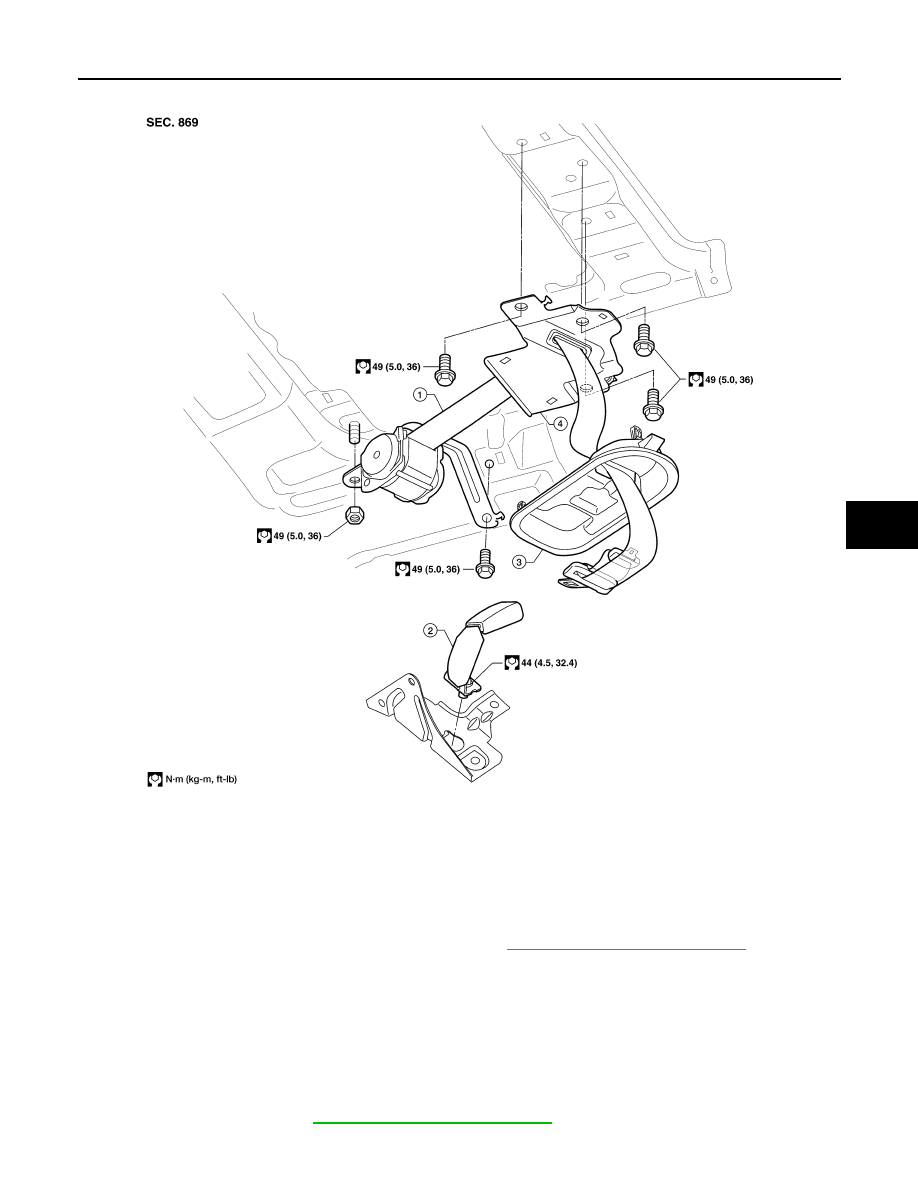

Center Seat

REMOVAL OF SEAT BELT RETRACTOR - OUTBOARD

1. Remove seat belt lower anchor cover and bolt.
2. Remove the D-ring anchor bolt cover and D-ring anchor bolt.
3. Remove the upper and lower luggage area trim. Refer to

INT-18, "Removal and Installation"

.

4. Remove anchor cover and seat belt lower anchor bolt
5. Remove seat belt retractor anchor bolt and the seat belt assembly.

INSTALLATION OF SEAT BELT RETRACTOR - OUTBOARD

 Installation is in the reverse order of removal.

• Ensure that seat belt height adjuster is locked in the lowest position during installation.

REMOVAL OF SEAT BELT RETRACTOR - CENTER

1. Remove headlining. Refer to

INT-21, "Removal and Installation"

.

LHIA0102E

1.

Seat belt retractor and belt assembly 2.

Seat belt buckle

3.

Finisher

4.

Guide plate

SB-10

< REMOVAL AND INSTALLATION >

SEAT BELTS

2. Remove seat belt guide plate bolts.
3. Remove seat belt retractor and belt assembly bolt and nut, then remove from vehicle.

INSTALLATION OF SEAT BELT RETRACTOR - CENTER

Installation is in the reverse order of removal.

REMOVAL OF SEAT BELT BUCKLE

1. Remove the rear seat cushion. Refer to

SE-26, "Removal and Installation"

.

2. Remove the anchor bolt and buckle.

INSTALLATION OF SEAT BELT BUCKLE

Installation is in the reverse order of removal.
