PREPARATION

RAX-5

< PREPARATION >

[C200]

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

Tool name

Description

1 Flare nut crowfoot
2 Torque wrench

Removing and installing each brake piping
a: 10 mm (0.39 in)

Bearing cage oil seal drift

Installing oil seal
a: 74 mm (2.91 in) dia.
b: 68 mm (2.68 in) dia.

Rear axle oil seal drift

Installing oil seal
a: 54.5 mm (2.15 in.)
b: 34.5 mm (1.36 in.)

Power tool

Loosening nuts, screws and bolts

S-NT360

NT115

NT115

PIIB1407E

RAX-6

< SYMPTOM DIAGNOSIS >

[C200]

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000009484501

Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

×: Applicable

Reference page

RAX-8

RAX-8

RAX-8

DL

N-1

38

, "NV

H

 T

rou

ble

shoo

ting Cha

rt"

DLN

-22

4,

 "NVH T

rou

bl

es

ho

ot

in

g Cha

rt

"



RSU-4,

"NVH T

ro

ubl

es

ho

ot

ing

 Cha

rt"

WT

-4

4,

 "NVH T

ro

ub

les

ho

ot

ing

 Ch

art"

WT

-4

4,

 "NVH T

ro

ub

les

ho

ot

ing

 Ch

art"

BR-5,

"NVH T

ro

ub

les

ho

ot

ing

 Ch

art"

Possible cause and SUSPECTED PARTS

Imp

rop

er i

ns

ta

lla

tio

n,

 lo

os

en

es

s

Part

s interf

erence

Whe

e

l be

ari

n

g da

ma

ge

PROPELLER SHAFT

REAR FINAL

DRIVE

SUSPE

N

S

ION

TI

RE

S

ROAD WHEE

L

BRAKE

S

Symptom

Noise

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

Vibration

×

×

×

×

×

Shimmy

×

×

×

×

×

×

Shudder

×

×

×

×

×

Poor quality ride or handling

×

×

×

×

×

×

ON-VEHICLE SERVICE

RAX-7

< REMOVAL AND INSTALLATION >

[C200]

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

REMOVAL AND INSTALLATION

ON-VEHICLE SERVICE

Rear Axle Parts

INFOID:0000000009484502

• Check the axle parts for excessive play, wear and damage. Replace as necessary.

• Shake each rear wheel to check for excessive play. Repair as nec-

essary.

• Retighten all nuts and bolts to the specified torque. Refer to

RAX-

8

.

Rear Axle Bearing

INFOID:0000000009484503

• Check that the axle shaft bearing operates smoothly. Replace as necessary.

• Check axial end play. Refer to

RAX-15, "Axle Specification"

.

SMA525A

RAX-8

< UNIT REMOVAL AND INSTALLATION >

[C200]

AXLE SHAFT

UNIT REMOVAL AND INSTALLATION

AXLE SHAFT

Removal and Installation

INFOID:0000000009484504

CAUTION:

Before removing the rear axle, disconnect the wheel sensor from the assembly. Then move it away

from the axle. Failure to do so may result in damage to the sensor wires and the sensor becoming

inoperative.

• Wheel bearing does not require maintenance.

• If growling noise is emitted from wheel bearing during operation, replace wheel bearing assembly.

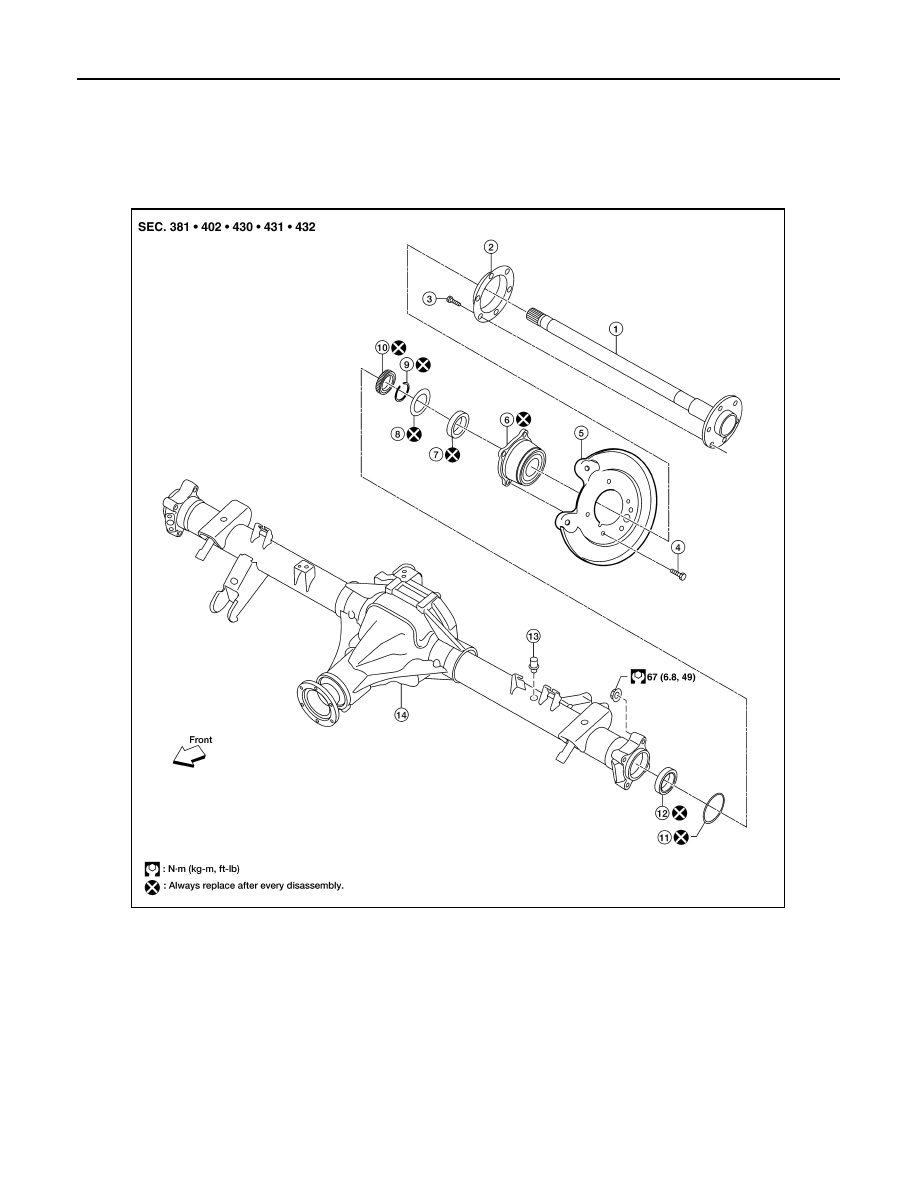

1.

Axle shaft

2.

Grease catcher

3.

Wheel stud

4.

Axle bearing stud

5.

Back plate and torque member

6.

Axle bearing

7.

Bearing ring retainer

8.

Shim washer

9.

Snap ring

10. Wheel sensor rotor

11. O-ring

12. Axle oil seal

13. Breather

14. Rear final drive

WDIA0280E
