PWO

POWER SOCKET

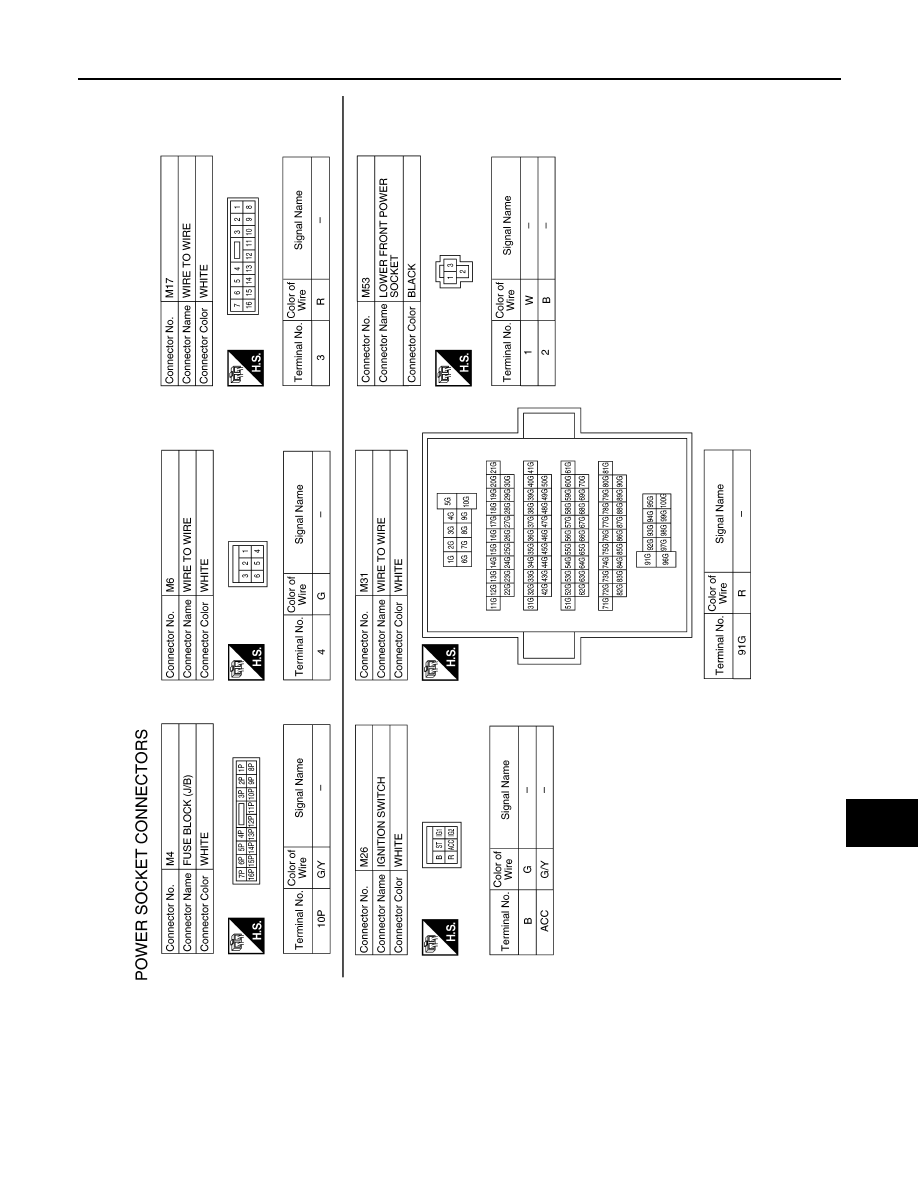

PWO-5

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMIA5586GB

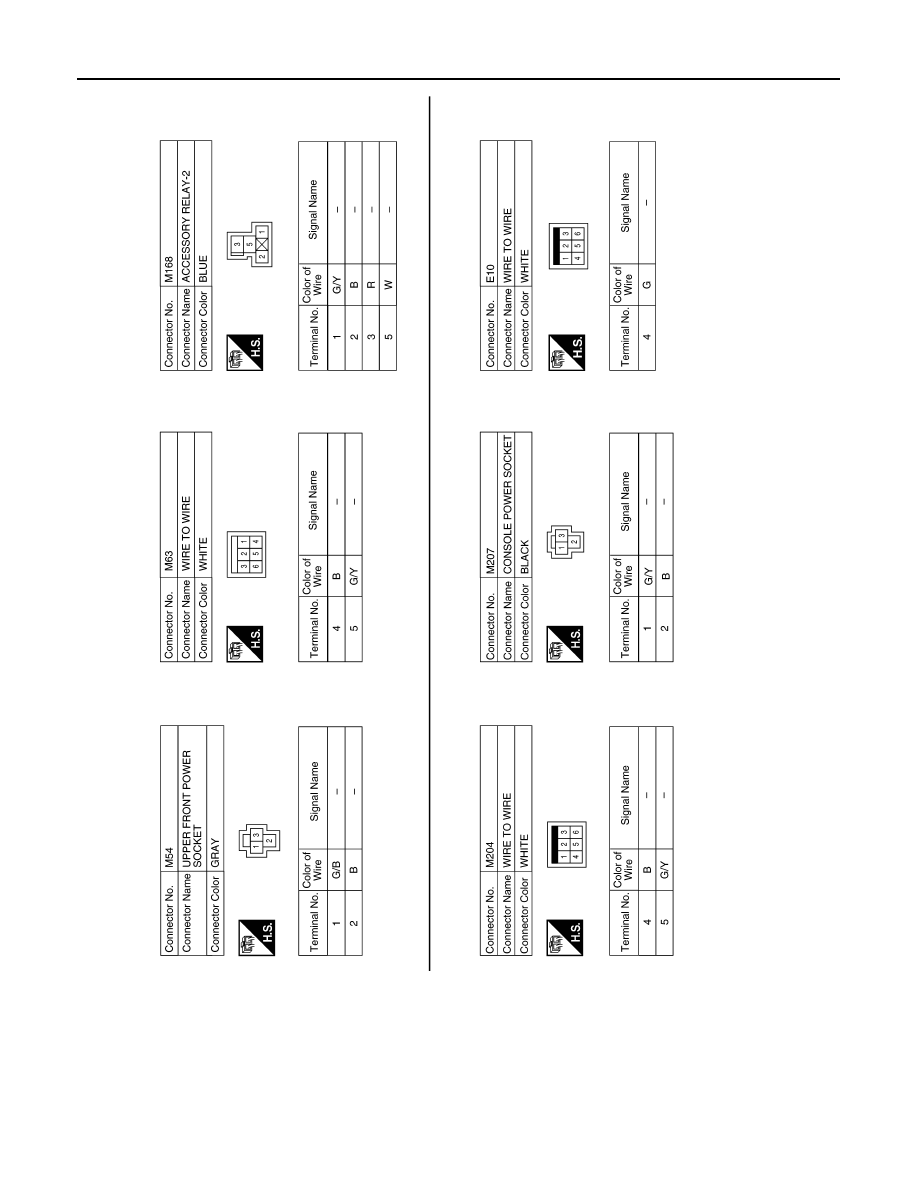

PWO-6

< WIRING DIAGRAM >

POWER SOCKET

ABMIA5587GB

PWO

POWER SOCKET

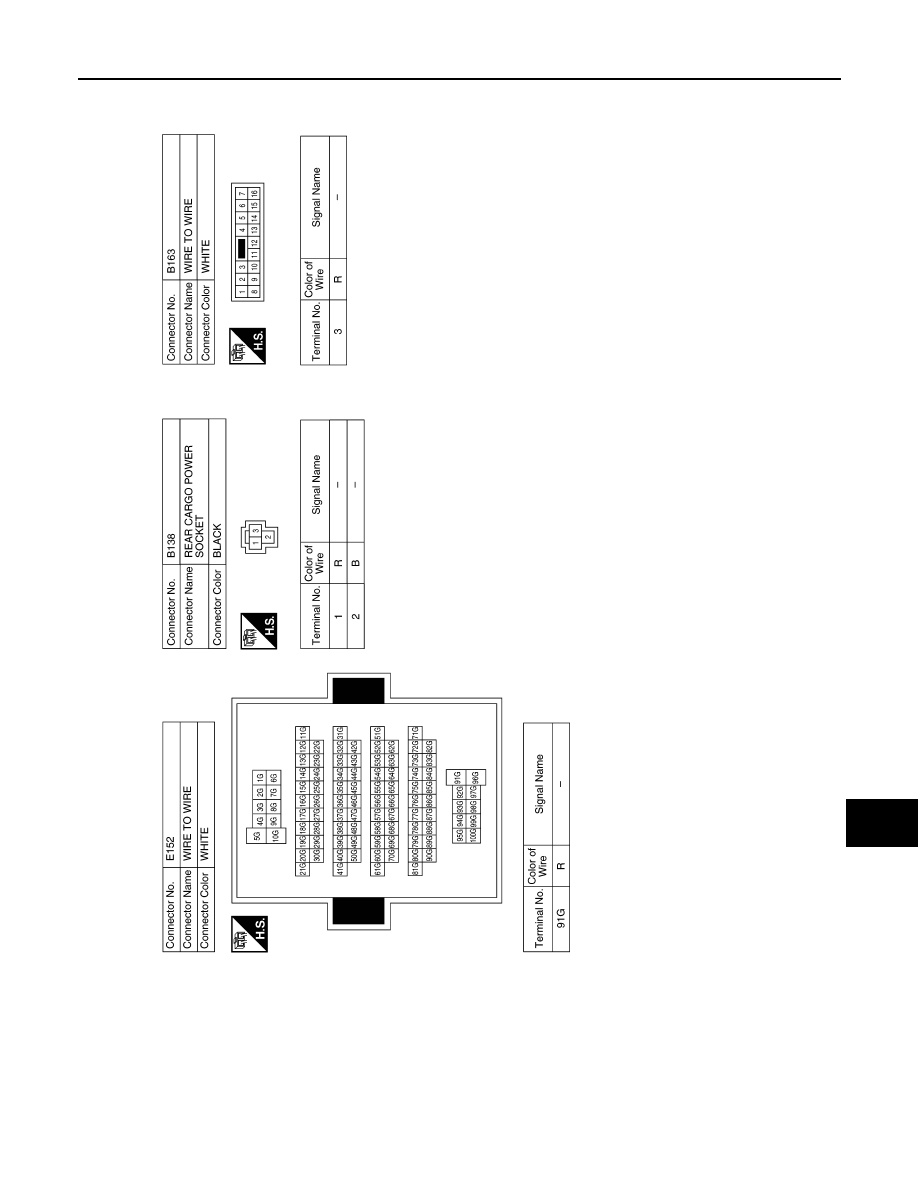

PWO-7

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMIA5588GB

PWO-8

< REMOVAL AND INSTALLATION >

POWER SOCKET

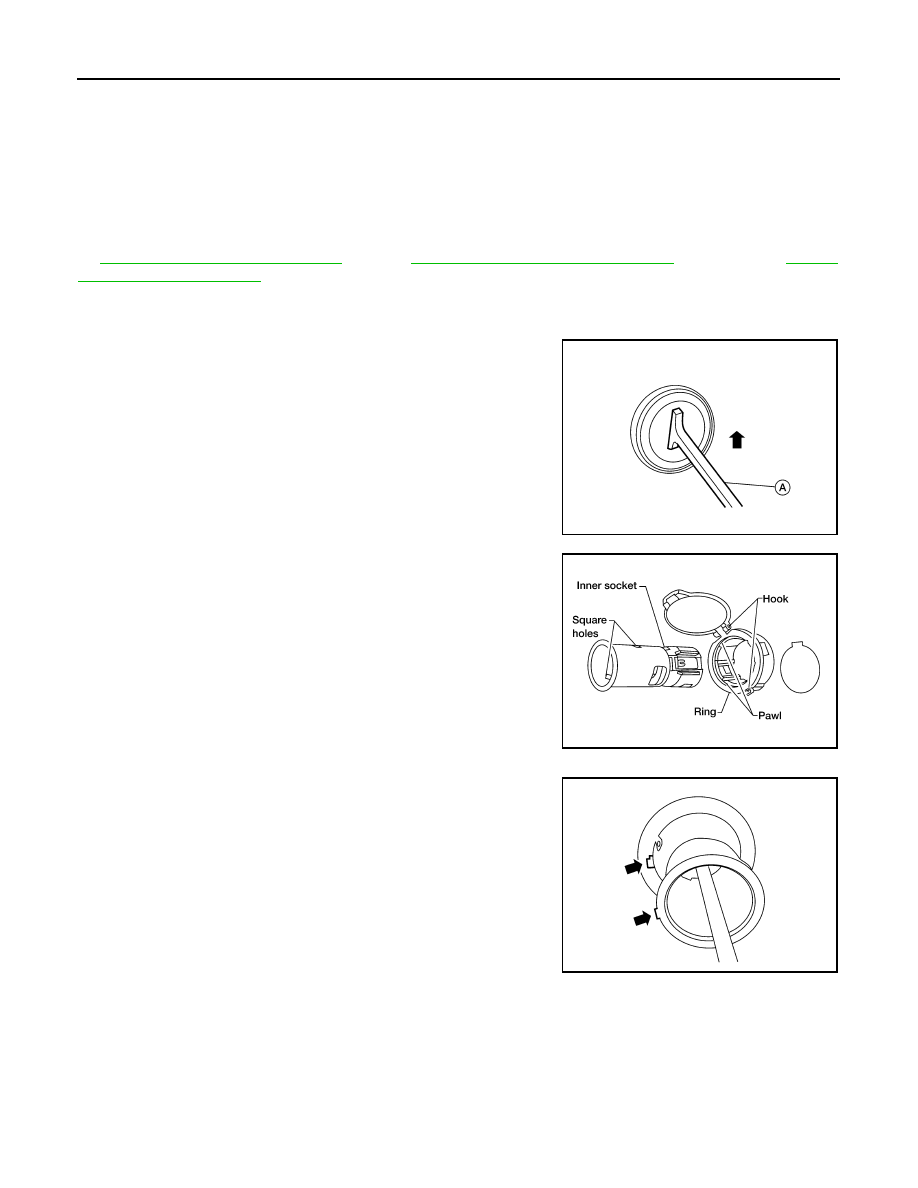

REMOVAL AND INSTALLATION

POWER SOCKET

Front, Console, or Rear Cargo Power Socket

INFOID:0000000009483738

POWER SOCKET

NOTE:

If the tool does not fit because of the location of the power socket, further disassembly may be required. Refer

to

IP-15, "Removal and Installation"

 (Front),

IP-24, "Disassembly and Assembly"

 (Console), or

INT-24,

"Removal and Installation"

 (Rear Cargo).

Removal

1. Remove the fuse for the power socket.
2. Insert one end of the Tool (A) into one of the square holes inside

the power socket.

3. Lift up the handle of the Tool until the other end of the Tool is

inside the socket and snaps into the other square hole in the

power socket.

4. Pull the power socket straight out with the Tool.

5. Disconnect the harness connector from the power socket.
6. Remove ring from power socket finisher while pressing pawls.

Installation

Installation is in the reverse order of removal.

NOTE:

Make sure to align the tab with the square notched area during

installation.

Tool number:

—   (J-42059)

AWMIA1182GB

WKIA1035E

AWMIA1183GB
