PREPARATION

PWC-59

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000009483685

The actual shape of the tools may differ from those illustrated here.

Tool number
(TechMate No.)
Tool name

Description

—

(J-46534)
Trim Tool Set

Removing trim components

AWJIA0483ZZ

PWC-60

< REMOVAL AND INSTALLATION >

MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

REMOVAL AND INSTALLATION

MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

Removal and Installation

INFOID:0000000009483686

REMOVAL

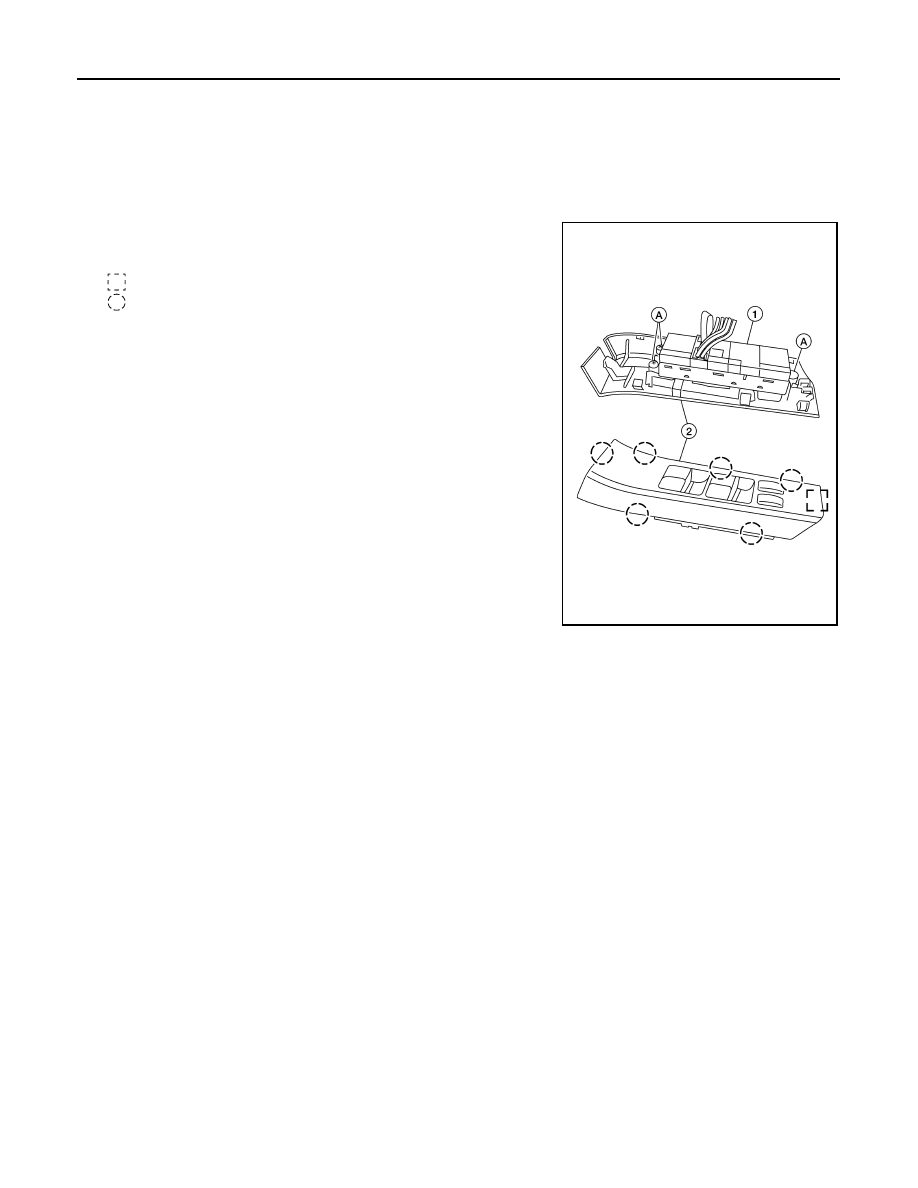

1. Using a suitable tool, release the metal clip and pawls, then lift

the main power window and door lock/unlock switch (1) from the

front door finisher (LH).

: Metal clip
: Pawl

2. Disconnect the harness connectors, then remove the assembly

from the door finisher.

3. Remove the three screws (A) from the main power window and

door lock/unlock switch (1), then separate it from the finisher (2).

INSTALLATION

Installation is in the reverse order of removal.

AWKIA1541ZZ

POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

PWC-61

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

Removal and Installation

INFOID:0000000009483687

REMOVAL

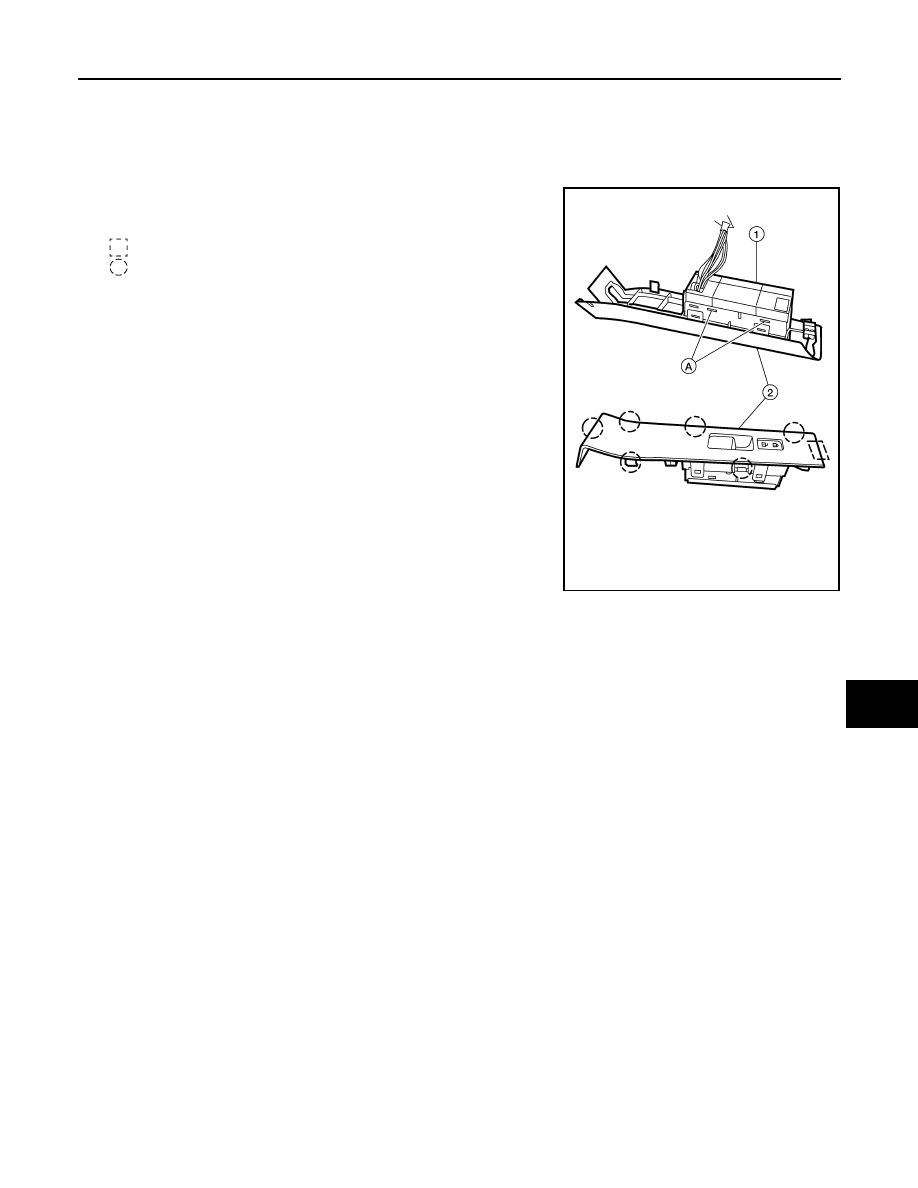

1. Using a suitable tool, release the metal clip and pawls, then lift

the front power window and door lock/unlock switch (1) from the

front door finisher (RH).

: Metal clip
: Pawl

2. Disconnect the harness connectors, then remove the assembly

from the door finisher.

3. Release the four tabs (A), two on each side, then separate the

front power window and door lock/unlock switch (1) from the fin-

isher (2).

INSTALLATION

Installation is in the reverse order of removal.

AWKIA1542ZZ

PWC-62

< REMOVAL AND INSTALLATION >

REAR POWER WINDOW SWITCH

REAR POWER WINDOW SWITCH

Removal and Installation - Rear Door Switch

INFOID:0000000009483688

REMOVAL

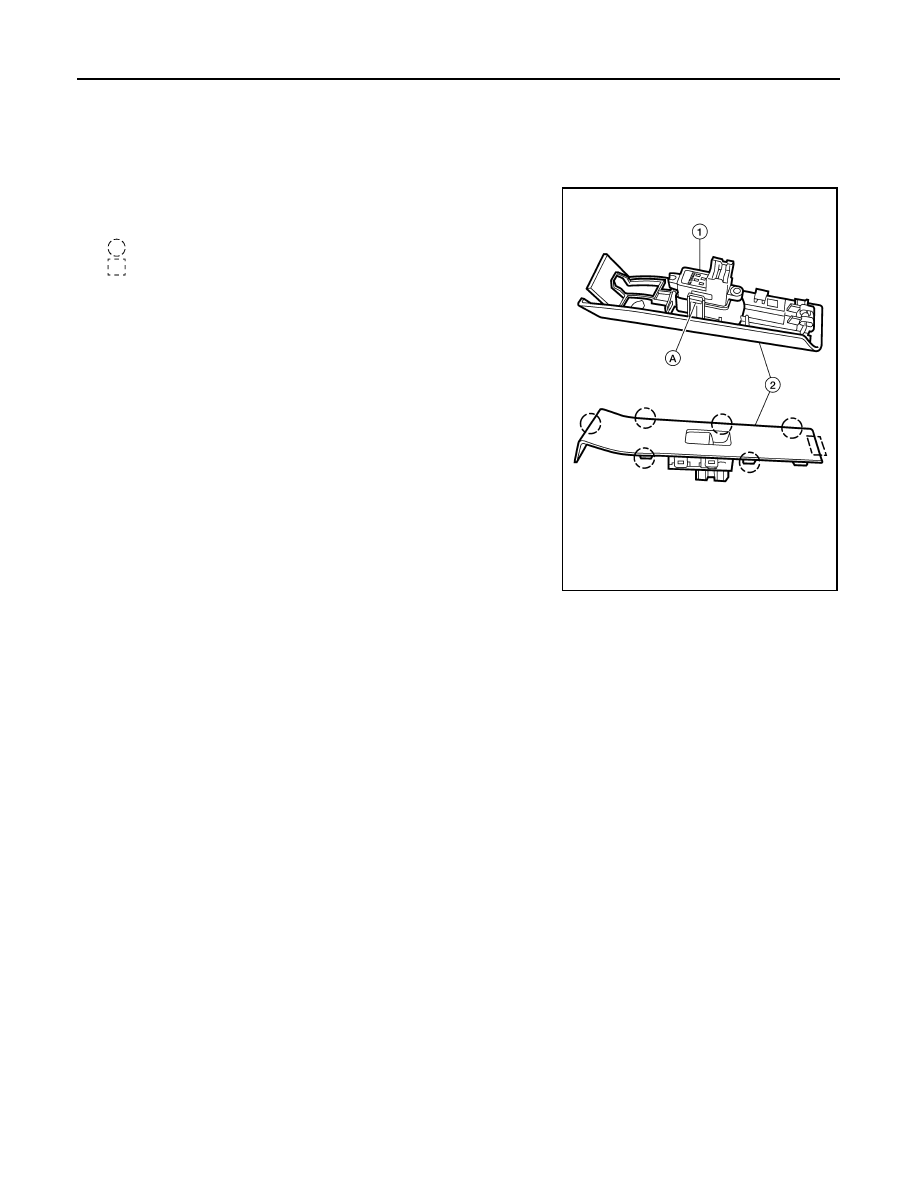

1. Using a suitable tool, release the metal clip and pawls, then lift

the rear power window switch and finisher (2) upward as an

assembly from the rear door finisher.

: Pawl
: Metal clip

2. Disconnect the harness connectors, then remove the assembly

from the door finisher.

3. Release the two tabs (A), one on either side, then separate the

rear power window switch (1) from the switch finisher (2).

INSTALLATION

Installation is in the reverse order of removal.

AWKIA1543ZZ
