VOLTAGE GAUGE : Component Parts Location

INFOID:0000000009483179

VOLTAGE GAUGE : Component Description

INFOID:0000000009483180

ODO/TRIP METER

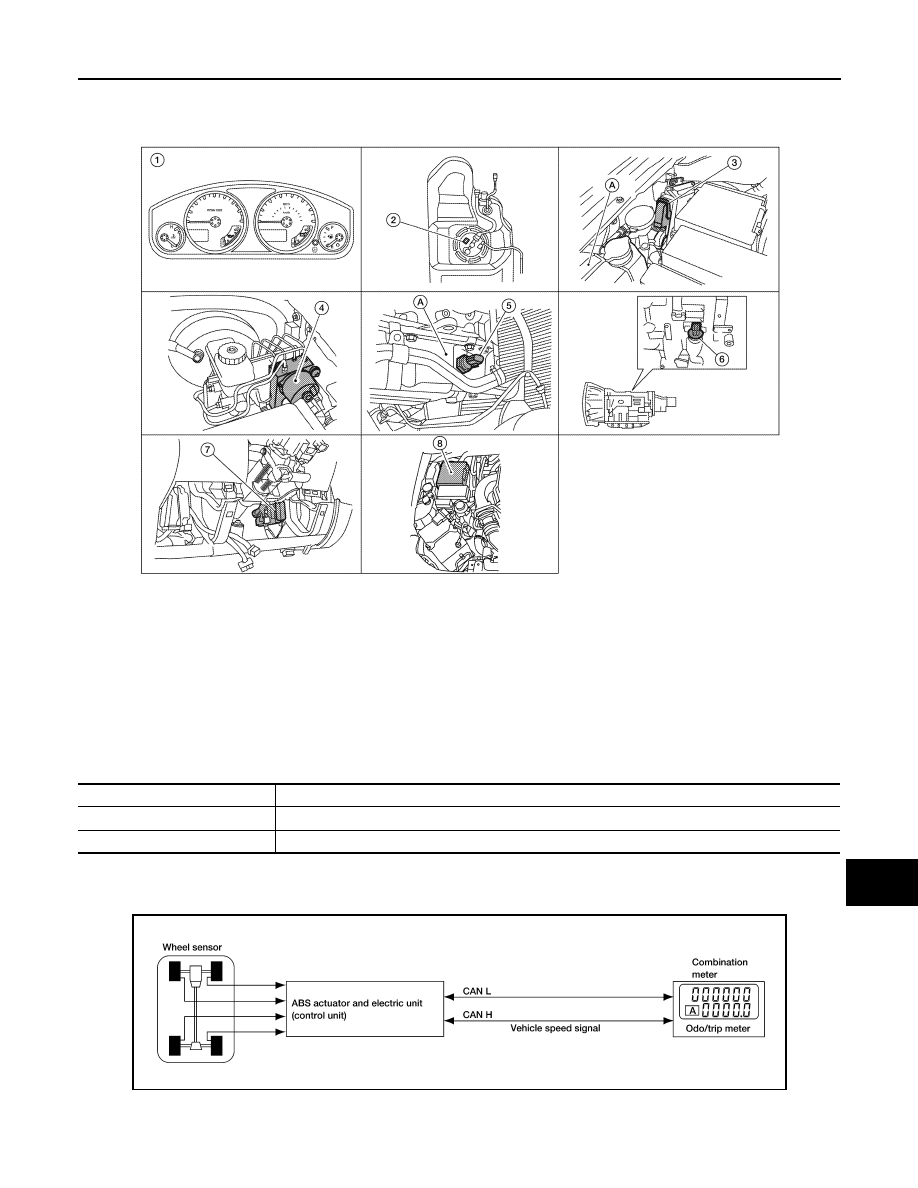

ODO/TRIP METER : System Diagram

INFOID:0000000009483181

AWNIA0775ZZ

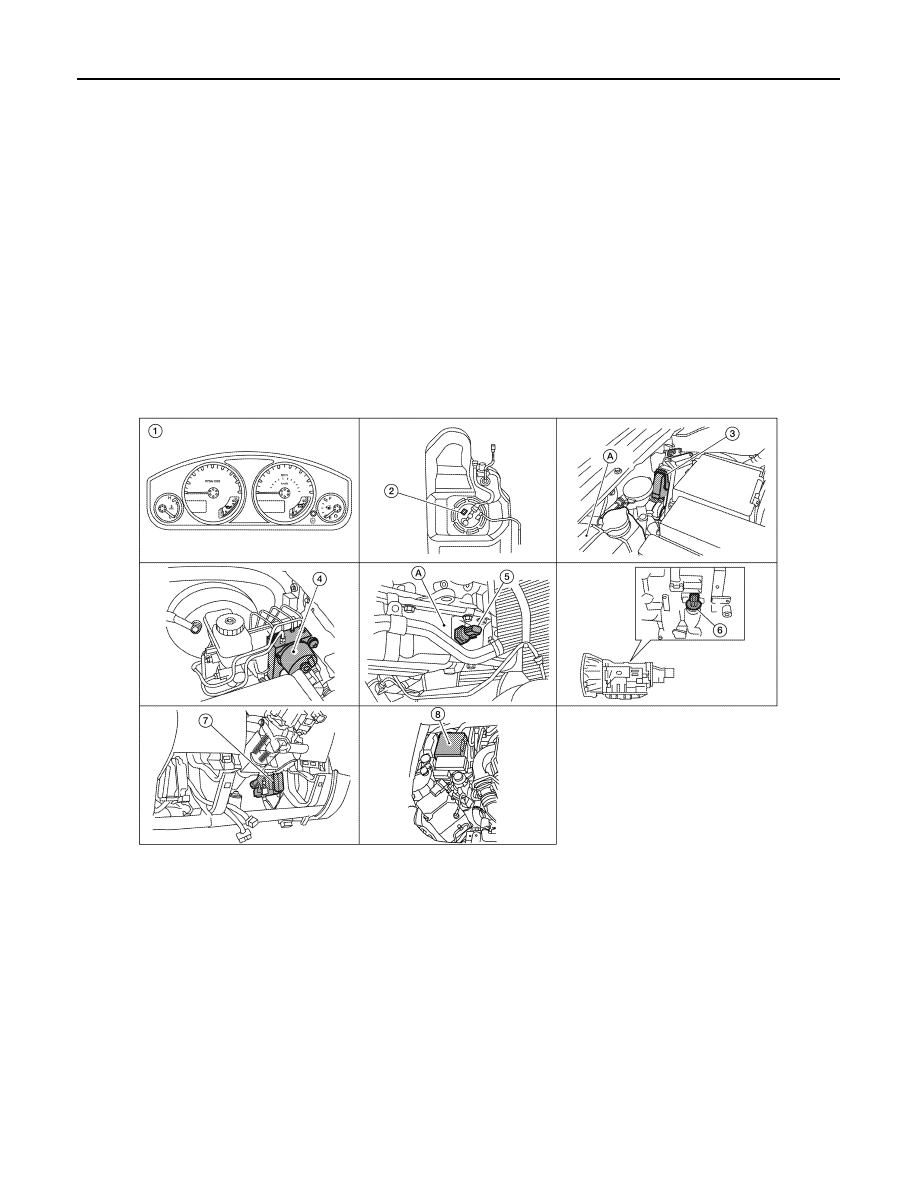

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM E16 (view with ECM cover re-
moved)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit) E125

5.

Oil pressure switch E208
A. Oil pan (upper)

6.

A/T assembly F9

7.

BCM M18, M19 (view with lower instru-
ment panel LH removed)

8.

IPDM E/R E122, E124

Unit

Description

Combination meter

Indicates the battery voltage according to the voltage signal received from the fuse block (J/B).

Fuse block (J/B)

Transmits the battery voltage signal to the combination meter.

AWNIA0005GB

MWI-16

< SYSTEM DESCRIPTION >

METER SYSTEM

ODO/TRIP METER : System Description

INFOID:0000000009483182

The vehicle speed signal and the memory signals from the meter memory circuit are processed by the combi-

nation meter and the mileage is displayed.

LOOSE FUEL CAP WARNING

The LOOSE FUEL CAP indicator will display in the odometer when the fuel-filler cap is not tightened correctly.

The indicator will turn off as soon as the ECM detects the fuel-filler cap is properly tightened.  The ECM pro-

vides a loose fuel cap signal to the combination meter via CAN communication lines.

CHECK TIRE PRESSURE WARNING

The CHECK TIRE PRESSURE indicator will display in the odometer when BCM has detected a low tire pres-

sure condition.

HOW TO CHANGE THE DISPLAY FOR ODO/TRIP METER

Refer to Owner's Manual for odo/trip meter operating instructions.

ODO/TRIP METER : Component Parts Location

INFOID:0000000009483183

AWNIA0775ZZ

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM E16 (view with ECM cover re-
moved)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit) E125

5.

Oil pressure switch E208
A. Oil pan (upper)

6.

A/T assembly F9

7.

BCM M18, M19 (view with lower instru-
ment panel LH removed)

8.

IPDM E/R E122, E124

MWI

METER SYSTEM

MWI-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ODO/TRIP METER : Component Description

INFOID:0000000009483184

SHIFT POSITION INDICATOR
SHIFT POSITION INDICATOR : System Diagram

INFOID:0000000009483185

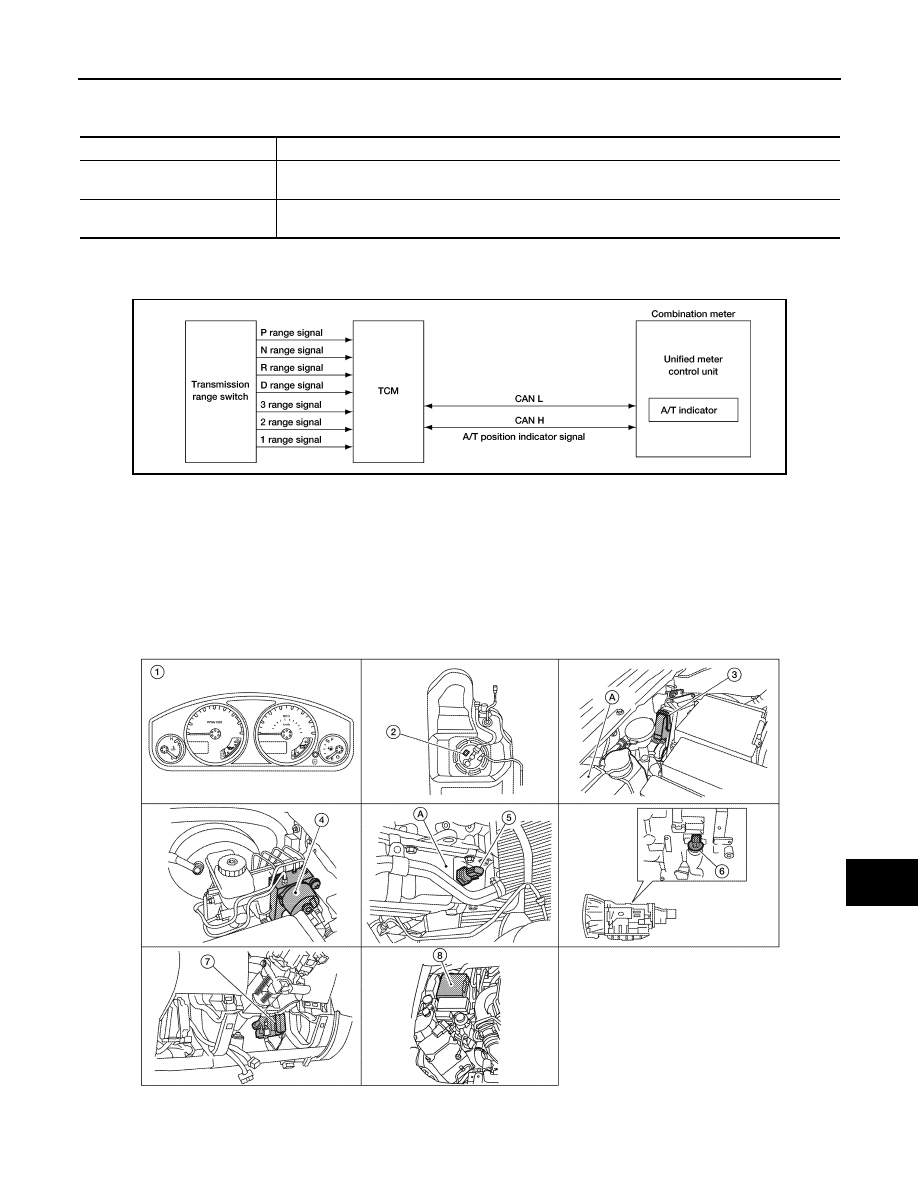

SHIFT POSITION INDICATOR : System Description

INFOID:0000000009483186

The TCM receives A/T indicator signals from the transmission range switch. The TCM then sends A/T position

indicator signals to the combination meter via CAN communication lines. The combination meter indicates the

received shift position.

SHIFT POSITION INDICATOR : Component Parts Location

INFOID:0000000009483187

Unit

Description

Combination meter

Converts the vehicle speed signal received from the ABS actuator and electric unit (control unit) via
CAN communication to mileage, and it displays the accumulated mileage to the odo/trip meter.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter via CAN communication.

AWNIA2923GB

AWNIA0775ZZ

MWI-18

< SYSTEM DESCRIPTION >

METER SYSTEM

SHIFT POSITION INDICATOR : Component Description

INFOID:0000000009483188

WARNING LAMPS/INDICATOR LAMPS
WARNING LAMPS/INDICATOR LAMPS : System Diagram

INFOID:0000000009483189

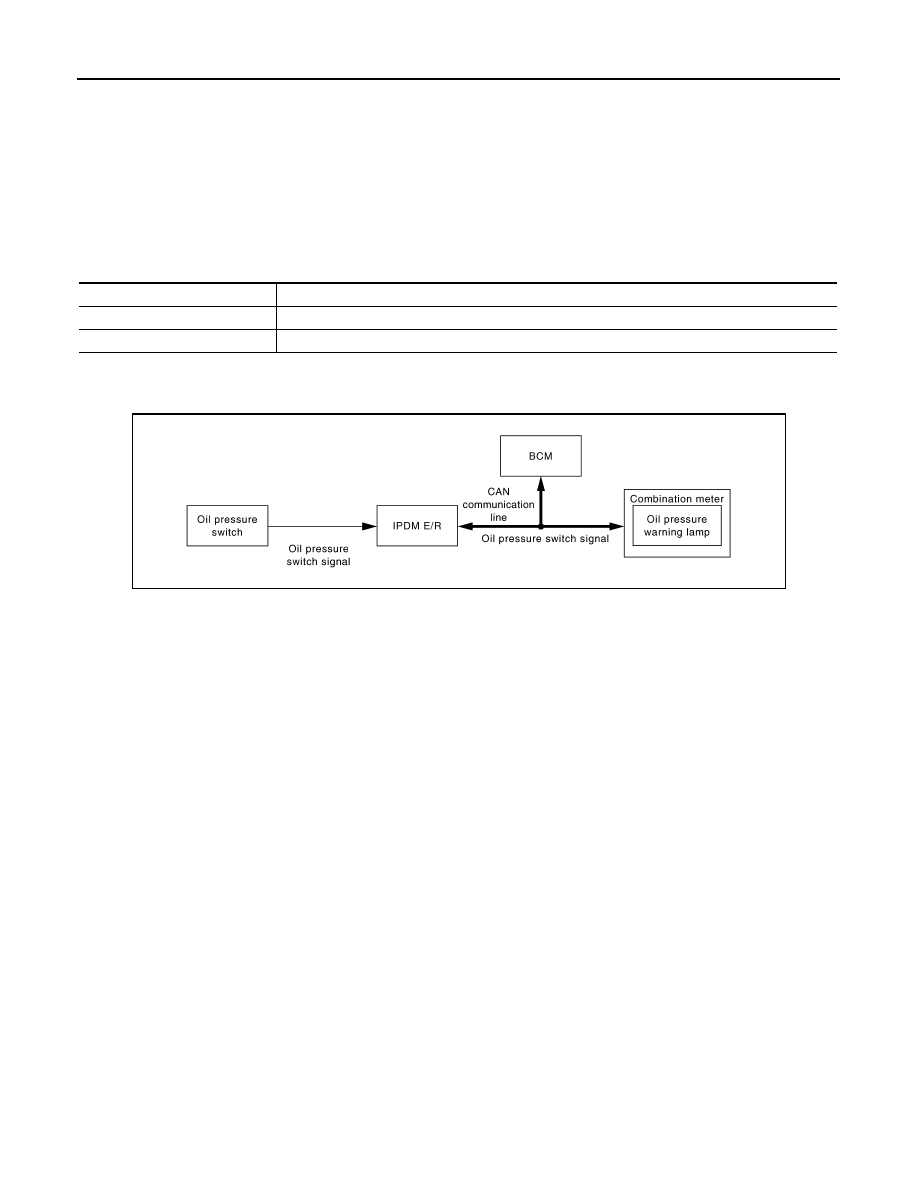

WARNING LAMPS/INDICATOR LAMPS : System Description

INFOID:0000000009483190

OIL PRESSURE WARNING LAMP

• IPDM E/R reads the ON/OFF signals from the oil pressure switch and transmits the oil pressure switch sig-

nal to the combination meter via BCM with the CAN communication line.

• The combination meter turns the oil pressure warning lamp ON/OFF according to the oil pressure switch sig-

nal received via CAN communication.

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM E16 (view with ECM cover re-
moved)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit) E125

5.

Oil pressure switch E208
A. Oil pan (upper)

6.

A/T assembly F9

7.

BCM M18, M19 (view with lower instru-
ment panel LH removed)

8.

IPDM E/R E122, E124

Unit

Description

Combination meter

Displays the shift position using shift position signal received from TCM.

TCM

Transmits the shift position signal to the combination meter via CAN communication.

JSNIA0449GB
