CHASSIS AND BODY MAINTENANCE

MA-37

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

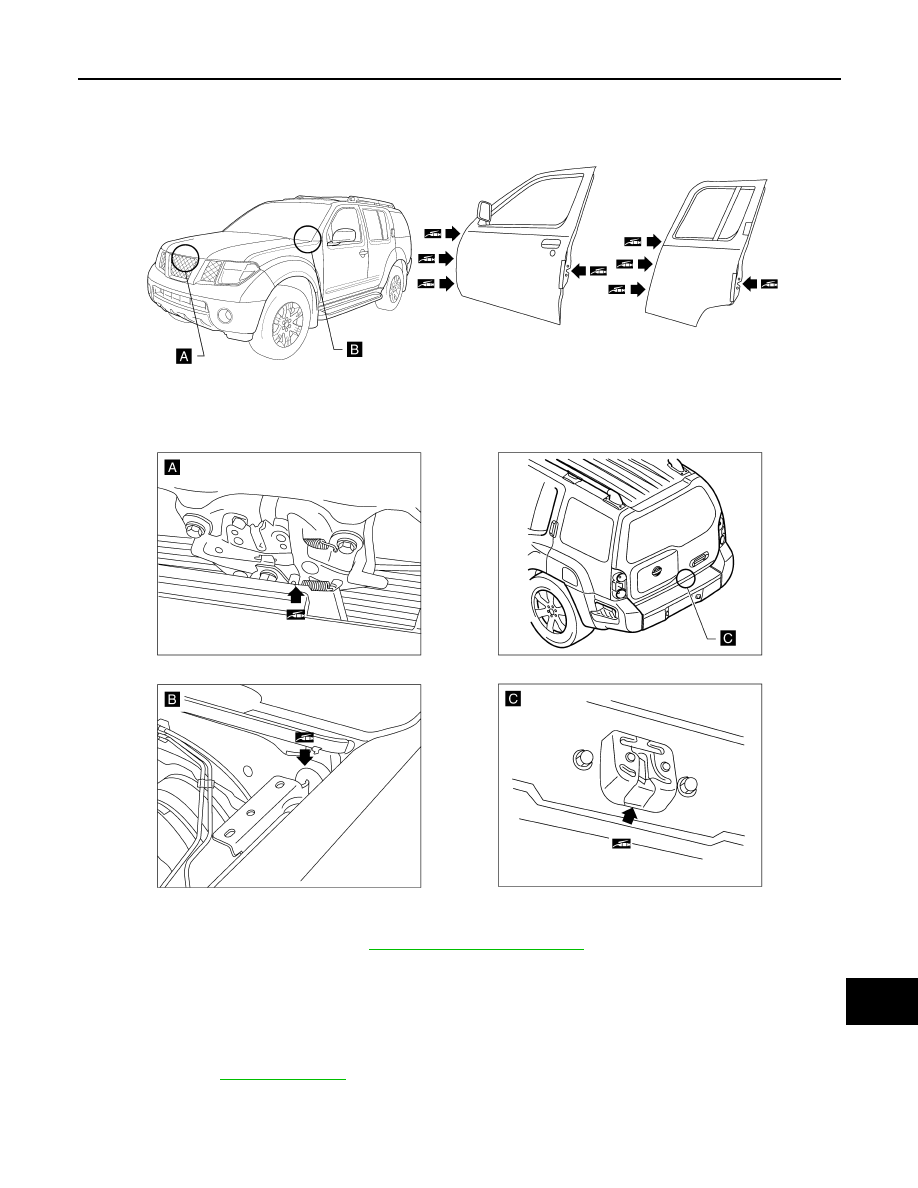

LOCKS, HINGES AND HOOD LATCH : Lubricating Locks, Hinges and Hood Latches

INFOID:0000000009484301

• Lubricate the locations shown. Refer to

MA-12, "Fluids and Lubricants"

.

SEAT BELT, BUCKLES, RETRACTORS, ANCHORS AND ADJUSTERS
SEAT BELT, BUCKLES, RETRACTORS, ANCHORS AND ADJUSTERS : Checking
Seat Belts, Buckles, Retractors, Anchors and Adjusters

INFOID:0000000009484302

Check the seat belt buckles, webbing, retractors, anchors and adjusters. Replace any seat belt assembly as

necessary. Refer to

SB-2, "Inspection"

.

• Check the seat belt anchors for loose mounting bolts, damage, or excessive wear.

• Check the seat belt webbing for any damage, cuts, fraying, or excessive wear.

• Check the retractor for smooth operation.

WLIA0028E

MA-38

< PERIODIC MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

• Check the function of the buckles by inserting the seat belt tongue and checking for proper engagement of

the buckle and press the button on the buckle to check for proper release of the seat belt tongue.

CAUTION:

• After any collision, inspect all seat belt assemblies, including retractors and other attached compo-

nents, such as the guide rail set. NISSAN recommends replacing all seat belt assemblies in use dur-

ing a collision, unless they are not damaged and are inspected to confirm they are operating

properly after a minor collision.

Also inspect all seat belt assemblies that are not in use during a collision, and replace any compo-

nents if damaged or not operating properly. The seat belt pre-tensioner should be replaced even if

the seat belts are not in use during a frontal collision where the driver and passenger air bags have

been deployed.

• If any component of the seat belt assembly is suspected of being damaged or not operating prop-

erly, do not repair the component. Replace the components as an assembly.

• If the seat belt webbing is cut, frayed, or damaged then replace the seat belt assembly.

• Do not lubricate the seat belt buckle or tongue.

• When replacing any seat belt assembly always use a Genuine NISSAN seat belt assembly.

MWI
